Auto frozen food feeder

Discussion in 'Do It Yourself (DIY)' started by ReeferAl, Oct 12, 2017.

  1. ReeferAl

    ReeferAl Well-Known Member

    Joined:
    Jun 24, 2009
    Messages:
    60
    Likes Received:
    18
    Location:
    Fond du Lac, WI

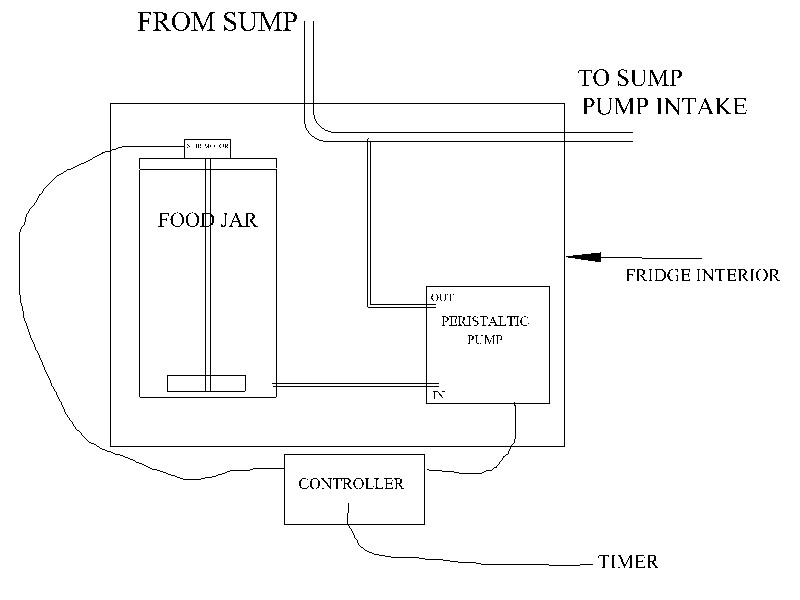

    This is the DIY feeder I've been using for about 10 years. It is designed to feed small amounts of (thawed) frozen food about every 60-90 minutes throughout the day. It has several components:
    1. Mini fridge to keep food chilled as cool as possible.
    2. Container to hold the food, suspended in water.
    3. Stirring motor to turn a propeller before each feeding to suspend the food throughout the container.
    4. Peristaltic dosing pump to send the food from the container to the tank. This also prevents any back-flow into the container. 4a. Flow loop from sump to feeder and back to sump.
    5. Board to control the feed cycle.
    6. Timer to initiate the feed cycle. I do this with the Apex.

    Magick, sneub, TonapahNorth and 2 others like this.
    Tags:

  2. ReeferAl

    ReeferAl Well-Known Member

    Joined:
    Jun 24, 2009
    Messages:
    60
    Likes Received:
    18
    Location:
    Fond du Lac, WI

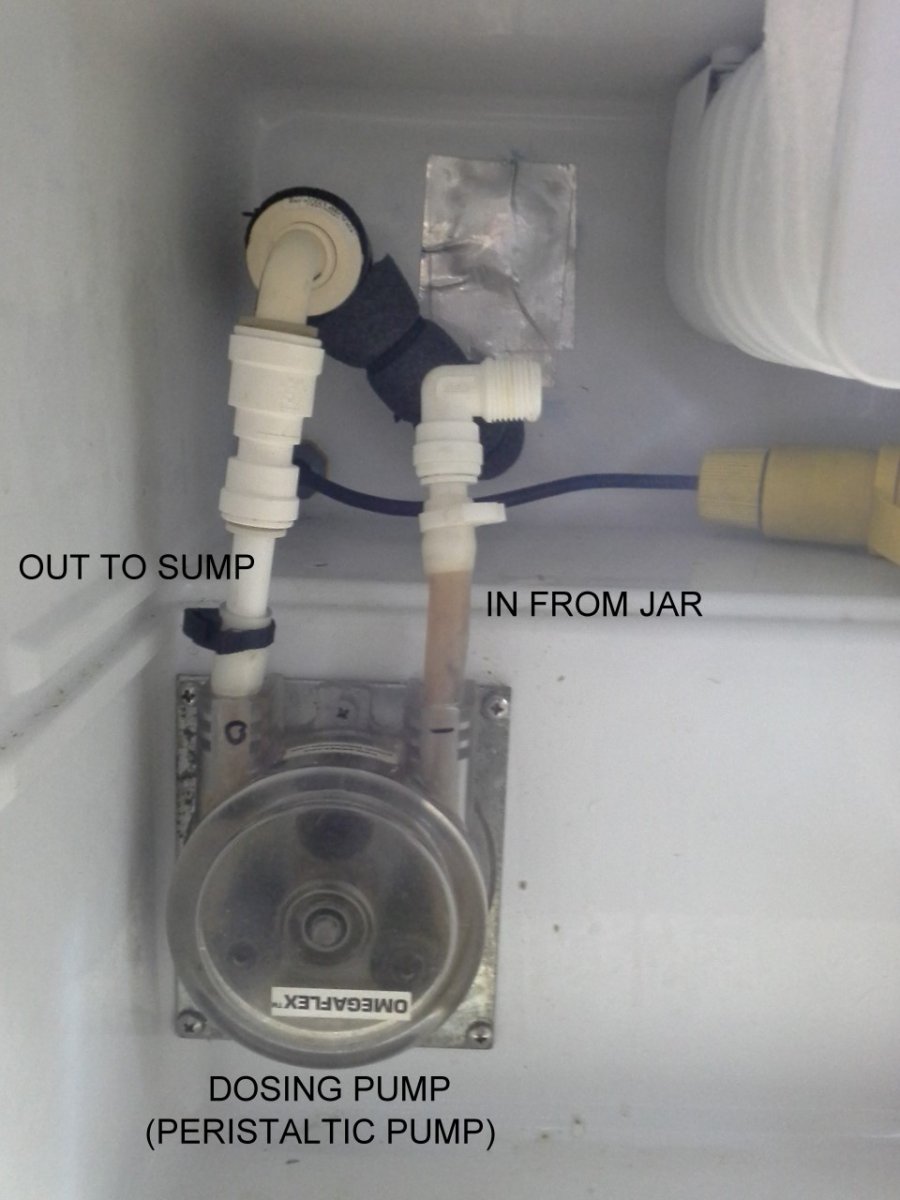

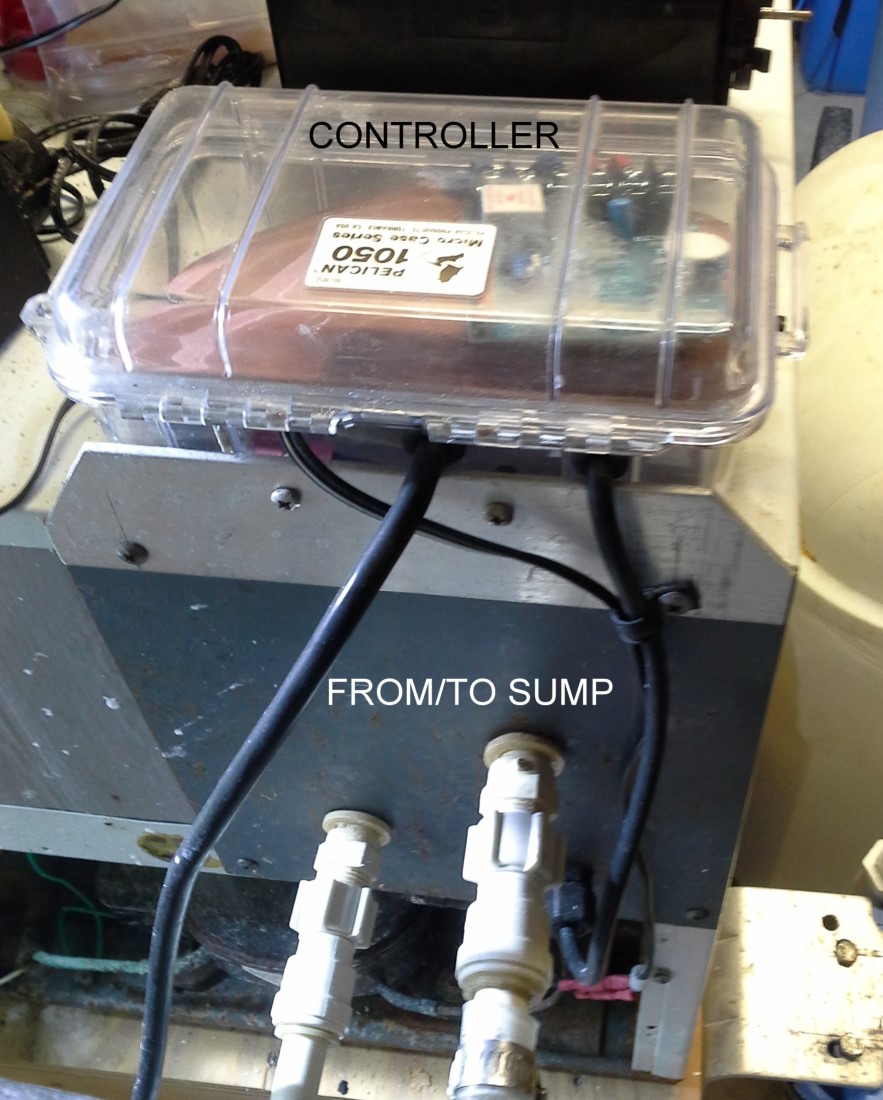

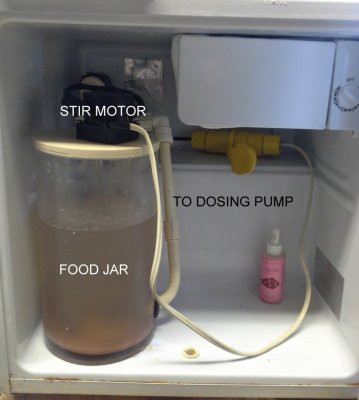

    Here are some photos of the working feeder.

    controller.jpg doser.jpg food jar.jpg

    jt17, sneub, TonapahNorth and 2 others like this.
  3. ReeferAl

    ReeferAl Well-Known Member

    Joined:
    Jun 24, 2009
    Messages:
    60
    Likes Received:
    18
    Location:
    Fond du Lac, WI
    The controller board is a relay designed for home security systems but I'm sure other boards could also be used. It allows the feeding cycle to be initiated with a low voltage trigger signal and allows the dosing pump ON-time to be adjusted down to about 1 sec. The pump I use spins pretty fast so about 1 sec per feed is plenty. Only a small amount of liquid is added with each feeding so it really doesn't affect salinity. The jar is 1 gallon and is dosed over about 6-7 days. Here's the board I've used very successfully. It is model 6030:


    zachxlutz likes this.
  4. MaddyP

    MaddyP 'Til Reefdom Come... R2R Supporter SCMAS Member Build Thread Contributor Partner Member 2018

    Joined:
    Jul 21, 2016
    Messages:
    753
    Likes Received:
    732
    Location:
    San Pedro, CA
    I’ve been searching for an appropriate mini fridge to accomplish this on a smaller scale. It seems technology hasn’t yet miniaturized refridgeration to the proper level.

    Love the project, great job!

    zachxlutz likes this.
  5. Larry L

    Larry L Well-Known Member Partner Member 2018

    Joined:
    Nov 4, 2014
    Messages:
    344
    Likes Received:
    244
    Location:
    Denver, Colorado, USA
    Nice setup. Now you just need a hopper to automatically drop food cubes from the freezer section into the food jar!

  6. ReeferAl

    ReeferAl Well-Known Member

    Joined:
    Jun 24, 2009
    Messages:
    60
    Likes Received:
    18
    Location:
    Fond du Lac, WI
    I've tried that but so far haven't gotten the bugs out so I shelved the idea. Figured I'd stick with my tried and true method.
    A while back I bought an auger assembly taken out of a commercial ice dispenser. What I would really like to do with it is have it turning very slowly but continuously all day. I can't find any motor capable of doing that though. They're either too fast or have insufficient torque. Some day I'll give it another go with the new auger assembly. I'd like to have it drop cubes or chopped food directly into the sump
    One problem I've found with small fridges or freezers is that they use the outer metal shell itself as the outside heat ex-changer. That makes it very hard to make any holes in the sides or top because you never know where the refrigerant tubing will be running. The back seems to be safe though.

    Allen

    zachxlutz likes this.
  7. ReeferAl

    ReeferAl Well-Known Member

    Joined:
    Jun 24, 2009
    Messages:
    60
    Likes Received:
    18
    Location:
    Fond du Lac, WI
    I would also caution anyone against using thermoelectric chillers. I tried and they can't keep the fridge cold enough and just don't last.

    Magick and zachxlutz like this.
  8. sbash

    sbash Not Just a Potato R2R Supporter Build Thread Contributor

    Joined:
    Mar 17, 2014
    Messages:
    810
    Likes Received:
    414
    Location:
    Ottawa, Canada
    Great idea, I never thought to use a dosing pump! Do you blend your frozen food? Some of the stuff I get would run the risk of clogging the pump...

    What about this? https://www.amazon.com/Gourmia-GMF600-Portable-Fridge-Cooler/dp/B00DQT2ZGE

  9. MaddyP

    MaddyP 'Til Reefdom Come... R2R Supporter SCMAS Member Build Thread Contributor Partner Member 2018

    Joined:
    Jul 21, 2016
    Messages:
    753
    Likes Received:
    732
    Location:
    San Pedro, CA
  10. sbash

    sbash Not Just a Potato R2R Supporter Build Thread Contributor

    Joined:
    Mar 17, 2014
    Messages:
    810
    Likes Received:
    414
    Location:
    Ottawa, Canada
    Interesting...

    Makes sense! Even in my proper fridge, at 4-5 days, the smell starts to get a bit funky...

    I wonder if these smaller fridges can be modified... Fridge/freezer tech is pretty simple....

  11. MaddyP

    MaddyP 'Til Reefdom Come... R2R Supporter SCMAS Member Build Thread Contributor Partner Member 2018

    Joined:
    Jul 21, 2016
    Messages:
    753
    Likes Received:
    732
    Location:
    San Pedro, CA
    Hmm...you pose an interesting prospect! I’ll do some research on this tomorrow. ;)

  12. ReeferAl

    ReeferAl Well-Known Member

    Joined:
    Jun 24, 2009
    Messages:
    60
    Likes Received:
    18
    Location:
    Fond du Lac, WI
    I do not chop up or blend the food in any way but I do use tubing with 3/8" ID so pretty big stuff goes through it without difficulty. With smaller tubing you would either have to chop the food or use only smaller food. Copepods, daphnia and even brine shrimp could go through fairly small tubing but I wanted to include Mysis and small krill (pacifica sp.) so I needed larger tubing. Not sure if 1/4" ID would be big enough. That's certainly and easier size doser to find than 3/8".
    As far as food going bad, I haven't seen any problems with food up to a week old, but then fish also make it a habit of eating things like the poop of other fish so I don't think they're as particular as humans. If that worries you, you could always do a new mix in 3 to 4 days instead of 7.

    Allen

  13. ReeferAl

    ReeferAl Well-Known Member

    Joined:
    Jun 24, 2009
    Messages:
    60
    Likes Received:
    18
    Location:
    Fond du Lac, WI
    I've played around with the idea of building a prototype chiller specifically for dispensing "frozen" food but dealing with compressors and refrigerants is just not practical without the right skills/training.
    My ideal system would have a pot, probably stainless steel, which would drop into a well surrounded by chiller coils. The stirrer would be incorporated into the lid and the peristaltic pump head would also be kept chilled. Maybe someday a refrigerant specialist with a reef tank will take up the challenge.

  14. atx100r

    atx100r Well-Known Member Build Thread Contributor Partner Member 2018

    Joined:
    Oct 9, 2017
    Messages:
    77
    Likes Received:
    58
    Location:
    Illinois
    Check out this setup...

    Royal_Reef and Brad Shook like this.
  15. revhtree

    revhtree Owner Administrator Staff Member Team R2R R2R Supporter R2R Excellence Award Photo of the Month Award Build Thread Contributor Article Contributor Partner Member 2018

    Joined:
    May 8, 2006
    Messages:
    2,025
    Likes Received:
    21,367
    Very cool!

  16. Heliarc19

    Heliarc19 Well-Known Member

    Joined:
    Apr 7, 2017
    Messages:
    194
    Likes Received:
    231
    We actually fabricate this setup but on a slightly larger scale (tank is 7.5 gallons) but very similar to what you described. They are for the cattle ind. to store and chill enzymes to add in feed. My personal problem to make them would simply be cost. Never thought of using one for this!

  17. ReeferAl

    ReeferAl Well-Known Member

    Joined:
    Jun 24, 2009
    Messages:
    60
    Likes Received:
    18
    Location:
    Fond du Lac, WI
    Dispensing liquids and very fine particulates is relatively easy. My goal was to be able to dispense rather large food items- specifically up to full-size Mysis. My set up does that very well.

    Allen

    BluewaterLa likes this.
  18. Heliarc19

    Heliarc19 Well-Known Member

    Joined:
    Apr 7, 2017
    Messages:
    194
    Likes Received:
    231
    Awesome

  19. Drakonis

    Drakonis Well-Known Member

    Joined:
    Mar 7, 2016
    Messages:
    234
    Likes Received:
    101
    Office water cooler... i have one i been meaning to repurpose. stainless bowl, cooling coils around it and already plastic plumbed out bottom of bowl.

  20. FugeTown

    FugeTown Well-Known Member

    Joined:
    Nov 23, 2016
    Messages:
    451
    Likes Received:
    381
    I have one suggestion for your fridge, that top shelf on the door Is empty throw a couple beers on there and while your doing maintenance in the fridge you can crack a beer :D
