I wanted to start by giving Special Thanks to Kessil, Sicce and Bulk Reef Supply for getting this build started!

I recently moved to Texas so this is a brand new build, I've been reefing since I was a kid and have been infatuated with the hobby ever since.

I do make more up to date or minute by minute updates on the build on my Instagram page if you would like to follow me on there as well.

Bayarea_Reef Instagram - Come Follow Me!

Tank:
72x30x21 Innovative Marine 200EXT Tank and Stand (White)
Sump/Filtration:
Synergy Reef SK60 60" Sump with Dual Clearisea SK5000 Brackets
Clearisea SK5000 Roller Mat Filter
Reef Octopus Elite 200SS Protein Skimmer
Pentair 40w UV Sterilizer
Marine Pure Blocks
Clearwater Algae Scrubber CW100
Lights:
(3) Kessil A500x
(1) Kessil A360x (Sump Frag Tank)
(4) Aquaillumation Blade 2 Grows 2 Glows
Pumps/Other:
Dual Neptune COR20 Return Pumps
(4) EcoTech MP40's
Aquamaxx Bio Reactors
CARX:
Reef Octopus CR220 Calcium Reactor
Kamoer FX-STP Wifi Peristaltic Pump
Carbon Doser CO2 regulator
Controller:
Neptune Apex A3 Pro
Trident
(4) Neptune DOS Dosers (One for Auto Water Change)
Neptune Custom ATK
Supplements:
MoonShine Supplements
Brightwell Iodion
Brightwell NeoPhos/NeoNitro
Brightwell Restor
Brightwell Aminos
Brightwell Reef Code A/B
Coral List:
LPS:
Euphyllia (Hammers, Frogspawn, Torches)
Rainbow and Black Widow BTA
Rock Flower Nems
Acanthophyllia
Micromussa Acans
Elegance Coral
Lobophyllia
Echinata
Trachyphyllia
Scolyomia
Fungia Plate Coral
Goniapora
Alveropora
Bowerbanki
Blastomussa
Jellybean Chalice

SPS:
Grated Montipora Cap
Yellow Scroll Montipora
Mille
Tenius
Digitata

Softies:
Rhodactis Mushrooms
Discoma Mushrooms
Yuma Mushrooms
Japanese Leathers
Pink Nepthea
Various Gorgonians
Zoas

Fish:
Gem Tang
Koi Tang
Yellow Tang
Yellow Belly Hippo Blue Tang
Yellow Eye Kole Tang
Borbonius Anthias
Blue Star Leopard Wrasse
Yellow Coris Wrasse
Lineatus Supermale Wrasse
Pintail Fairy Wrasse
Lawnmower Blenny
Longnose Hawkfish
Midas Blenny
Tailspot Blenny
Helfrichi Firefish
Mandarin Fish
Ruby Scooter Blenny Pair
Pair of Davinci Clownfish
Trio Tierra Anthias

Inverts:
Tiger Conch
Astrea Snail
Turbo Snail
Nassarius Snail
Feather Duster
Margarita Snail

Last edited:
OP
OP
bayarea_reef

bayarea_reef

Active Member
View Badges
Joined
Apr 1, 2019
Messages
121
Reaction score
253
Rating - 0%
0   0   0
Tank arrived in February in perfect condition had to slip the delivery guy some money to get it up into my garage for me.




Opened the crate to inspect and Innovative Marine does an excellent job at creating the tank.

OP
OP
bayarea_reef

bayarea_reef

Active Member
View Badges
Joined
Apr 1, 2019
Messages
121
Reaction score
253
Rating - 0%
0   0   0
I've been working on the aquascape in the garage on a fold out Costco table which is exactly the dimensions of the tank. I use the method done by tidal gardens using Super Thin CA blue and Aragonite sand to bond the pieces together.

Check out my video on it here AquaScaping the 200EXT



OP
OP
bayarea_reef

bayarea_reef

Active Member
View Badges
Joined
Apr 1, 2019
Messages
121
Reaction score
253
Rating - 0%
0   0   0
I've been really wanting to do the custom light mount with the automatic raising and lowering of the arms. I came up with the idea with a friend of mine back home to use the electronic legs of a stand up desk.

I fabricated a mount to attach it to the back of the aluminum EXT stand with some 8020 accessories and then slide the table legs into this custom sleeve.

It came out pretty good! You can check out the video post here Automated Lift Light Bracket System














Last edited:
OP
OP
bayarea_reef

bayarea_reef

Active Member
View Badges
Joined
Apr 1, 2019
Messages
121
Reaction score
253
Rating - 0%
0   0   0
I chose the Synergy Reef SK60 Sump for this build. I originally went with a trigger 39 platinum but the size was adequate for me, and I like that you can remove the filter roller and use socks at anytime.

Here are the spec.
  • Dimensions: 60″ long x 18″ wide x 18″ high ( 23-25″ with Clarisea Installed)
  • Refugium Section: 13″ x 17.5″ (Approximately 12 Gallons)
  • Skimmer Section: 19.5″ x 17.5″
  • Return Pump Section: 9″ x 17.5″
  • Total Water Volume: 74 Gallons
  • Skimmer Water Level: 6″ to 10″ adjustable


Attachments

  • 1620324766299.png
    1.2 MB · Views: 202
OP
OP
bayarea_reef

bayarea_reef

Active Member
View Badges
Joined
Apr 1, 2019
Messages
121
Reaction score
253
Rating - 0%
0   0   0

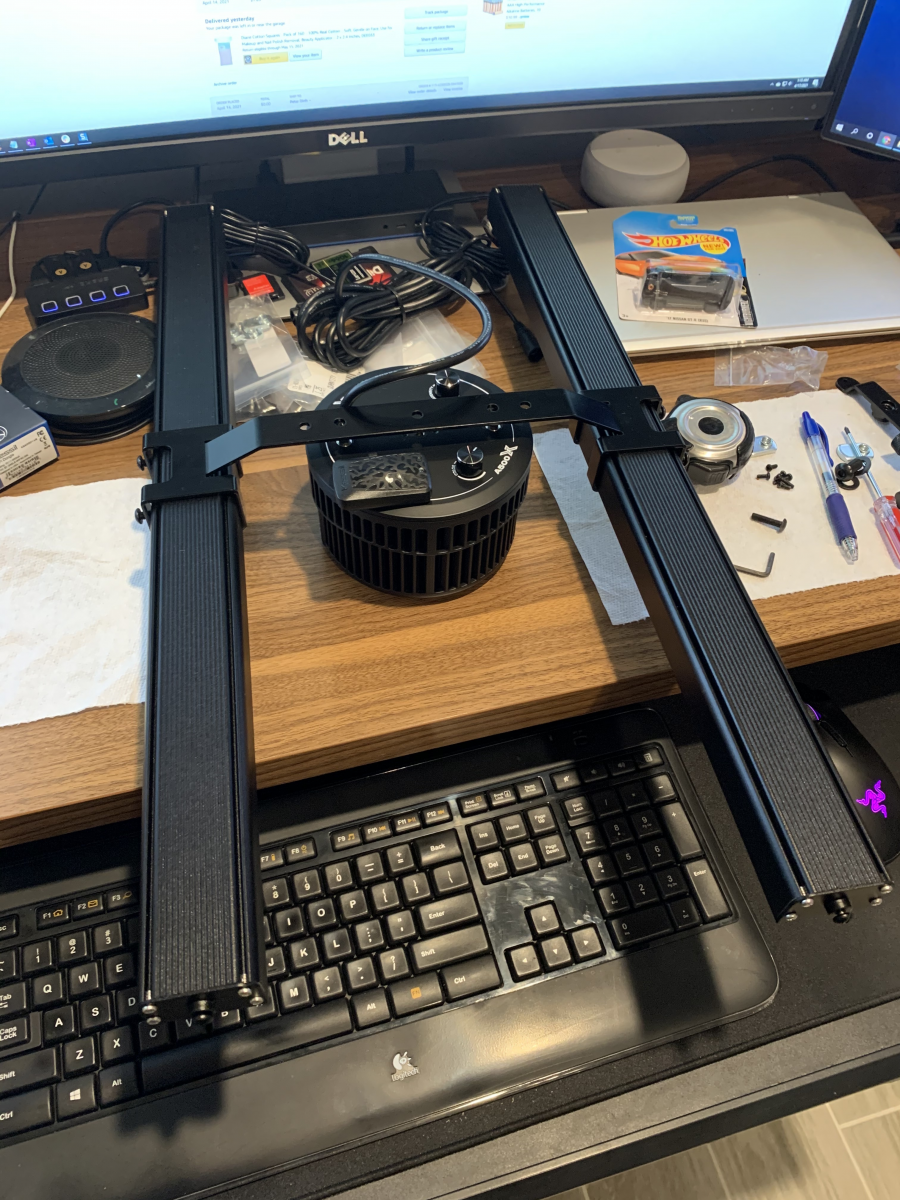

I have been playing around with the reefbrite mounts with the Kessil A500x mounted in the middle of it. I decided to use only one of the mounting brackets to make it look clean.




OP
OP
bayarea_reef

bayarea_reef

Active Member
View Badges
Joined
Apr 1, 2019
Messages
121
Reaction score
253
Rating - 0%
0   0   0
Attached all the lights to extruded aluminum bar series 10 which is 1x1 square bar.













I cut and mounted a piece of MDF whiteboard to the back of the lift system to neatly install all the power bricks and provide some wire management, the reason for the board is that the lift will lift all the components up with it, so that I don't have a ton of wires going down and can possibly get tangled while the lift moves up and down.

Also when the tank is pushed up against the wall it will be very hard to get back there so I can detach the entire board and replace a power brick or add/remove something in the future.














Last edited:
OP
OP
bayarea_reef

bayarea_reef

Active Member
View Badges
Joined
Apr 1, 2019
Messages
121
Reaction score
253
Rating - 0%
0   0   0
I can't say enough good things about this fantastic sump made by Synergy Reef. I've slid it under the cabinet and its a perfect fit!

This sump has the option to run two clearisea SK5000 filter rollers, and with a simple switch of a bracket you can be running 4" or 7" filter socks.




Last edited:

Mywifeisgunnakillme

Valuable Member
View Badges
Joined
Sep 17, 2020
Messages
1,765
Reaction score
1,889
Location
Gig Harbor
Rating - 0%
0   0   0
I can't say enough good things about this fantastic sump made by Synergy Reef. I've slid it under the cabinet and its a perfect fit!

This sump has the option to run two clearisea SK5000 filter rollers, and with a simple switch of a bracket you can be running 4" or 7" filter socks.


It's pretty interesting that synergy now offers the clarisea option...

This is what they said to me in December when i asked for a CL60 to fit a Clarisea and when I specifically asked if i could "get [a] two sock section that just drops in and is removable (for temporary use while order/wait to made for a new filter roll machine)?":



So they basically told me no way--go pound sand--then sold you one just like i asked maybe a month or two later...

My CL-60 is nice, and all, and i ordered a Klir 7 inch for it, but it kind of erks me that they would do that...

This is what they had to say about why they did not offer the option:


Last edited:
OP
OP
bayarea_reef

bayarea_reef

Active Member
View Badges
Joined
Apr 1, 2019
Messages
121
Reaction score
253
Rating - 0%
0   0   0
It's pretty interesting that synergy now offers the clarisea option...

This is what they said to me in December when i asked for a CL60 to fit a Clarisea and when I specifically asked if i could "get [a] two sock section that just drops in and is removable (for temporary use while order/wait to made for a new filter roll machine)?":



So they basically told me no way--go pound sand--then sold you one just like i asked maybe a month or two later...

My CL-60 is nice, and all, and i ordered a Klir 7 inch for it, but it kind of erks me that they would do that...

This is what they had to say about why they did not offer the option:



That is interesting, they released the the SK44 and SK60 with the options you had laid out, maybe based on feedback for the need? I never asked them to make a custom sump with those features, it was already developed that way. When they made the announcement a few months ago I jumped at the opportunity because it is exactly what I needed.

OP
OP
bayarea_reef

bayarea_reef

Active Member
View Badges
Joined
Apr 1, 2019
Messages
121
Reaction score
253
Rating - 0%
0   0   0
Dry fitting all the blue 1" PVC plumbing, I tried several different layouts and this seems to be the most aesthetically pleasing and most easy to maintain. This is just the dry fit layout the final layout will have unions at each section so I can easily remove it and replace or clean in the future.

I used Oatley Fusion 2in1 PVC glue which is fantastic, no need for a separate primer and it saves a lot of time and mess.










OP
OP
bayarea_reef

bayarea_reef

Active Member
View Badges
Joined
Apr 1, 2019
Messages
121
Reaction score
253
Rating - 0%
0   0   0
I purchased a 40w Pentair UV sterilizer and was contemplating installing it vertically or horizontally and plumbing it to my manifold.

After speaking to some reefers online, we thought it would best to install the UV sterilizer inline with one of the returns so that the water doesn't get recycled in the sump, I ended up removing the long section of return that went to the far left return nozzle and replaced it with the UV sterilizer in its place.





Mywifeisgunnakillme

Valuable Member
View Badges
Joined
Sep 17, 2020
Messages
1,765
Reaction score
1,889
Location
Gig Harbor
Rating - 0%
0   0   0
That is interesting, they released the the SK44 and SK60 with the options you had laid out, maybe based on feedback for the need? I never asked them to make a custom sump with those features, it was already developed that way. When they made the announcement a few months ago I jumped at the opportunity because it is exactly what I needed.
Yeah, i just wish they gave me the option to wait while they made your sump, lol... Seems they just took the immediate sale...

They used to do custom stuff from what i understand but stopped because easier/less hassle to not...

No bother, my next sump for my 50 lagoon ext was not Synergy i will say though... To me the entire point of paying far more for made in USA plus heavy shipping costs is only worth if its great customer service...

Everytime i spoke with them, they seemed jaded and/or didnt have time for me... i mean im buying a $2000 sump with shipping and she told me she had to get back to work... like selling to me wasn't worth while work for her i guess...

I get it everyone has a bad day, but I've never been blown off like that by any other company... i mean my budget is unlimited, i have three reef aquariums... i had maybe six questions in total before closing the deal... I almost didn't buy it at all, but decided to figuring they were not ever going to offer what i wanted...

Probably go royal exclusive in the future...

I do like your sump though!

Let me know how your clarisea works... they seem to think it wont... (and now they sell the option?!) but i disagree... her flow figures were way off... her reasoning was based on high flow and people not wanting to pay for fleece..

First, there is no reason to run more than 1000 gph through that sump... you could 700-800 fine IMO. And that would probably better... flow is wave wakers not returns...

Second, i am buying a $2000 box when i could make do with some for $200. Talk about not understanding your customer base... ill pay $50 a month to not touch filter socks happily...

Third, tons of people love clariseas so i think they just set it up wrong if they had issues...

Fourth, clearly they did not test every filter roller... (when they said "all" didnt work) ... unless she thinks royal exclusive drop in rollers are crap too??? Plus, people have great success with all kinds of models...

They should just being willing to make chambers to fit different rollers size and needs... rollers not socks is where the hobby is going!!
