Diagnose my maxspect xf330 gyre issue?

  • Thread starter Thread starter JoJosReef
  • Start date Start date
  • Tagged users Tagged users None

JoJosReef

There's some lovely filth down here!
View Badges
Joined
Sep 27, 2021
Messages
20,818
Reaction score
81,442
Location
Orange County, CA
Rating - 0%
0   0   0
Trying to figure out what the problem is with this gyre. Appreciate anyone that watches the video and lets me know if this has something to do with the bushings or the impellers or maybe the magnetic rod that goes inside the motor...

https://photos.app.goo.gl/LJ3Qxj2LL8NU7qfV7
Turn the volume up, and you can hear the vibrating and clacking sound that happens when it gets near 0%

Thanks!!

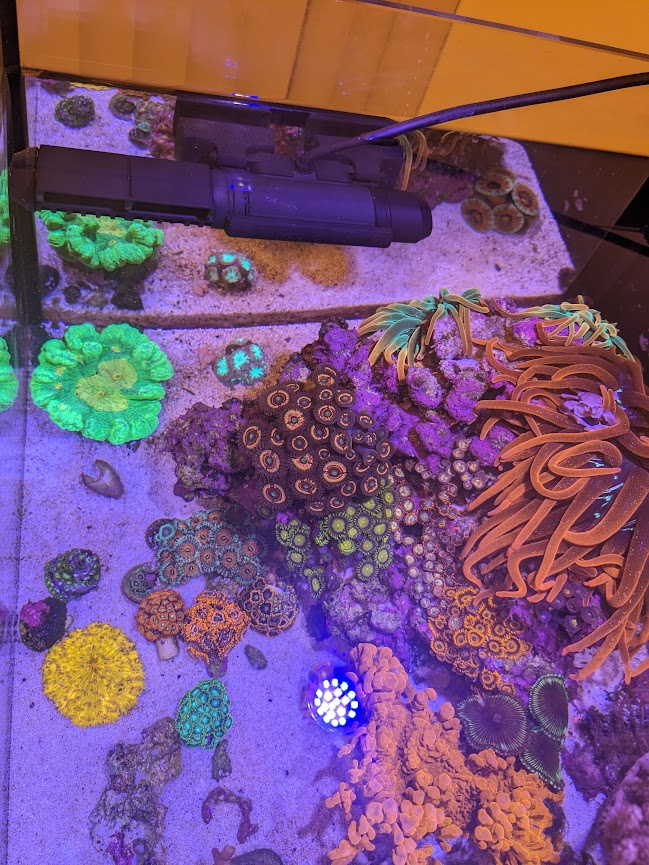

Picture from the top:


I have an endcap on the B side so it only runs the A side of the gyre, but it does this same thing and stops running after clicking a few times when the B side is on. Right now, it vibrates and makes the clacking sound particularly once the % hits zero and it starts up again.

It seems like it’s unbalanced? Is the cap hitting anything? Is it stopping to prevent it from jamming?

Is it ever pumping water out? It may have a burnt winding causing the rotor to vibrate back and forth instead of spinning.
It does pump water. When it ramps up from 0%, accelerates, sometimes stops and then goes again. I tried just putting it on constant stream, but it never gets to a point where it just runs nonstop. It will make a clackign noise, stop, then start again.

Hmm:thinking-face:, hard to say without witnessing. The next "logical" idea from the symptoms you describe, maybe a worn bushing/bearing that allows the rotor to get thrown off center far enough that the fins make contact with the housing thus stopping it. The faster the spin the more centrifugal force throwing it off center. That could explain why it ramps, up then stops, then restarts. But I am totally guessing at this point.

Hmm:thinking-face:, hard to say without witnessing. The next "logical" idea from the symptoms you describe, maybe a worn bushing/bearing that allows the rotor to get thrown off center far enough that the fins make contact with the housing thus stopping it. The faster the spin the more centrifugal force throwing it off center. That could explain why it ramps, up then stops, then restarts. But I am totally guessing at this point.
I'll try swapping the bushings with the cage that isn't in use and see what happens. Can also buy more bushings as that's not a bad thing to have in hand.
