DIY Diffuser

[Hassaan]

Hi,
I am trying to DIY a diffuser for "radion xr30 G4 pro", and I want to know the thickness of the diffuser sheet.
I found this material (Link) and I think it will be good.
But I want to make sure of the thickness of the original diffuser first.



[FoolishWizard]

The diffuser sheet is prob .25mm it’s THIN.



[Hassaan]

The diffuser sheet is prob .25mm it’s THIN.

Only a quarter of a millimeter? :rolleyes:



[FoolishWizard]

Yes, maybe a few pieces (3-4) of paper thick... Prob thinner than .25mm.



[X-37B]

Here ya go. About .09".



[Hassaan]

Here ya go. About .09".

Approximately 2 millimeters, is this the original Radion sheet?



[X-37B]

Approximately 2 millimeters, is this the original Radion sheet?

Yes it is one from my xr15 gen 5 but they are all the same thickness.



[Hassaan]

Yes it is one from my xr15 gen 5 but they are all the same thickness.

Thanx man.



[X-37B]

Thanx man.

Your welcome!



[Sisterlimonpot]

I've designed diffusers for my g4s. The hard part was sourcing the diffuser material. They use a frosted acrylic.

But I used thick diffuser material.



[Hassaan]

I've designed diffusers for my g4s. The hard part was sourcing the diffuser material. They use a frosted acrylic.

But I used thick diffuser material.

Great, can you share link of the material you used?



[FoolishWizard]

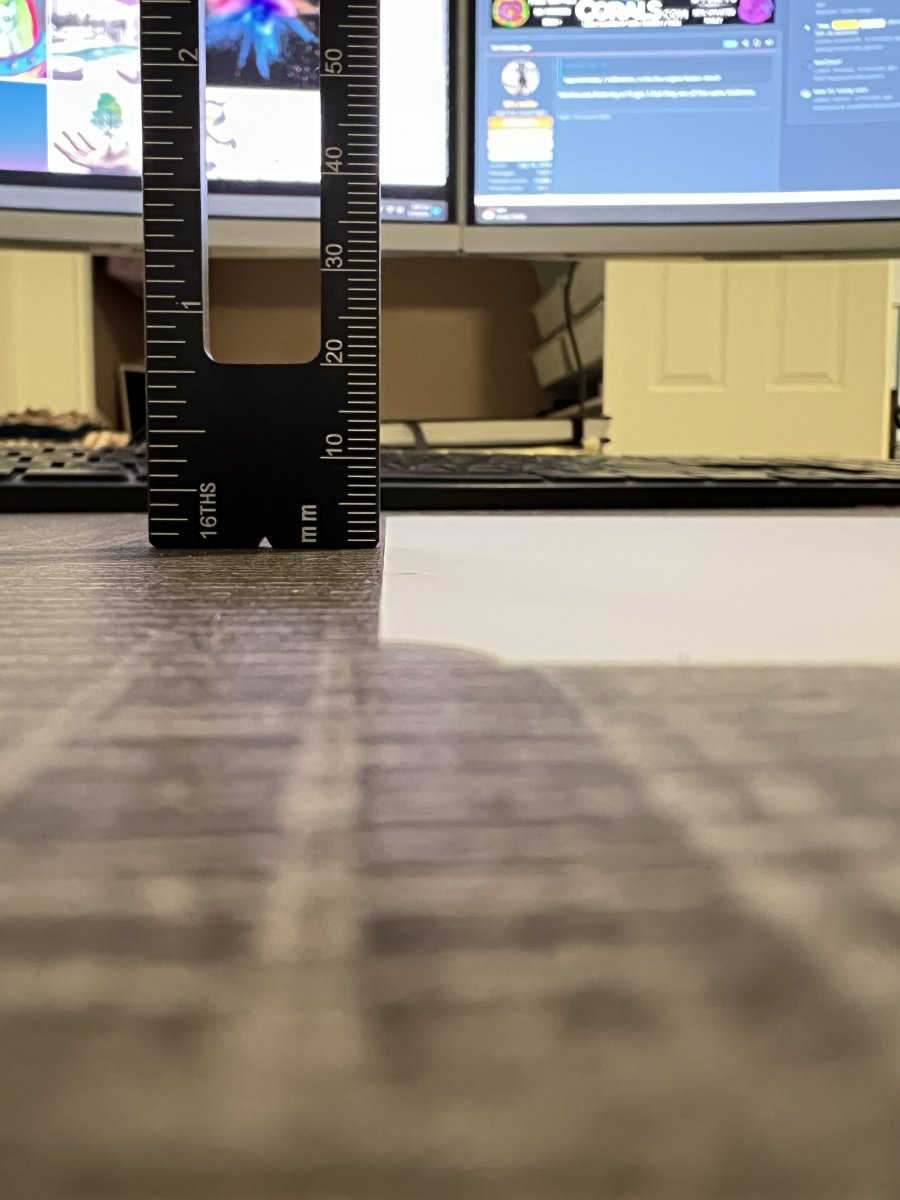

Well they must be cutting costs now lol… Now I don’t have calipers but mine is much thinner than 2mm… I’d still say mine is around .25mm, if that.



[FoolishWizard]

Here ya go. About .09".

Scale on calipers says each mark = .001in

so that’s .009” not .09”

lol I keep thinkin I’m crazy or my diffuser is unusually thin… But .009 looks about right.



[X-37B]

Oops! Yea im getting old, lol.
Nice catch!



[Hassaan]

Scale on calipers says each mark = .001in

so that’s .009” not .09”

lol I keep thinkin I’m crazy or my diffuser is unusually thin… But .009 looks about right.

Nice catch :cool:



[tiefun]

G4'lerim için difüzörler tasarladım. Zor olan kısım difüzör malzemesini bulmaktı. Buzlu akrilik kullanıyorlar.

Ama ben kalın difüzör malzemesi kullandım.

hi. pls STL file



[tiefun]

I've designed diffusers for my g4s. The hard part was sourcing the diffuser material. They use a frosted acrylic.

But I used thick diffuser material.

Can you send STL files.



[Featherweight]

Anyone have any more ideas on this. My diffuser material needs a refresh and I cannot find g4 diffusers anymore. Id love to replace the sheet portion. What is the material?



[phenganax]

Anyone have any more ideas on this. My diffuser material needs a refresh and I cannot find g4 diffusers anymore. Id love to replace the sheet portion. What is the material?

Same, I'm looking for an stl files so I can print my own. I don't know why it's so hare to find an alternative.
