How have you/are you plumbing the pipes in the overflow box? IM calls it bean animal but I have been researching bean animal and it has the u bend pipes on the ends of the straight primary and secondary drain pipes.
I haven't gotten to that point yet. Increasing my manifold to 1" and ordering parts today from BRS...so that has consumed some of my time. Also, plan to go ahead and incorporate a 40 watt UV while I'm doing all the plumbing. Initially, I was going to use a portable UV (green killing machine), but decided to plumb it now while access is the easiest.

Here is a decent article on overflows if you haven't seen it. I'll probably run with it like IM instructs and see what issues (if any) arise.



infinite0180

Valuable Member
View Badges
Joined
Apr 25, 2018
Messages
1,165
Reaction score
694
Yepper, that's the ticket; thanks! I thought that was an option, but it seems they include it now.

Are the side panels of your stand doors like the one in this build?
I wonder if IM started changing the stand for the 100?

https://www.omegasea.net/
OP
SPS2020

SPS2020

Active Member
View Badges
Joined
Jun 24, 2020
Messages
115
Reaction score
121
@SPS2020 how far are you leaving it off the wall. I know with the EXT you have to leave it some, but not sure how far. 6" or 12" past the EXT box. Thank you for any advise.
Ironically, I was just thinking about that last night. I'll have an answer and update you over the weekend as many plumbing parts and an Aqua Ultraviolet Classic Inline UV Sterilizer (57 Watt) arrive tomorrow, hopefully. The UV will reside under the manifold and I am not sure how far out it will be away from the stand. Ideally, it will be no further than 6" as I would like it as close to the load bearing wall as possible. I did not reinforce floor joists.

Top Shelf Aquatics
OP
SPS2020

SPS2020

Active Member
View Badges
Joined
Jun 24, 2020
Messages
115
Reaction score
121
@SPS2020 how far are you leaving it off the wall. I know with the EXT you have to leave it some, but not sure how far. 6" or 12" past the EXT box. Thank you for any advise.
6" was the magic number (for me). I wanted to go out another inch, but there is a tray ceiling in the master which prevented me from moving it further. Otherwise the lights would not be in the center of the tank.


Fragtacular Sale
OP
SPS2020

SPS2020

Active Member
View Badges
Joined
Jun 24, 2020
Messages
115
Reaction score
121

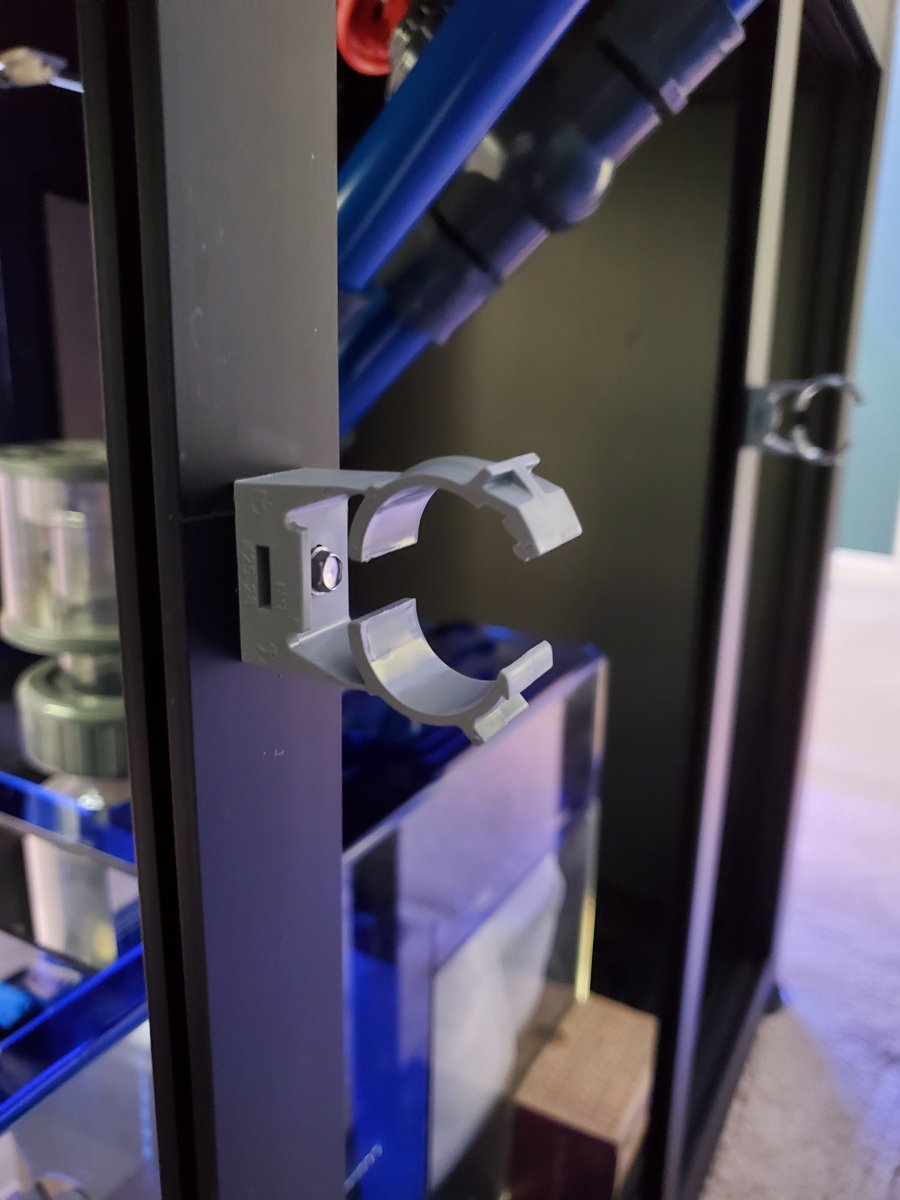

One of my dislikes about the stand is that the doors have no restraint system and will hit the edge of the stand and make a mark\scratch on the front door if allowed to swing freely.



garyfri

Active Member
View Badges
Joined
Jun 27, 2020
Messages
128
Reaction score
95
Location
Corpus Christi, Texas
@SPS2020 you fit the fitting IM sent you through the EXT and through the back and then glue the 3/4 pipe into it correct? Or did you glue it into thread and then screw the unions on. just want to be sure as it seems if I glue the they are perm. as they go through the overflow.


infinite0180

Valuable Member
View Badges
Joined
Apr 25, 2018
Messages
1,165
Reaction score
694
@SPS2020 you fit the fitting IM sent you through the EXT and through the back and then glue the 3/4 pipe into it correct? Or did you glue it into thread and then screw the unions on. just want to be sure as it seems if I glue the they are perm. as they go through the overflow.
Those are slip bulkheads. You glue pipe directly into them. The threads are only for the nut to tighten it to the tank! Do not attempt to screw a fitting onto the outside thread of a bulkhead. It will not fit and it will leak! You should watch this video before plumbing:
