My IM 200 gallon gets here on the 27th. I will post pics of my build to this thread. I just want to start so far with the preliminary planning I have. Please let me know what you see wrong or advise you can give.
1. For the plumbing is it better to bend right under the cabinet or bring it lower just above the sump? The drain will be 1" to 1.5". The return will be a 1.25 outlet to two 3/4 return. I
2. IM website shows shift tubing and that is what I have drawn. Should I hard plumb it and why? Thank you in advance for all your ideas and critiques?

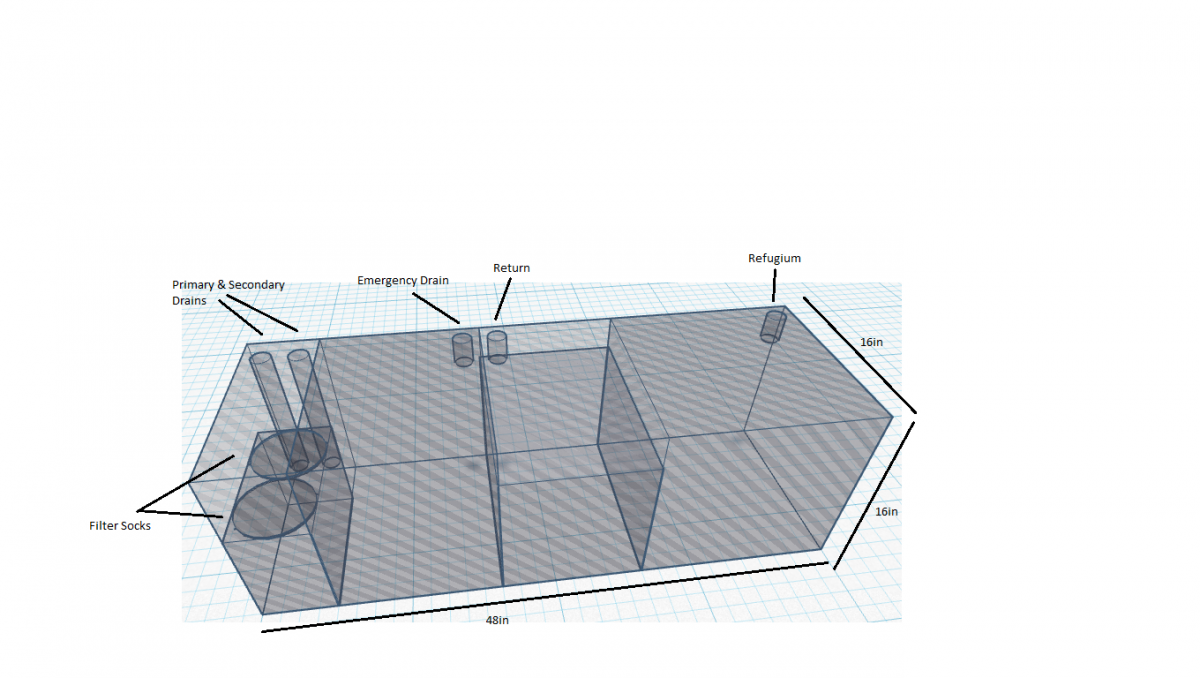

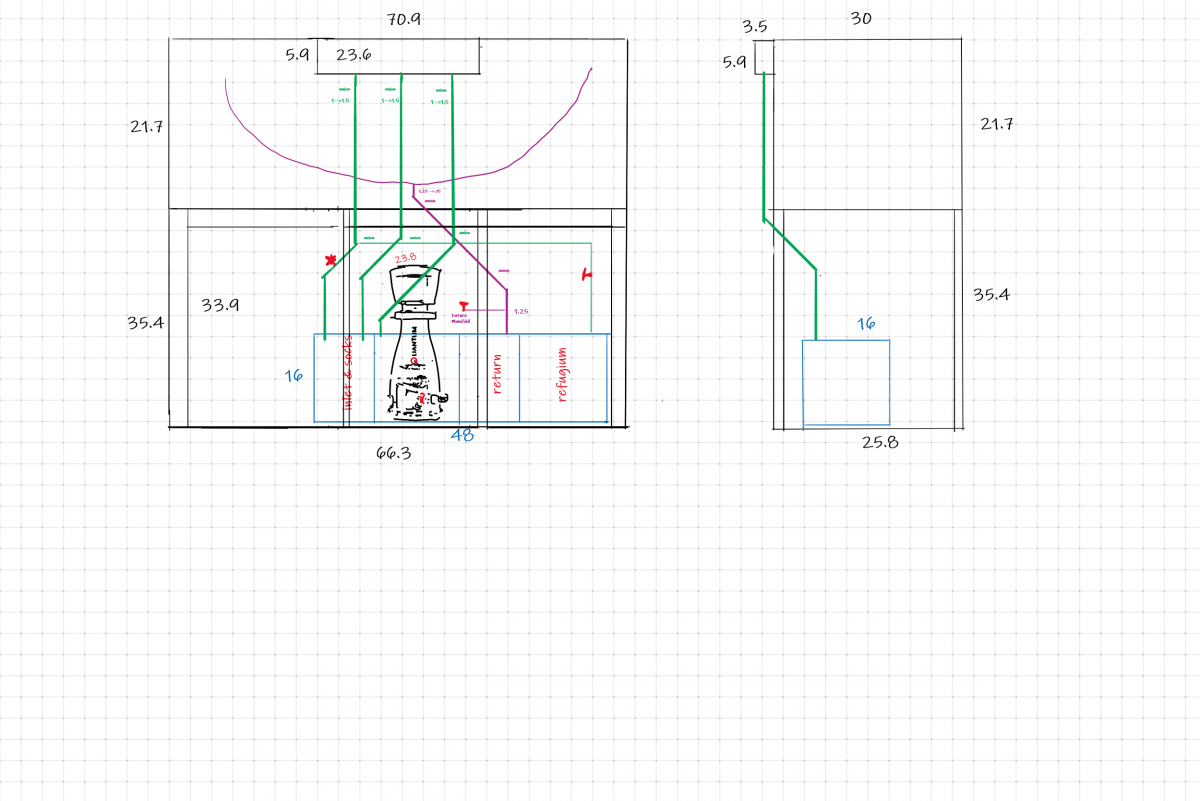

Inline image.png Sketch_tank.png


mattzang

2500 Club Member
View Badges
Joined
Jul 30, 2018
Messages
2,511
Reaction score
4,214
Location
redlands CA
Rating - 0%
0   0   0
i have the 100 EXT, idk if i should give advice on how to plumb it tho lol. i put my return in the last section of the sump and just did a T from there to both returns. i avoided doing flexible tubing except from the return to some pipe above it so i can service it from time to time. i'd suggest taking your time with the plumbing unless you're good at that sort of thing as i wasn't

have some tools ready to go tomorrow when the shippers drop it off, mine came in a pretty sturdy wooden box with metal clamps and stuff and don't sign for it until you give it a solid look. my first one ended up having a chip in it, either from shipping or my moving it so i had to eat it to get a new tank. the 200 EXT is stupid heavy IIRC so you'll want several buddies to help you out

OP
OP
G

garyfri

Active Member
View Badges
Joined
Jun 27, 2020
Messages
149
Reaction score
116
Location
Corpus Christi, Texas
Rating - 0%
0   0   0
i have the 100 EXT, idk if i should give advice on how to plumb it tho lol. i put my return in the last section of the sump and just did a T from there to both returns. i avoided doing flexible tubing except from the return to some pipe above it so i can service it from time to time. i'd suggest taking your time with the plumbing unless you're good at that sort of thing as i wasn't

have some tools ready to go tomorrow when the shippers drop it off, mine came in a pretty sturdy wooden box with metal clamps and stuff and don't sign for it until you give it a solid look. my first one ended up having a chip in it, either from shipping or my moving it so i had to eat it to get a new tank. the 200 EXT is stupid heavy IIRC so you'll want several buddies to help you out
They tell me to inspect it if the driver will stay and any issues don't accept it. I was concerned because I have had large purchases before and the drivers don't want to wait. They told me to note that on the paper and they would work with me if any damages. Did you contact them with the chip and they refused to fix it?

I have never plumbed an aquarium before? Did you keep the standard 1 inch into the drain?


mattzang

2500 Club Member
View Badges
Joined
Jul 30, 2018
Messages
2,511
Reaction score
4,214
Location
redlands CA
Rating - 0%
0   0   0
They tell me to inspect it if the driver will stay and any issues don't accept it. I was concerned because I have had large purchases before and the drivers don't want to wait. They told me to note that on the paper and they would work with me if any damages. Did you contact them with the chip and they refused to fix it?

I have never plumbed an aquarium before? Did you keep the standard 1 inch into the drain?

well i didn't even try to unbox it when the driver was there. like you said i'd feel bad about him having to stay to unbox it, but if you sign for it you're done for if you find out later it had an issue.

to be totally fair to IM, i didn't notice the chip for like 2 weeks when i had moved it to my garage. they ended up giving me 20% off a new tank, so i can't hate on them for anything, it was on me.

i just did the 1" and my returns were 3/4". i'd say the biggest challenge was aiming all of the drain pipes right into the bubble diffuser pipe or whatever they're called. perhaps flexible tubing would've been better. but i was hellbent on using hard piping and having gate valves so i could control the flow and keep it quiet, my first tank plumbing was all flexible tubing and no valves of any kind so it had a definite annoying siphon noise sometimes

OP
OP
G

garyfri

Active Member
View Badges
Joined
Jun 27, 2020
Messages
149
Reaction score
116
Location
Corpus Christi, Texas
Rating - 0%
0   0   0
So my tank arrived on Friday, 1 day before the hurricane. Had to pay extra as they only do curbside drop off. Also IM requires you to inspect on the spot. Looked good. Had one spot were the black silicone was bedded to an end but nothing major. Was not able to inspect the bottom of the aquarium as has wood panels and wrote this on the sheet.

Ohh the driver did advise he if there was issues he was not going to load it back up as it was already open. Oh well.

OP
OP
G

garyfri

Active Member
View Badges
Joined
Jun 27, 2020
Messages
149
Reaction score
116
Location
Corpus Christi, Texas
Rating - 0%
0   0   0
Built the stand today. The instructions were ok. Had to listen everything after assembly to get every square. It is pretty amazing how the stand (aluminum) is so light but will hold an aquarium. My custom sump from Blue Tide Acrylic is two weeks (or so) out. Ordering plumbing today. Got lights, pump, wavemakers, skimmer, sitting in my house next to my 75-gallon aquarium.vv


Tamberav

7500 Club Member
View Badges
Joined
Jul 4, 2014
Messages
9,547
Reaction score
14,629
Location
Wauwatosa, WI
Rating - 0%
0   0   0
Sooo excited for you!! I really like the aluminum stand over the waterbox or red sea one.

Is there a gap at the top of the overflow box? I am wondering if a wrasse could escape into the box at all.


KStatefan

2500 Club Member
View Badges
Joined
Jun 24, 2015
Messages
4,057
Reaction score
3,942
Location
MHK
Rating - 0%
0   0   0
So my tank arrived on Friday, 1 day before the hurricane. Had to pay extra as they only do curbside drop off. Also IM requires you to inspect on the spot. Looked good. Had one spot were the black silicone was bedded to an end but nothing major. Was not able to inspect the bottom of the aquarium as has wood panels and wrote this on the sheet.

Ohh the driver did advise he if there was issues he was not going to load it back up as it was already open. Oh well.

Just in a cardboard box? The other pics I have seen it was in a wood crate.


LAChief

New Member
View Badges
Joined
Jun 20, 2020
Messages
8
Reaction score
5
Rating - 0%
0   0   0
Hi Garyfri, I hard plumbed my EXT with no issues. I think it looks cleaner that way as well!


infinite0180

Valuable Member
View Badges
Joined
Apr 25, 2018
Messages
1,821
Reaction score
1,096
Rating - 100%
1   0   0
wow that thing looks awesome! i really like that they eurobraced it. i wish theyd eurobrace the 100 ext as well...

OP
OP
G

garyfri

Active Member
View Badges
Joined
Jun 27, 2020
Messages
149
Reaction score
116
Location
Corpus Christi, Texas
Rating - 0%
0   0   0
Sooo excited for you!! I really like the aluminum stand over the waterbox or red sea one.

Is there a gap at the top of the overflow box? I am wondering if a wrasse could escape into the box at all.
a gap? I will take pictures and see if that answers your question.


revhtree

Owner Administrator
View Badges
Joined
May 8, 2006
Messages
47,553
Reaction score
85,876
Rating - 100%
1   0   0
Looking like a great build!
