Hey guys I have been stumbling along with this build and have come to a place where I need some advice. I have added the temp probe but the updated UI page is different than the original guide. What do the additional features mean? Or can you point me to a post with the updated information? and how would i go about having the temp sensor information control the heaters?

I’m using rj45 jacks to connect the temp sensors to the system. Does anyone know how long the cable can be before I need a signal booster?

Thank you in advance for any help.
E1F3B6F0-C726-49B0-9425-FAB6628361E4.jpeg F4308D9D-0EB8-4C23-B039-C61B7443E15F.jpeg 0FB36675-9830-4739-B5D2-7657746AA5FF.jpeg 11D2C900-4BDB-4F3C-BFCC-581B369D9A3A.jpeg

Last edited:
Lazys Coral House

Ranjib

7500 Club Member
View Badges
Joined
Apr 16, 2016
Messages
8,616
Reaction score
15,112
Location
Palo Alto, Bay Area
Welcome to reef2reef. I have tested with up to 7 feet of temp sensor wire. Do you see a sensor in your temperature module drop down many?
I have not been able to update the adafruit guide due to time constrain, but the old instructions should be valid, there were new fields added in the UI, but you can play with those later, they are not necessary for the initial setup. Please share UI screen shots if you are facing difficulty in specific places


garbled

Well-Known Member
View Badges
Joined
Nov 10, 2018
Messages
689
Reaction score
945
Are the temp sensors DS18B20's? If so, in my home automation, I have them running at like 100' lengths off 5V.. if it's running off 3.3v from a PI, maybe less than that? They are slightly flaky at 100' though, so.. not quite that much would be ideal maybe?

OP
JeremyKnight

JeremyKnight

New Member
View Badges
Joined
Jan 10, 2021
Messages
16
Reaction score
9
Location
Florence
I have finally got everything sorted out with the temperature probes. They have been reading the ambient temperature for about a week now. I calibrated them today by using rodi ice cubes and rodi water, and let them get to 32 degrees and set the temp at 32. So I’m comfortable that they are reading correct.

@Ranjib is there a way to change the display text for the equipment so the text is over the red and green bars? When the UI is pulled up on a phone or tablet the equipment device can’t be displayed for every device.

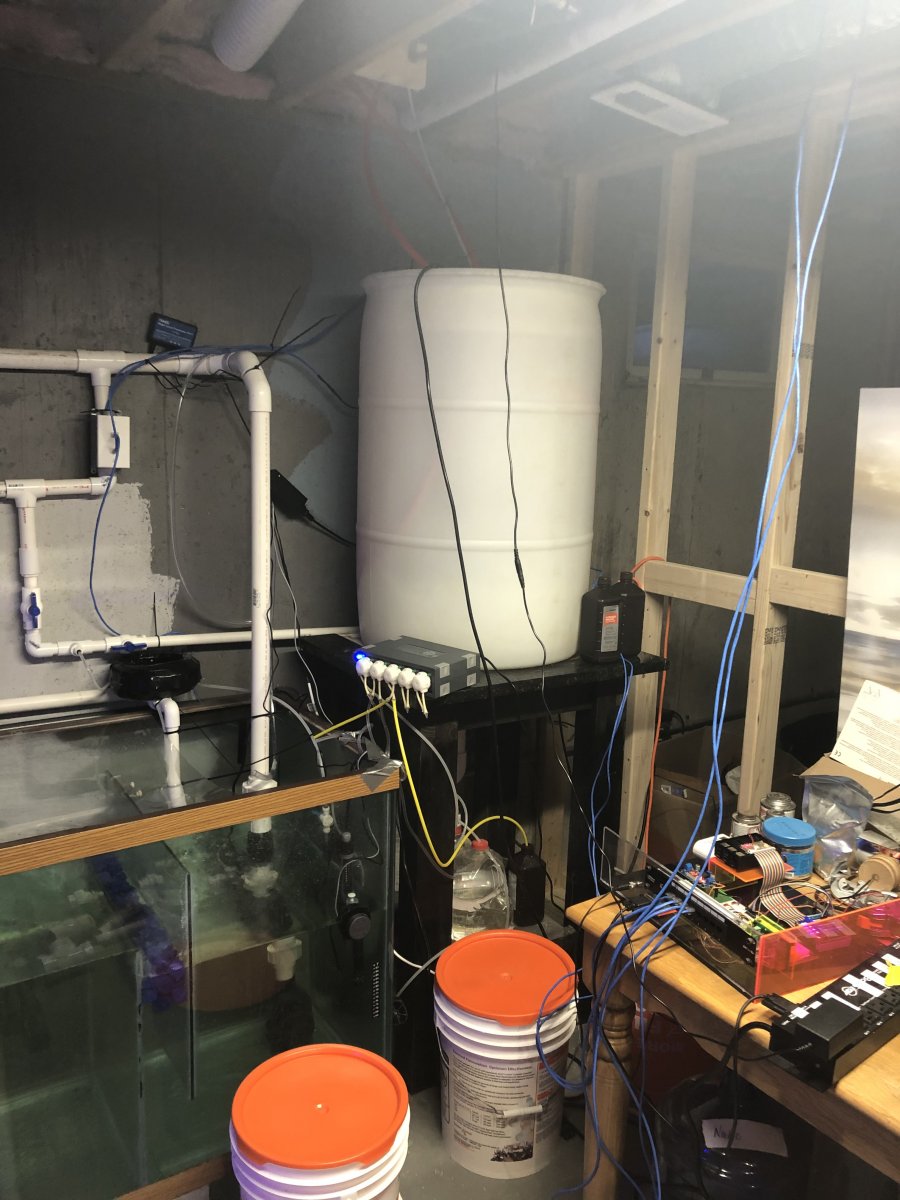

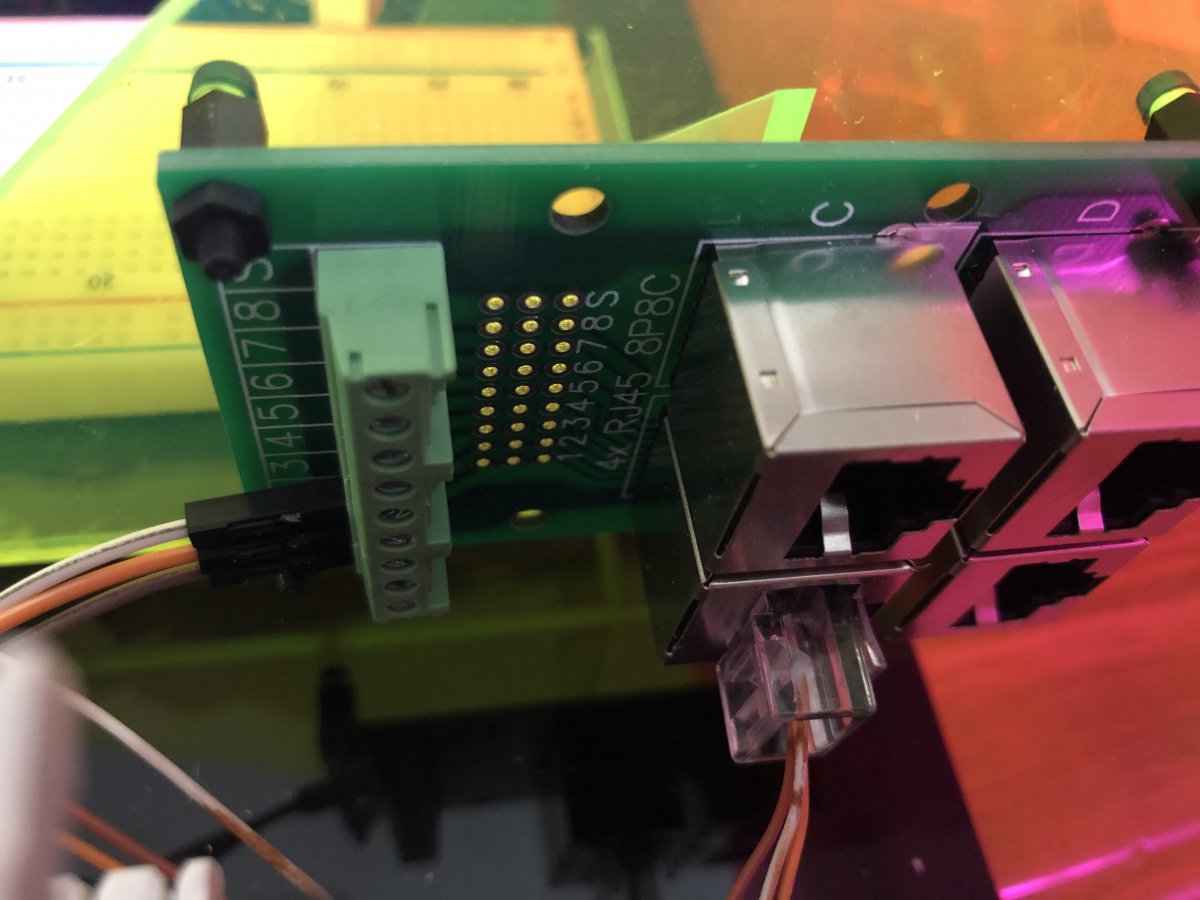

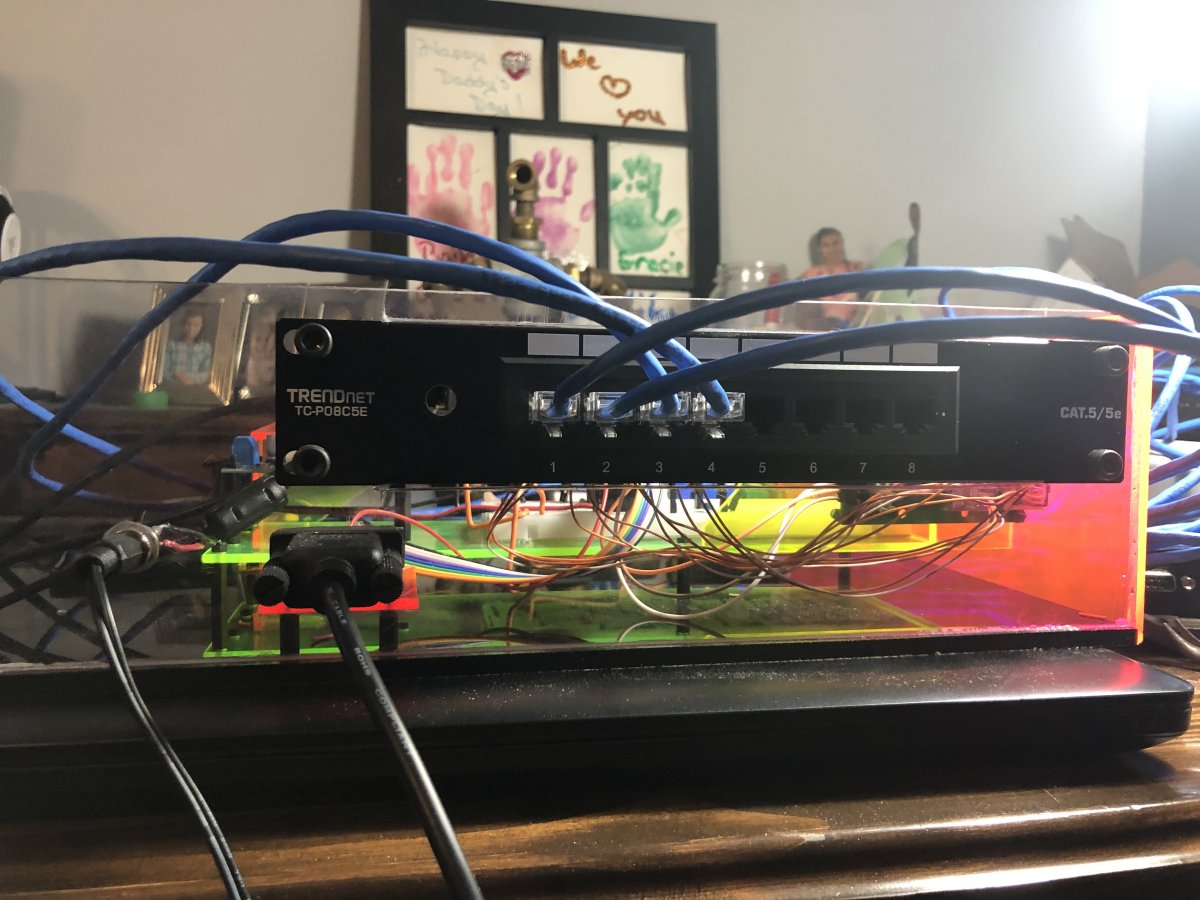

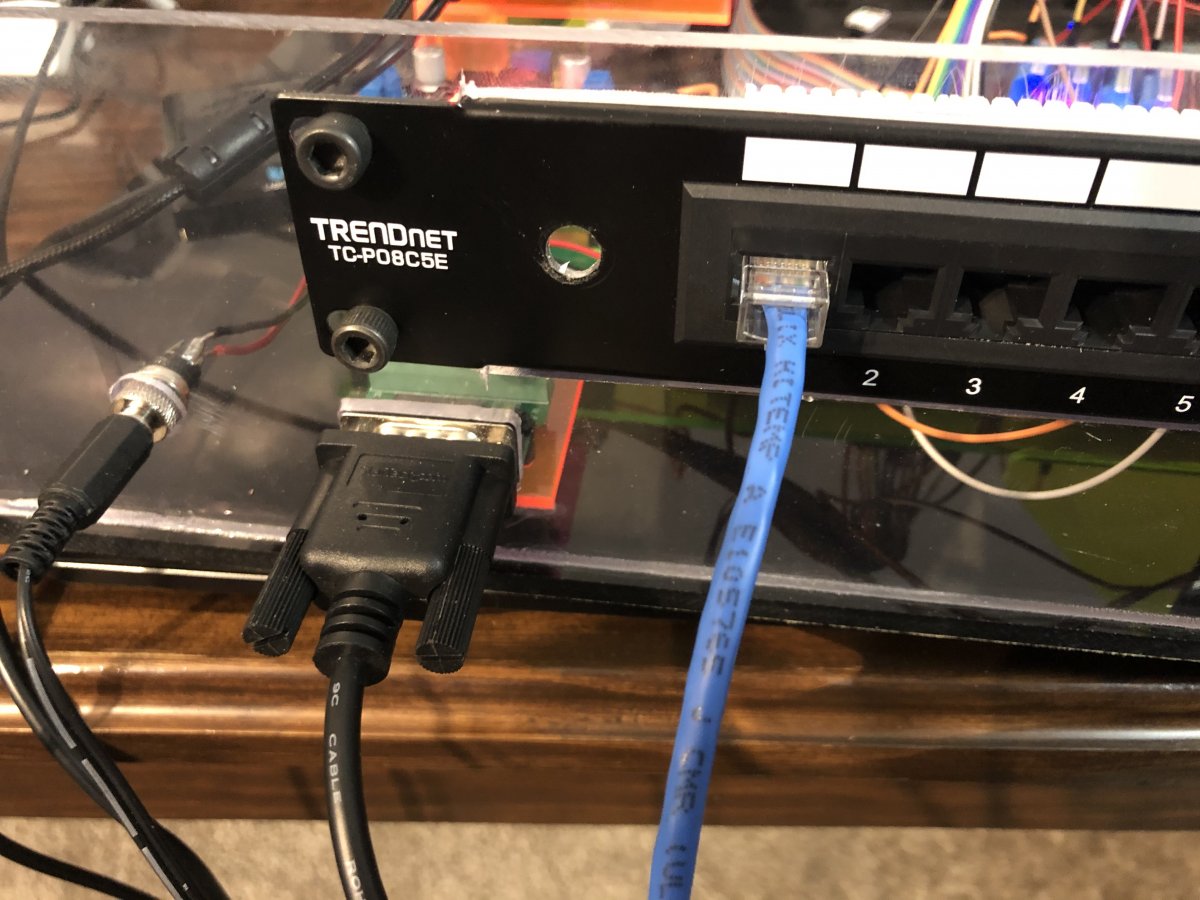

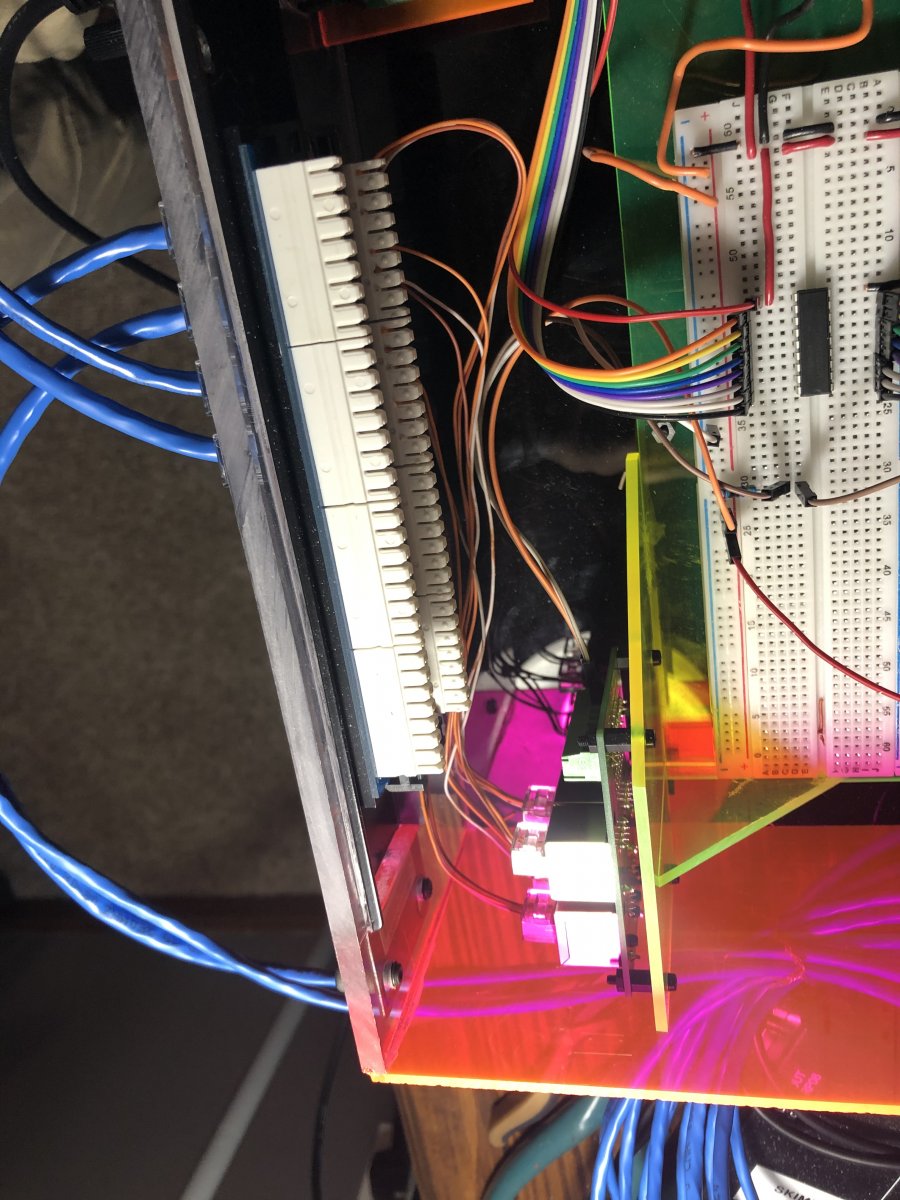

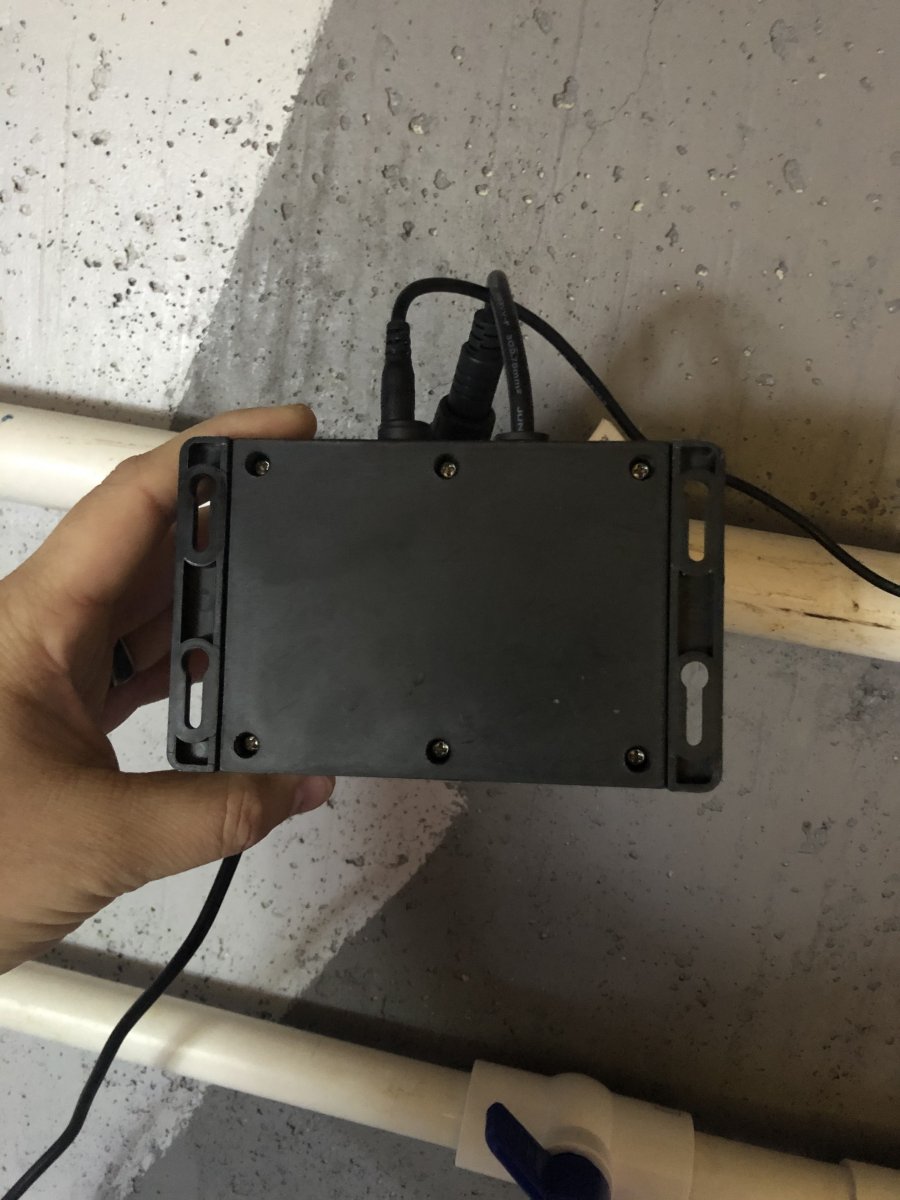

here is an updated photo of the PI case with the jacks installed.everything is coming along!
