Longshot- Apex- Black Box Dimming

[andrewey]

Unfortunately I don't have access to my multimeter at the moment, so I'm hoping someone may have wired one of these up in the past and remembered- I have a no name black box led and was trying to wire it up so my apex could control the dimming functions. Unfortunately the board doesn't have great labeling, so I was trying to determine which of the cables controls the power, ground, and dimming. Based on the three cables attached to the dimming board, I'm assuming they share a common ground in the middle, but I was hoping someone would recognize which is my power and which cable I would wire up with my 0-10v from the apex. Let me know what pictures/tests would help. I know it's a long shot, so Thanks!



[oreo54]

First see if your dimming boar is labelled. If not open the driver..



[andrewey]

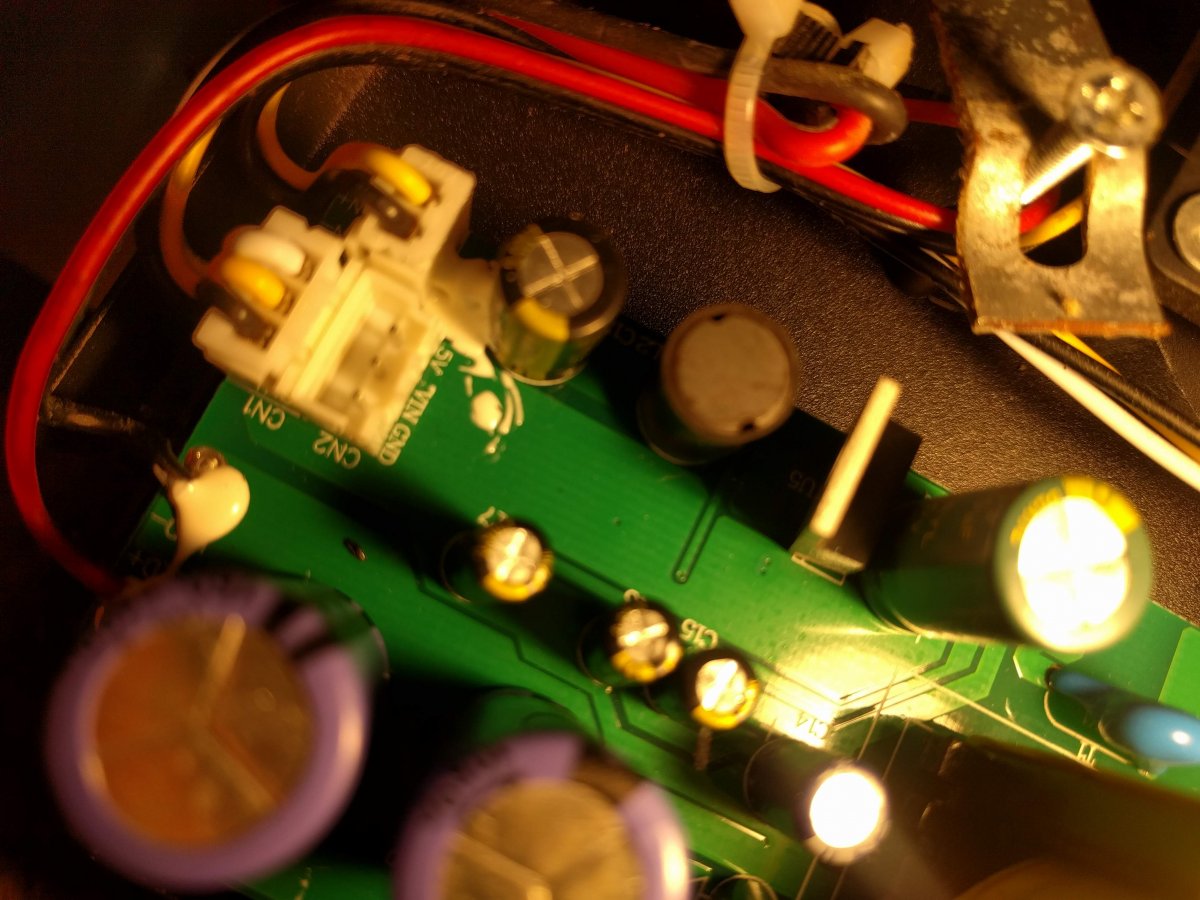

Dimming board is not labeled. Driver is labeled (pictured below). Based on the labeling, I'm assuming the dimming is via a 5V PWM? If so, I'm assuming that means I can't connect the 0-10v analog signal from the apex to the 5V PWM directly or is this incorrect?



[oreo54]

Dimming board is not labeled. Driver is labeled (pictured below). Based on the labeling, I'm assuming the dimming is via a 5V PWM? If so, I'm assuming that means I can't connect the 0-10v analog signal from the apex to the 5V PWM directly or is this incorrect?

Surprising.... Some "old" ones were PWM (don't remember if it was 5 or 10V atm but pretty sure most were 10v PWM).
None were 5V analog ..

You are correct.. IF this is 5v pwm you would need a conversion board from 10V analog to 5V PWM.
These exist, since common Meanwell LDD drivers use 5V PWM.

Needs further research, unfortunately.
