Overflow in Progress

3D Reefin' · Jun 29, 2020

Hello R2R members,

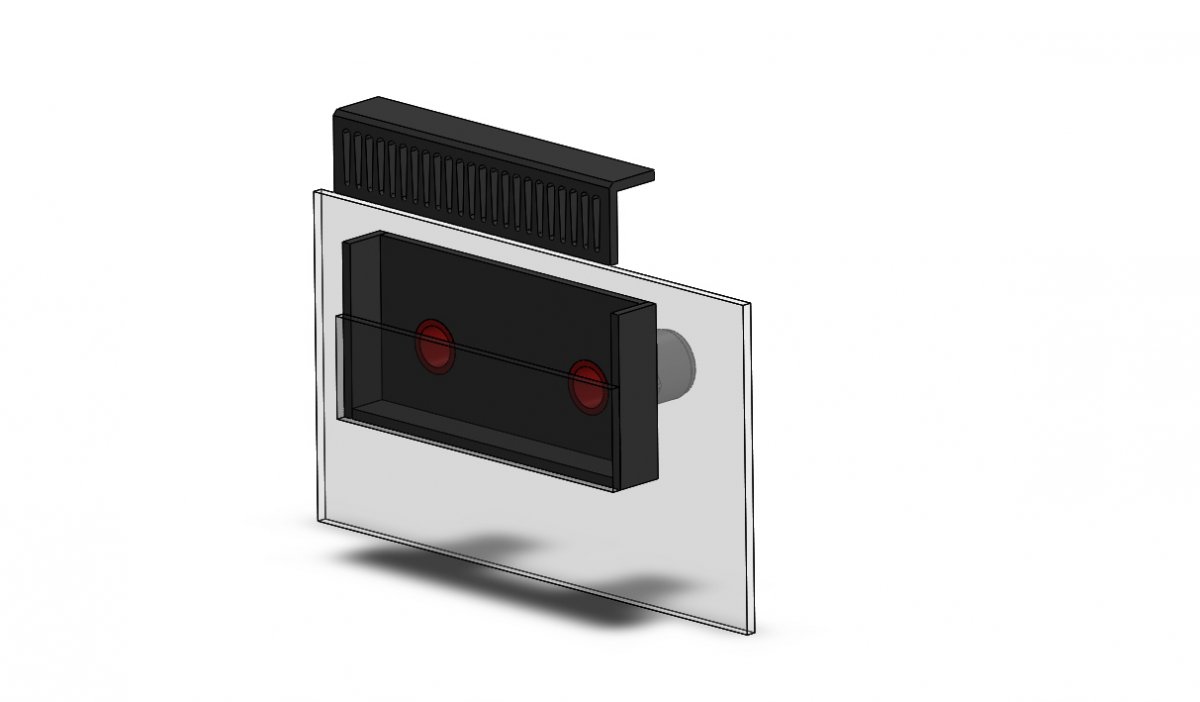

I had some extra acrylic kicking around and couldn't find an overflow that met the dimensions I wanted. So I made one.

Let me know if anyone is interested in this. I'd be happy to share the technical drawings for anyone that would like to build this.

3D Reefin' · Jun 29, 2020

3D Reefin' · Jun 29, 2020

toompaa · Jul 14, 2020

Really nice work! Considering building something similar too my new tank. I'd be very happy if you want too share the drawings.

3D Reefin' · Jul 14, 2020

Sure no problem. Just note that although its a box, it not as easy as it looks to get clean/good results.

Michael Lane · Jul 15, 2020

Very nice. How is the 3D printed part held in place?

3D Reefin' · Jul 15, 2020

2 locating tabs that allow about .005" side to side play and prevent it from being pulled out. Its a light snap fit.

Carz · Jul 16, 2020

what did you use to attach the PVC pipe to the acrylic??

3D Reefin' · Jul 16, 2020

Carz said:
what did you use to attach the PVC pipe to the acrylic??

Its a interference fit (press fit). If I recall the bore on the acrylic back panel is .001" smaller than the PVC outside diameter. You can glue it once you press it in, but not necessary.
