Please help!

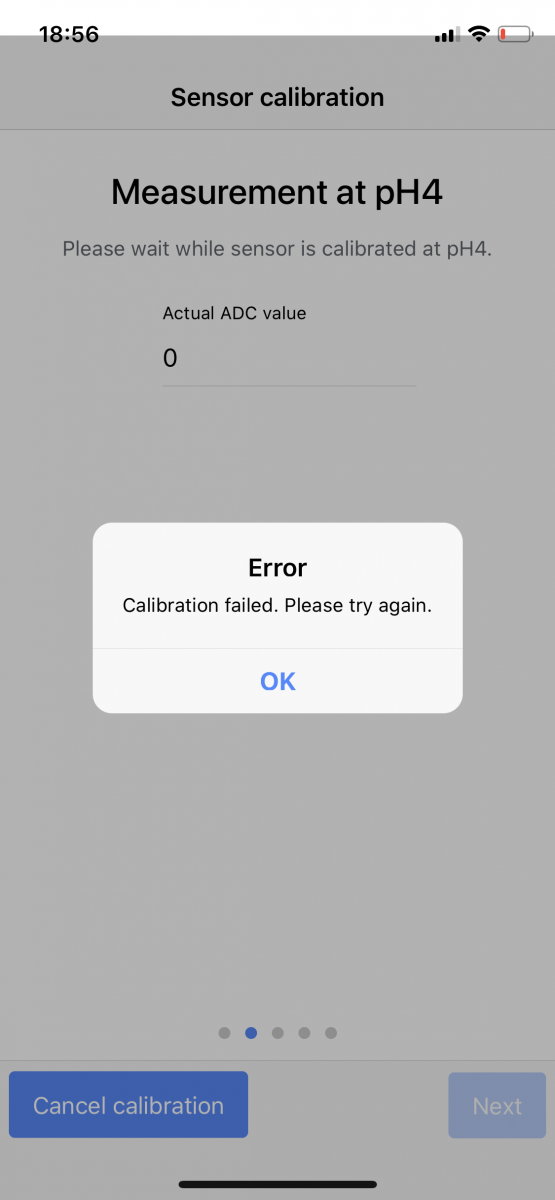

Now I started to install my KH Director, and when I tried to calibrate pH electrode... I see "Error" (Calibration failed...)
I tried to connect other one pH electrode too (from Profilux), the same situation...
Looks like KH Director doesn’t see pH electrode.

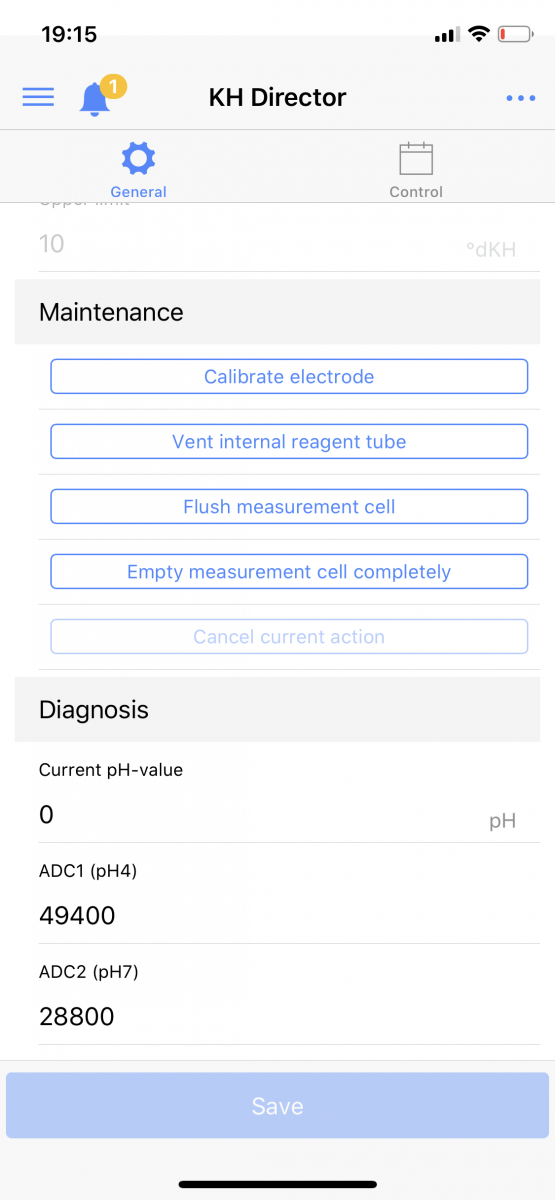

IMG_2284 2.PNG IMG_2285.PNG


Lasse

7500 Club Member
View Badges
Joined
Mar 20, 2016
Messages
8,002
Reaction score
23,504
Location
Källarliden 14 D Bohus, Sweden
Yes - but you should be able to calibrate every pH electrode with BNC connections. You calibrate them vertically. If it does not either sense the normal electrode - it is probably not the directors pH electrode that is broken. Have you checked that the BNC connection has "click" into its position ?

Sincerely Lasse
