Quick LLS and optical sensor programming code needed

[Adamc13o3]

I have two questions.

I need to program an LLS to turn on a solenoid which is normally off and is powered by my EB832 through one of the 24V DC ports. I want the LLS to turn the solenoid on when the water in the container gets to 1" and off when it hits 14" or 15". What would the programming code for that be?

Need to do the same thing for another solenoid valve which is also plugged into my eb832 except that this container uses optical sensors, so want to have it turn on when the water hits the low one and off when it hits the high one.

Thanks,

Adam



[Formulator]

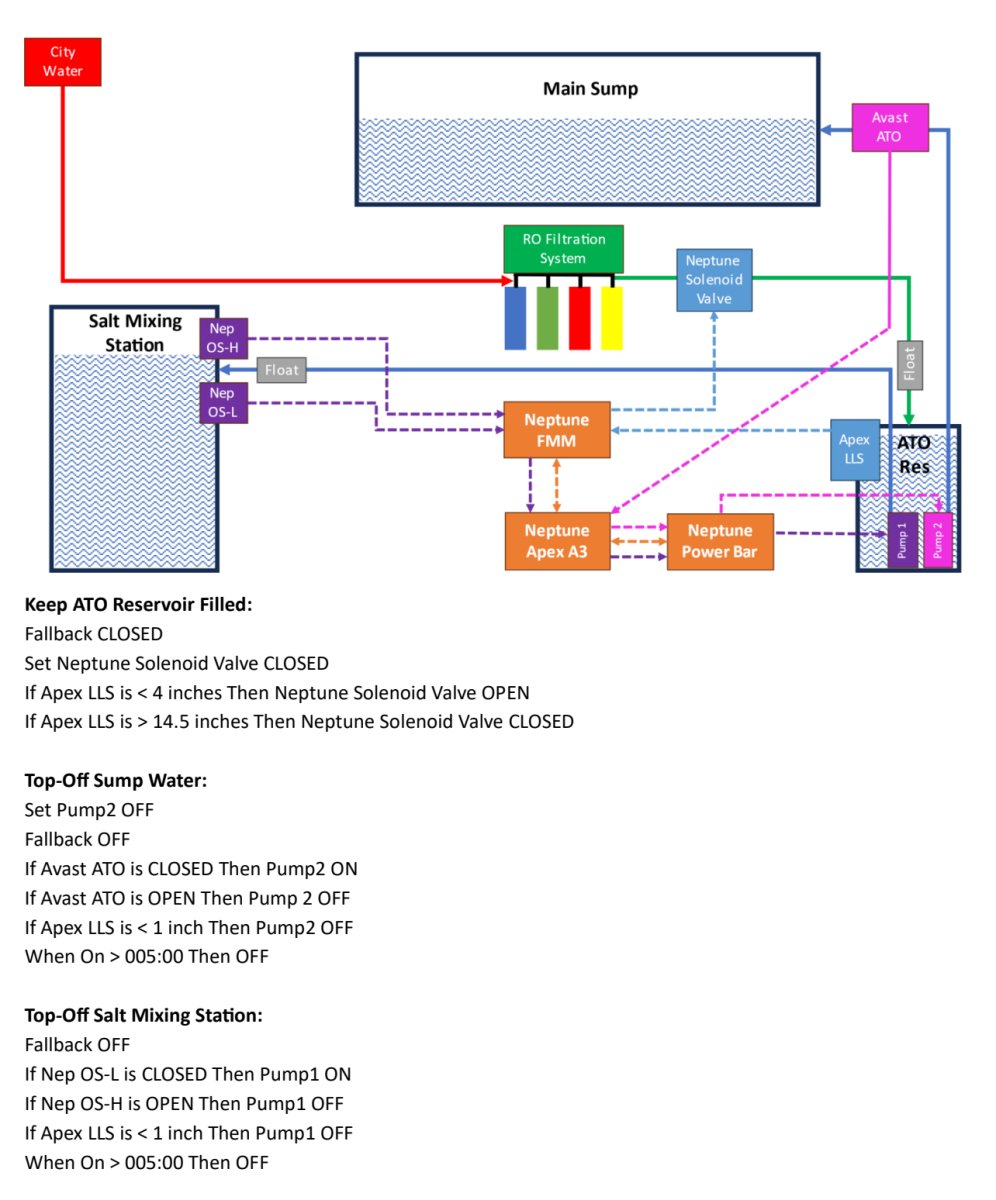

This might help you.
