In 2017, I moved from WA to ID and it was a rough move for the aquarium. Getting settled in a new state and a new way of life, the reef took a back seat and just didn't get the love it deserved. So, it's time to give new life to this aquarium.

The tank is a custom 80-gallon built by Clear Fabrications Inc (Get hold of Jason @CFI if you need one! https://www.facebook.com/Clear-Fabrications-2068164953394973/). I've got a new sump (48x22x24), which I'm picking up Saturday, that was also built by CFI as well. It has a 40-gallon refugium section, skimmer/equipment section, and then a 25-gallon return section....from what I can remember as I'm typing this:D

For lighting, I'm going back to halides and T5s. I ran Radions for over a decade and I never really got to the point where I thought the light from LED was quite as good as halides. There's a shimmer you just can't get with LED and they're tried and true for SPS. The light is a 4' Hamilton fixture with 2X 250W 20K Radiums and 4 T5s for actinic lighting. Not sure yet on the T5 combination but it will probably be ATI True Actinic03 and a couple of ATI Purple Plus. Probably won't need to run heaters:D

Nothing fancy for skimming, just my 13-year-old Reef Octopus. I'm going to use PolypLab Genisis Rock for the core of the bio-filter. I'm looking at Tropic Eden for my substrate, probably a mix of 3 different kinds and 2" deep as I'd like a Diamond Goby at some point. Flow will be provided by my MP40's (they started out life as MP20s) once they get the wetside and controller upgrades.

For Livestock, I'm looking at a number of small fish, mostly gobies. A tailspot blenny. Some sort of fairy wrasse and a six-line. At some point, I'll try and get a yellow tang or lavender tang. And then of course SPS, LPS, and maybe a couple of zoa varieties.

OK, on to the pics. Let's start with a little look back at the beginning:

Back when she was brand new and never seen water

first setup with rock


Some old livestock from the past







And here's what she looked like when I tore her down a couple of months ago:

CLICK TO VIEW
Avast
OP
RedoubtReef

RedoubtReef

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Jul 4, 2016
Messages
435
Reaction score
452
Review score
+0 /0 /-0
Location
The Redoubt
Time for a new stand! I'm using 3/4 Rustic Hickory plywood. The mfgr applied putty to the knotholes in the wood. I love the knots in it. Looks really good to me. I had intended to leave it but then got to thinking about how I could alter it to make it look a little better. I dug out the putty and used my son's wood burner to scorch the layer beneath the veneer. With the stain on it, it looks like solid wood in those spots. The finish I'm using is General Finishes Hickory stain and a satin topcoat. The stain is really nice to work with. You wipe on, let sit for 20-30 seconds and wipe off. I'll do 2 coats.

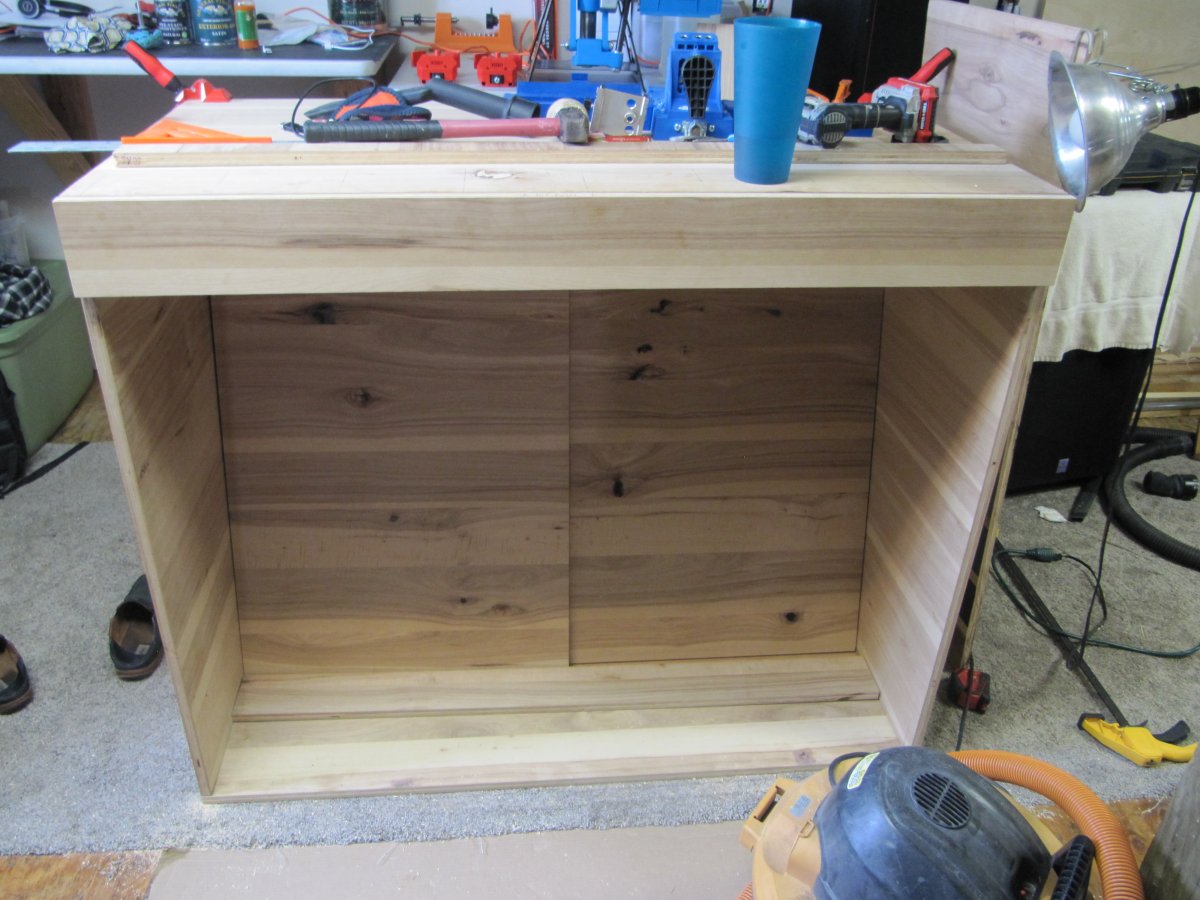

In all the pics below everything is just dry fit at the moment as I still have some pieces to cut before final assembly.

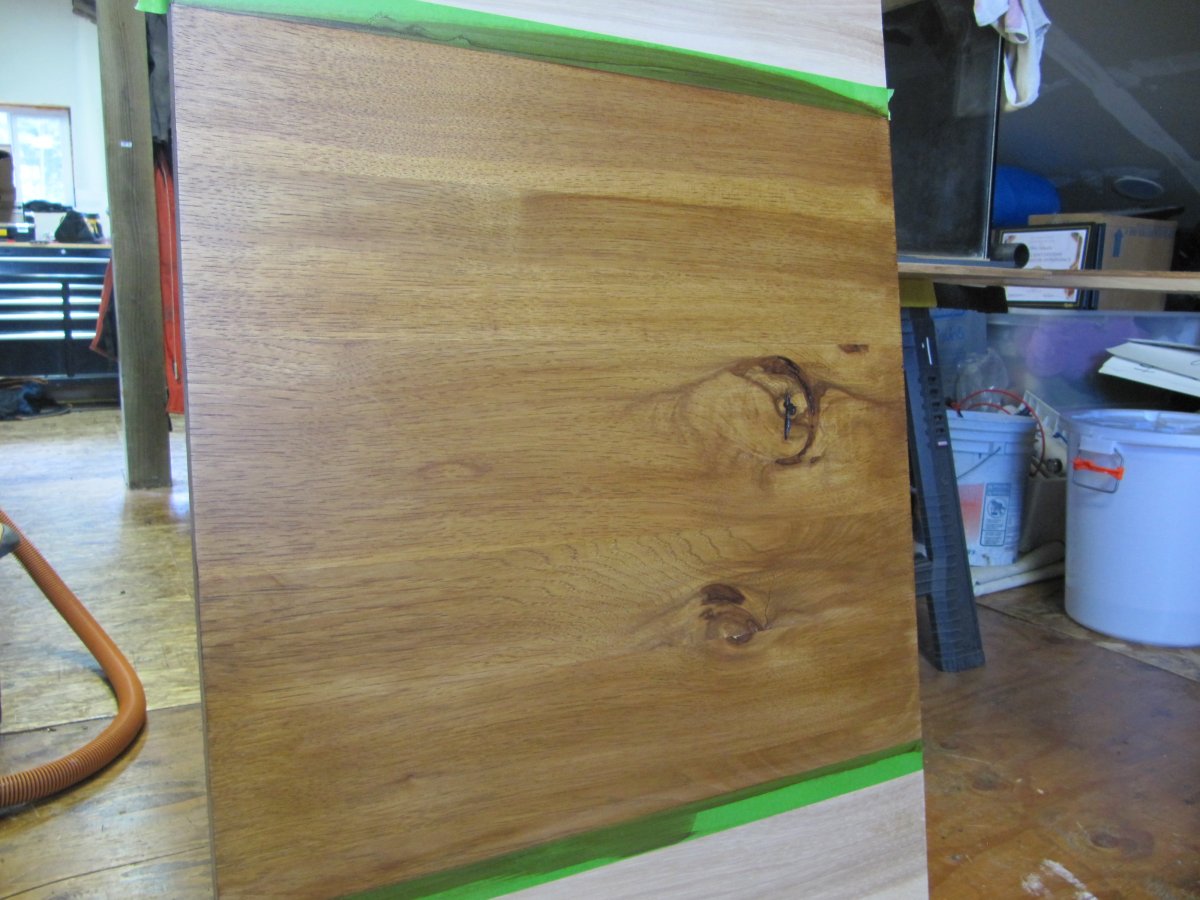

Here's my test board with stain over the burned out knothole:




Top, bottom and sides will be joined with glue and dowels








The back will be held in place with pocket hole screws every 6" all the way around and glue.






There will be a 4" 'beam" made with 2 pieces of ply glued and screwed together behind the top faceplate. I'll put in a removable center stile once the sump/fuge is in place in the stand to add extra support to the center. Should also help block the fuge light from coming out between the doors at night.
