It's time! Starting the design phase of my new tank build. 274.3 gallon display with a roughly 100 gallon sump/refugium. Filtration will be by Bashea: custom sump 60" long x 24" wide x 16" tall. Bashea 8-30 twited skimmer, Bashea 8-30 bio-reactor, Bashsea media reactors. Aquarium controllers and accessories will all be GHL. All lighting will also be GHL with a combination of 3-4 Mitras 7206, 2 deep actinic 62" lightbars, and 4 22" simu-sticks for moon lighting and other effects. This will not be a fast process as the design will very complicated and costly. I have a limited space to work with so the entire system will have to fit in the custom wall unit that I am building. I am building the actual tank myself as well. I will post some pictures of the design soon. Any input or suggestions to the design will be greatly appreciated along the way. Sort of a reboot to what I had started over a year ago but had to scrap unfortunately due to certain circumstances. Look forward to seeing this one through this time! stay tuned.

BRS
OP
RobW

RobW

Valuable Member
View Badges
Joined
Mar 19, 2019
Messages
1,037
Reaction score
2,062
Location
Lighthouse Point
So for the display tank... 66" x 32" x 30" as I mentioned. The tank bottom will consist of two sheets of 1/2" thick glass with a sheet of 1/4" black pvc laminated between the two. All of the sides of the tank will be 3/4" glass with the front viewing panel being starphire glass. 1/2" thick x 3" wide euro bracing around the top for extra strength as the tank will be on the taller side. The back and sides of the glass with be painted with a deep blue color instead of the traditional black background. (Had it on a previous tank and it made it look like the water went off into the depths of the ocean.) All the seams will be black silicone instead of clear. I think it looks better in my opinion.

OP
RobW

RobW

Valuable Member
View Badges
Joined
Mar 19, 2019
Messages
1,037
Reaction score
2,062
Location
Lighthouse Point
So I started to layout the glass and lighting arrangement. Excuse the quality of the photos as I just snapped a picture of my laptop screen. Here you can see the shape of the tank and how I was thinking about laying out the lights. There will be 4 GHL Mitra LX7's, 2 62" Deep actinic light bars, and 4 22" Simu-sticks.


Attachments

  • 20201213_164246.jpg
    178.7 KB · Views: 26
  • 20201213_164206.jpg
    112 KB · Views: 21
OP
RobW

RobW

Valuable Member
View Badges
Joined
Mar 19, 2019
Messages
1,037
Reaction score
2,062
Location
Lighthouse Point

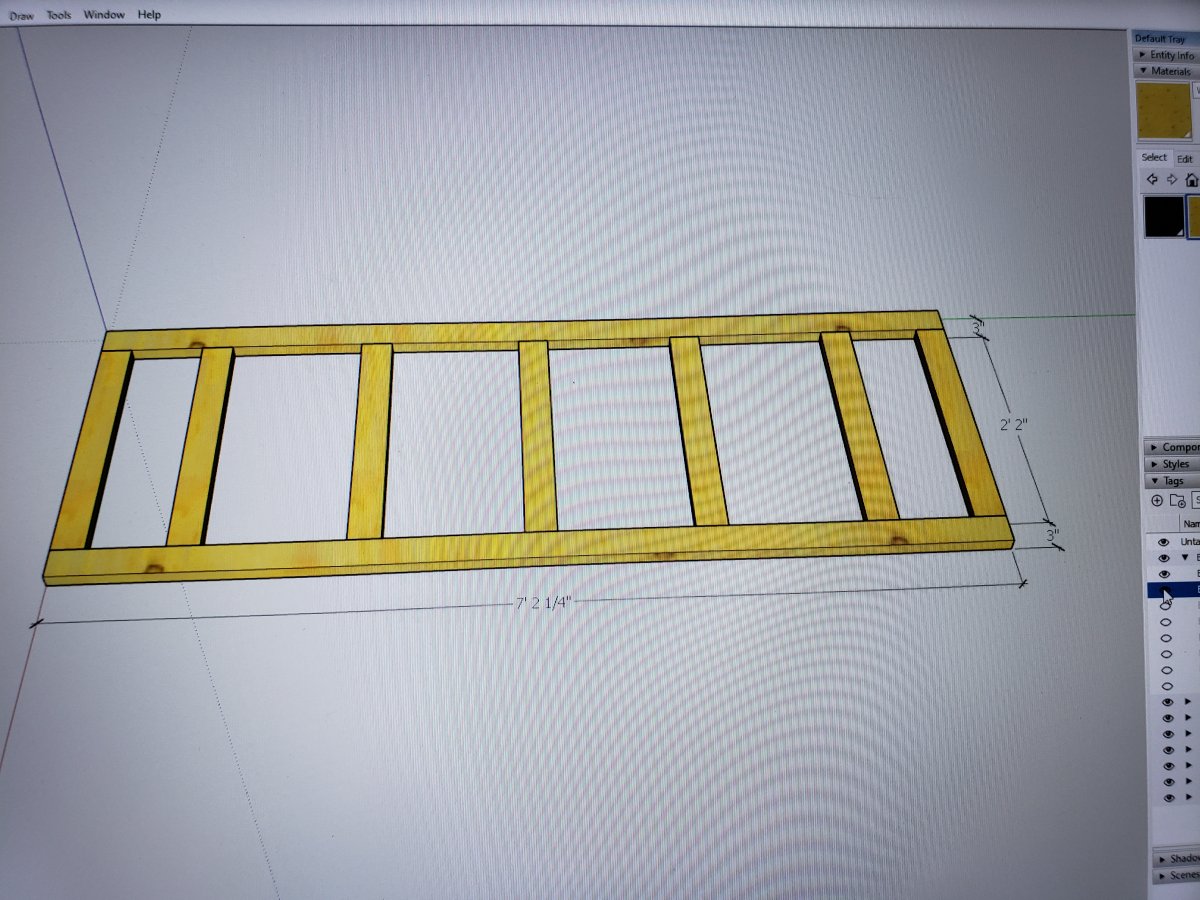

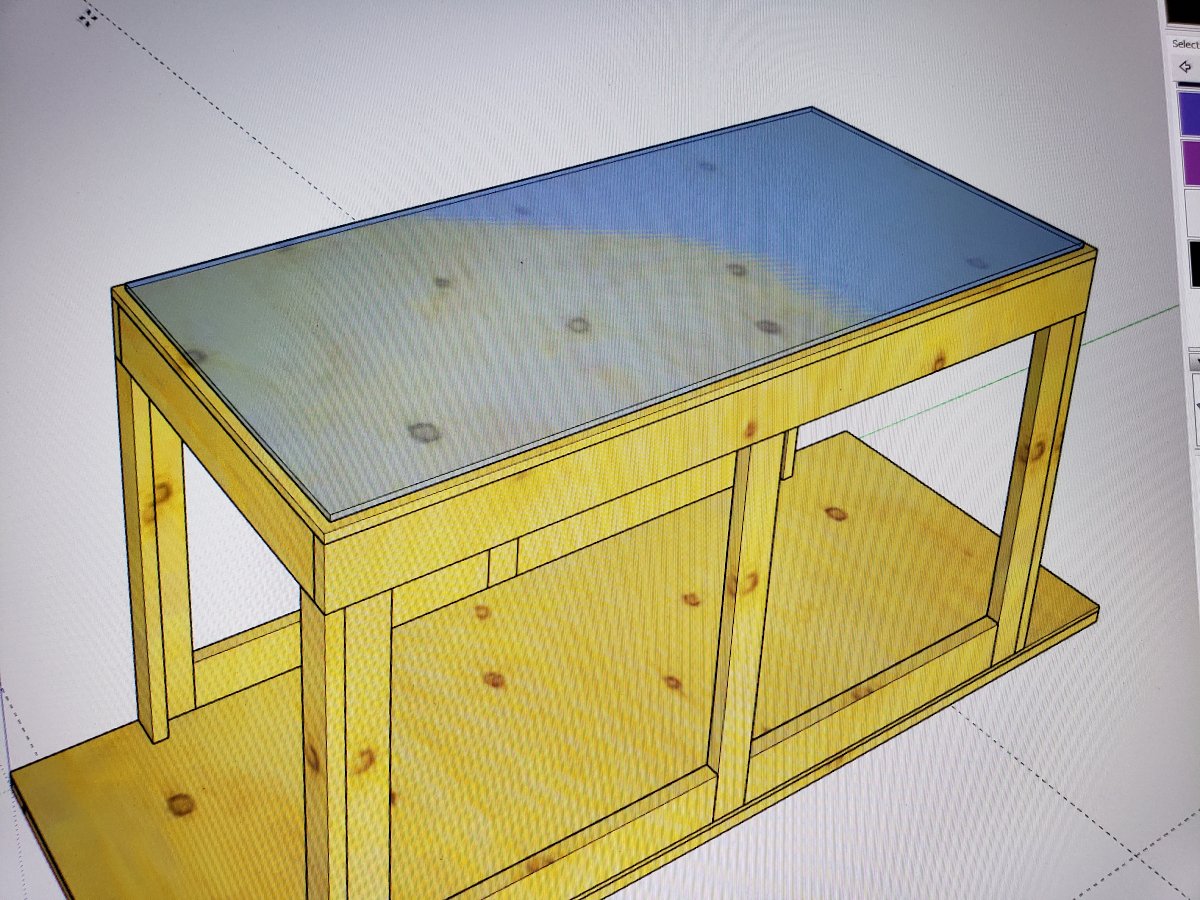

Here are a few shots of the start of the base cabinet.


Attachments

  • 20201219_134038.jpg
    183.1 KB · Views: 13
  • 20201219_134101.jpg
    142 KB · Views: 9
  • 20201219_134240.jpg
    167.5 KB · Views: 11
  • 20201219_134319.jpg
    178.1 KB · Views: 11
BRS
OP
RobW

RobW

Valuable Member
View Badges
Joined
Mar 19, 2019
Messages
1,037
Reaction score
2,062
Location
Lighthouse Point

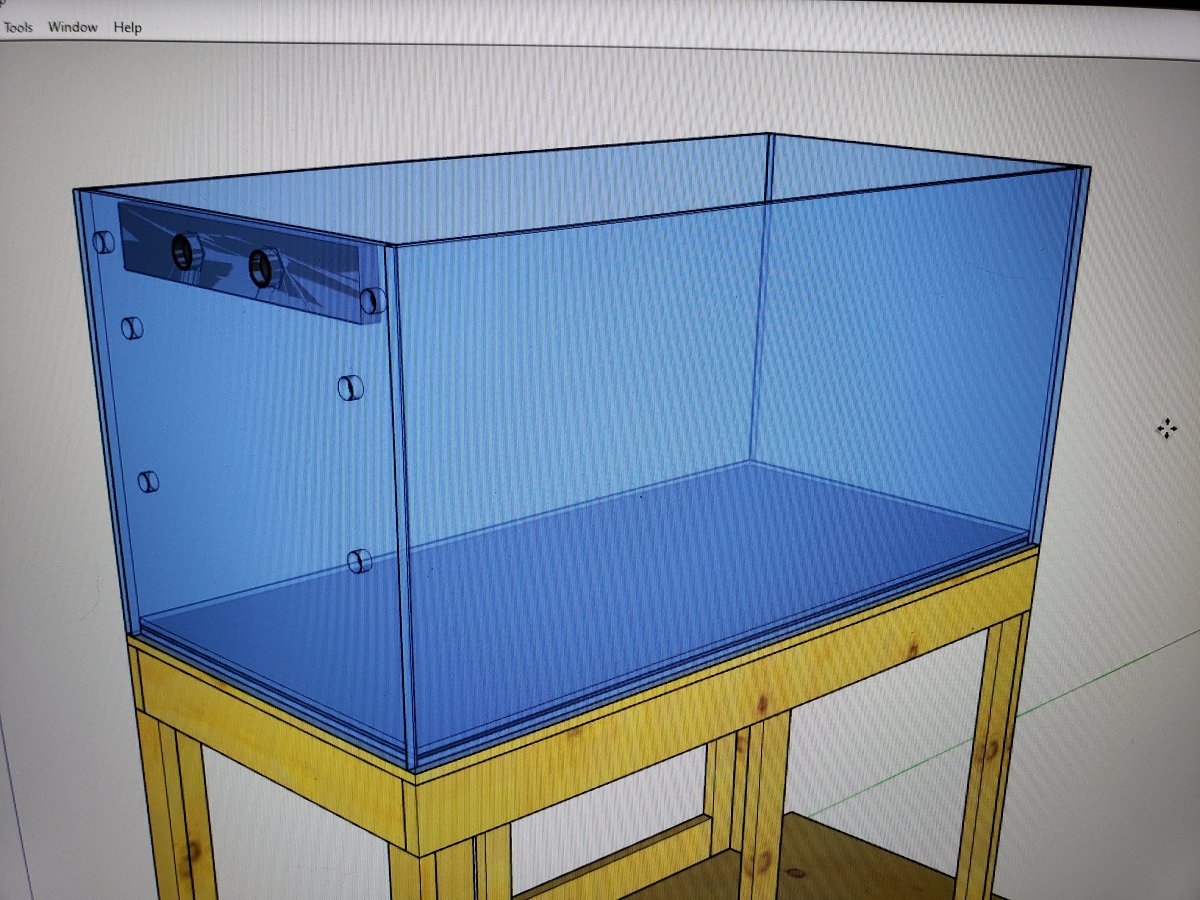

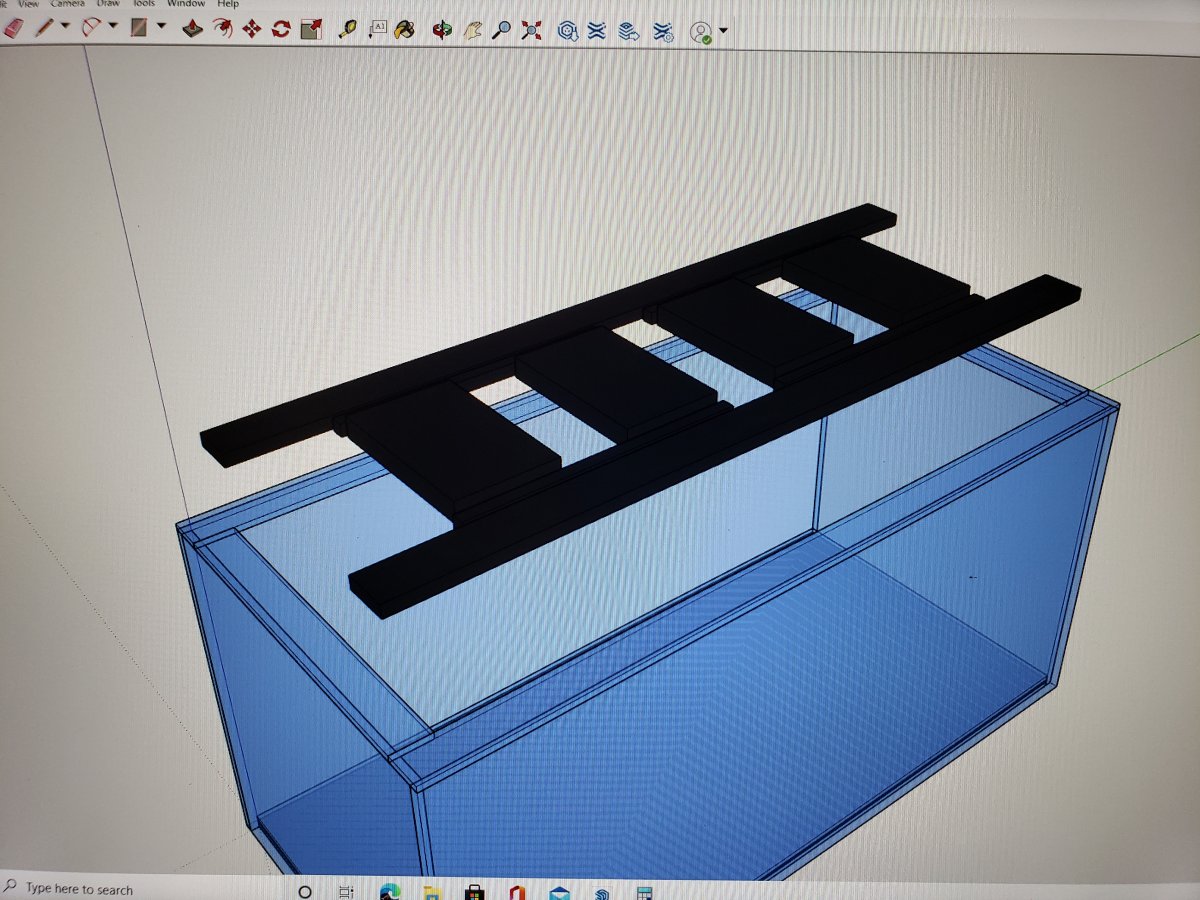

Getting more done. Drew the internal box of the overflow and a few holes for returns and closed loops for uv sterilizers.


Attachments

  • 20201219_145646.jpg
    238.4 KB · Views: 9
  • 20201219_145708.jpg
    115.5 KB · Views: 7
  • 20201219_145810.jpg
    111.6 KB · Views: 7
  • 20201219_150307.jpg
    218.6 KB · Views: 7
  • 20201219_163210.jpg
    208.1 KB · Views: 9
  • 20201219_163355.jpg
    192.2 KB · Views: 8
  • 20201219_163415.jpg
    266.3 KB · Views: 12
Corals.com
OP
RobW

RobW

Valuable Member
View Badges
Joined
Mar 19, 2019
Messages
1,037
Reaction score
2,062
Location
Lighthouse Point

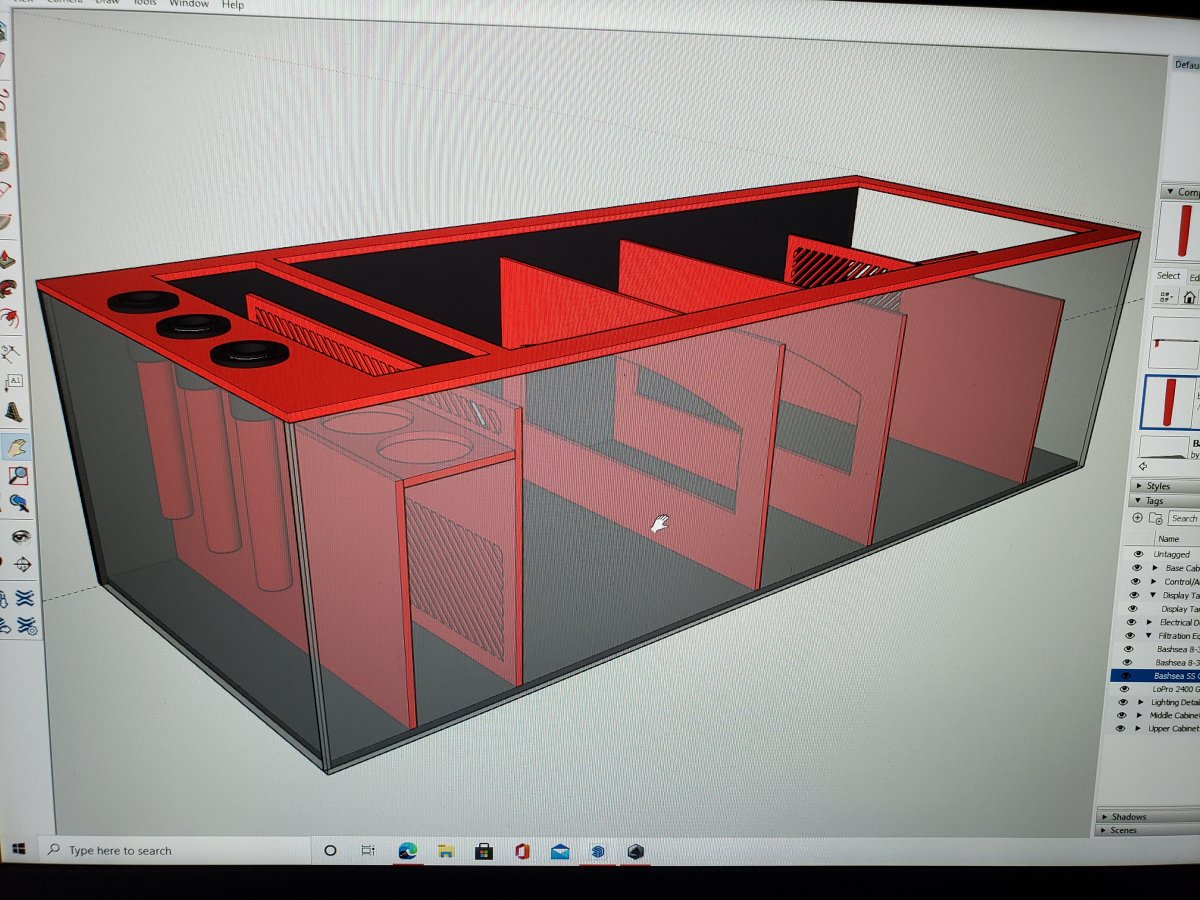

Sump is almost done. I have a few more things to do to it.


Attachments

  • 20201219_224014.jpg
    200.6 KB · Views: 10
  • 20201219_224038.jpg
    178.8 KB · Views: 11
  • 20201219_224059.jpg
    149.5 KB · Views: 14
OP
RobW

RobW

Valuable Member
View Badges
Joined
Mar 19, 2019
Messages
1,037
Reaction score
2,062
Location
Lighthouse Point

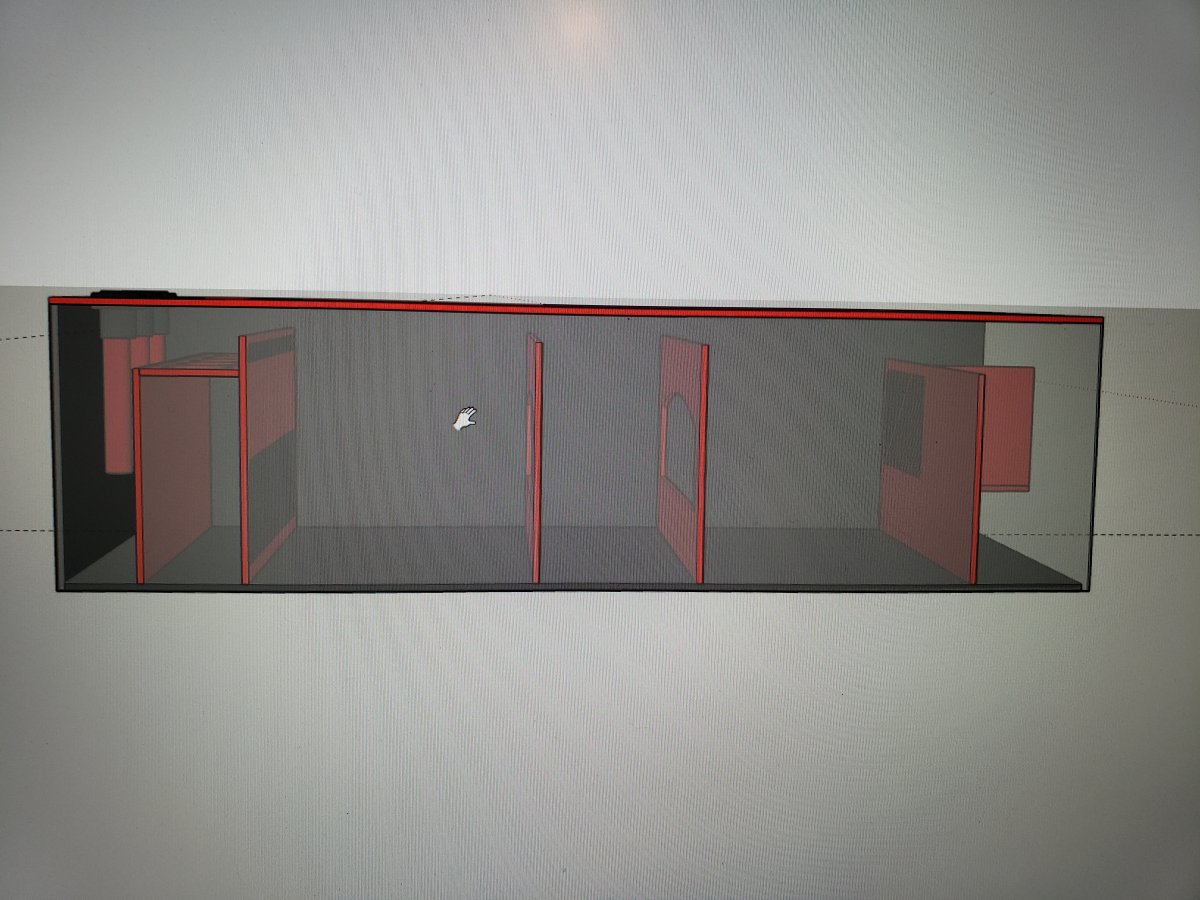

A few more.


Attachments

  • 20201219_235937.jpg
    208.5 KB · Views: 10
  • 20201220_000005.jpg
    177 KB · Views: 7
  • 20201220_000028.jpg
    229.4 KB · Views: 10
CORAL MANIA Live Event!

BZOFIQ

Valuable Member
View Badges
Joined
Jul 31, 2014
Messages
2,317
Reaction score
2,110
Location
NYC
I like your enginerding approach. Want to see more.

I have a 267 on order - gonna call it Two-Seventy ... but 274-point-3 is certainly unique. :p:D

OP
RobW

RobW

Valuable Member
View Badges
Joined
Mar 19, 2019
Messages
1,037
Reaction score
2,062
Location
Lighthouse Point
I like your enginerding approach. Want to see more.

I have a 267 on order - gonna call it Two-Seventy ... but 274-point-3 is certainly unique. :p:D
Been busy the last few days. Was probably gonna work on it some more tonight a bit. I'm actually making the tank myself as well. A friend of mine has a glass shop. He's gonna gut and polish all the panels for me and drill everything. I'm gonna assemble it all.
