settings lightbar

[gerard_zzz]

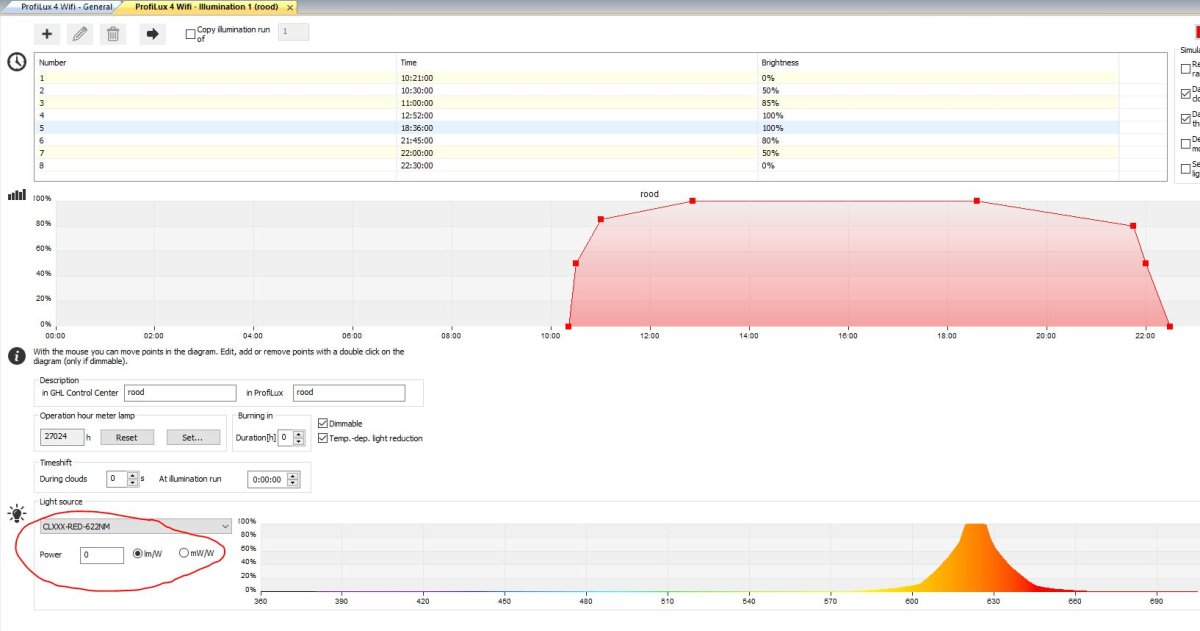

I have 4 Mitras lightbars . In the illuminations-settings in GCC there is an option where you can fill in the power in lm/W or mW/W.
What is it meant for and how should I know what the power of my lightbars is? I am very happy with the lamps, just curious about this option.



[Gaël]

Hello,

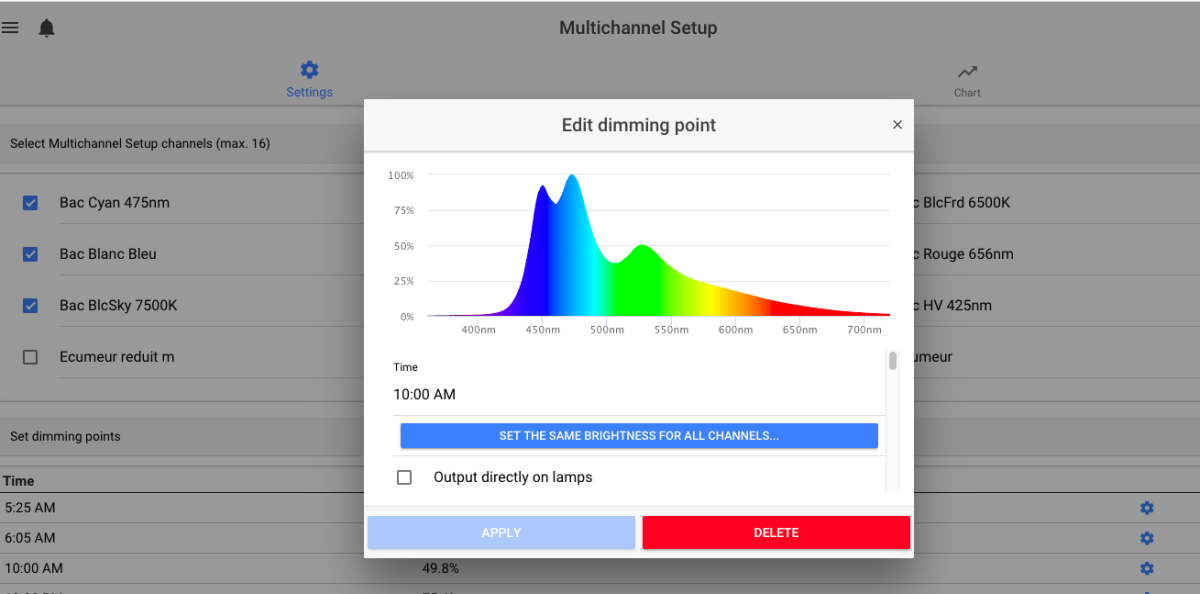

This information is then used by the new Multichannel Setup feature available on GHLConnect / WebInterface / myghl.com

The temperature of each point on the illumination curve is calculated according to the information entered on each of the channels used by the Multichannel Setup.

Gaël



[gerard_zzz]

Thank you Gaël!
Is there perhaps somewhere an overview of the lm/w for each channel of the lightbar artinic 100 and 110 cm?



[Gaël]

Yes,

You have this in LightComposer -> Template

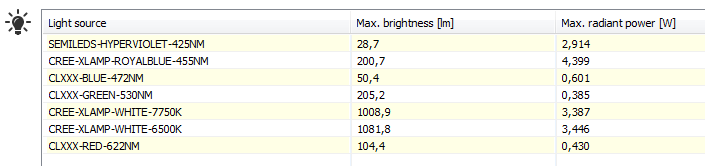

For 100cm:

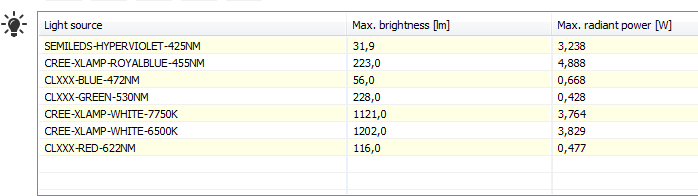

For 110cm:

Gaël



[gerard_zzz]

Thanks very much!
