Show off your wiring/cable management

[imustbenuts]

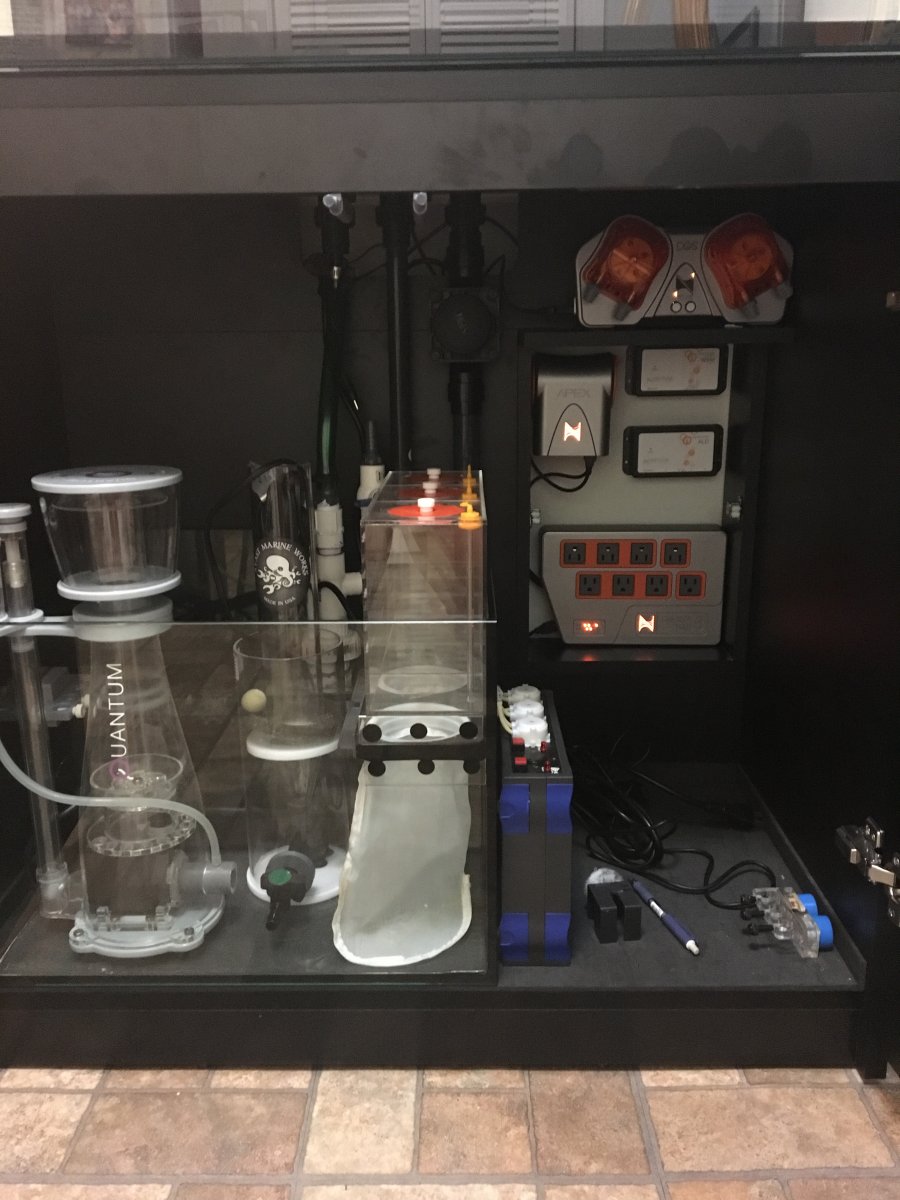

Not the neatest but I have very limited space

View attachment 16 - 2.jpg

View attachment 16 - 3.jpg

Having limited space is an issue most of us face. Hopefully some of these posts will help us out.



[monkiboy]

still working on it but I think it is looking good so far...

holy cow - very nice and WHY do you not have a build thread on here?! this beauty needs to be shared in detail!
i'd love to know more about it and the rockwork. the aquascape is mint.



[revhtree]

still working on it but I think it is looking good so far...

Dude! Bro we need a build thread here!!!



[scottbapilot]

Thanks for posting these...that is awesome.

Love the Steampunk theme!



[waterskiguy]

I'm in the middle of wiring myself. Just added some simple wire track, from Home Depot, to route everything that is visible.



[Branespikin]

Made a flush panel to hide everything behind the tank on my reefer.



[Coral Frenzy]

Well, I consider mine pretty bad cable management, but I have been doing high-end car audio installation for the last 23 years... so my standards are ultra high. With that being said, I imagine mine is actually pretty decent for the reef world... but I just haven't found the time to make mine how I really want it. Here are some pics of the right side of my stand:

IMG_4008 by Toby Broadfield, on Flickr

IMG_4995 by Toby Broadfield, on Flickr

IMG_4994 by Toby Broadfield, on Flickr

IMG_5282 by Toby Broadfield, on Flickr

IMG_5972 by Toby Broadfield, on Flickr

I've seen some pretty tight setups but that right there is a work of art. Congrats on a job well done!!!



[frank1203]



[dburt520]

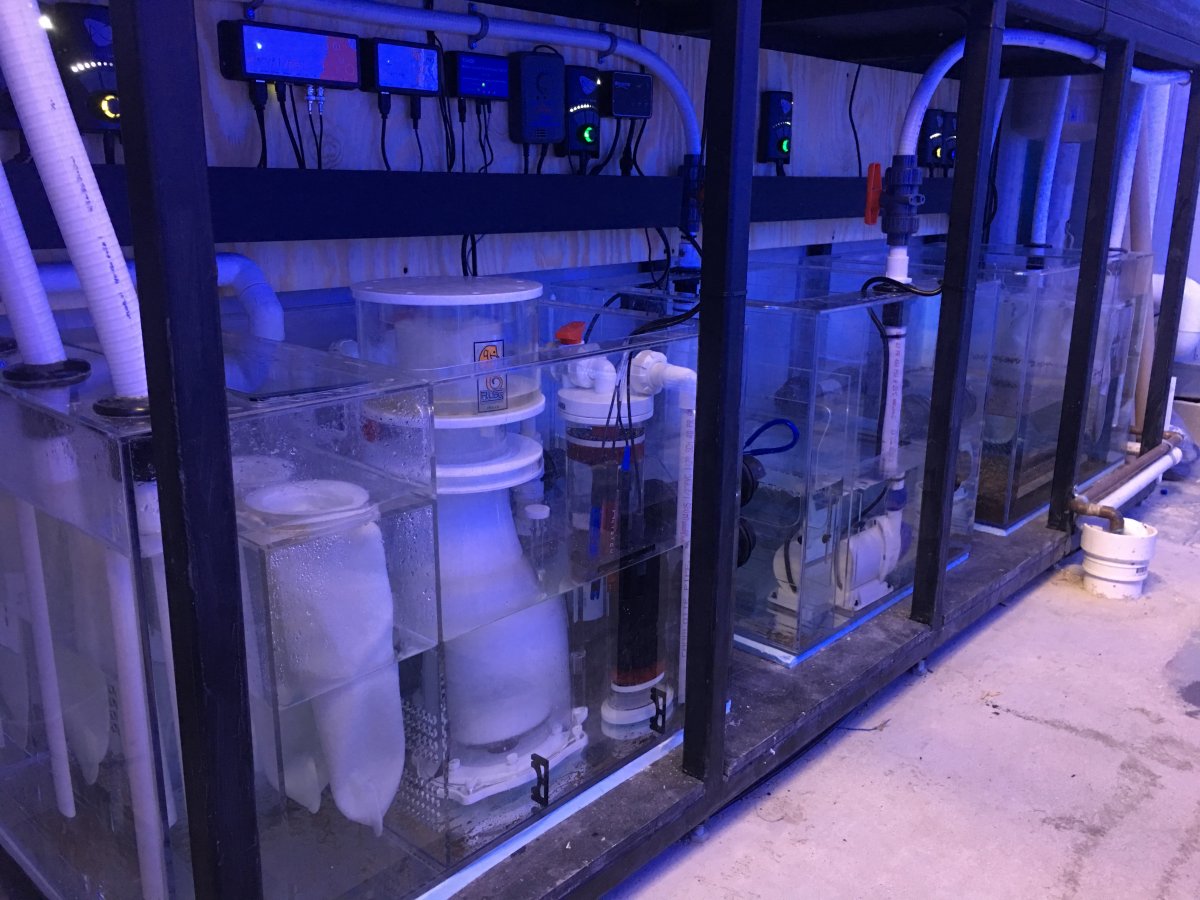

Here are a few from my tank:



[andrewdingemans]

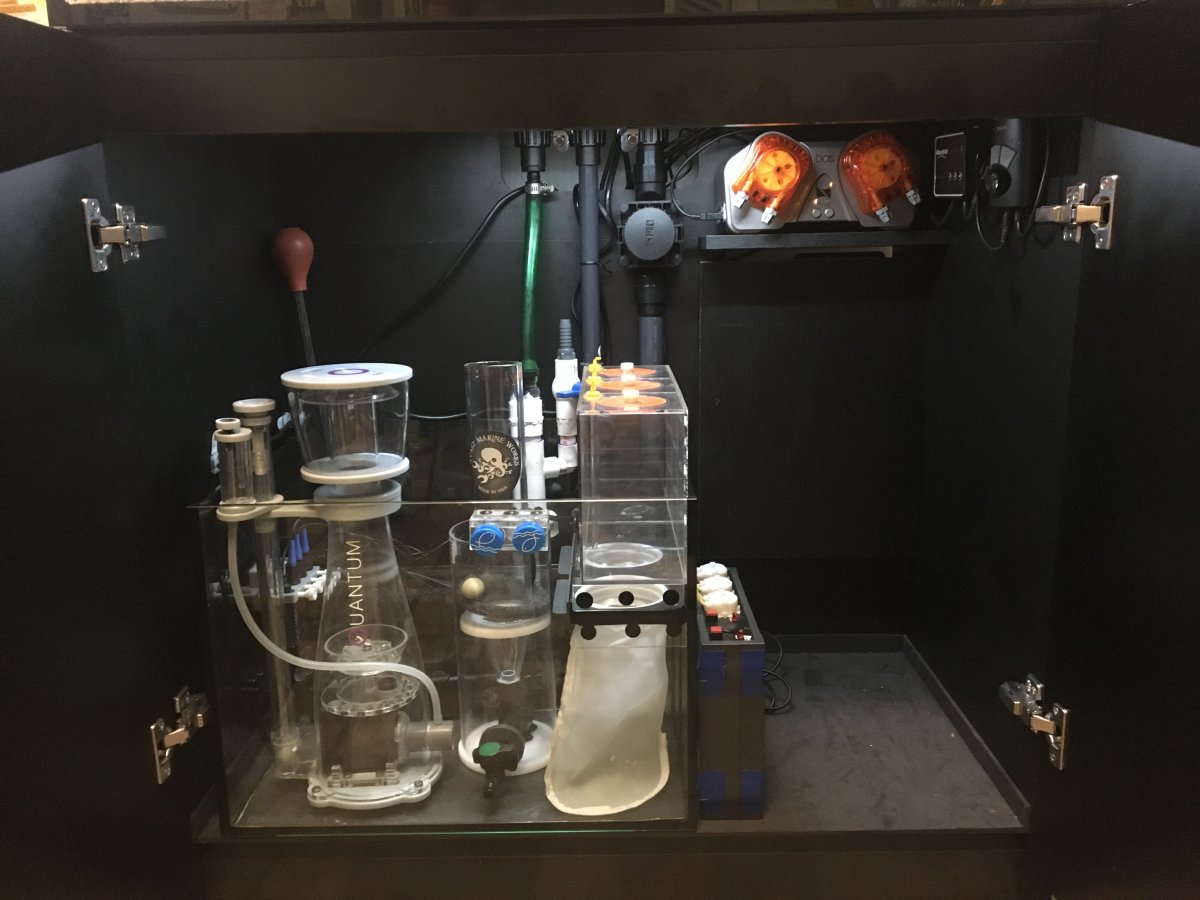

cabinets are very small. Have 22" deep by 20" tall by 19" wide. 10 gallon sump and 5.5 gallon ATO tank, with 8 dosing bottles and a fan to keep things cool. Feeds a 21 gallon "built by me" glass tank. Power required by return pump, light, 2 heaters, ATO, 2 dosers (8 heads total), 2 powerboats, cabinet fan, cabinet light, and one spare for a pump used to do water changes.

Could still use some work, but no more real estate to squeeze wire channels etc.



[ReefRescue]

Tagging along!



[seth&angelle]



[BMW540]

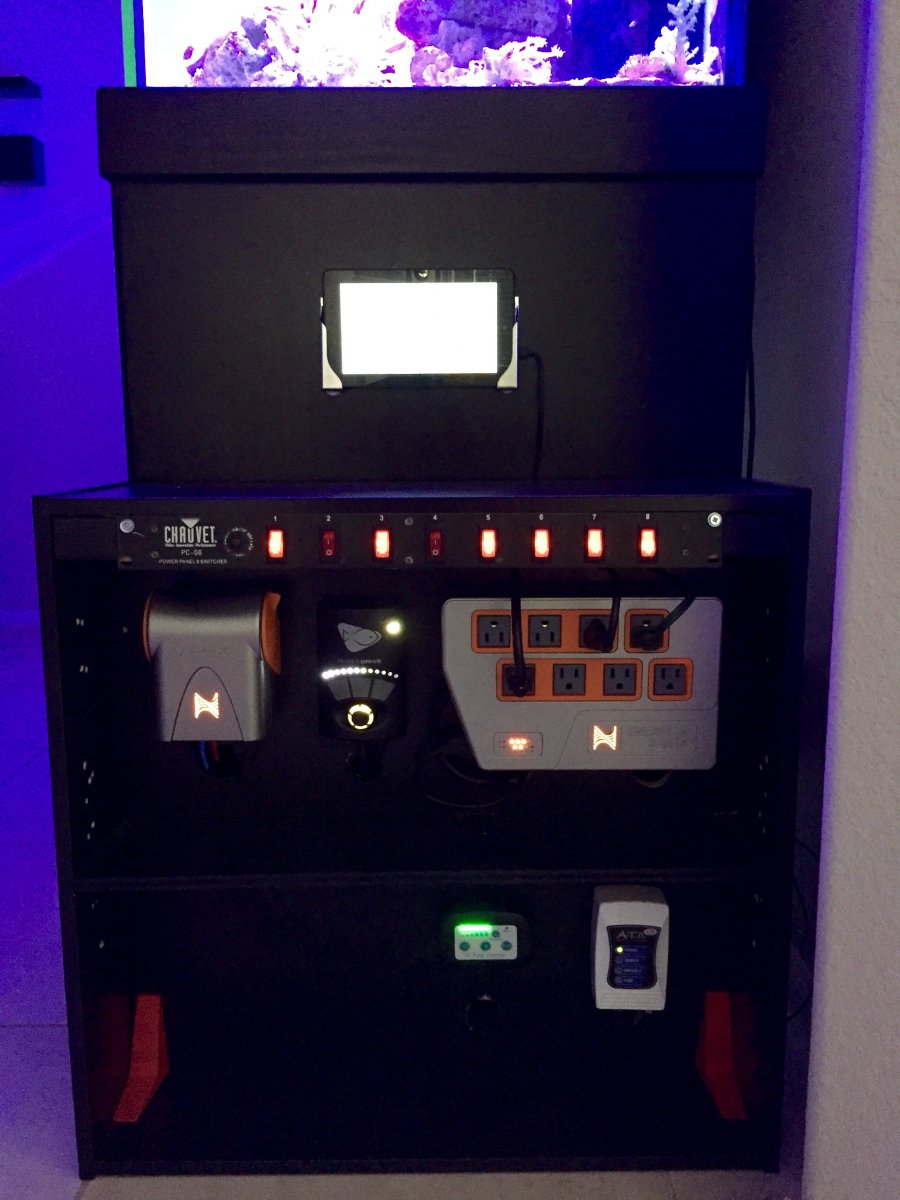

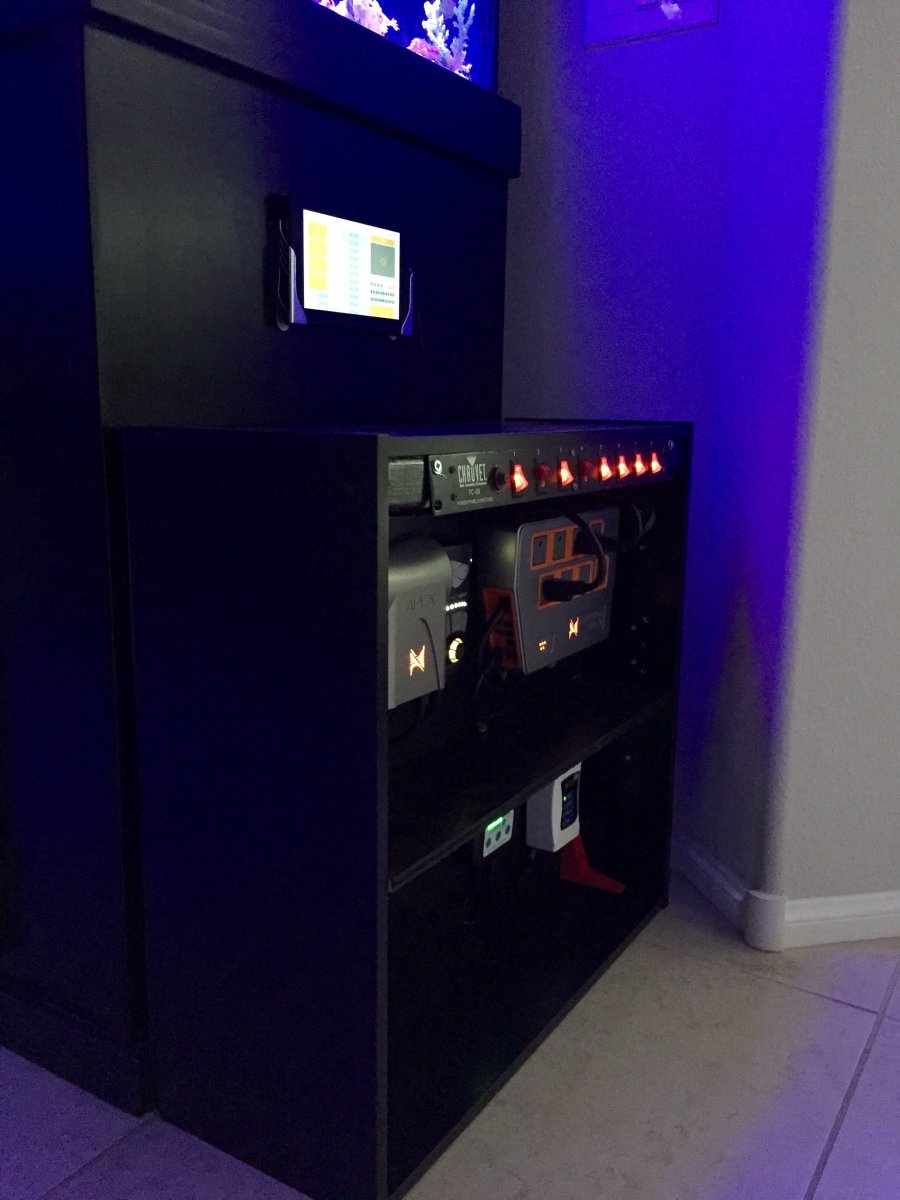

I mounted two DJ strips to an undermount drawer slide for easy access and used panduit to hide all wires coming to/coming from my control panel.



[imustbenuts]

I'm in the middle of wiring myself. Just added some simple wire track, from Home Depot, to route everything that is visible.

Looking good



[waterskiguy]

Looking good

Thanks! It's a start. More to come



[imustbenuts]

Here are a few from my tank:

Very impressed!



[Jesse Albright]

Here's my electrical cabinet for my 100 gallon.



[dragonfish]



[MaddyP]

Here is my 40 breeder...

Before:


After:



[imustbenuts]

Here is my 40 breeder...

Before:


After:

Amazing how much that one strip cleans it up.
