Hello guys,

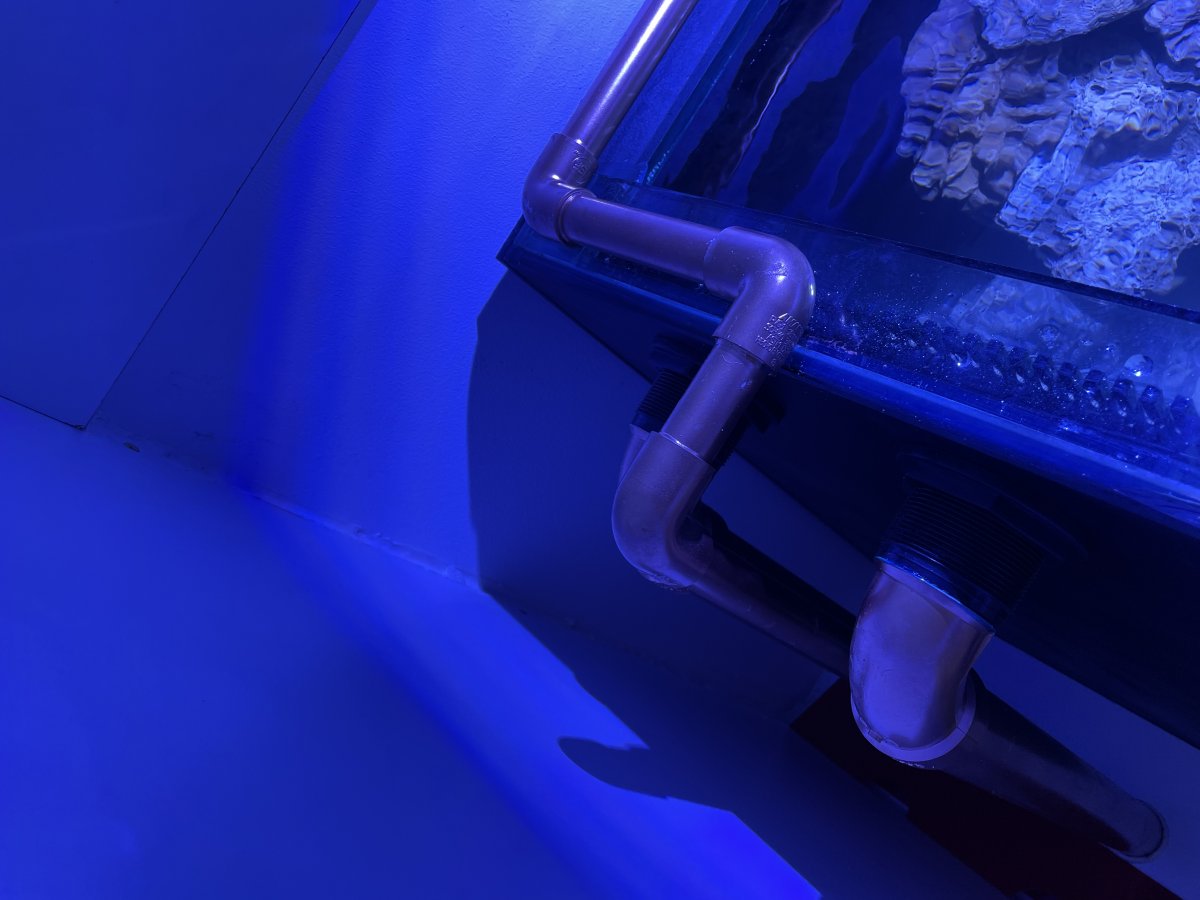

im finishing my new 200 gal setup , the person helping me with the tank installed the two 1 1/2 overflow bulkheads with straight connections to a 90 degree and straight down to the sump.

After we started the system the noise become really loud, my home feels like to have a waterfall on my dining room.

Everything is installed so now need to do improvisation.

need recommendations


- Install a T and go to a dual Durso

- Install an externally overflow box with Herbie

Im not an expert, just spend last night doing a postgrade in Overflow systems, oviously my installer has aero knowledge on this Task.

bellow some pictures

Thanks for the support

E293A884-85AD-433F-BEE8-79CA39FB89D2.jpeg 8168646B-D090-42BC-8D53-82F7FF37E5BD.jpeg 1989345A-C7C1-40F6-AE81-6AF9D440CD96.jpeg 8FC76874-5BCE-4449-ADD4-725E4FBF5402.jpeg 623287C0-A45D-47A9-BB06-CBA777BF6219.jpeg 2BA1C3C1-5A48-4C46-B221-82CBF94E7823.jpeg 5787F249-3122-4ADF-B8B8-5B5ABF40B9BC.jpeg


Attachments

  • IMG_3499.MOV
    9.2 MB · Views: 0
Avast

laverda

2500 Club Member
View Badges
Joined
Jun 6, 2008
Messages
2,692
Reaction score
1,996
Review score
+0 /0 /-0
Location
Anaheim
Where is the noise coming from? Sump or overflow? It looks like you have 2 drain pipes, correct? Usually you set one as the main drain and the second as an emergency with no flow or very little. What size drain pipes? How many GPH is your return pump? I could not see you movie.

OP
Bichito

Bichito

New Member
View Badges
Joined
Jul 10, 2021
Messages
17
Reaction score
7
Review score
+0 /0 /-0
Location
Costa Rica
Where is the noise coming from? Sump or overflow? It looks like you have 2 drain pipes, correct? Usually you set one as the main drain and the second as an emergency with no flow or very little. What size drain pipes? How many GPH is your return pump? I could not see you movie.
Thanks for your Reply,

Noise comes from the upper side of the pipe , from then overflow, the problem is that both are at the same level.

Pump is 3200 gph

Drains are 1 1/2 inch

RAP
Top Shelf Aquatics
OP
Bichito

Bichito

New Member
View Badges
Joined
Jul 10, 2021
Messages
17
Reaction score
7
Review score
+0 /0 /-0
Location
Costa Rica

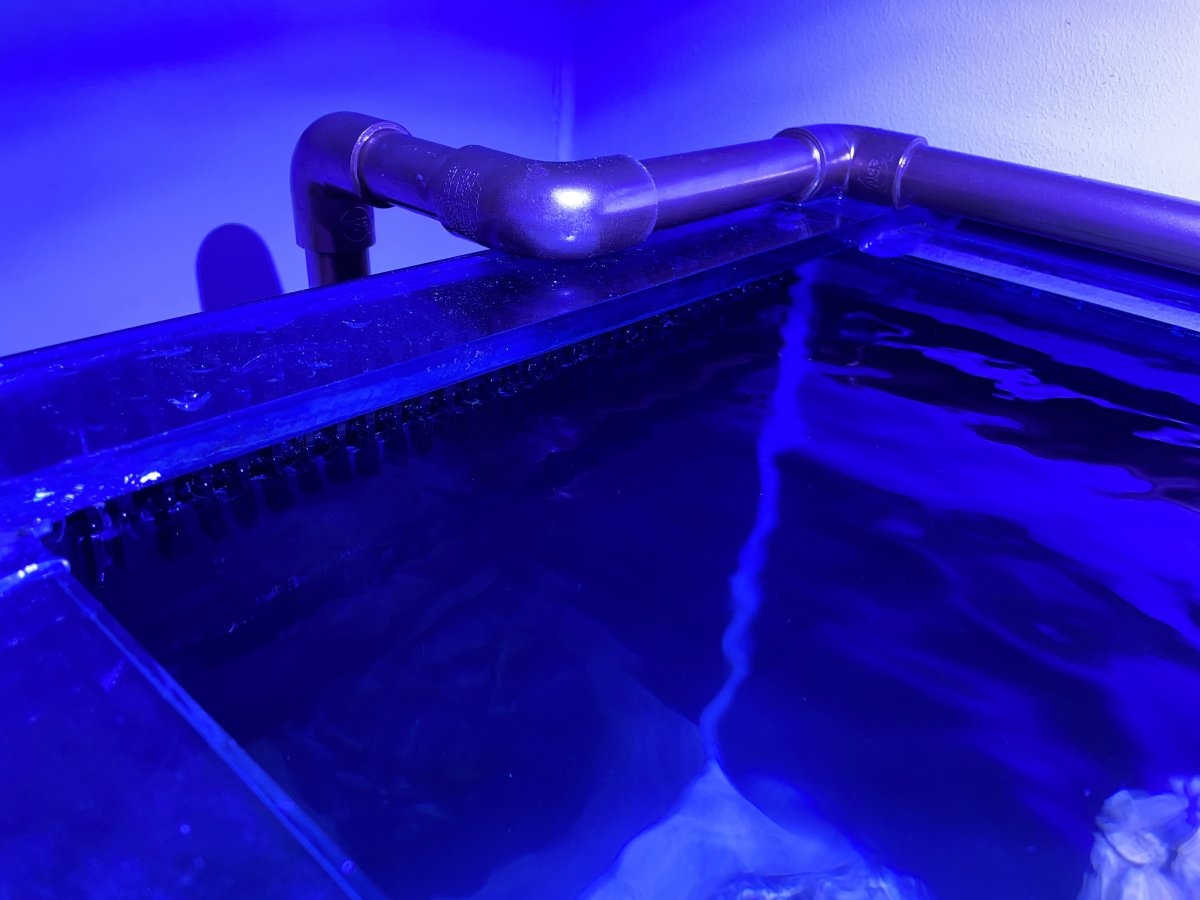

The return section fittings look like painted pvc but those two 90s that drop into the sump look like copper fittings lol.
Good job with the faux.

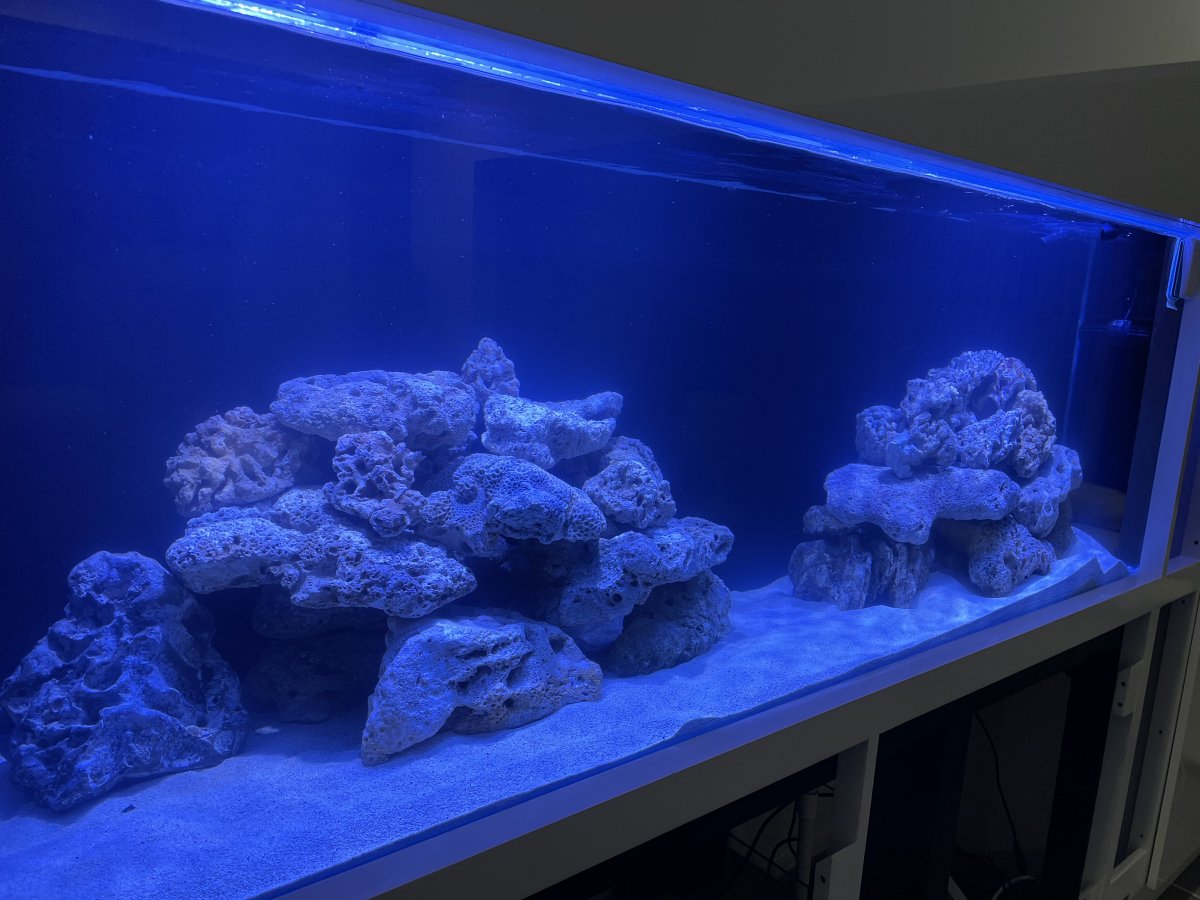

Yes, looks really nice, I actually thin that the inside need to look perfect, I will share more pictures when the waterfall stops doing noise, meanwhile you ear a waterfall on every corner of the house


laverda

2500 Club Member
View Badges
Joined
Jun 6, 2008
Messages
2,692
Reaction score
1,996
Review score
+0 /0 /-0
Location
Anaheim

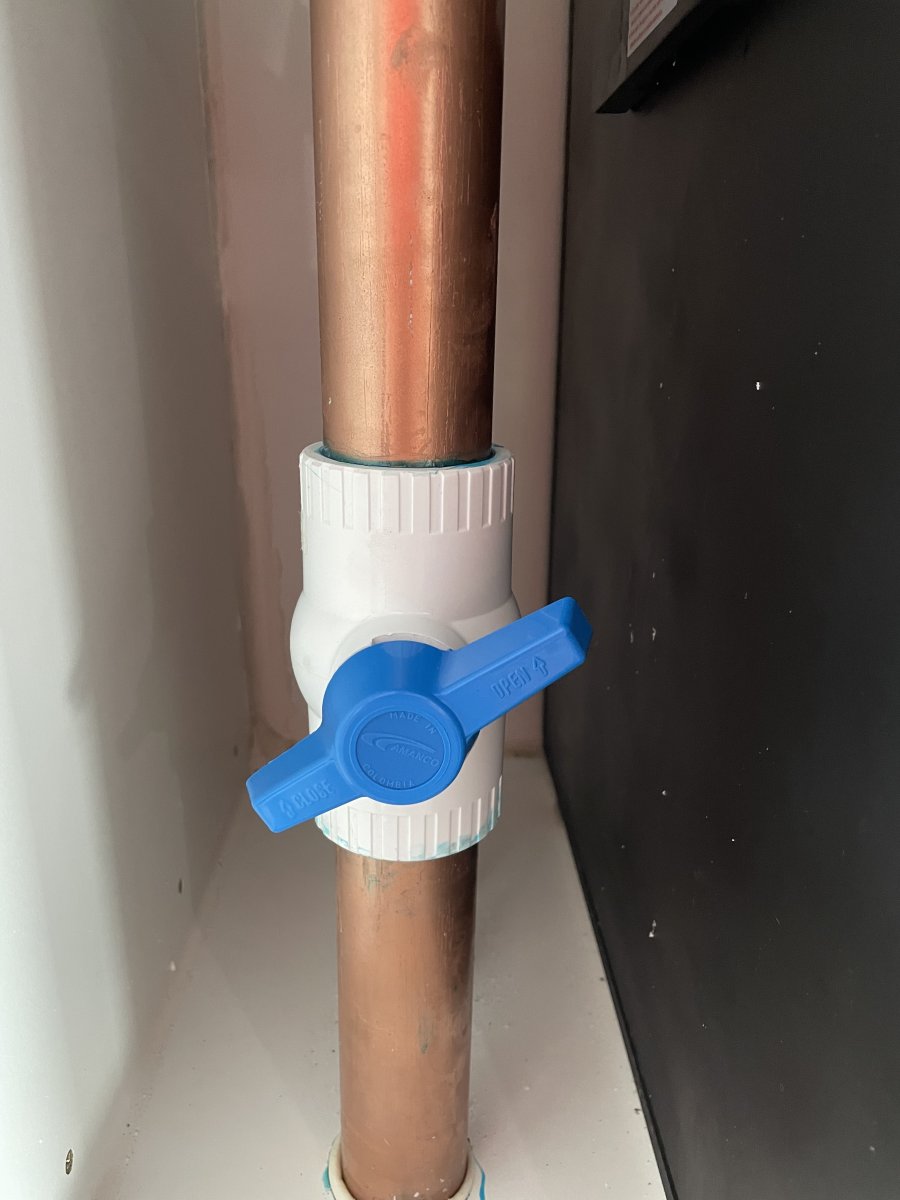

Putting valves on both lines is just going to create some major potential issues. Ie a very high risk of flooding. You need to raise the level at which the water enters one one line so you have a primary and an emergency drain. If you cut a street elbow of so it is shorter you may be able to fit it into the bulkhead inside you overflow box. There is no need to glue is in. A street elbow has one side to fit inside other PVC fittings and one to fit over tubing.

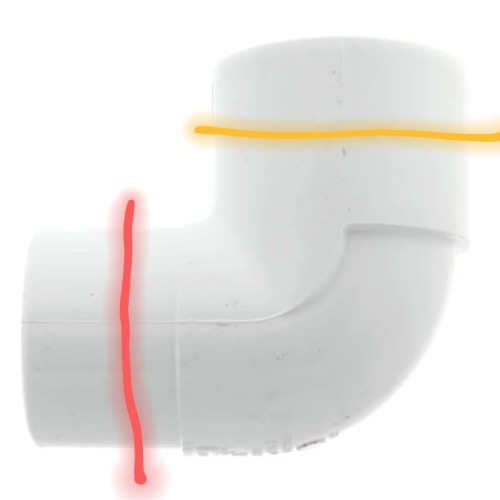

By cutting it at the red line as below it hopefully will make it small enough to fit in your overflow. Cutting it at the yellow line will lower the level at which water will start flowing into it. The line with this would be your emergency drain and should not have a valve on it. It should have little to no water going through it normally.
Street elbow

If you can not fit this in you overflow box you will have to have an external box to do it in.

Reef Chasers Aquaculture
OP
Bichito

Bichito

New Member
View Badges
Joined
Jul 10, 2021
Messages
17
Reaction score
7
Review score
+0 /0 /-0
Location
Costa Rica
Putting valves on both lines is just going to create some major potential issues. Ie a very high risk of flooding. You need to raise the level at which the water enters one one line so you have a primary and an emergency drain. If you cut a street elbow of so it is shorter you may be able to fit it into the bulkhead inside you overflow box. There is no need to glue is in. A street elbow has one side to fit inside other PVC fittings and one to fit over tubing.
By cutting it at the red line as below it hopefully will make it small enough to fit in your overflow. Cutting it at the yellow line will lower the level at which water will start flowing into it. The line with this would be your emergency drain and should not have a valve on it. It should have little to no water going through it normally.
Street elbow

If you can not fit this in you overflow box you will have to have an external box to do it in.
Thanks for the note, I will send the results soon

OP
Bichito

Bichito

New Member
View Badges
Joined
Jul 10, 2021
Messages
17
Reaction score
7
Review score
+0 /0 /-0
Location
Costa Rica
Hello friends,

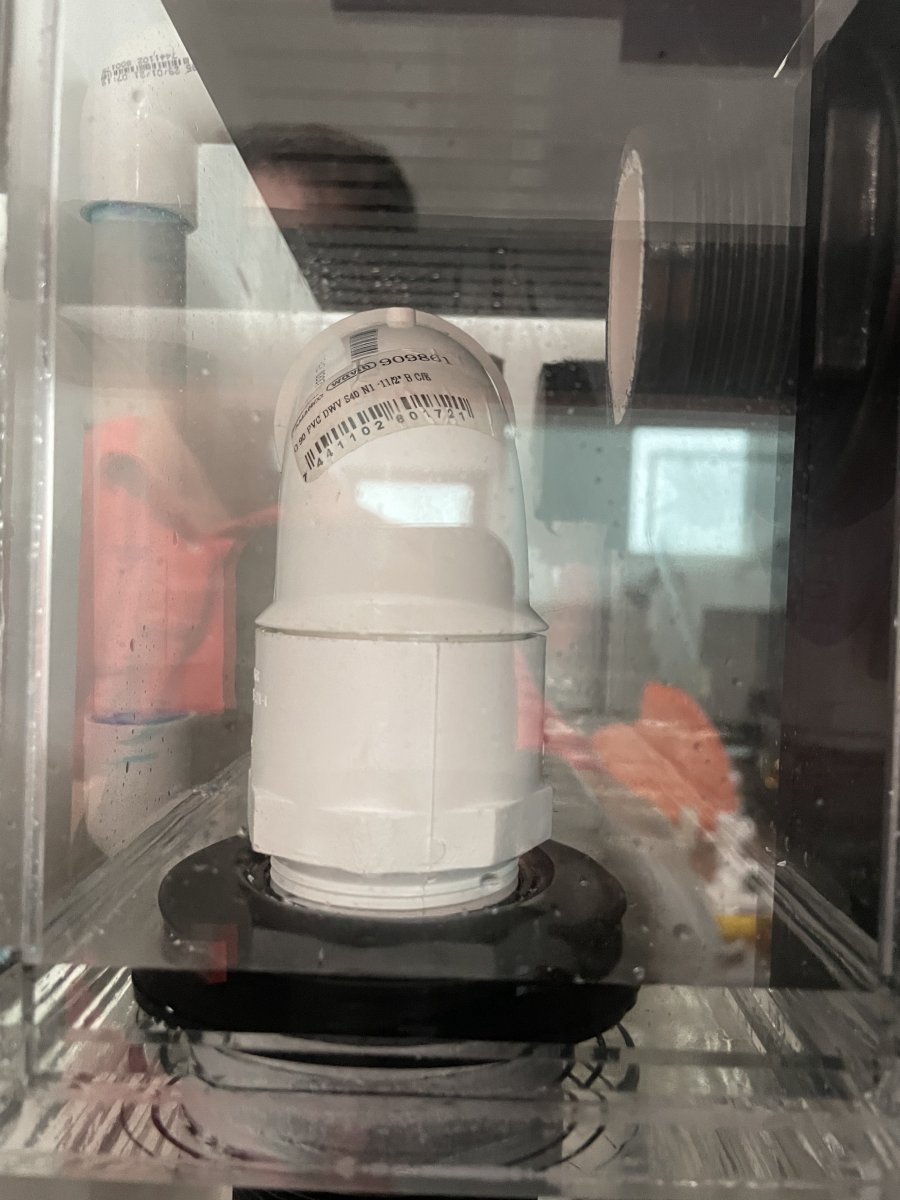

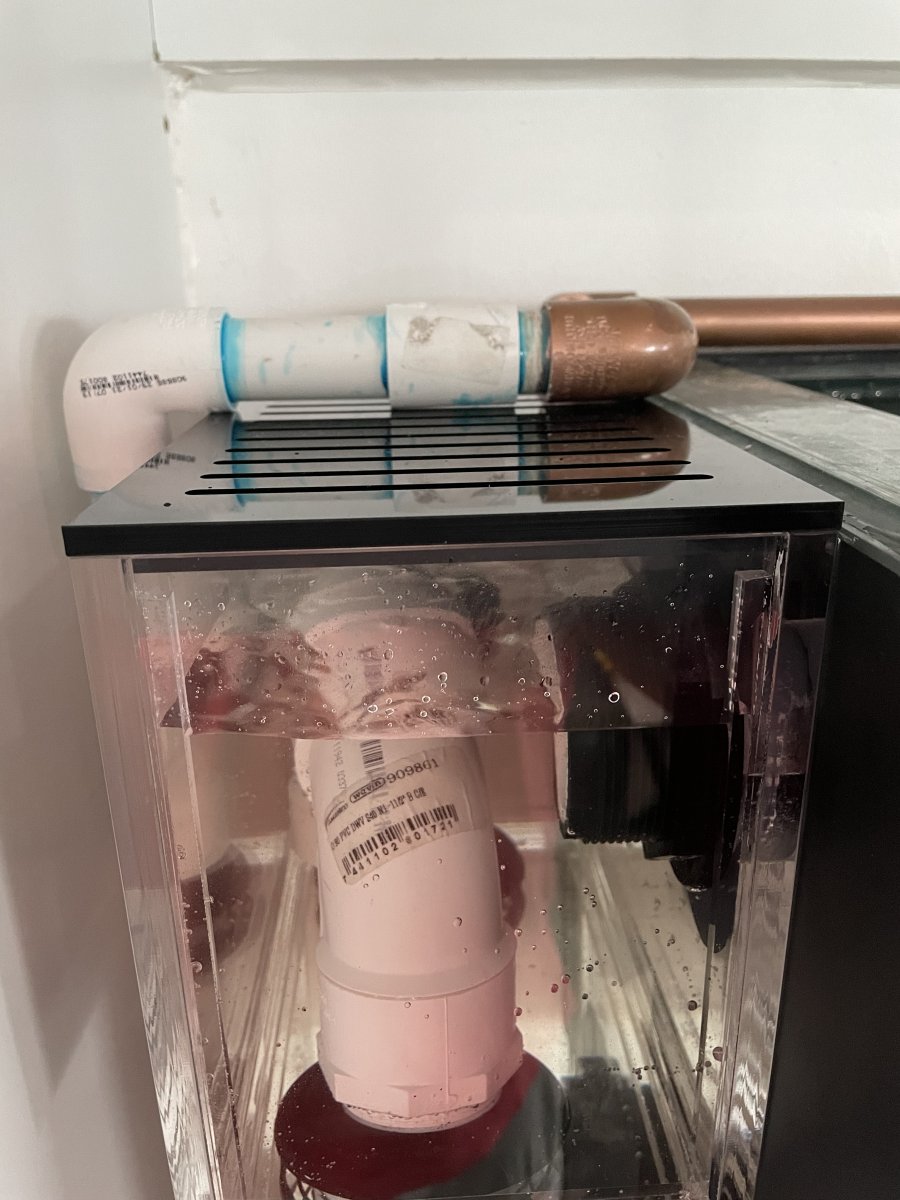

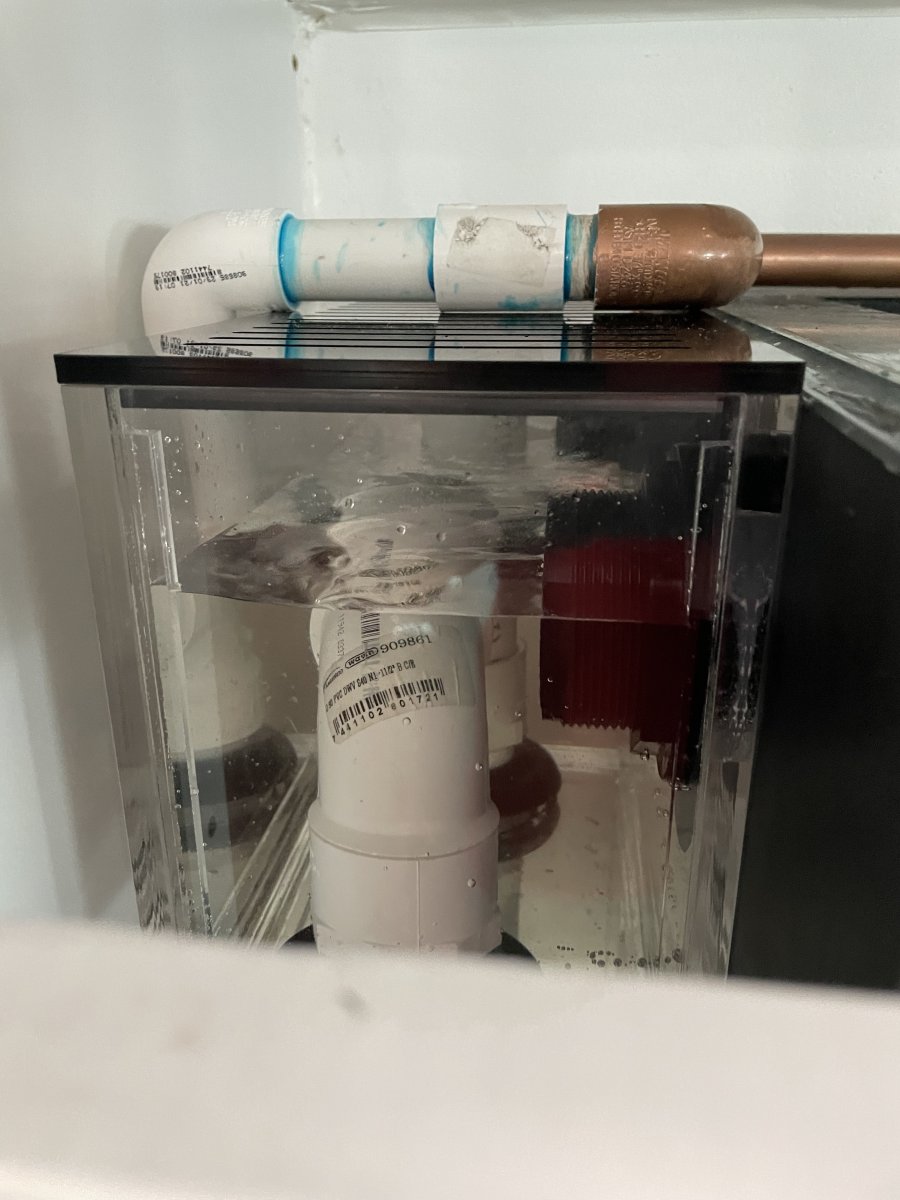

problem solved, I manufactured a custom overflow box, leave only one 1 1/2 line on sifon and the other one like top level and emergency.

zero noise , Im so happy

attached pictures
thanks for the now the painting to make it looks nice again


Attachments

  • 2AF1CB4F-AC98-472D-A635-0D237F8CECC5.jpeg
    114.9 KB · Views: 12
  • E1522AA1-8166-4D1C-958B-DA546D20ABE0.jpeg
    86.8 KB · Views: 13
  • B9F65E95-80CD-4652-ABFC-0489918DD9E9.jpeg
    139.8 KB · Views: 12
  • B9C1114D-4F4D-4D6F-A343-EA8BE8BB0D71.jpeg
    129.8 KB · Views: 11
