Skimmer Information for Database Members Input Needed

Discussion in 'Equipment, Lighting, Hardware, Aquarium Filtration' started by Reefing Madness, May 7, 2013.

  1. Reefing Madness

    Reefing Madness Carbon Doser Staff Member Team R2R R2R Supporter R2R Excellence Award

    Joined:
    Oct 27, 2012
    Messages:
    17,161
    Likes Received:
    1,061
    Location:
    Glendale, AZ.
    Eshopps PSK-100H Hang On protein skimmer
    [​IMG]
    * mesh-wheel impeller
    * removable collection cup
    * bubble plate

    * body: 4" x 15"
    * Total Height: 23"
    * Footprint: 7" x 7"
    * Air Intake: 200 lpm
    * Watts: 17w
    * Rating: Up to 100g

  2. Reefing Madness

    Reefing Madness Carbon Doser Staff Member Team R2R R2R Supporter R2R Excellence Award

    Joined:
    Oct 27, 2012
    Messages:
    17,161
    Likes Received:
    1,061
    Location:
    Glendale, AZ.
    Avast Marine CS3 Cone Skimmer
    [​IMG]
    Tank Rating: 300-500 gallons
    Footprint: 16"x16""
    Height: 25", with Swabbie 27.75"
    Cone Diameter at Base 10"
    Neck diameter: 5"
    Collection Cup Diameter: 10"
    Collection Cup Drain: 1/2" Union Disconnect
    Air Silencer: Over sized
    2x Sicce PSK1000 performance: 2200 lph @ 46w
    For in sump use only. 0"-16" depth. The standard recirculating configuration allows the skimmer to run in any depth up to the level of the neck union)
    Water feed required (recirculating mode only): 300-500gph

  3. Reefing Madness

    Reefing Madness Carbon Doser Staff Member Team R2R R2R Supporter R2R Excellence Award

    Joined:
    Oct 27, 2012
    Messages:
    17,161
    Likes Received:
    1,061
    Location:
    Glendale, AZ.
    [h=1]AquaticLife Internal Mini Protein Skimmer 115[/h]
    [​IMG]
    Pump Wattage: 8W
    Dimensions: 10.5x3x3 in
    Collection cup volume: 3.4oz
    Collection Cup Dimensions: 2x2x3 in
    Min. Clearance Above Water Line: 3.75in

  4. Reefing Madness

    Reefing Madness Carbon Doser Staff Member Team R2R R2R Supporter R2R Excellence Award

    Joined:
    Oct 27, 2012
    Messages:
    17,161
    Likes Received:
    1,061
    Location:
    Glendale, AZ.
    [h=1]ASM GC-3 Cone Protein Skimmer [/h][​IMG]
    * Needlewheel protein skimmer GC-9
    * Capability : 1200L-1700L(315G-450G)
    * Pump: Sedra 9000
    * Pump power: 110V 60Hz
    * Air intake : 1400L/H
    * Dimensions: 230*310*600MM (9.0″ * 12.2″ * 23.6″)
    * Cylinder: 20CM
    * Water Level :9.5″-11″

  5. matty0206

    matty0206 Well-Known Member

    Joined:
    Mar 25, 2012
    Messages:
    255
    Likes Received:
    1
    Location:
    Vancouver Wa.
    RLSS R6-I 6" Internal Skimmer


    [​IMG]


    Model: R6-i 6" Internal Skimmer

    Measurement::9" x 6.69" x 20.86"
    Power Input:100-240V, 50-60hzAC convert to DC
    Power:: 25W max.
    Air intake: :960L/h
    Recommended for 100-150 Gallons
    Pump: DC3000 variable speed pump
    Needle wheel
    8-10" Running depth

  6. bullet reef

    bullet reef Well-Known Member

    Joined:
    Apr 3, 2013
    Messages:
    96
    Likes Received:
    0
    Location:
    Shreveport, LA
    CAD Lights Pipe-less Protein Skimmer
    SUPER SPACE SAVING!

    *Extremely small overall dimensions: 4.75"(L) x 4.75"(W) x 18.75"(H)

    *Footprint of only 4.75"x 4.75"

    *Powerful TIA-1150 Skimmer pump*GPH: 375GPH

    *Wattage: 20W

    *Air draw: 315 L/H

    * Optimum Water level 7"-10"

    *Load recommendations:Light bio-load (100G)Medium bio-load (80G)Heavy bio-load (60G)

    *100% Cell-Cast acrylic. High quality Craftsmanship.
    [​IMG]

  7. kateater

    kateater Well-Known Member

    Joined:
    Oct 5, 2008
    Messages:
    481
    Likes Received:
    141
    Reef Octopus SSS-6000INT
    Dimensions 15"x12.5"x25"
    Pump Bubble Blaster HY-5000s 2100L/H 630GPH 55W
    Impeller Type pinwheel
    Tank Size Rating 450 gallons

  8. Reefing Madness

    Reefing Madness Carbon Doser Staff Member Team R2R R2R Supporter R2R Excellence Award

    Joined:
    Oct 27, 2012
    Messages:
    17,161
    Likes Received:
    1,061
    Location:
    Glendale, AZ.
    :bump2:

  9. Reefing Madness

    Reefing Madness Carbon Doser Staff Member Team R2R R2R Supporter R2R Excellence Award

    Joined:
    Oct 27, 2012
    Messages:
    17,161
    Likes Received:
    1,061
    Location:
    Glendale, AZ.
  10. Kennyw43

    Kennyw43 Well-Known Member

    Joined:
    Jan 14, 2014
    Messages:
    62
    Likes Received:
    1
    Is anyone using the "Typhoon"?

  11. Jdodson11

    Jdodson11 Well-Known Member

    Joined:
    Aug 30, 2012
    Messages:
    56
    Likes Received:
    0
    Location:
    Boise Idaho
    Reef Dynamics is king[​IMG][​IMG] INS 80 on 150 gallon mixed reef

  12. Reefing Madness

    Reefing Madness Carbon Doser Staff Member Team R2R R2R Supporter R2R Excellence Award

    Joined:
    Oct 27, 2012
    Messages:
    17,161
    Likes Received:
    1,061
    Location:
    Glendale, AZ.
    What are the specs on the skimmer?

  13. Mike J.

    Mike J. Well-Known Member R2R Excellence Award

    Joined:
    Dec 2, 2012
    Messages:
    3,632
    Likes Received:
    24
    Location:
    Nicholasville, KY
    Bubble Magus Hero 180 Cone Skimmer
    Dimensions: 9.8"Lx7.2"Wx20.6"H
    Sicce psk1000 pump 880 GPH, 120V 60Hz 0.56A 60 watts (double rubber mounted)
    Air intake: 500 L/H
    Cylinder 15 cm
    Water Level: 9.5" - 11"
    Needlewheel impeller
    Rated for 185 G - 240 G

    Owners note: Love this skimmer, very quiet, easy to dial in - needs very little adjusting, set it and forget it.

    Last edited: Feb 5, 2014
  14. Jdodson11

    Jdodson11 Well-Known Member

    Joined:
    Aug 30, 2012
    Messages:
    56
    Likes Received:
    0
    Location:
    Boise Idaho
    24" height zero clearance needed to remove cup, foot print is Sump Space Required For Skimmer/ Footprint: 9" x 9"
    Total Height Required: 22"
    Ideal Water Level: 6.5" Constant
    Reaction Chamber & Cup Diameter: 5"
    Reaction Chamber Volume: 1.02 Gallons
    Pump Inlet Size: ¾"
    Water Outlet Size: 1¼"
    Pump (included): Modified EcoPlus 633 Water Pump
    Pump Consumption With Maximum Air Intake: 28 Watts @ 115/120 VAC 60hz
    Air Intake: 420-480 lph
    Water Flow Through: 120 gph+/ Depending On Air:Water Ratio

  15. Jdodson11

    Jdodson11 Well-Known Member

    Joined:
    Aug 30, 2012
    Messages:
    56
    Likes Received:
    0
    Location:
    Boise Idaho
    That was for the ins 80 reef dynamics[​IMG]

  16. swissgaurd

    swissgaurd Well-Known Member

    Joined:
    Nov 24, 2006
    Messages:
    498
    Likes Received:
    4
    Location:
    mississauga,ontario,canada

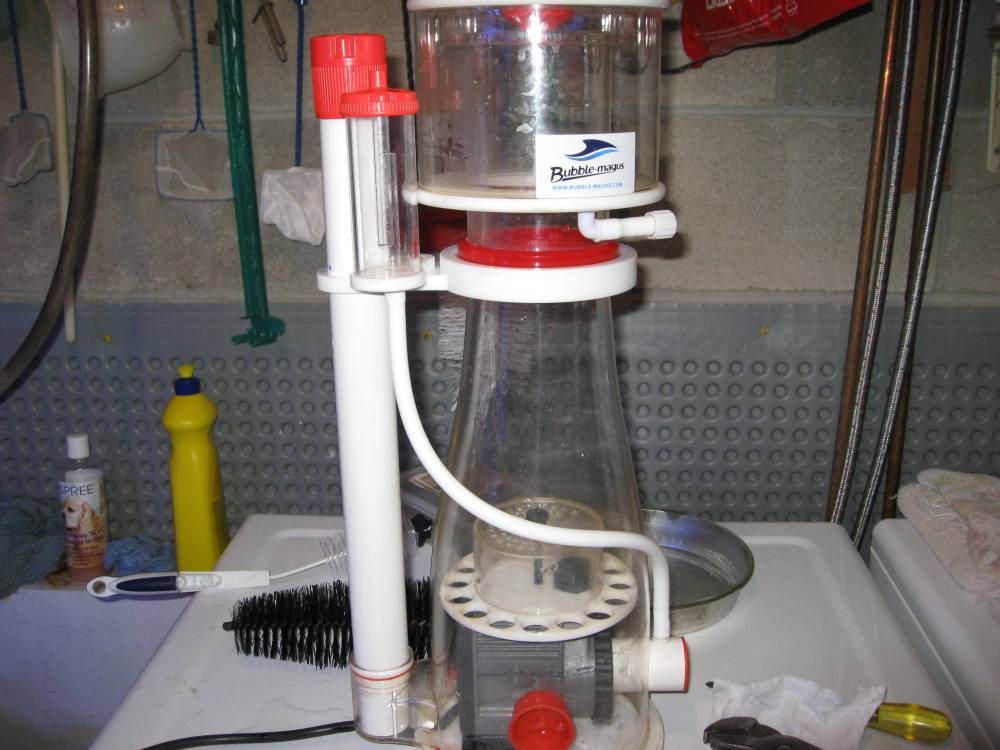

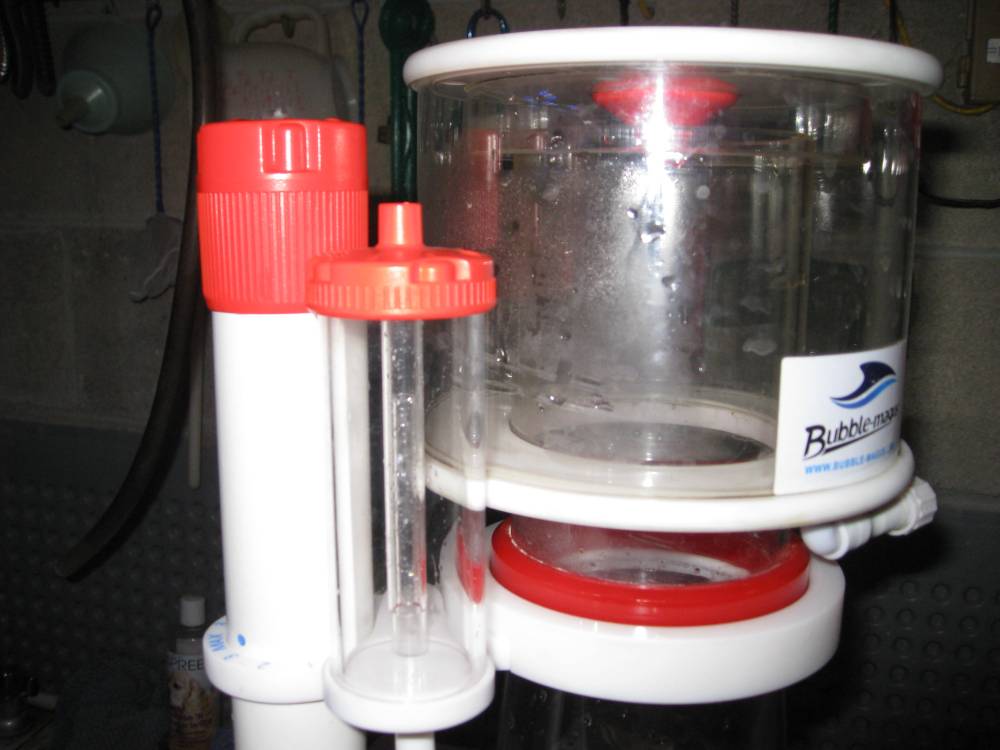

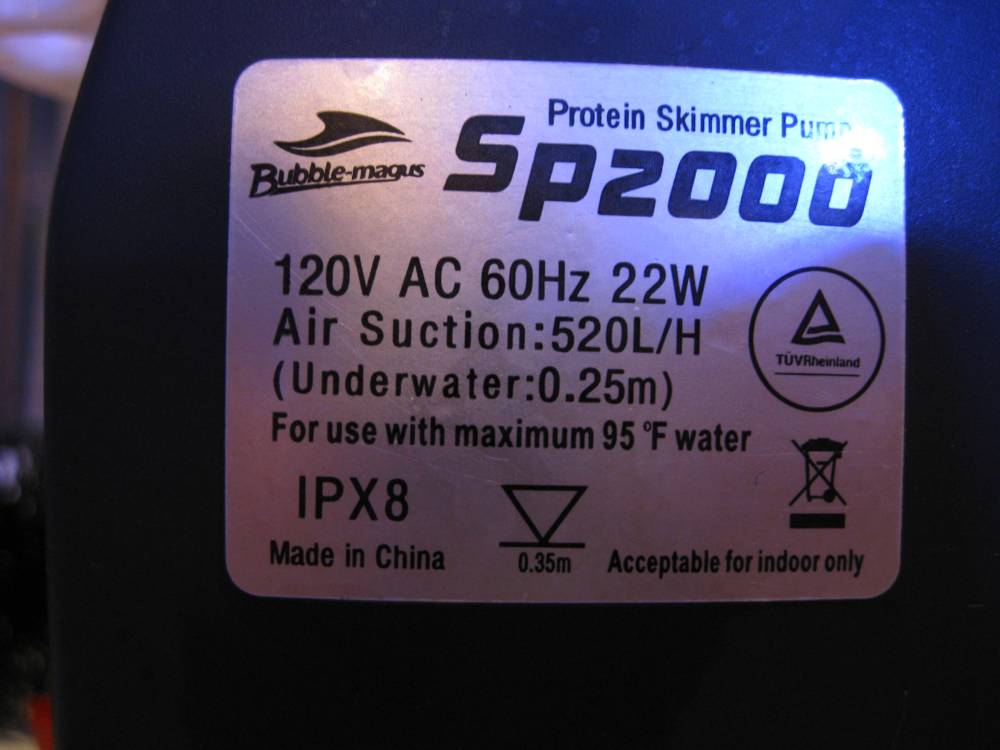

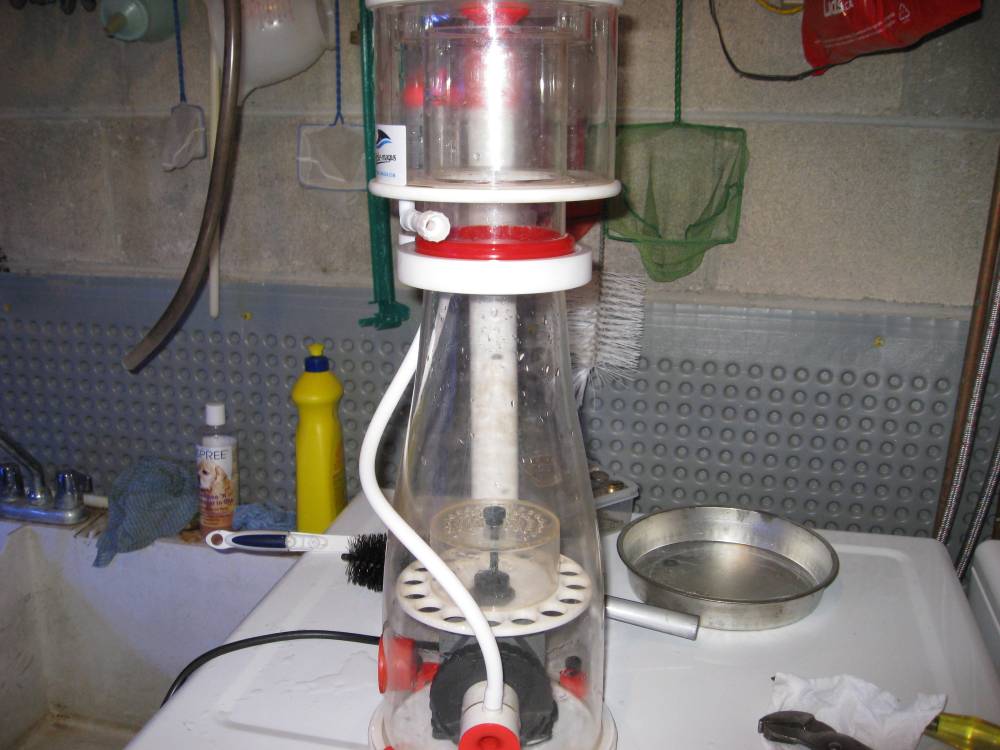

    cleaned my Bubble Magus Curve 7
    rated for 240 g
    9.25" x 7.87" x 20.8"


    Attached Files:

    • 004.JPG
      File size:
      89.9 KB
      Views:
      368
    • 005.JPG
      File size:
      86.9 KB
      Views:
      346
    • 006.JPG
      File size:
      68.2 KB
      Views:
      361
    • 002.JPG
      File size:
      65 KB
      Views:
      372
  17. mrcoberg

    mrcoberg Member

    Joined:
    Jun 3, 2012
    Messages:
    10
    Likes Received:
    0
    Location:
    NJ
    Here my
    "not so popular" Coralife Cone Skimmer
    Its rated for 300 gallons under heavy stocking of the tank
    The pump is a needle wheel installed by coralife, AC 110v 60hz aprox flow is 650 -700gph (for now) plan to mod to a new Diablo dc pump soon
    The Base 14 1/2 X 9 3/4 X 26" high
    It has a diffuser plate that works very good
    I did lots of mods to it to get it to work reliably, I'm happy with it.





  18. ManOfSalt

    ManOfSalt Well-Known Member

    Joined:
    Jan 27, 2014
    Messages:
    225
    Likes Received:
    1
    Location:
    Sydney, Australia
    Hydor 550 performer protein skimmer


    Height 55cm
    Footprint 20.5cm x 28cm
    rated up to 650l (170 gallons)
    suggested feed pump 800lph (200 gallons per hour)
    Fitted with Hydor L35 II
    16w
    Internal or External mounting

  19. bond300

    bond300 Well-Known Member

    Joined:
    Apr 24, 2014
    Messages:
    121
    Likes Received:
    0
    Location:
    North Carolina
    AquaC-Remora-Pro-Protein-Hang-On-Skimmer-w-Danner-Supreme-3-Powerhead-Pump-1.jpg[h=2]AquaC Remora Pro Hang-On Protein Skimmer (No Pump) Information[/h]Product Manuals & Documentation

    Part #: Remora Pro

    The revolutionary AquaC protein skimmers do not use venturis, downdraft tubes, or air pumps; they employ the patented "Spray Injection System." This innovation allows the protein skimmer to efficiently draw in much more air than any other of the top protein skimmers. This coupled with the superiorly designed compact reaction chamber yields results that will literally blow the waste out of your water.

    How does Spray Injection Work?

    In 1998, Jason Kim (owner and founder of AquaC) developed a patented process of protein skimming which has come to be known as Spray Injection. Unlike previous forms of skimming, our spray injection method enables huge amounts of air and water to be processed with a relatively small pump. Although it is a simple process, there is still some confusion as to how the spray injector works.

    Imagine that you're washing your car – you've got a bucket full of soapy water and a garden hose with a fast-moving stream of water. By placing your thumb over the end of the hose, you can disrupt the stream into a turbulent, high –pressure spray. Now direct that spray down into the bucket of water, and you'll generate a massive amount of bubbles and air flow. That is exactly how our spray injector works.

    The skimmer body acts as a water reservoir – the bucket in the example above. Water is pumped through the spray injector, which has a special nozzle that fans the water out into a pressurized spray. This spray shoots into the skimmer body, generating millions of tiny air bubbles. As the bubbles are formed, more air is sucked into the skimmer as a result of the local drop in pressure and the process continues.

    Most other forms of protein skimming rely on special valves or media to generate the air flow, and these parts quickly become clogged with salt, dust, or even mineral deposits. The AquaC spray injector is a relatively large nozzle that resists clogging, and when combined with a pump prefilter, can be considered maintenance free.

    "For its compact size and simple design, The AquaC protein skimmer is able to process a large volume of water and efficiently remove organic pollutants. I`m very happy with it!"
    Fernando Nosratpour, Senior Aquarist
    Birch Aquarium at Scripps


    The AquaC Remora Series is the first hang-on protein skimmer under $250 to be able to generate a dry consistency of foam that previously only an in-sump "super-skimmer" is capable of.

    Features:
    • The Remora is built from translucent gray acrylic to inhibit the growth of algae and marine organisms.
    • The skimmer can be ordered with a collection drain fitting (optional).
    • The two screws at the base of the skimmer are used to adjust the Remora so that it is level with the back of the tank.
    Specifications:
    • Tank Size (Gallons): 50-120
    • Dimensions: 22" tall x 7-1/2" wide x 3-1/4" deep
    • Minimum tank opening 6-1/2" x 1"
    • Minimum tank height 15-1/4"
    • Minimum space behind tank 3-1/4"
    • Maximum tank lip 1-1/2" wide
    • Vertical clearance above tank 12"
    • Includes nylon cleaning brush

  20. revhtree

    revhtree Owner Administrator Staff Member Team R2R R2R Supporter R2R Excellence Award Photo of the Month Award Article Contributor Partner Member

    Joined:
    May 8, 2006
    Messages:
    56,349
    Likes Received:
    15,675
    Location:
    Heaven On Earth
    Great additions to his thread! Thanks!
