Skimmer Information for Database Members Input Needed

Discussion in 'General Equipment, Hardware, Filtration' started by Reefing Madness, May 7, 2013.

  1. mrcoberg

    mrcoberg Member

    Joined:
    Jun 3, 2012
    Messages:
    10
    Likes Received:
    0
    Location:
    NJ
    Update on Skimmer after 6 months of constant adjustment.

    OK, so I had this skimmer for 6 months now and It is non stop tweaking just because the water will fluctuate 1/2" in height every so often. It over flows after every power off ,so you can't shut it down to feed. I do water changes with it off and have to retune it after, even after I bring water to same level. So I don't recommend You buy one of these unless you want a lot of work! I also own a coral life 150G cone skimmer which is a little better but not much. You can't do feed shutdowns or blackout/brown outs it will over flow.

    I just bought a Super Reef Octopus SRO-5000Ext off of ebay for $341.00 - $125.00 for shipping damage refund for a total of $216.00 that I will be quickly repairing. I plan to adapt a new RO-DC pump to it, to hybrid it in efficiency of consumption. The pump uses 45Watts for the recirculation pump and use the return pump to feed it.




    Attached Files:


  2. Synodontis

    Synodontis Active Member R2R Supporter Build Thread Contributor MASOV Member

    Joined:
    May 27, 2013
    Messages:
    187
    Likes Received:
    318
    Location:
    Victoria, Australia
    Royal Exclusiv - Bubble King DeLuxe 500 internal

    [​IMG]

    [​IMG]

    Dimension skimmer without pumps: 530 mm wide / 640 mm length / ~ 690 mm height
    Dimension skimmer with pumps: 890 mm wide / 640 mm length / ~ 690 mm height
    Skimmer cup removal
    : 40mm extra height clearance required
    Skimmer-pumps: Bubble King® 2000 with AKB- (anti-lime-bypass)
    Delivery rate: 4.000 l/h Air inlet ~ 6.000 l/h Water inlet
    Impeller type: Needle wheel
    Water level: ~ 180 mm up to ~ 270 mm (ideal ~ 225 mm)
    Weight skimmer: 24 kg inclusive pumps
    Tank Size Rating: 2.200 liter - 5.000 liter

  3. Preyou

    Preyou Active Member R2R Supporter Build Thread Contributor

    Joined:
    Jan 11, 2014
    Messages:
    331
    Likes Received:
    98
    Location:
    Florida's Space Coast
    Vertex Aquaristik Omega 180i
    Dimensions: 248mm x 261mm x 583mm (9.76" x 10.28" x 22.95") 10" x 11" Footprint
    Sicce Syncra V-180 Pump w/ Standard Impeller (proprietary pump, unlisted gph)
    Power Consumption: ~28W
    Air Draw: Approx. 238 GPH (900 LPH) - 343 GPH (1300 LPH)
    Tank Size: 92-184 Gallons (350-700 Liter)


    Attached Files:

  4. MantisShrimpDude

    MantisShrimpDude Member

    Joined:
    Jun 30, 2014
    Messages:
    18
    Likes Received:
    2
    Location:
    Clio, Michigan
    Skimz SM163 Monzter D-Series


    Skimmer Specifications:

    • Base Diameter: 6.3" (160mm)
    • Foot Print: 7.4” x 7.4” (188mm x 188mm)
    • Total Height: 21.5” (545mm)
    • Cup Diameter: 160 mm

    VSC3000-DC Pin Wheel Pump Features:
    • Six RPM presets
    • Feed mode with shut off timer
    • Air Draw: 159-317 GPH (600-1200 LPH)
    • Power Consumption: 9-19 Watts

    Features:
    • Integrated cylindrical and cone shape chambers help reduce bubble bursting and surface agitation
    • Bubble Plate Design - reduces turbulence
    • Maximum air flow capacity in compact design
    • Micro-adjustable valve for precise water level control
    • Twist-lock neck for easy collection cup removal
    • Quality construction - CNC machined parts and Georg Fischer fittings
    • Internal application - no feed pump required

    QUICK OVERVIEW
    The Skimz D-Series SM163 DC Internal Protein Skimmer gives you high performance skimming at a great value.

    Adjustable DC VSC3000 pump housed within the skimmer body resulting in a compact design.

    Rated for tanks up 317 gallons

    Operating Depth: 7" to 9.5" (18mm to 24mm)

    Low power consumption and high performance

    Skimmer draws water directly from sump

    nano24Clownfish likes this.
  5. ReeferReefer

    ReeferReefer Active Member

    Joined:
    Nov 23, 2015
    Messages:
    449
    Likes Received:
    146
    Reef Octopus BH-2000 HOB
    BH-10002000-21.jpg hobskimmer.jpg

    Name: Reef Octopus BH-2000
    Dimensions: 8" x 3.25" x 17"
    Wall clearance needed: 4"
    Pump: OTP pump at 500 GPH with venturi design and pinwheel impeller
    Rating: 125 gallons

    A classic HOB skimmer with great build quality. Externally mounted pump is easy to remove and reduces heat. The return pipe can even be angled to fit a variety of tight spaces. Has a surface skimmer, return sponge (to reduce microbubbles) and air silencer included (although I do not use the surface skimmer or return sponge to space constraints on my AIO). Great option for sumpless tanks and I would even consider using it in a sump to save space. Only design oversight is the lack of an overflow line for the cup. All adjustments are made by raising and lowering the cup height as there is no adjustable air intake. Simple to use and effective. Recommended.

  6. acesfull44

    acesfull44 Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Jan 21, 2015
    Messages:
    580
    Likes Received:
    162
    Location:
    St. Louis
    Regal 200EXT Recirculating Protein Skimmer

    [​IMG]

    BIOLOAD HANDLING
    • HEAVY
    • MEDIUM
    • LIGHT
    • 200 GALLONS
    • 300 GALLONS
    • 400 GALLONS
    • Latest in DC Controllable Technology
    • Variable Speed RO-DC 3500s Skimmer Pump
    • 5 Controllable Power Settings
    • Detachable Controller with Waterproof Union
    • The Best in Recirculating Design
    • 8in Solid Constructed Hybrid (1/2 cone) Skimmer Body
    • High Volume Air Intake
    • Quiet and Energy Efficient Operation
    • Body Drain
    TECHNICAL SPECS
    Hybrid Body: 8in
    Footprint: 15.7in x 13.8in
    Neck Size: 5in
    Total Height: 25.4in
    Output Size: 50mm / 1.5in

    Pump Information
    Reef Octopus Variable Speed RODC 3500s Pinwheel Pump
    Power Consumption: 25-40watts
    Voltage: DC 24V
    Air Draw: 800-1200 lph / 28-42 SCFH*
    Water Draw: gph

  7. PaReeferJ

    PaReeferJ ADDICTED....... R2R Supporter

    Joined:
    Feb 3, 2016
    Messages:
    426
    Likes Received:
    220
    Location:
    Mechanicsburg, PA

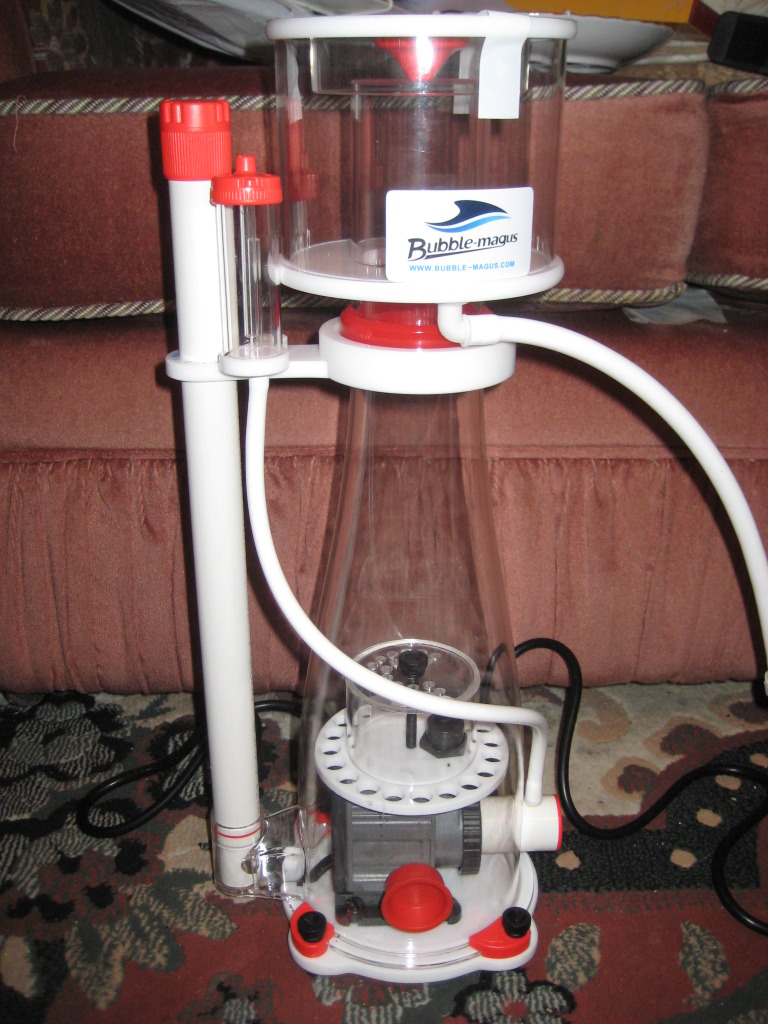

    Bubble-Magus Curve-5

    Dimensions:
    7.28 x 7.08 x 18.5
    Footprint: 5 x 6
    Pump: Rock Sp-1000. 8 watts
    Impeller: Pinwheel
    Air intake: 300 l/h
    Rated for up to 140g


  8. 120reefkeeper

    120reefkeeper Reef keeping with Military Precision! R2R Supporter Reef Squad R2R Excellence Award Article Contributor Build Thread Contributor Partner Member 2018

    Joined:
    Jan 5, 2016
    Messages:
    3,451
    Likes Received:
    6,116


    Euro-Reef RS-180 Skimmer
    Realistic Rating: avg load 180gal; heavy load 135gal
    Comparative Rating: up to 450gal
    Sump space required for skimmer: 11" x 13.5"
    Height: 24"
    Neck Diameter: 4.5"
    Reaction chamber diameter: 8"
    Reaction chamber volume: 3.04 gallons
    Inlet size: n/a
    Outlet size: 1.5"
    Pump power consumption: 45W @ 115/120 VAC 60hz
    Air intake: 900 lph

  9. MattV

    MattV New Member

    Joined:
    Jun 15, 2016
    Messages:
    1
    Likes Received:
    0
    Location:
    Newtown, PA
    ;)

  10. nanomania

    nanomania Valuable Member

    Joined:
    Apr 12, 2016
    Messages:
    1,825
    Likes Received:
    333
    Looking for reef octopuc classic 90 hob in india. Cannot find a good source. Please help if any reef octo manufacturer in here.

  11. Simplicity Aquatics

    Simplicity Aquatics Simple, Effective, Affordable R2R Supporter Gold Sponsor

    Joined:
    Aug 20, 2015
    Messages:
    51
    Likes Received:
    43
    [​IMG]

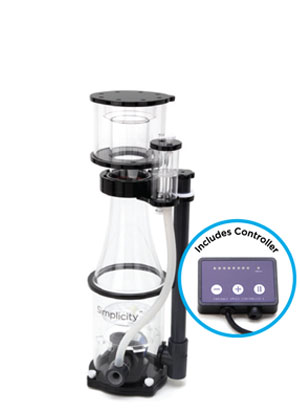

    120DC
    Protein Skimmer
    Air intake: 120-360 L/h

    Consumption: 6-12 watts

    Controller: Included

    Dimensions: 6.7” x 6.3” x 18.7”

    Stocking Level:
    Light Bioload: up to 120 gallons
    Medium Bioload: up to 90 gallons
    Heavy Bioload: up to 60 gallons

    Limited Warranty:
    2 years on skimmer body
    1 year on skimmer pump

    Item #: SIM1001

    $199.95

    [​IMG]
    240DC
    Protein Skimmer
    Air intake: 240-660 L/h

    Consumption: 9-18 watts

    Controller: Included

    Dimensions: 8.3” x 7.9” x 19.5”

    Stocking Level:
    Light bio-load: up to 240 gallons
    Medium bio-load: up to 180 gallons
    Heavy bio-load: up to 120 gallons

    Limited Warranty:
    2 years on skimmer body
    1 year on skimmer pump

    Item #: SIM1003

    $249.95

    [​IMG]
    320DC
    Protein Skimmer
    Air intake: 600-1,200 L/h

    Consumption: 14-28 watts

    Controller: Included

    Dimensions: 9.1“ x 8.3” x 21.3”

    Stocking Level:
    Light bio-load: up to 320 gallons
    Medium bio-load: up to 240 gallons
    Heavy bio-load: up to 160 gallons

    Limited Warranty:
    2 years on skimmer body
    1 year on skimmer pump

    Item #: SIM1005

    $349.95


    [​IMG]
    540DC
    Protein Skimmer
    Air intake: 900-1,800 L/h

    Consumption: 13-35 watts

    Controller: Included

    Dimensions: 9.9“ x 11” x 22”

    Stocking Level:
    Light bio-load: up to 540 gallons
    Medium bio-load: up to 405 gallons
    Heavy bio-load: up to 270 gallons

    Limited Warranty:
    2 years on skimmer body
    1 year on skimmer pump

    Item #: SIM1007

    $499.95

    [​IMG]
    800DC
    Protein Skimmer
    Air intake: 1,200-2,400 L/h

    Consumption: 25-69 watts

    Controller: Included

    Dimensions: 12.2“ x 13.4” x 23.7”

    Stocking Level:
    Light bio-load: up to 800 gallons
    Medium bio-load: up to 600 gallons
    Heavy bio-load: up to 400 gallons

    Limited Warranty:
    2 years on skimmer body
    1 year on skimmer pump

    Item #: SIM1009

    $679.95

  12. oracle86d

    oracle86d Member

    Joined:
    Jan 23, 2018
    Messages:
    16
    Likes Received:
    1
    I have one I can sell u

  13. FLSharkvictim

    FLSharkvictim Shark Advocates Intl R2R Supporter West Palm Beach Reefer Tampa Bay Reef Keepers Build Thread Contributor

    Joined:
    Oct 11, 2016
    Messages:
    776
    Likes Received:
    489
    Location:
    Redington Beach, FL
    Reef Octopus REGAL 150INT 6" INTERNAL Skimmer Incl - (VARIOS) PmP!
    Features:
    • VarioS-6 DC controllable pump
    • Safety overflow float switch for cup
    • High quality cast acrylic
    • Easily disassembled for cleaning
    • Hybrid Cone Shape
    • High volume air intake
    • Body Drain
    • 3rd-Party controller input (0-10V)
    SPECS
    Body Diameter: 6"

    Neck Size: 3"
    Foot Print: 11.4” x 7.5”
    Total Height: 22.6”
    Output Size: 40mm - 1.25”
    Recommended sump water depth: 6 -8


    The Regal 150 Filtration Handling

    Well Stocked Tank - Rated up to 100 gallons
    Medium Stocked Tank - Rated up to 150 gallons
    Light Stocked Tank - Rated up to 210 gallons


    Pump Features:
    Air Draw: up to 900 LPH / 31.5 SCFH
    Power Consumption: 15-25W
    Voltage: DC 24V


    REGAL 150INT 6" INTERNAL
    Reef Octo Gate Valve
    VarioS-2 S Pinwheel Pump
    VarioS DC Controller
    Built in Float Switch with a BNC Connector

    Last edited: Mar 10, 2018
  14. Mariner00

    Mariner00 Member

    Joined:
    Mar 27, 2018
    Messages:
    14
    Likes Received:
    7
    Location:
    Ontario
    For those nano reefers out there
    This can fit into a Nuvo 20gal and Nuvo 25gal Lagoon.


    Eshopps Nano Skimmer


    Features

    •Sicce Micra Venturi Pump
    •Needle-Wheel impeller
    •Magnetic Mount
    •Removable collection cup
    •10-35g Tank
    •Small Footprint of 4 ½” x 2 1/4“ x 11 ½”


  15. nano24Clownfish

    nano24Clownfish Member

    Joined:
    May 10, 2017
    Messages:
    19
    Likes Received:
    19
    I have the little in sump Monzter Mini. I love it to pieces. Excellent value. I’m just too lazy to collect all of the data.

  16. FLSharkvictim

    FLSharkvictim Shark Advocates Intl R2R Supporter West Palm Beach Reefer Tampa Bay Reef Keepers Build Thread Contributor

    Joined:
    Oct 11, 2016
    Messages:
    776
    Likes Received:
    489
    Location:
    Redington Beach, FL
    Nice!! Nothing better and more efficient than a lazy reefer!

  17. Deepsixx

    Deepsixx Member

    Joined:
    May 2, 2018
    Messages:
    25
    Likes Received:
    34
    Here is mine (if you look my thread on new tanks, intro's you will see it on the pics)
    Bubble King Double Cone 200 DC
    A Picture of the Skimmer
    12.6 inches x 15.7 inches x 21.7 inches
    12.6 inches x 15.7 inches with pump attached
    Royal Exclusive, Red Dragon® 3 Mini Speedy skimmer pump 50 Watt DC, 3000L / H
    1500L/ Air Intake
    Needle wheel Impeller type
    250 Gallons Tank Size Rating

  18. reeftivo

    reeftivo Active Member

    Joined:
    Apr 26, 2010
    Messages:
    155
    Likes Received:
    37
    Location:
    Chino, California
    ATB Nano One

    have one and it's a great performer. Only draw back is that the cup does not hold a lot of skim and the cup is not drilled for running a skim locker. you would need to drill it yourself which is not hard and inexpensive. Drilling the cup may void warranty on the body but the pump would still be covered by ATB USA. skims like a beast. (see last pic)

    [​IMG]

    Introducing the Updated line of ATB skimmers from the creators of the world’s first Full Cone Conical Skimmer. Made in Austria with only the finest material and well know craftsmanship. The ATB Nano One is now available in the USA. A smaller skimmer rated for up to 150 gallons.
    Our Price: $499.00
    399.00
    Savings: $100.00

    ATB Protein Skimmers have achieved the perfect balance of air and water to deliver constant, stable and frothy foam while eliminating turbulence. Maximum air to water contact time is achieved in a relatively small chamber that would simply not be possible with a traditional design. Couple this with the consistent and tiny micro bubbles created by our Airstar pumps and you have a recipe for uncompromising performance catered specifically to the professional aquarist.

    Our skimmers are hand crafted in Austria using solid, durable and long lasting materials like PVC, Acrylic, and Titanium. Cuts are made with the help of our precision CNC machines. Our Airstar motor blocks are sourced from Italy and joined with our proprietary volutes and needle wheel impellers. This combination has led to one of the most energy efficient, long lasting, high performance and highly sought after skimmer pumps on the market.


    Beware of inferior replicas of the original and patented ATB design.

    • Removable base plate for easy cleaning
    • Double bubble plate
    • Highly polished edges
    All white PVC
    • Titanium hardware throughout
    • 1 year manufacturer warranty
    • Lifetime support
    • Made in Austria
    [​IMG]
    [​IMG]

    [​IMG]
    Footprint: 12" x 7.5"

    • Total Height: 15.75"
    • Rated for tanks up to 150 gallons
    • Cone diameters: 6″ & 3.75″
    • Airstar 1200 DCT pump
    • Air Draw ~ 1200 l/hr
    • 16 watts total power consumption
    • Recommended sump water depth: 6" to 8"
    • Note: Avoid heavy iodine dosing near white skimmer components

    Last edited: Jul 17, 2018
    Reefing Madness likes this.
  19. BedrockIOMC

    BedrockIOMC A fresh tanker turned salty. Loving the salt! R2R Supporter

    Joined:
    Jul 3, 2018
    Messages:
    192
    Likes Received:
    136
    Location:
    Knoxville
    Ok I have a freshwater tank as well as my saltwater and I am thinking of putting a protein skimmer for a while now. what would be the best way of going about doing one without a sump? I would love to stay away from the hang on back type but not sure how I can do that. all help is welcome, thank you.

  20. reeftivo

    reeftivo Active Member

    Joined:
    Apr 26, 2010
    Messages:
    155
    Likes Received:
    37
    Location:
    Chino, California
    Hi Bedrock

    i think you posted this in the Skimmer Q&A thread already. This thread is the data base thread for various types of skimmers so you probably wont get much of a reply but I'll try. HOB is the best option! You will have nightmares trying to run an external and plumb it (feed pump flows/check valves/potential for flooding etc..)
    why no sump? you can get a small compact somatic sump or eshopps for cheap that can fit under most all tanks.

Draft saved Draft deleted

Share This Page

  1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
    By continuing to use this site, you are consenting to our use of cookies.
    Dismiss Notice
Loading...
