For those running multiple tanks on 1 system. Is it possible to have 2 return sections on a sump?
Would love to see some pictures.
Would love to see some pictures.
Follow along with the video below to see how to install our site as a web app on your home screen.
Note: This feature may not be available in some browsers.
The simple answer is yes. I have downsized to just one tank now. I had 2 systems and each had 2 tanks on a single sump/refugium. However, both tanks were fed return water from a single return pump with gate valves on each. The 180g tank feed the refugium and DSB at the left end. The 75G hexagon tank feed filter socks, the skimmer and live rock at the right end. The return pump is in the middle. This system ran for 6 years and was only reired due to the 180g tank developing a 30gph leak that was not repairable!
![]()
Thanks for the description and picture.
I was more looking for pictures of 1 sump with 2 separate return sections.
You mean 2 separate return pumps from 2 different sections in the sump?
![]()
![]()
![]()

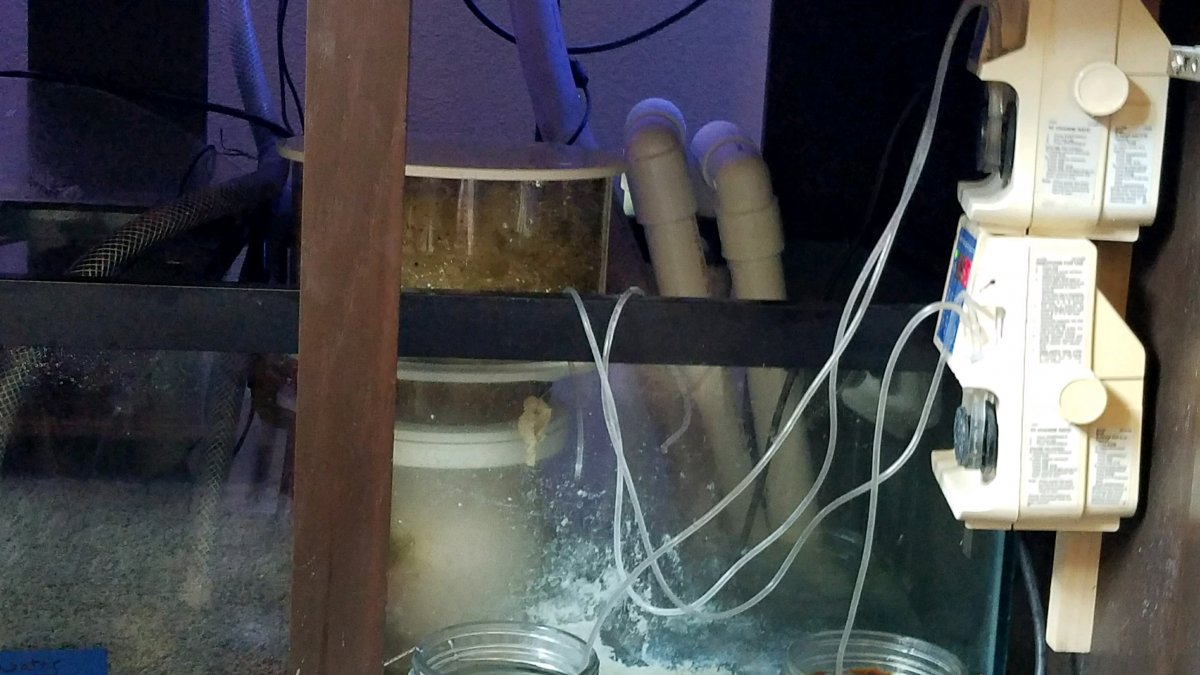

Here are 3 seperate tanks sharing the same 75 (48"x18"x21")gallon sump.
You can see the 2 outer tanks have a single 2" drain and the center tank has 2-1.5" drains. 3 drains flow into the right side chamber in the sump, and 1 drain supplies the fuge on the left. The center camber is where I house the skimmer, return pumps, and Tunze osmalator ATO. If you go this route it is important to periodically flush the lines. I usually do this during water changes by unscrewing the strainers so the increased water pressure will keep the detritus from building up in the return hoses. HTH
![]()
![]()
![]()
Here are 3 seperate tanks sharing the same 75 (48"x18"x21")gallon sump.
You can see the 2 outer tanks have a single 2" drain and the center tank has 2-1.5" drains. 3 drains flow into the right side chamber in the sump, and 1 drain supplies the fuge on the left. The center camber is where I house the skimmer, return pumps, and Tunze osmalator ATO. If you go this route it is important to periodically flush the lines. I usually do this during water changes by unscrewing the strainers so the increased water pressure will keep the detritus from building up in the return hoses. HTH
Maybe this will help.

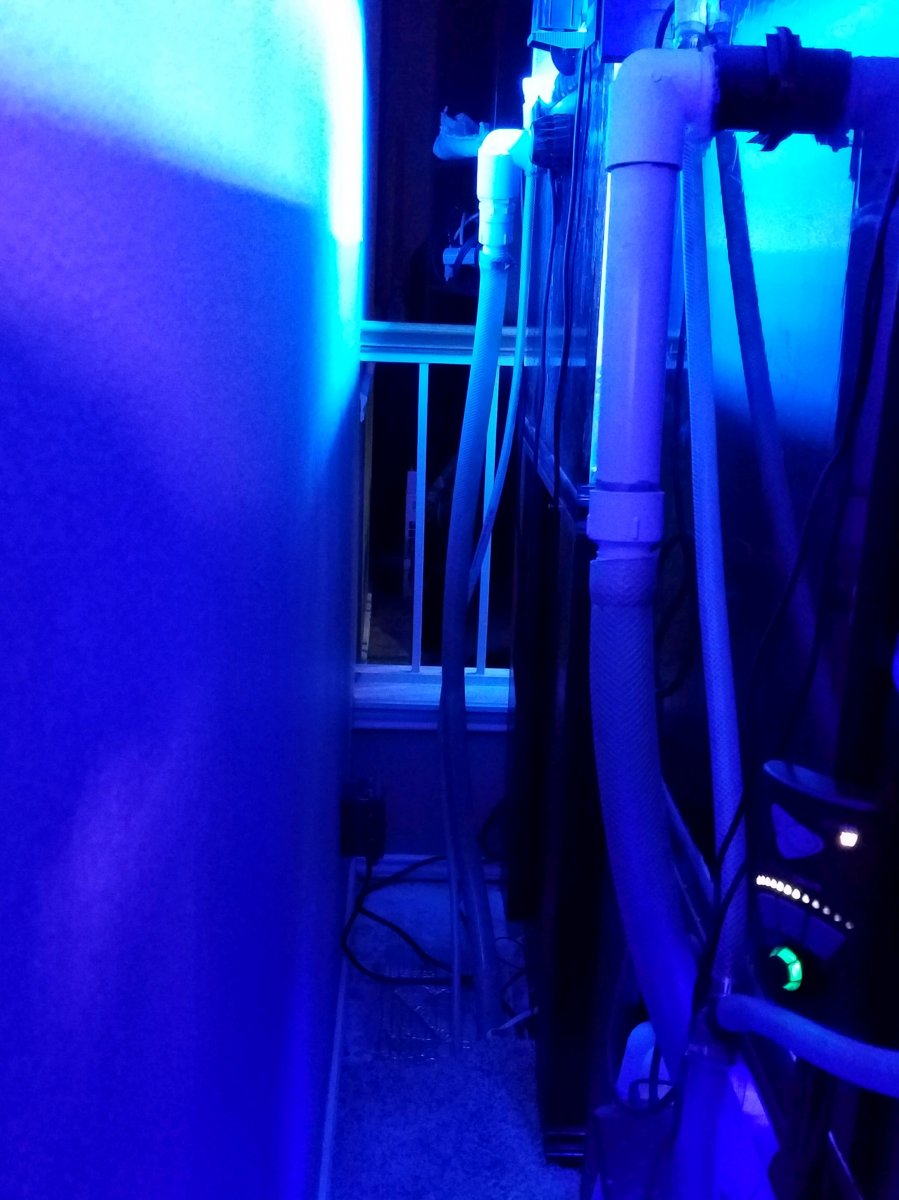

This is how the plumbing comes out of the back of the tanks.
![]()
Here you can see the white pvc return pipes on the floor between both outer tanks before I installed the carpet to cover the pvc.
![]()
Love the tanks! That clam [emoji7]
