Thoughts on canopy cooling with these...

P-Dub · Dec 31, 2017

Just ran across these, https://www.amazon.com/AC-Infinity-AIRPLATE-Thermostat-Cabinets/dp/B00QFWWZQO?ref=ast_p_ep
I know the CFM are a little low at only 104 for the dual fan option but they have a three fan and a 1 fan model with expansion slots in the thermostat controller for additional fans. Use some silicone USB plugs and/or enclose the thermostat to prevent moisture infiltration?.? VERY quiet & seems like a great price and I think a very clean installation. Thoughts?

Crabs McJones · Dec 31, 2017

Looks interesting. Nice that they'd kick on at certain temps instead of running all the time with regular fans.

Katrina71 · Dec 31, 2017

It would make a very clean look.

P-Dub · Dec 31, 2017

crabs_mcjones said:
Looks interesting. Nice that they'd kick on at certain temps instead of running all the time with regular fans.

I was thinking the same thing. I could plug into the apex for redundancy based on the tank temp and not be limited to the internal canopy temp...

P-Dub · Dec 31, 2017

Katrina71 said:
It would make a very clean look.

I think I might just pop smoke and get them then report on how well they work and hold up to the canopy environment. Likely place the thermostat controller in a DIY acrylic box.

mtraylor · Dec 31, 2017

Yeah. Go for it. Nice gadget and it looks nice.

P-Dub · Dec 31, 2017

mtraylor said:
Yeah. Go for it. Nice gadget and it looks nice.

I thought so as well. And for the price... Relative to the temperature controlled Ice cap cooling fans... can't beat that.

P-Dub · Jan 3, 2018

Well, I pulled the trigger and ordered them. As soon as they come in and are installed I will post up again with photos and an initial review. As with anything, time will be the true test.

Crabs McJones · Jan 3, 2018

P-Dub said:
Well, I pulled the trigger and ordered them. As soon as they come in and are installed I will post up again with photos and an initial review. As with anything, time will be the true test.

Based off your review I may order a set of these for my cabinet. Thanks! :)

reefndude · Jan 3, 2018

I have a duel fan in my canopy. Was not enough. Bought a different fan that did the trick for me. I'm running two 400 w halide bulbs and dealing with a lot of heat.
I must also mention I did not set it up to blow air out. Used it to circulate air

Steve P · Jan 4, 2018

4.7 out of 5 stars with 400 reviews. I think you found a winner.

P-Dub · Jan 4, 2018

Ordered two duel fans that I plan on blowing across the water from both sides with venting out the top and back. At least that is the tentative plan. Just around 420 CFM will hopefully be able to handle any heat from the LED lights and drop the water temp as needed.

reefndude · Jan 4, 2018

That may be enough for your leds. Those fans are pretty quiet by the way

P-Dub · Jan 4, 2018

Quiet is good.

P-Dub · Jan 27, 2018

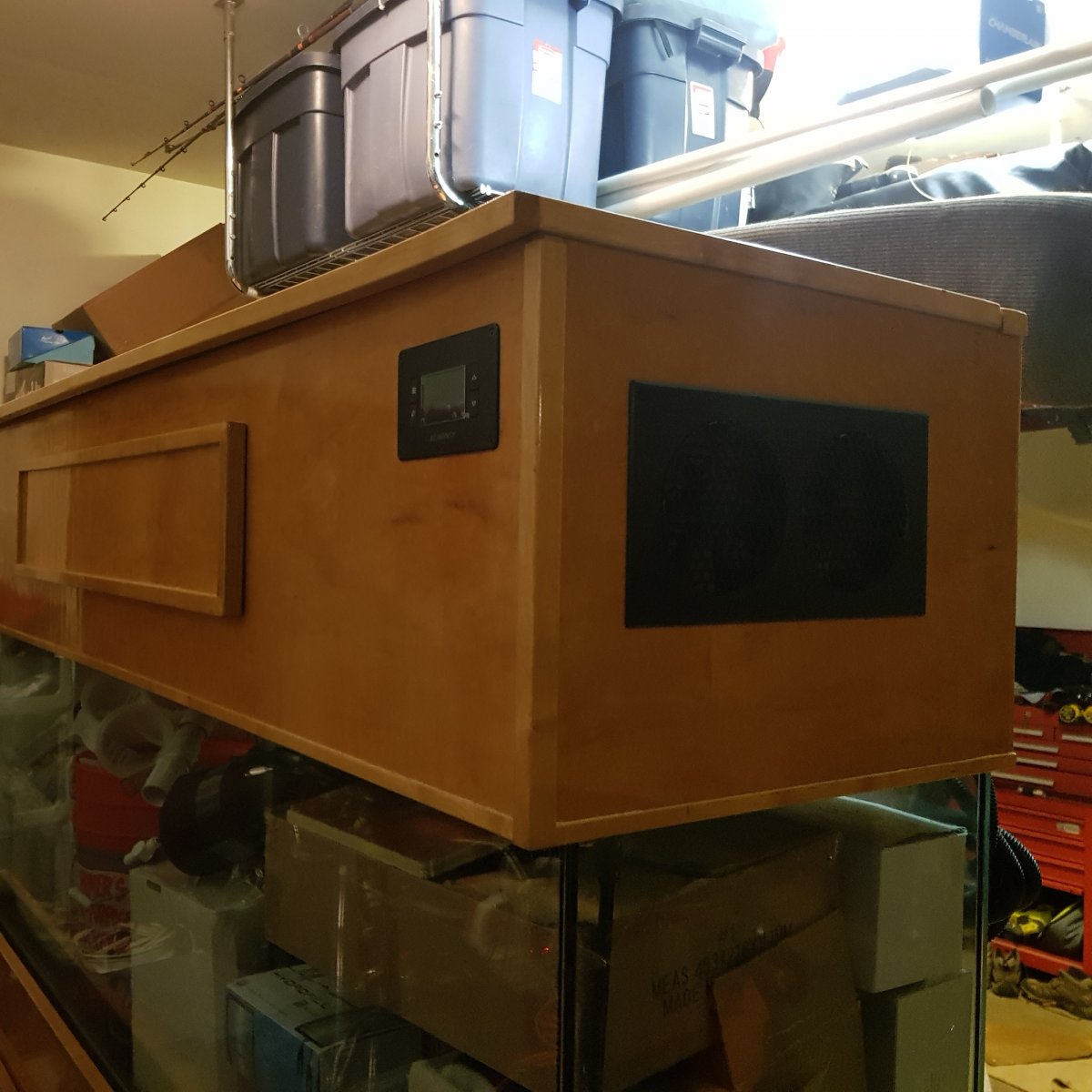

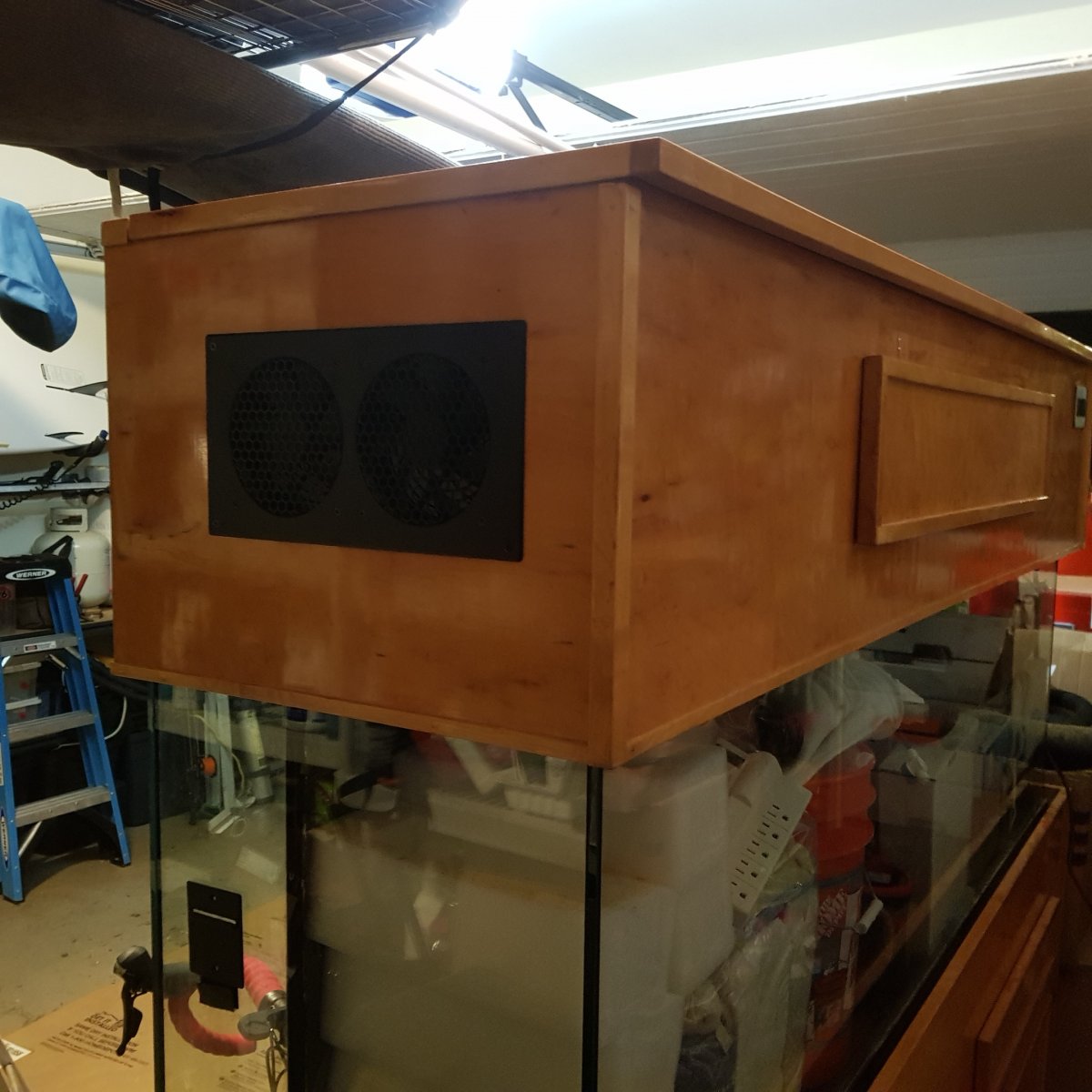

Well, I got the fans in and tested them out before fitting everything in. Below are the photos of them installed but the wiring has not been completed. The build quality is great and the fans are incredibly silent. I went with the dual fans on each side of the canopy blowing in. I will have two vents on the top of the canopy and two to vent on the back to vent the warm air out. Will keep you all posted if interested. Bottom line they are some sexy looking fans and controller.

merfish101 · Aug 19, 2018

So after a few months, what are your thoughts on the fans?

P-Dub · Aug 20, 2018

Outstanding! Really. I have them both blowing into the canopy and have had no issue with any moisture on them, yet.
I did turn one side around to have them blowing out thinking that I might have better cooling. There was no measurable difference. However, when I did do this there was minor condensation building up on the fan housing of the fan that was sucking air from the canopy. The fan housing, fan blades, as well as the bracket, are all plastic. I ended up turning the ones back around so both sets of fans on both sides blow into the canopy again and back to no moisture build up. Very pleased so far. No rust and still going strong. So long as I have drier air blowing into the canopy, I think the fans and controller will last. Time will tell but for the price and features, I couldn't be more pleased.
