Triple TDS meter

DonDadda · Apr 15, 2023

Good evening, I was wondering if anyone has experienced false readings with an inline Triple TDS meter. If so, is there a way to get it to read the TDS correctly? I recently purchased a new Triple TDS meter along with new filters from BRS. I removed all the old filters, installed and flushed the new ones and installed the new Triple TDS meter but have not installed the DI Resins. Line 1 is after the RO membranes and reads 6, Line 2 is after the empty Cat and An resin canisters and reads 6, Line 3 is after the last empty Mixed DI canister and reads 0. Shouldn’t it be reading 6 through all 3 lines ?

blaxsun · Apr 15, 2023

No, but I'm just using the dual in/out one.

DonDadda · Apr 15, 2023

Yeah, I think it doesn’t really matter if it’s a dual or triple meter. The numbers should be consistent all the way through if there’s no DI resin in the canisters.

DonDadda · Apr 17, 2023

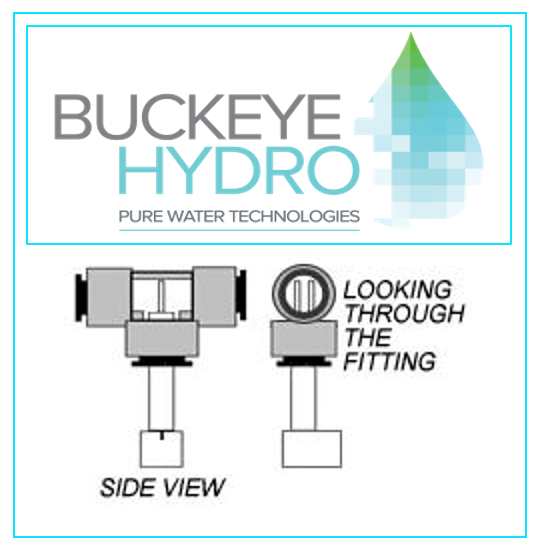

Hey all, I found the problem and wanted to share the solution just in case anyone else goes through the same thing. So after many days of trouble shooting with no luck I decided to remove the TDS meter and start a return. I started by removing Line 3 which was the Line that kept reading 0. Once removed I took a look inside to see if the probes were aligned correctly and that's when I noticed that the probes were not visible. I either didn't push the probe in all the way or I pulled it out during the installation. I pushed the probe all the way in, made sure it was aligned correctly, installed it and voila it started reading the TDS. There you have it, it was that simple. Make sure the probe is pushed in all the way and that it's aligned correctly.
