Hi everyone, I am trying to figure out how to better understand the system.

Here is what I would like to do with my RODI, but not sure how to do it.

1- when level sensor 6 is triggered I would like the container to fill (by turning outlet 7 ON - have a solenoid)

2- when outlet 7 is ON I would also like outlet 8 to be ON for 120 seconds (solenoid to flush the membrane) the first time and then for 120 seconds every hour.

3- if voltage 1 (ADIN card) is above 2 I would like to turn off and prevent outlet 7 from turning ON.

@Lasse I know you have helped others with something similar, I hope you can give me a hand as well (I can't thank you enough for all you do for us GHL users!). I tried other configurations but with no success.

Last edited:

Lasse

7500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 20, 2016
Messages
9,851
Reaction score
27,858
Review score
+0 /0 /-0
Location
Källarliden 14 D Bohus, Sweden
I´m sorry - I forget

The tricky one - for me is the hourly flush when solenoid 7 is on

But I´ll start with a question - sensor 6 should turn outlet 7 on - but what in normal cases should turn i off - the 2 V signal?

Sincerely Lasse

OP
Rototank

Rototank

New Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 15, 2021
Messages
11
Reaction score
41
Review score
+0 /0 /-0
Location
Charleston
I´m sorry - a lot of work - also during evenings - I´ll be back

Sincerely Lasse
No worries, I totally understand.
I´m sorry - I forget

The tricky one - for me is the hourly flush when solenoid 7 is on

But I´ll start with a question - sensor 6 should turn outlet 7 on - but what in normal cases should turn i off - the 2 V signal?

Sincerely Lasse

No worries, I understand everyone is busy, thank you for helping everyone!

To answer your question, yes. Sensor 6 turns switch 1 ON, Sensor 5 will turn it OFF. But if the Voltage goes above 2 the switch will turn OFF.

Sensor 5 is the max level in the RODI container.
Sensor 6 is the low level in the RODI container.
The 2-10 volts (it’s 2-10 instead of 0-10, because it’s converted from a 4-20mA signal generator) is TDS meter, if it goes above 2 the TDS is above 0.


For the flush, would it work if we use PL for the first task (for example PL1) and I create PL2 with a cyclic timer on at 0sec off at 120 and then on at 3600 and off at 3720 sec AND PL1?

attached a screenshot of the timer


Attachments

  • 855CF1B5-B618-4803-AE2D-B79DF4B6C91F.png
    63.3 KB · Views: 8

Lasse

7500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 20, 2016
Messages
9,851
Reaction score
27,858
Review score
+0 /0 /-0
Location
Källarliden 14 D Bohus, Sweden
Can you send a screenshot of your level control circuit? And the description (screenshot) of the present programming of outlet 7 - the outlet that manage the RO solenoid

Sincerely Lasse

OP
Rototank

Rototank

New Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 15, 2021
Messages
11
Reaction score
41
Review score
+0 /0 /-0
Location
Charleston
I screenshotted it all. Switch 7 is the RODI top off (motorized ball valve) and switch 8 is the autoflush solenoid


Attachments

  • Screen Shot 2022-12-01 at 15.24.59.png
    Screen Shot 2022-12-01 at 15.24.59.png
    41.7 KB · Views: 9
  • Screen Shot 2022-12-01 at 15.24.38.png
    Screen Shot 2022-12-01 at 15.24.38.png
    48.6 KB · Views: 9
  • Screen Shot 2022-12-01 at 15.24.20.png
    Screen Shot 2022-12-01 at 15.24.20.png
    22.2 KB · Views: 6
  • Screen Shot 2022-12-01 at 15.22.39.png
    Screen Shot 2022-12-01 at 15.22.39.png
    80 KB · Views: 2
  • Screen Shot 2022-12-01 at 15.22.08.png
    Screen Shot 2022-12-01 at 15.22.08.png
    21.3 KB · Views: 2

Lasse

7500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 20, 2016
Messages
9,851
Reaction score
27,858
Review score
+0 /0 /-0
Location
Källarliden 14 D Bohus, Sweden
What I see here is that you only have a 1 sensor control (sensor 6) at your control channel 3. The switch off (sensor 5) seems not to be in charge. I´ll setting up a test P4 this morning (your night) - coming back later on

Sincerely Lasse


Lasse

7500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 20, 2016
Messages
9,851
Reaction score
27,858
Review score
+0 /0 /-0
Location
Källarliden 14 D Bohus, Sweden
Note - you have to test this by yourself and be sure it works- I have not tested all things and I can have done errors.

First report - I use the min-max function. In my case I use sensor 1 and 2. 2 is the upper and 1 is the lower - in your case you should use sensorindex 5 as sensor 1 (upper) and sensorindex 6 as sensor 2 (lower) I use index 2 and 1. sensorindex - black marking. I also assume that your max time should be 3 hours. If you want - you can set reset error automatic. Its works like this IF all is filled up - both sensors show a




Its works like this If all is filled up - both sensors show a v mark


and no filling



ATO is filling up the DT - and the RO containers water level is going down - the upper sensor will be activated



Still no filling



The RO container is empty and the lower sensor is activated too



Now it is able to activate your valve and the RO will be filled into the container



It slowly fill up - the lower sensor is deactivated - but the filling goes on




The container is filled up to the upper sensor - its deactivated and the filling is no more




Now is the first part for your ball valve ready . In order to add the function of shout of if the rodi if your TDS is to high. I do a separate post

Sincerely Lasse


Lasse

7500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 20, 2016
Messages
9,851
Reaction score
27,858
Review score
+0 /0 /-0
Location
Källarliden 14 D Bohus, Sweden
Your voltage - yes maybe its possible to use the PL you create


and knit it to outlet 7

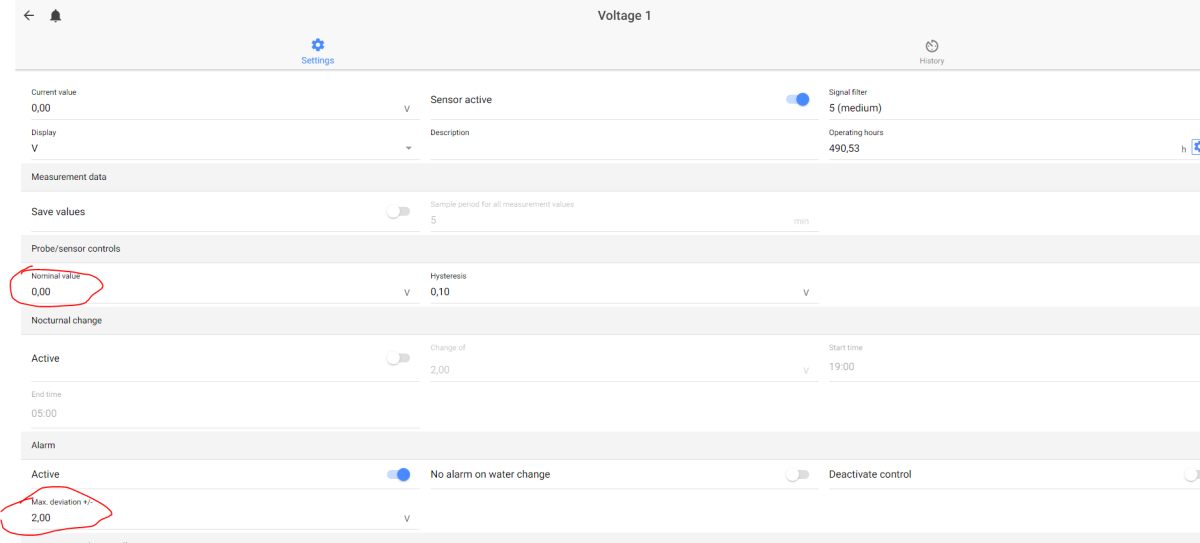

But I believe that you need to do these settings



I can´t test this because my ad in card is in my online computer and I will get trouble if I test it in a sharp way

If this not work - you can test with these settings




and use a Pl that's says. Knit it to outlet 7



Only to have the initial flush - its easy - make a PL like this and knit it to outlet 8



If you want a flush every hour too - it can be complicated because you may not want this if the voltage had shout the whole operation down

Sincerely Lasse
