VNOMUS - JBJ 65G AIO Flat Panel Build

Vnomus

New Member
View Badges
Joined
Aug 22, 2020
Messages
23
Reaction score
60
Location
Jeffersonton
Just another build thread to record my progress (or lack there of) on my new JBJ 65g. Hopefully this'll help me recall when I have inevitable question down the road as to "why/how the hell did I do that?"....

Components
  1. JBJ 65G AIO Flat Panel Tank and Stand - White (LiveAquaria.com)
  2. Aqamai LRM-LED - White, used (Ebay)
  3. Aqamai _ LED Tank Mount - (Amazon - MarineAndReef)
  4. IM Minimax Pro Series Media Reactor Midsize (Ebay - IM Store)
  5. IM ChaetoMax 9 Watt Refugium LED Light (Ebay - IM Store)
  6. Tunze 9004 Skimmer used - (Craig's List)

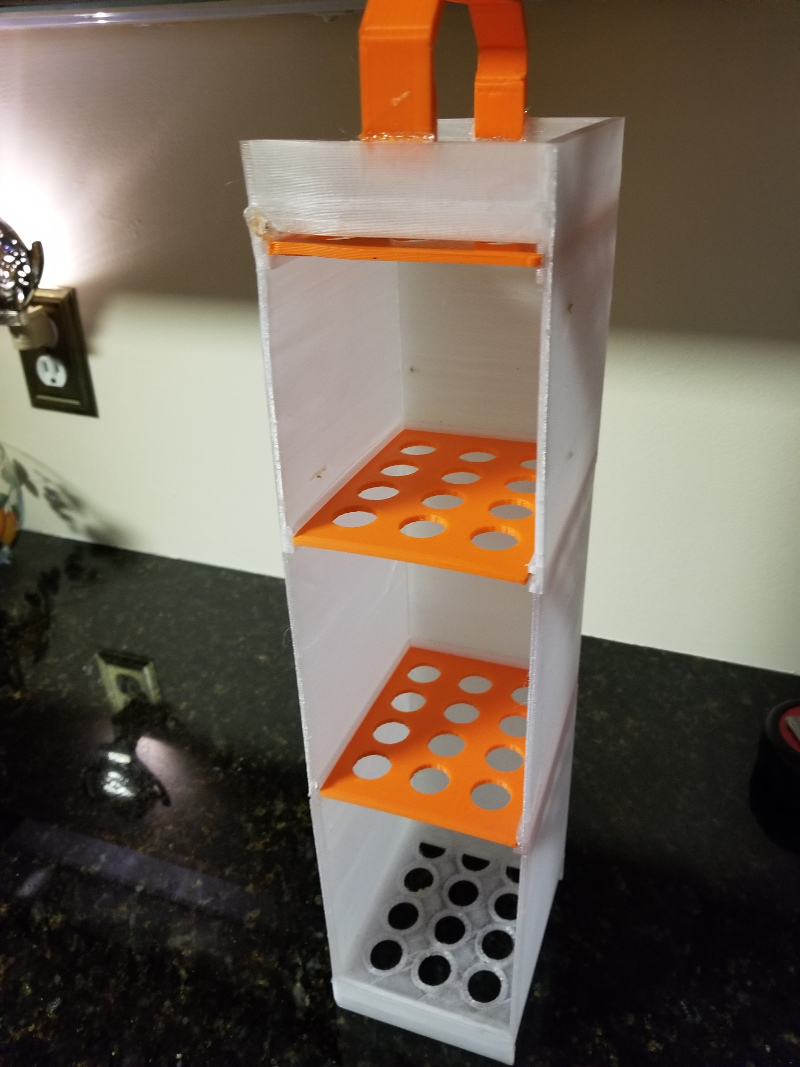

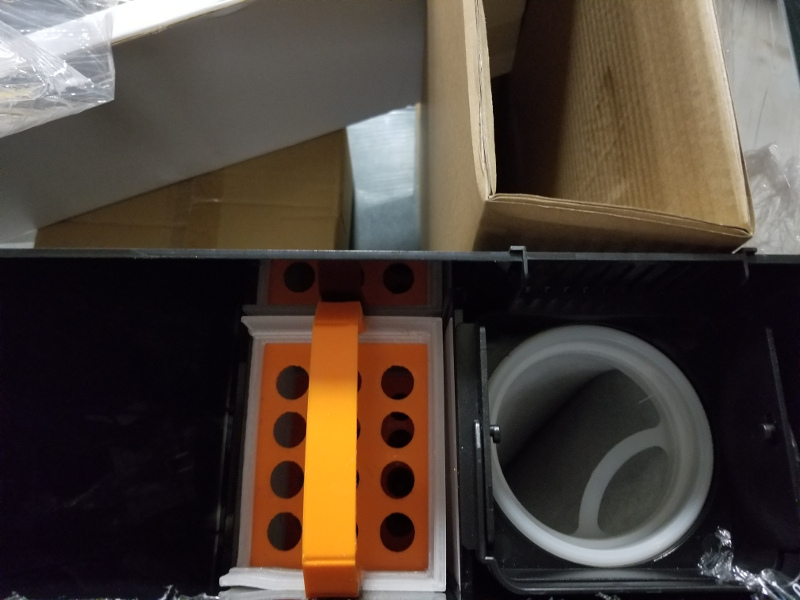

  7. DIY Refurgium - (Tinkercad)
  8. Reef-Pi Controller
  9. 2x - Nero-Therm 100W Heaters

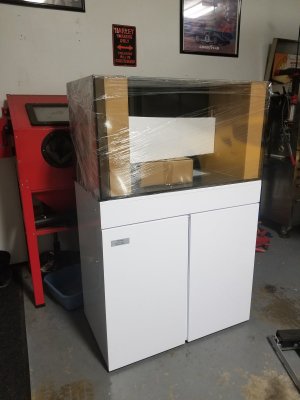

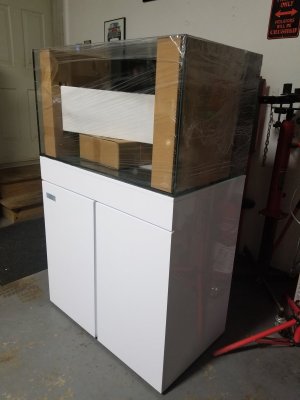

JBJ65GAIOFP-1.jpg JBJ65GAIOFP.jpg

Last edited:
Zoanthids.com
OP
V

Vnomus

New Member
View Badges
Joined
Aug 22, 2020
Messages
23
Reaction score
60
Location
Jeffersonton
let us know how the Aqamai lights are.
Well the light and associated app seem pretty nice, the tank mounting kit on the hand is an over-priced POS. The mount bracket is way too big and ends up extending into the sump and interfering (in this case) with my skimmer. For $100 I expected a better kit, keeping with the minimalist design of the light itself....

Last edited:
OP
V

Vnomus

New Member
View Badges
Joined
Aug 22, 2020
Messages
23
Reaction score
60
Location
Jeffersonton
Ok test fitting the tank Aqamai LED mounts revealed the need for a different approach on the mounts. Either that or I would have to bin the Tunze 9004. My solution was to turn the Tunze 180 deg so that it'd mount to the sump from wall and that would give a "little" space for a much thinner LED mounting bracket. I basically just recreated the Aqamai brackets in a slimmed down form. I also need to reduce the 14 inch stance down to 9.5 to minimize interference with the sump compartment walls. The OEM LED mount already suffers from a lack of lateral stiffness and narrowing it didn't help. So I also designed and printed a couple of braces to tie the two legs together....Much better now!....

Here the Thingiverse link: Aqamai LED Tank Mount Replacements
