Hi everyone,

I finally finished my build for my Cade 600 Reef S2 last night and I am ready to post my build thread. I upgraded my IM 20 gallon AIO to this beauty. I always wanted a Cade, the clarity of the glass is breathtaking in person.

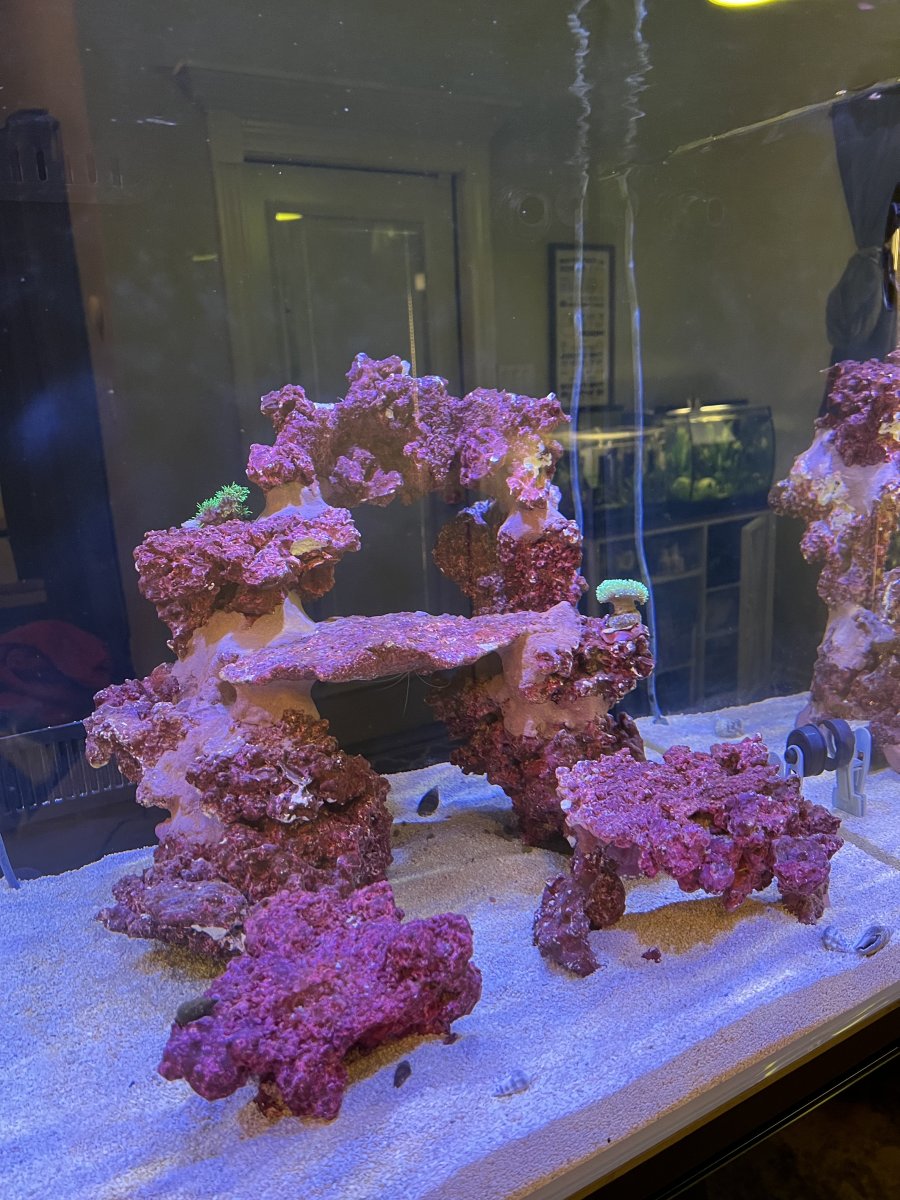

Aquascape: I had built my aquascape 1 week prior. I should have waited for the actual tank because I used the dimensions online to build the aquascape. I didn't take into account the back panel and made the aquascape too long. I was able to pivot last minute to make it work. I used (maybe 30 lb?) Real Reef Rock and Marco's Coralline Mortar to make it. I had zero luck with the super glue and activator, they make it look easy on BRS but I couldn't get it to work for me.

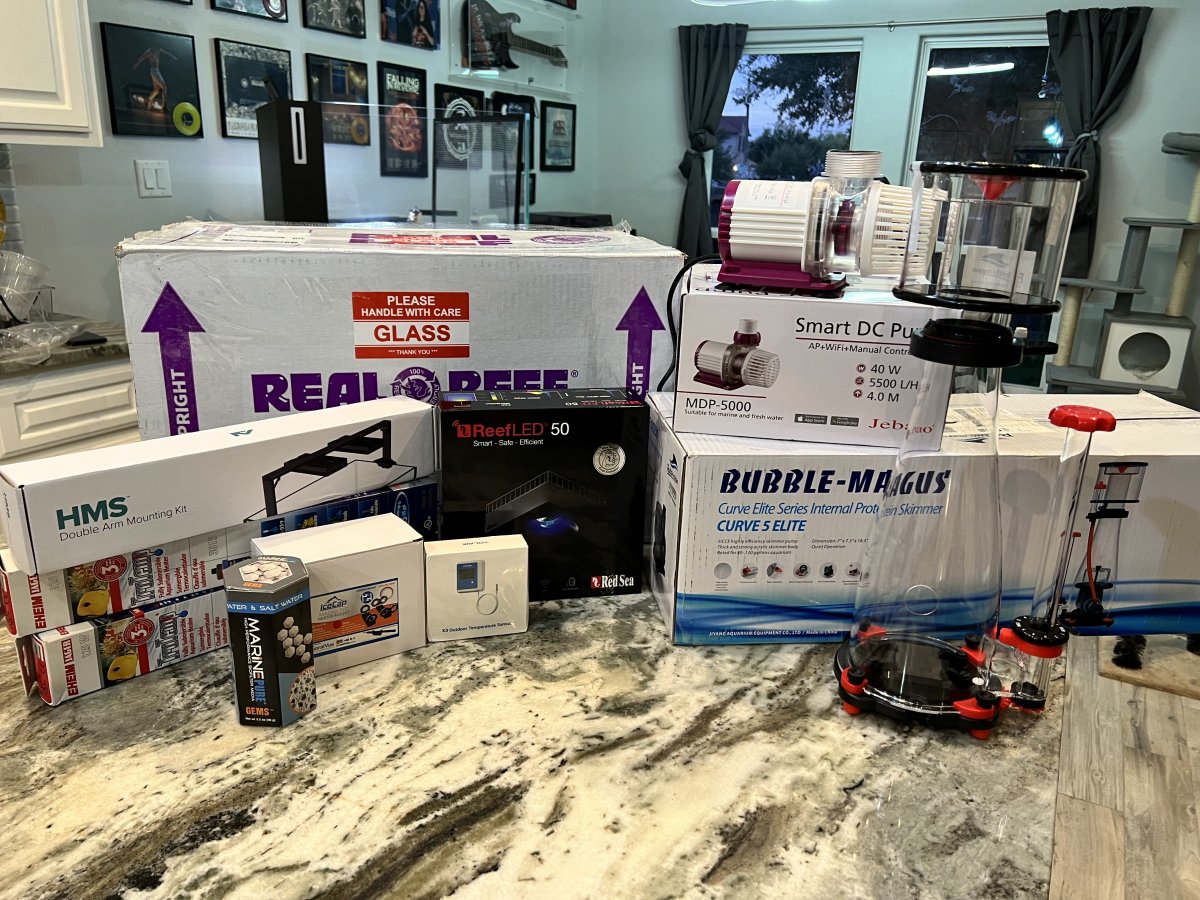

Building Aquascape.jpg Supplies Shot.jpg

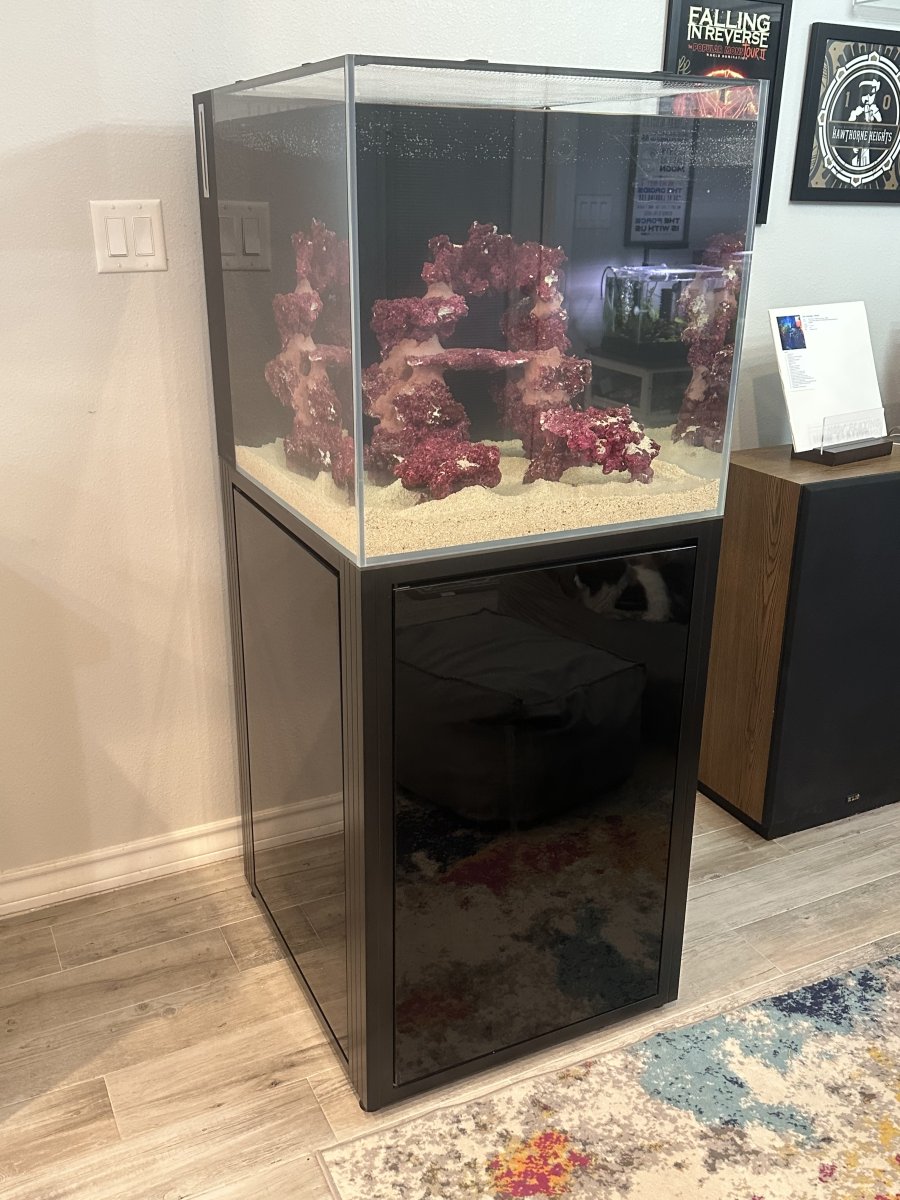

Cade arrived! Unboxed and filled with water to start the cycling process. It was very heavy!! I was not a huge fan of the lid, it is a little flimsy. The doors are very handy and convenient to get to the sump. I just had return pump (Jebao MDP-5000) installed with some MarinePure Bioballs in the sump during the cycling process. I like using Tims All in one and ammonia for cycling (took around 16 days). I used 50 lbs Caribsea Arag-alive special-grade sand.

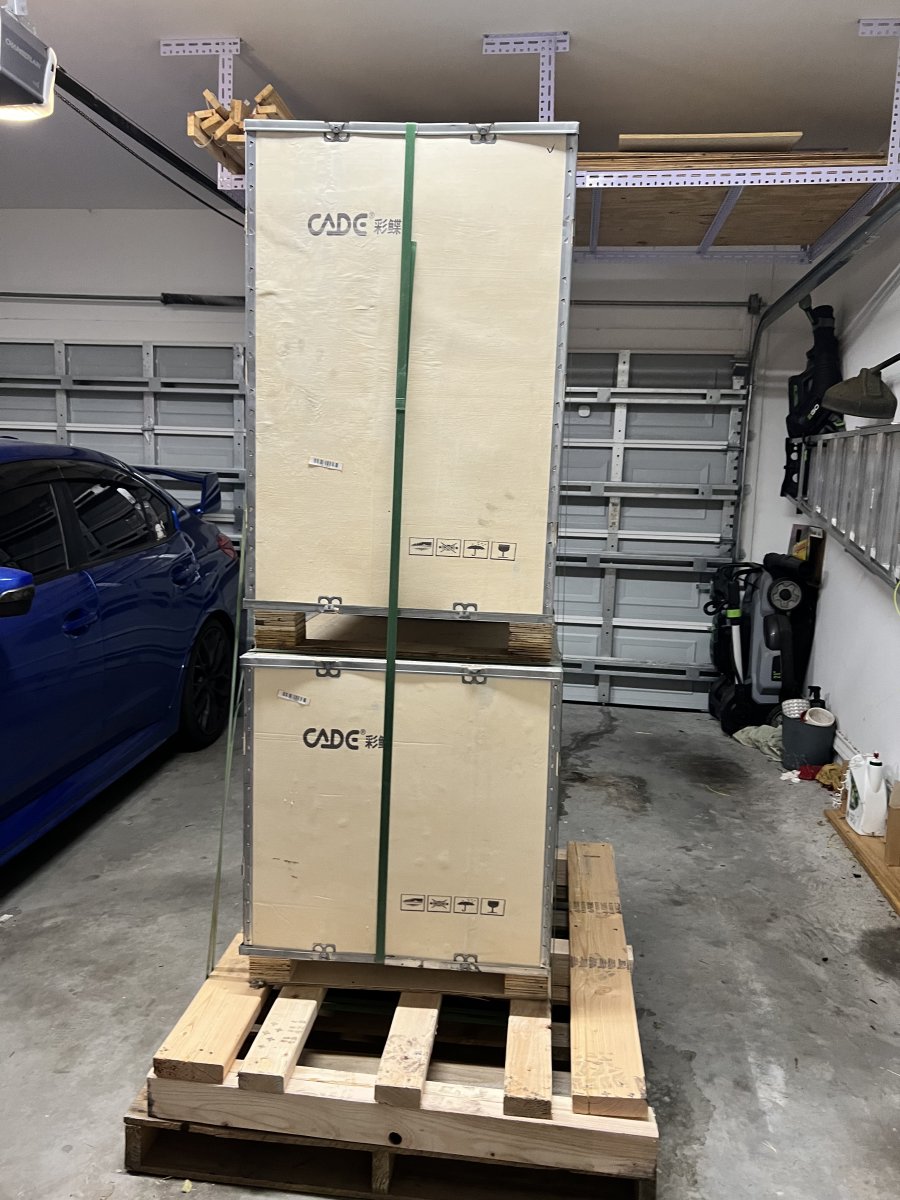

Cade Boxed.jpg First Day Wet.jpg

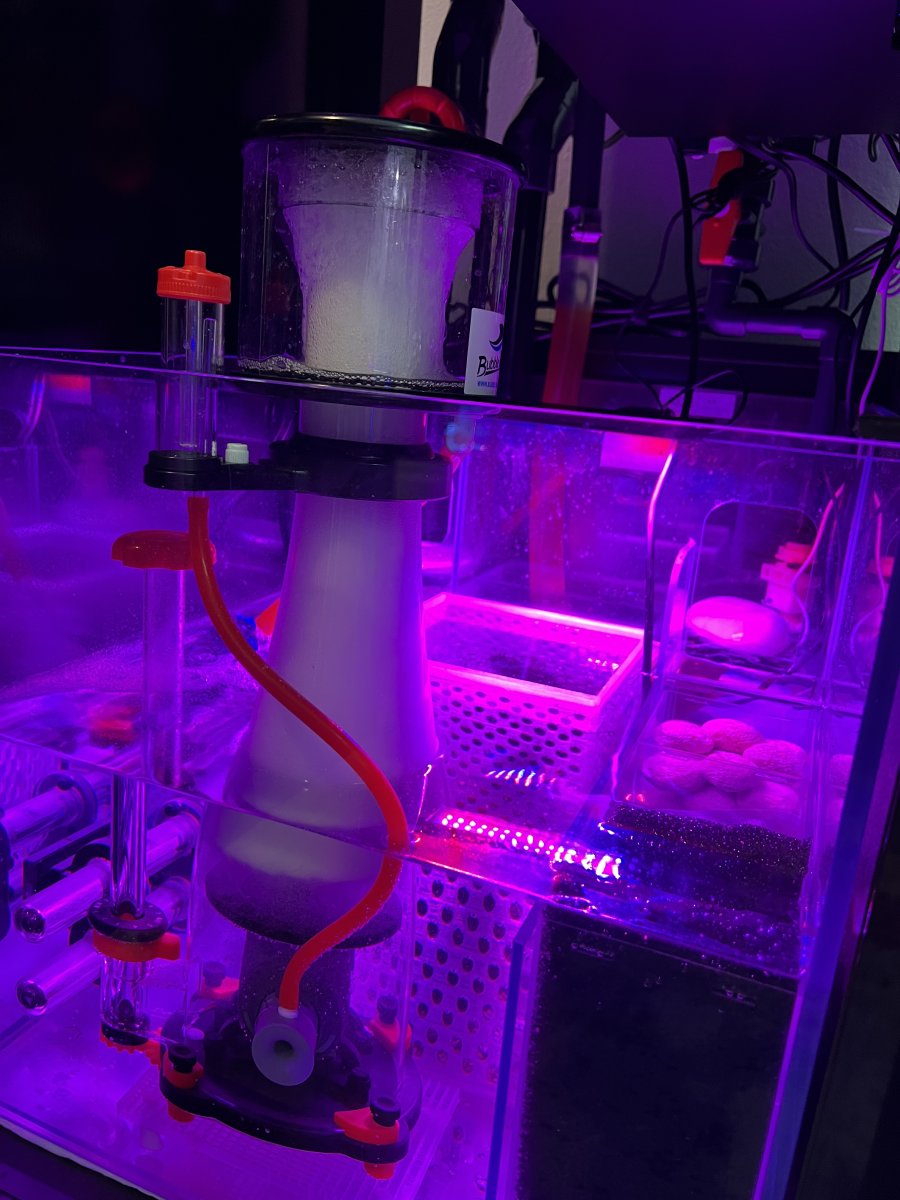

Once cycling was complete I finished my sump setup.

Equipment in sump:
- Jebao Return Pump MDP-5000
- Bubble Magus Curve Elite 5
- 125 Watt Eheim Jager x 2 (with Inkbird controller, Yolink Smart temp data logger and mounted with Icecap dual magnetic heater holder)
- Custom 3D printed refugium basket with chaeto
- Innovative Marine Chaetomax Refugium Light 9 watt
- 4 inch 150 Micron Honeycomb Filter Sock
- Media: MarinePure 1.5 in Biofilter Media Spheres, Carbon, Biofilter Media Foam Sponges (generic)

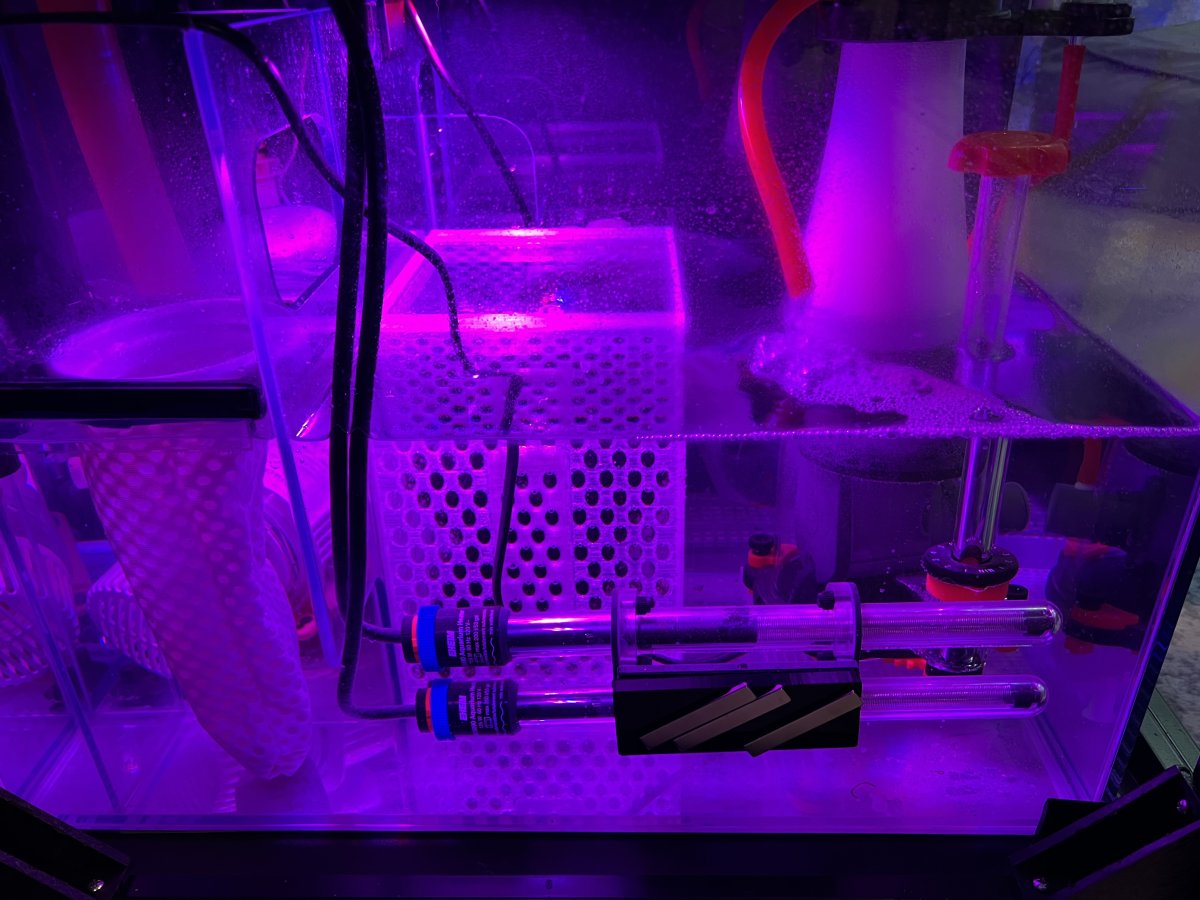

Sump 1.jpg Sump 2.jpg Sump 3.jpg

The magnets that came with the Icecap heater holder were not strong enough to hold it up, so I purchased some generic magnets online to add some extra power to hold it up. My husband 3D printed the filter basket for me to hold my chaeto. Here is the link we used and he resized it for me if anyone is interested in printing one too https://www.thingiverse.com/thing:4863924. I was hard to find the right size filter basket. (And the ones for sale on Etsy were incredibly overpriced IMHO). I mounted my skimmer on some eggcrate because it is still overflowing, I have it at around 7 in depth right now and will keep watching it/breaking it in.

Now, on to the main tank. The custom lid took several days and was a nightmare!

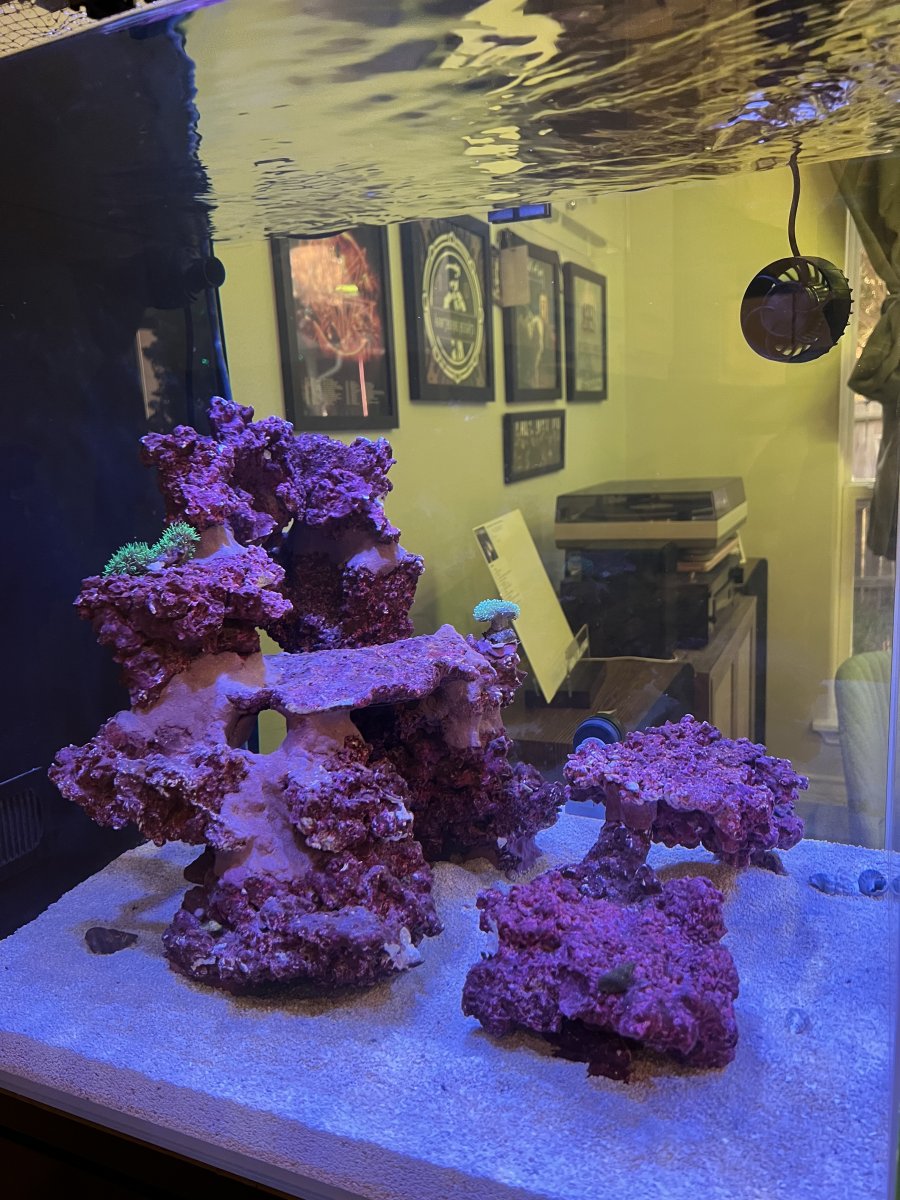

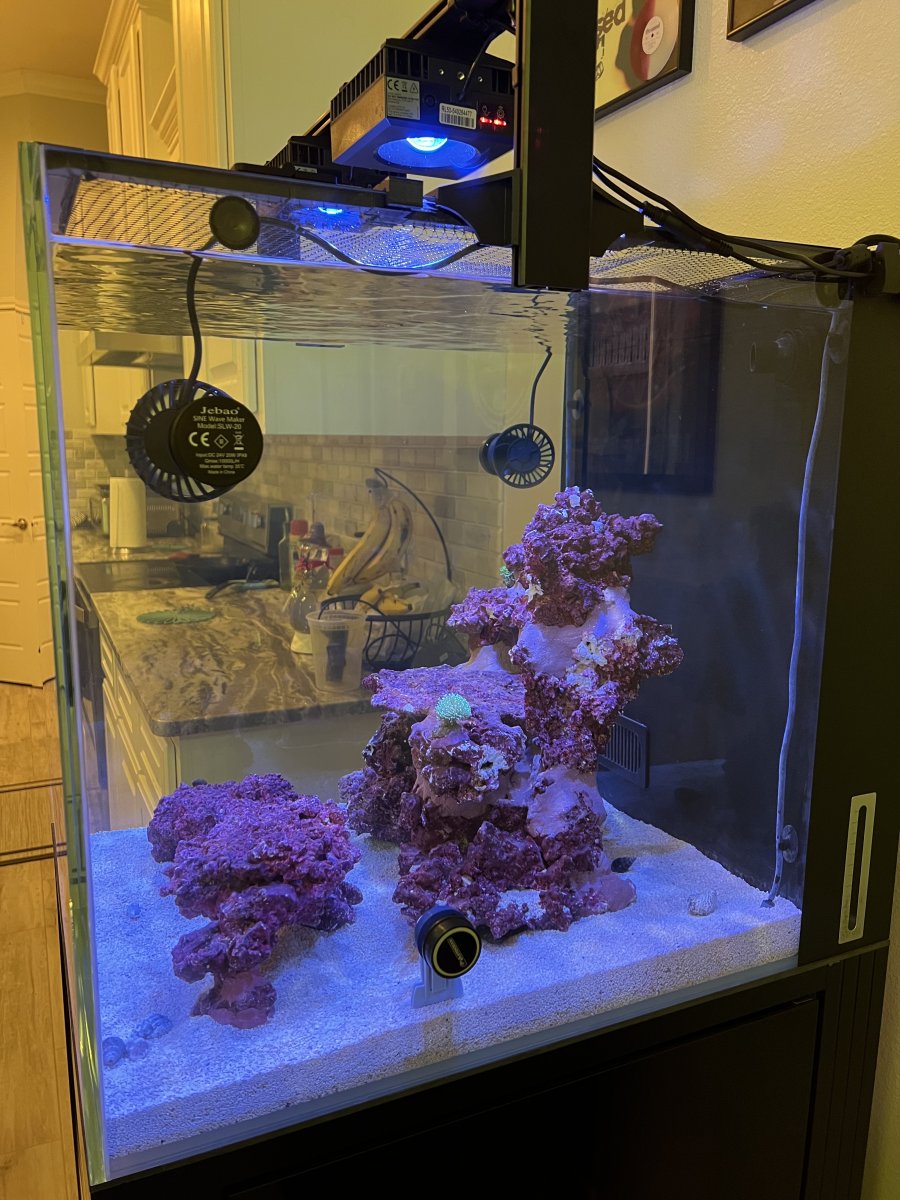

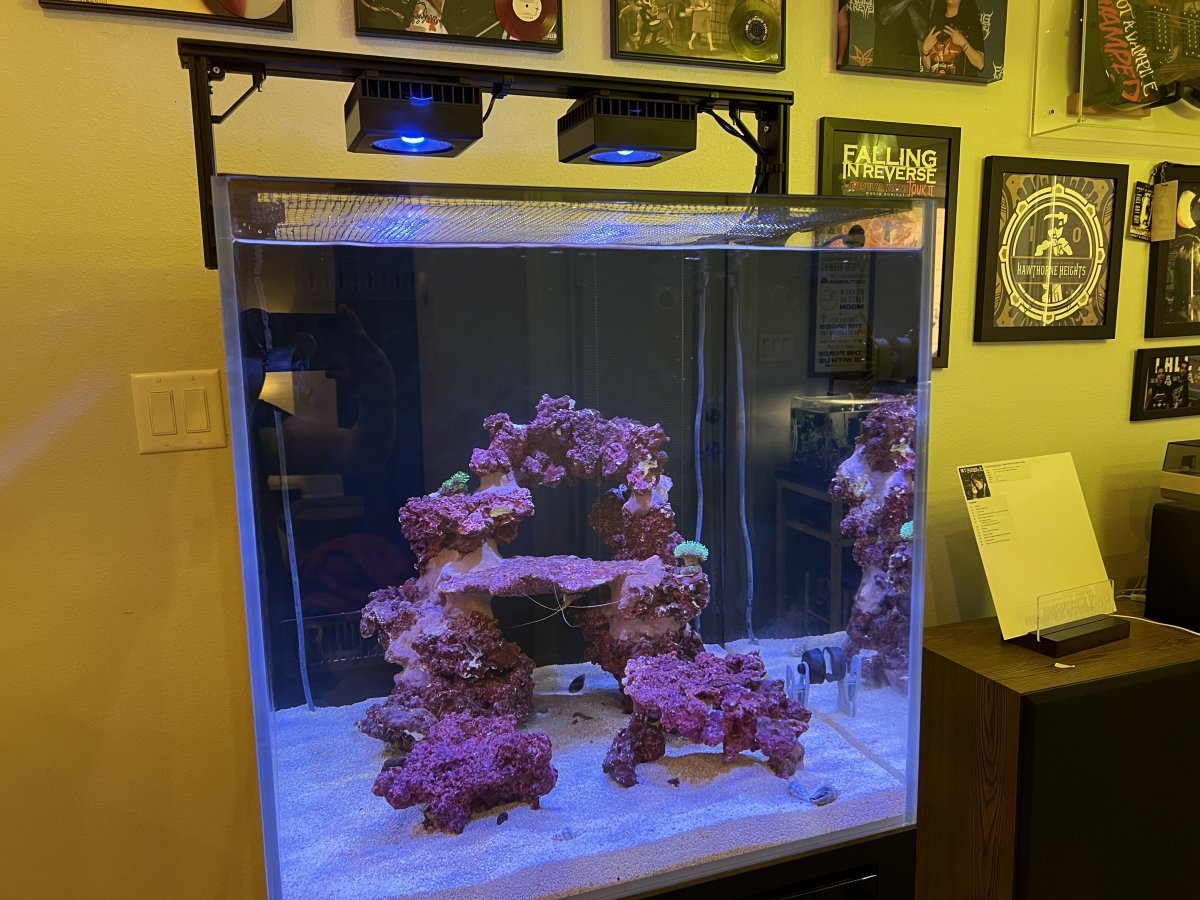

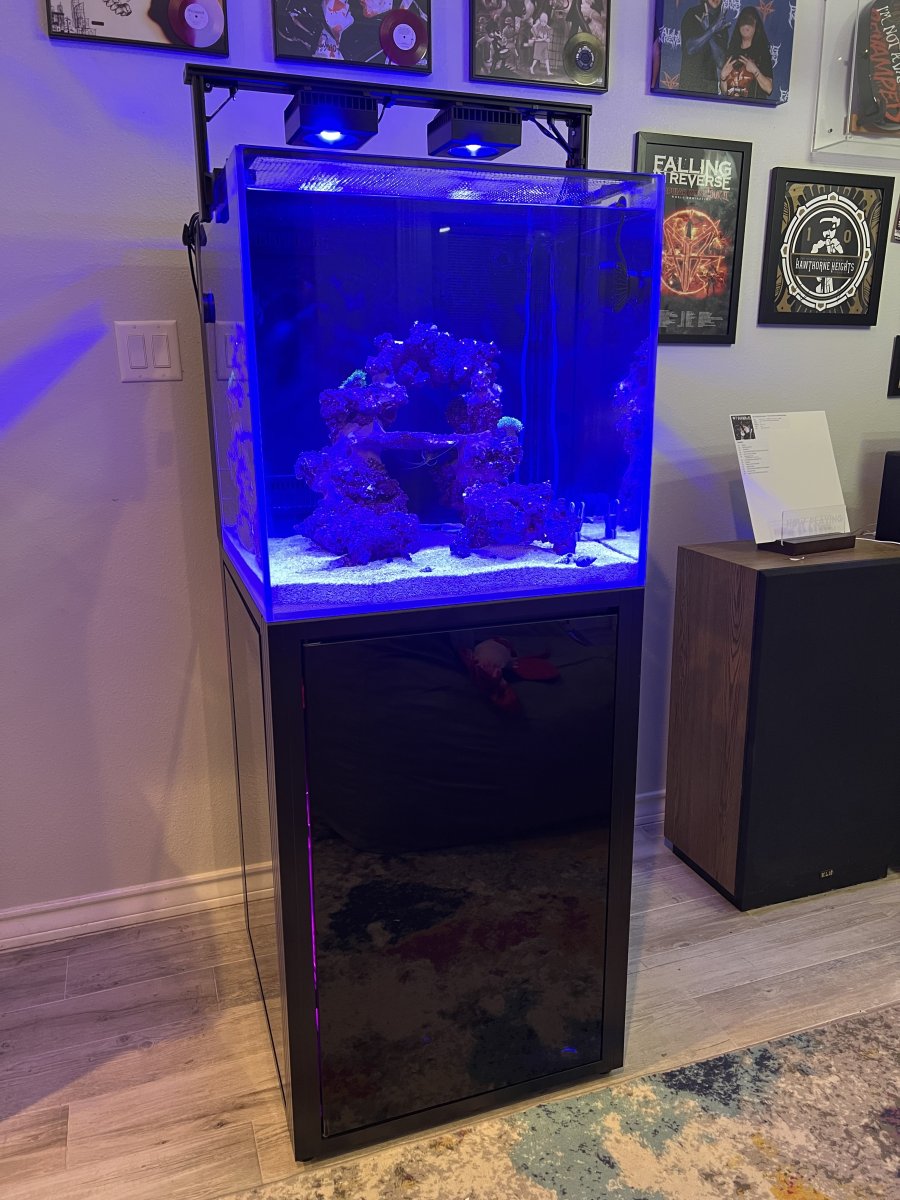

Overall Shot Finished.jpg Closeup Finished Tank.jpeg Closeup Side Shot Completed.jpeg

Tank equipment:
- HMS Multi Light Mount Kit w/ 24" (25.5" inch rail)
- Red Sea Led50 (x 2) with custom rail mounts
- D-D the aquarium solution lid kit with custom 3D parts
- Jebao SLW 20 Wavemaker (x2)
- Penn-plax silent air B11 (x3) for power outages (1 in sump and 2 in main tank)

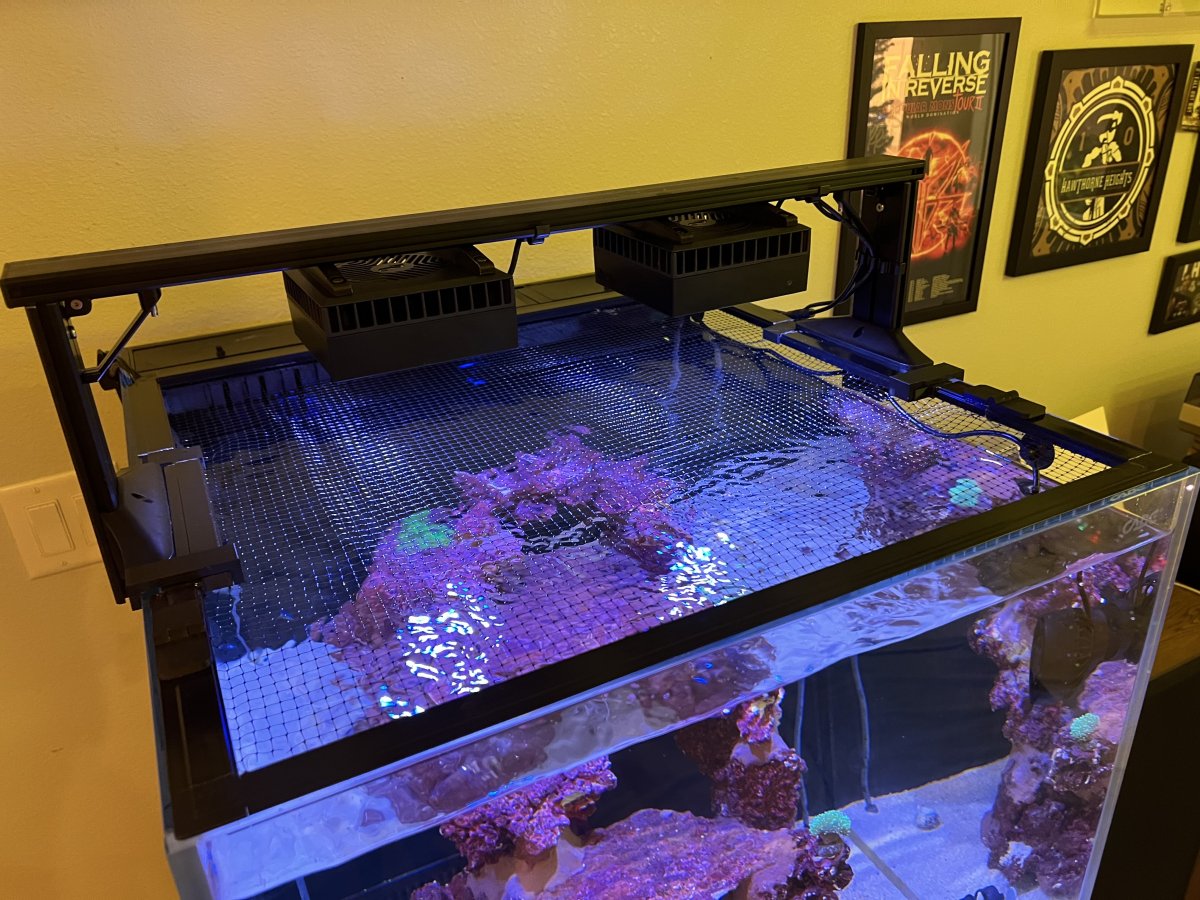

Lid 1.jpeg Lid 2.jpeg Lid 3.jpeg

My husband helped me with the lid and light mount.

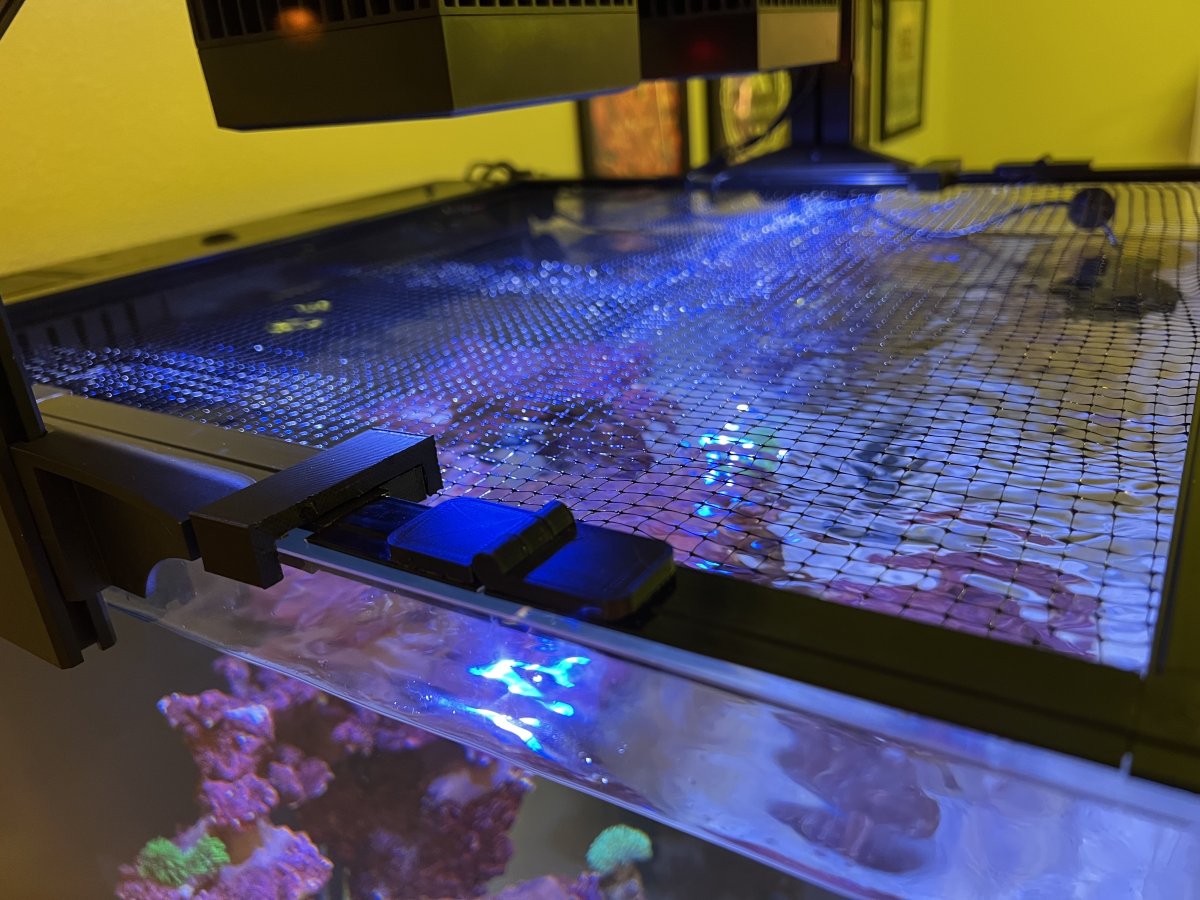

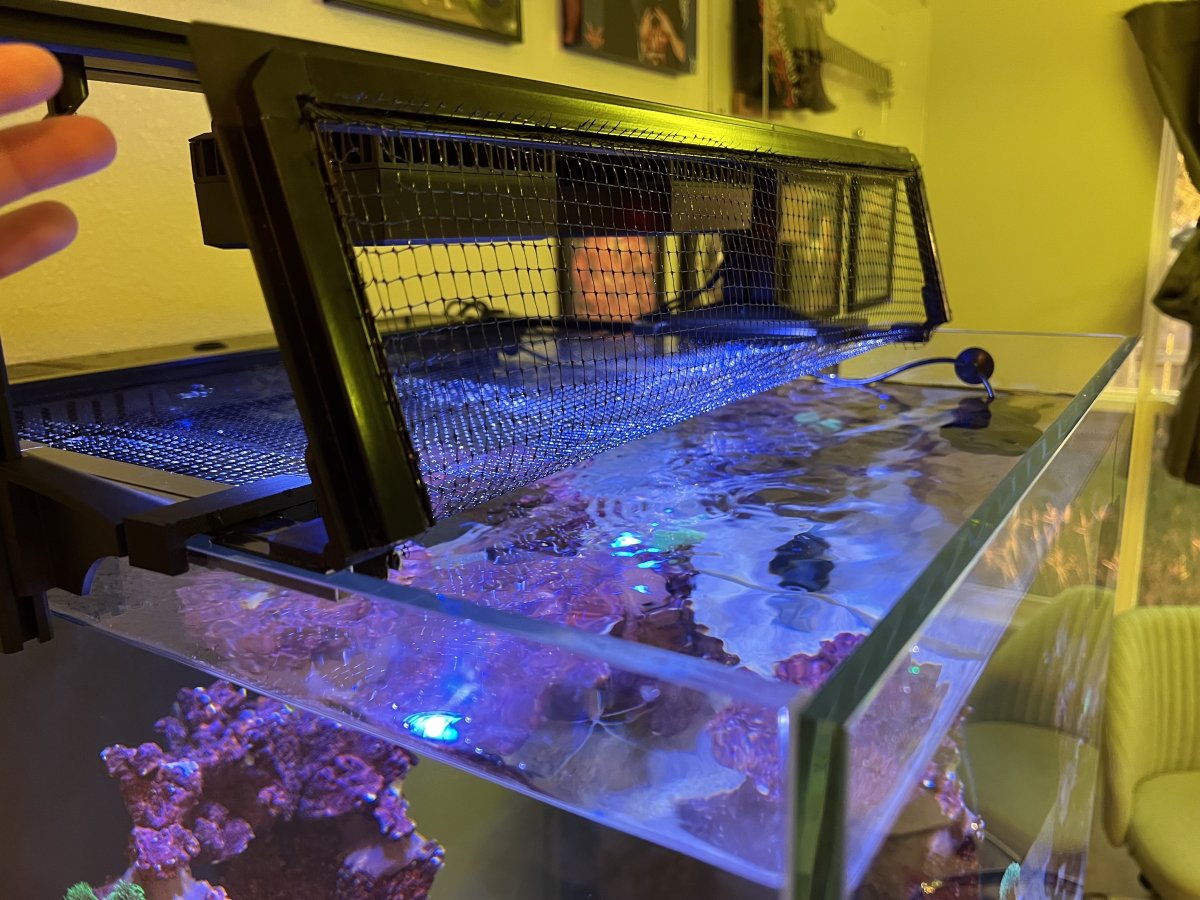

Lid: The D-D solutions kit makes you cut all the rails with a saw. The pieces it came with did not allow me to make a close fit around the light mounting feet. He designed and 3D printed me some custom z connections to make it go around the light mount perfectly. I found this hinge print file (https://www.printables.com/model/133434-acryliclexan-hinge-small-glue-on) and made the front open/hinge for easy feeding/access. I think it came out slick but it took A LOT of extra effort. (*Side note: the D-D feeding portal kind of sucks, I bought it but did not use it, the lid just sits on top, a breath of wind knocks it off)

Light Mount: Husband had to cut HMS side rails to make it shorter and not obstruct the view. He made me 3D printed rail mounts to make the Red Sea Lights fit onto the rails. (I already had 1 RedSea Light for my old tank and I could no longer return it, so I wanted to utlize it for my new build)

RedSea Led 50 Settings: I have softies and LPS - Blue 45%, White 5% - Par readings: Sand Bed 80-100, Lower 3rd Tank 100, Lower Half 110-120, Top 130-150

On to the side panel and accessories!

Side controllers.jpeg Cable Sharks.jpeg Tools on Door.jpeg

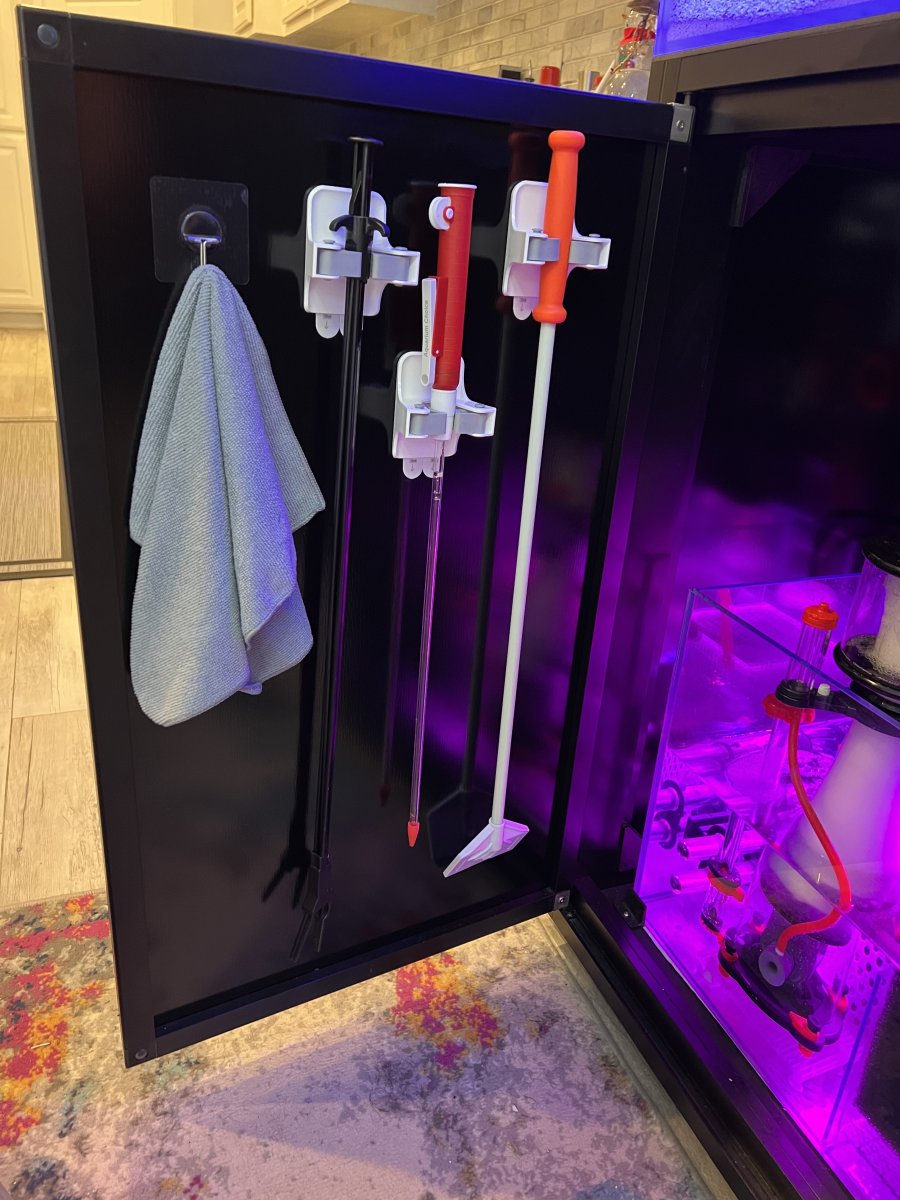

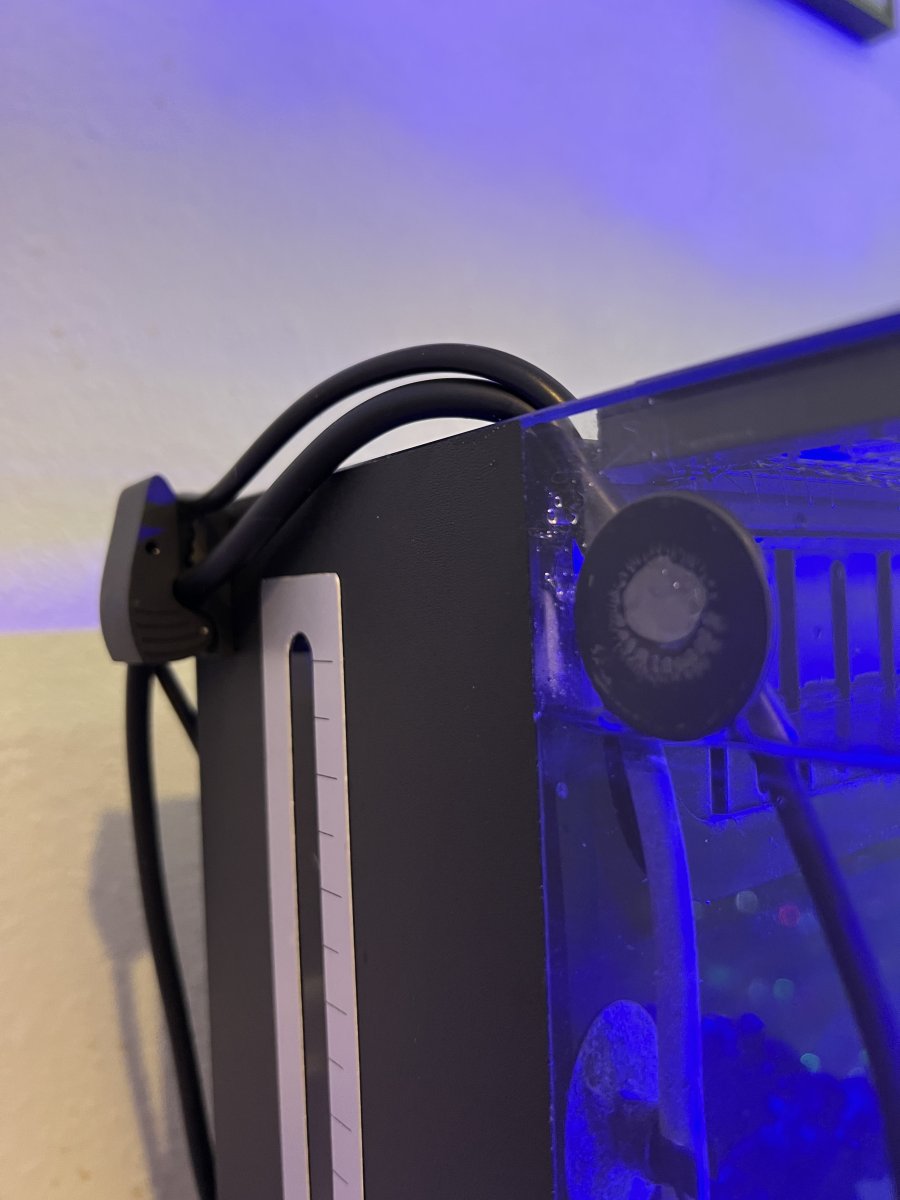

I bought some broom holders on Amazon to hold my long tools. I also got some shark magnet cable holders to hold my cables to the side to have easy access to the doors on the back top panels.

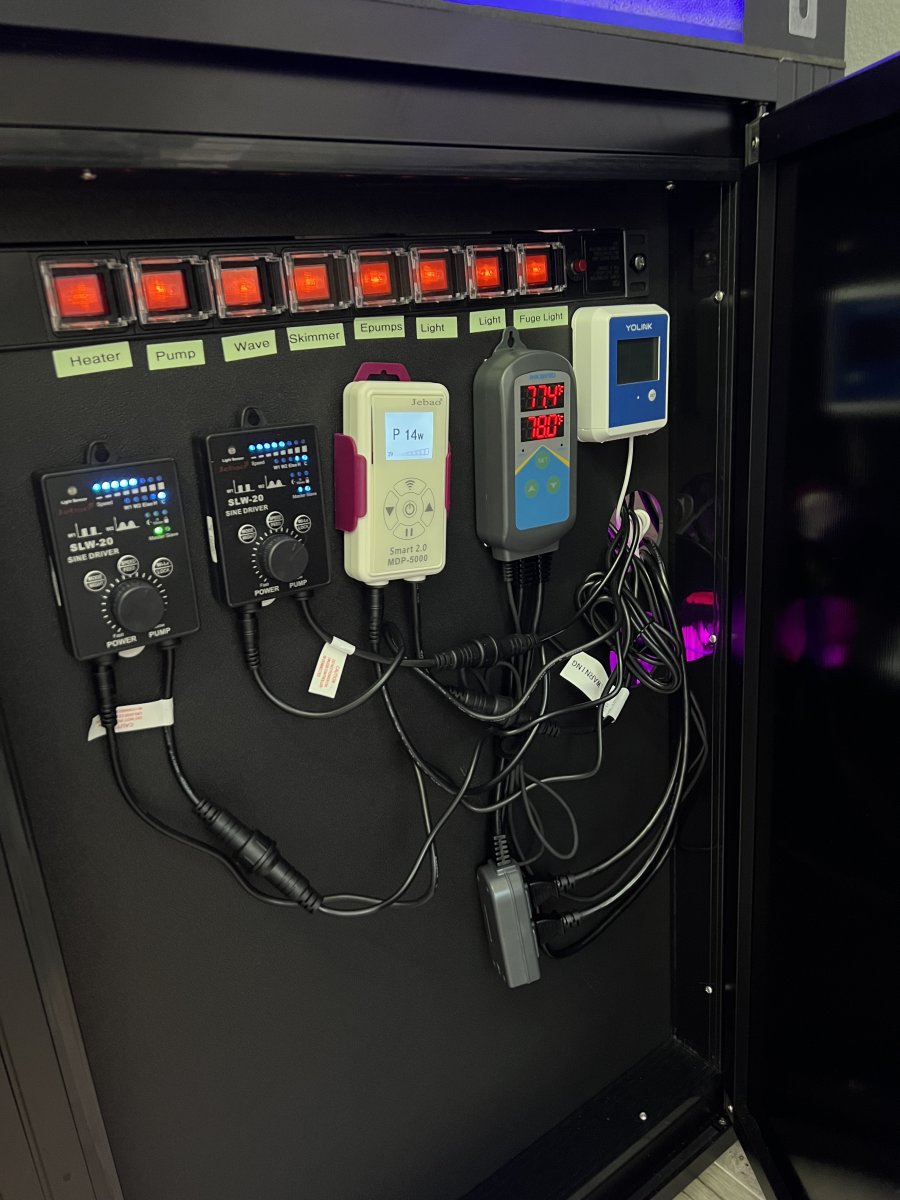

Side panel (Left to Right): Jebao wavemakers x2, Jebao Return Pump, Inkbird temp controller, Yolink smart data temp logger

Some pics from this morning, my fav little guy, cleaner shrimp Jacques. I only have two corals right now (GSP and toadstool). I have 9 corals in QT, can't wait to put them in! This will be a softies/LPS tank. I plan to mount the GSP to the back wall (but I can't get it to stick! Tried epoxy and superglue already) I plan on getting a tail spot blenny and fire goby in the future.

Jacques.jpeg GSP.jpg Leather Toadstool.jpg

Current Stock:
- Cleaner shrimp
- 2 Cerith Snails
- 1 Nassarius
- 1 Margarita Snail
- 1 Scarlet Reef Hermit
- 2 Blue Leg Hermits
- 1 Toadstool Leather
- 1 Sm Colony green star polyp

Currently in QT:
- 2 Snowflake clownfish
- 5 Trochus Snails
- Frogspawn
- Blue Hammer
- Cotton Candy Acan
- Halle Berry Zoas
- Mandarin Zoas
- Yellow Finger Gorgonian
- 2 Rhodactis Mushroom (1 purple, 1 white)
- 5 Mint Moon Duncans

Thank you for looking at my build. I put a lot of love into it <3. Thanks to my husband for putting up with me and helping me 3D print so many custom parts. I couldn't have finished it without him. Front Live Rock.jpeg Sideshot finished.jpeg


feelingfishy

Active Member
View Badges
Joined
Jul 4, 2021
Messages
256
Reaction score
199
Location
Jasper
Rating - 0%
0   0   0
Looks great! I’m admiring how neat you have things. I also have a Cade and those broom holders would be a nice addition.


Gumbies R Us

Certified Noob
View Badges
Joined
Nov 10, 2022
Messages
16,908
Reaction score
27,850
Location
North Georgia
Rating - 0%
0   0   0
Hi everyone,

I finally finished my build for my Cade 600 Reef S2 last night and I am ready to post my build thread. I upgraded my IM 20 gallon AIO to this beauty. I always wanted a Cade, the clarity of the glass is breathtaking in person.

Aquascape: I had built my aquascape 1 week prior. I should have waited for the actual tank because I used the dimensions online to build the aquascape. I didn't take into account the back panel and made the aquascape too long. I was able to pivot last minute to make it work. I used (maybe 30 lb?) Real Reef Rock and Marco's Coralline Mortar to make it. I had zero luck with the super glue and activator, they make it look easy on BRS but I couldn't get it to work for me.

Building Aquascape.jpg Supplies Shot.jpg

Cade arrived! Unboxed and filled with water to start the cycling process. It was very heavy!! I was not a huge fan of the lid, it is a little flimsy. The doors are very handy and convenient to get to the sump. I just had return pump (Jebao MDP-5000) installed with some MarinePure Bioballs in the sump during the cycling process. I like using Tims All in one and ammonia for cycling (took around 16 days). I used 50 lbs Caribsea Arag-alive special-grade sand.

Cade Boxed.jpg First Day Wet.jpg

Once cycling was complete I finished my sump setup.

Equipment in sump:
- Jebao Return Pump MDP-5000
- Bubble Magus Curve Elite 5
- 125 Watt Eheim Jager x 2 (with Inkbird controller, Yolink Smart temp data logger and mounted with Icecap dual magnetic heater holder)
- Custom 3D printed refugium basket with chaeto
- Innovative Marine Chaetomax Refugium Light 9 watt
- 4 inch 150 Micron Honeycomb Filter Sock
- Media: MarinePure 1.5 in Biofilter Media Spheres, Carbon, Biofilter Media Foam Sponges (generic)

Sump 1.jpg Sump 2.jpg Sump 3.jpg

The magnets that came with the Icecap heater holder were not strong enough to hold it up, so I purchased some generic magnets online to add some extra power to hold it up. My husband 3D printed the filter basket for me to hold my chaeto. Here is the link we used and he resized it for me if anyone is interested in printing one too https://www.thingiverse.com/thing:4863924. I was hard to find the right size filter basket. (And the ones for sale on Etsy were incredibly overpriced IMHO). I mounted my skimmer on some eggcrate because it is still overflowing, I have it at around 7 in depth right now and will keep watching it/breaking it in.

Now, on to the main tank. The custom lid took several days and was a nightmare!

Overall Shot Finished.jpg Closeup Finished Tank.jpeg Closeup Side Shot Completed.jpeg

Tank equipment:
- HMS Multi Light Mount Kit w/ 24" (25.5" inch rail)
- Red Sea Led50 (x 2) with custom rail mounts
- D-D the aquarium solution lid kit with custom 3D parts
- Jebao SLW 20 Wavemaker (x2)
- Penn-plax silent air B11 (x3) for power outages (1 in sump and 2 in main tank)

Lid 1.jpeg Lid 2.jpeg Lid 3.jpeg

My husband helped me with the lid and light mount.

Lid: The D-D solutions kit makes you cut all the rails with a saw. The pieces it came with did not allow me to make a close fit around the light mounting feet. He designed and 3D printed me some custom z connections to make it go around the light mount perfectly. I found this hinge print file (https://www.printables.com/model/133434-acryliclexan-hinge-small-glue-on) and made the front open/hinge for easy feeding/access. I think it came out slick but it took A LOT of extra effort. (*Side note: the D-D feeding portal kind of sucks, I bought it but did not use it, the lid just sits on top, a breath of wind knocks it off)

Light Mount: Husband had to cut HMS side rails to make it shorter and not obstruct the view. He made me 3D printed rail mounts to make the Red Sea Lights fit onto the rails. (I already had 1 RedSea Light for my old tank and I could no longer return it, so I wanted to utlize it for my new build)

RedSea Led 50 Settings: I have softies and LPS - Blue 45%, White 5% - Par readings: Sand Bed 80-100, Lower 3rd Tank 100, Lower Half 110-120, Top 130-150

On to the side panel and accessories!

Side controllers.jpeg Cable Sharks.jpeg Tools on Door.jpeg

I bought some broom holders on Amazon to hold my long tools. I also got some shark magnet cable holders to hold my cables to the side to have easy access to the doors on the back top panels.

Side panel (Left to Right): Jebao wavemakers x2, Jebao Return Pump, Inkbird temp controller, Yolink smart data temp logger

Some pics from this morning, my fav little guy, cleaner shrimp Jacques. I only have two corals right now (GSP and toadstool). I have 9 corals in QT, can't wait to put them in! This will be a softies/LPS tank. I plan to mount the GSP to the back wall (but I can't get it to stick! Tried epoxy and superglue already) I plan on getting a tail spot blenny and fire goby in the future.

Jacques.jpeg GSP.jpg Leather Toadstool.jpg

Current Stock:
- Cleaner shrimp
- 2 Cerith Snails
- 1 Nassarius
- 1 Margarita Snail
- 1 Scarlet Reef Hermit
- 2 Blue Leg Hermits
- 1 Toadstool Leather
- 1 Sm Colony green star polyp

Currently in QT:
- 2 Snowflake clownfish
- 5 Trochus Snails
- Frogspawn
- Blue Hammer
- Cotton Candy Acan
- Halle Berry Zoas
- Mandarin Zoas
- Yellow Finger Gorgonian
- 2 Rhodactis Mushroom (1 purple, 1 white)
- 5 Mint Moon Duncans

Thank you for looking at my build. I put a lot of love into it <3. Thanks to my husband for putting up with me and helping me 3D print so many custom parts. I couldn't have finished it without him. Front Live Rock.jpeg Sideshot finished.jpeg
Love the aquascape!


mjszos

Well-Known Member
View Badges
Joined
Sep 7, 2021
Messages
864
Reaction score
2,733
Location
Chicago, IL
Rating - 0%
0   0   0
Looking great, really dig the scape! I have a soft spot for cube tanks.

Bonus points for the band art in the background, brings me back to my "it's not a phase, mom" days!! :)

You'll have a blast with that cleaner shrimp. Ours is one of the favorites in the tank, especially once they get comfortable with you and start walking on your hand when it's in the tank. Super fun little critter.

OP
OP
Thatgirlnyx

Thatgirlnyx

Community Member
View Badges
Joined
Nov 13, 2024
Messages
32
Reaction score
31
Location
Texas
Rating - 0%
0   0   0
Looking great, really dig the scape! I have a soft spot for cube tanks.

Bonus points for the band art in the background, brings me back to my "it's not a phase, mom" days!! :)

You'll have a blast with that cleaner shrimp. Ours is one of the favorites in the tank, especially once they get comfortable with you and start walking on your hand when it's in the tank. Super fun little critter.
Thank you, the cube was way harder to scape than the standard rectangle that’s for sure -

Those are actually some of my favorite vinyls framed - my tank is right next to our record player -

Jacques is very sweet I love him. I hand feed him every day, he is spoiled rotten


mjszos

Well-Known Member
View Badges
Joined
Sep 7, 2021
Messages
864
Reaction score
2,733
Location
Chicago, IL
Rating - 0%
0   0   0
Thank you, the cube was way harder to scape than the standard rectangle that’s for sure -

Those are actually some of my favorite vinyls framed - my tank is right next to our record player -

Jacques is very sweet I love him. I hand feed him every day, he is spoiled rotten

I hear that! I had a 2x2x2 I was going to setup, but due to space constraints ended up going with the rectangle tank. I have a little 15gal cube in my garage I've been putting off setting up as a home office tank.

Our vinyl collections aren't too dissimilar. Our record player/speaker are a focal point in the basement!

Keep on hand feeding him and spoiling him, the shrimp gets probably the most attention out of anything else in our tank haha.


DiscoStuart

Community Member
View Badges
Joined
Jan 20, 2025
Messages
55
Reaction score
14
Location
Cambridge, UK
Rating - 0%
0   0   0
Looks great! Considering a similar build, so a few questions:
  • Jebao Return Pump MDP-5000 - how quiet are you finding it? It's on my 'maybe list' but I' considering a Reef Octo VarioS 4 as the tank is right next to my desk and I'm looking for near silence
  • Jebao SLW 20s - thoughts on those? It's between those and the Nero 3s for me (at 2x the price) - mostly a question of clean lines and wires in the tank
  • Why the Yolink in addition to the Inkbird? My quick research suggested the Inkbird will log historical data. Is that not the case/something you didn't like?
  • How big is your QT setup?
  • How's the chaeto doing? do you have any flow that is causing it to rotate? Any algae growth on the skimmer due to the fuge light? I haven't seen many people with a fuge in this sump, so I'm intrigued on how it is working
Thanks so much for sharing!

OP
OP
Thatgirlnyx

Thatgirlnyx

Community Member
View Badges
Joined
Nov 13, 2024
Messages
32
Reaction score
31
Location
Texas
Rating - 0%
0   0   0
Looks great! Considering a similar build, so a few questions:
  • Jebao Return Pump MDP-5000 - how quiet are you finding it? It's on my 'maybe list' but I' considering a Reef Octo VarioS 4 as the tank is right next to my desk and I'm looking for near silence
  • Jebao SLW 20s - thoughts on those? It's between those and the Nero 3s for me (at 2x the price) - mostly a question of clean lines and wires in the tank
  • Why the Yolink in addition to the Inkbird? My quick research suggested the Inkbird will log historical data. Is that not the case/something you didn't like?
  • How big is your QT setup?
  • How's the chaeto doing? do you have any flow that is causing it to rotate? Any algae growth on the skimmer due to the fuge light? I haven't seen many people with a fuge in this sump, so I'm intrigued on how it is working
Thanks so much for sharing!

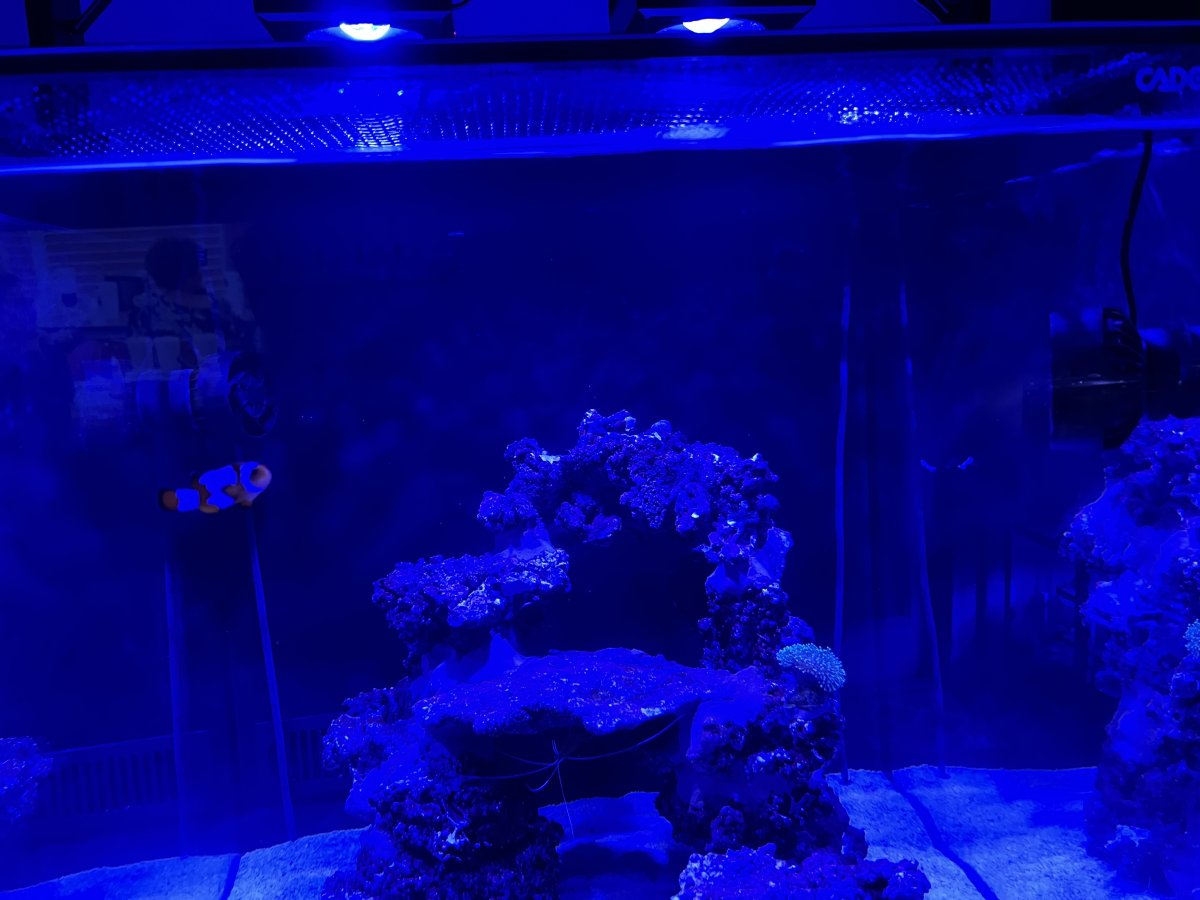

- I have the Jebao running at 14W - I don’t hear anything at all - you have to get the gate valve just right

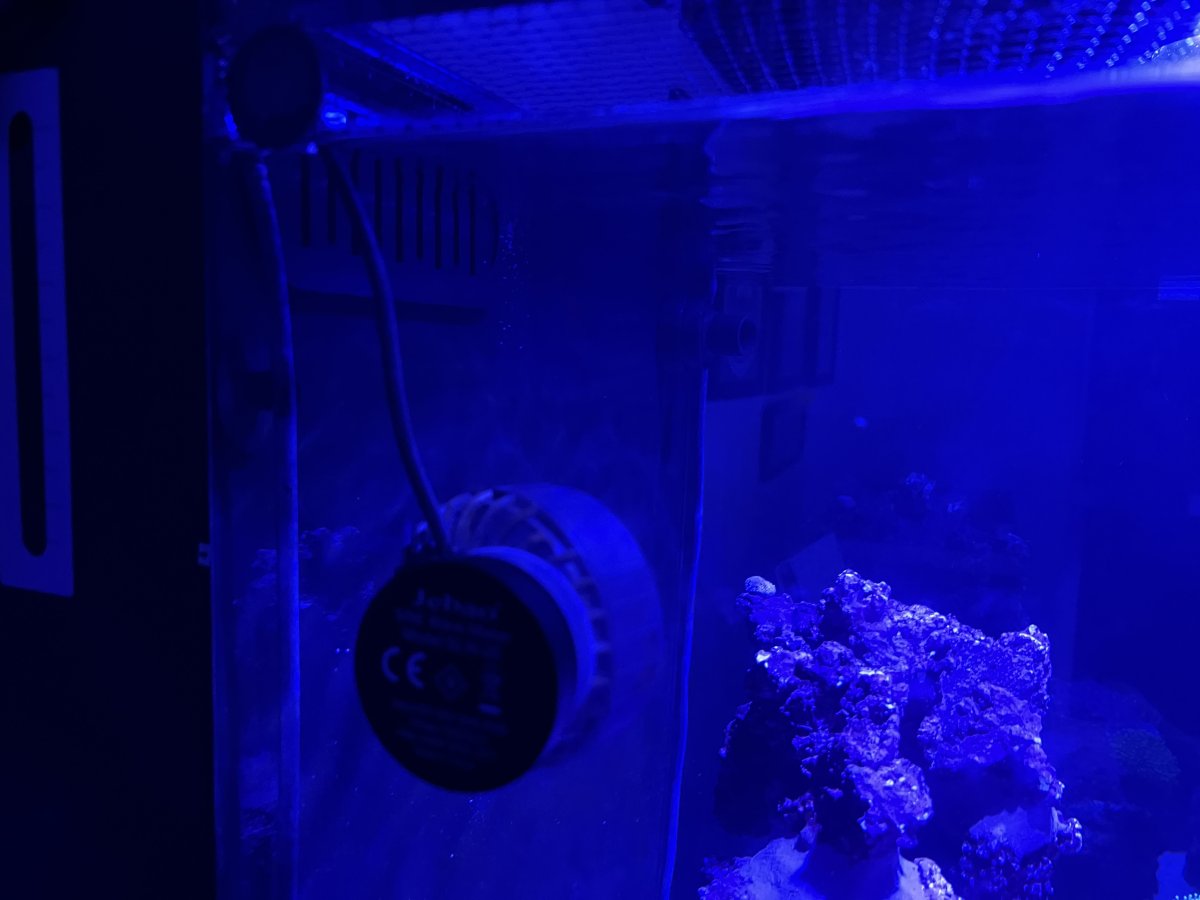

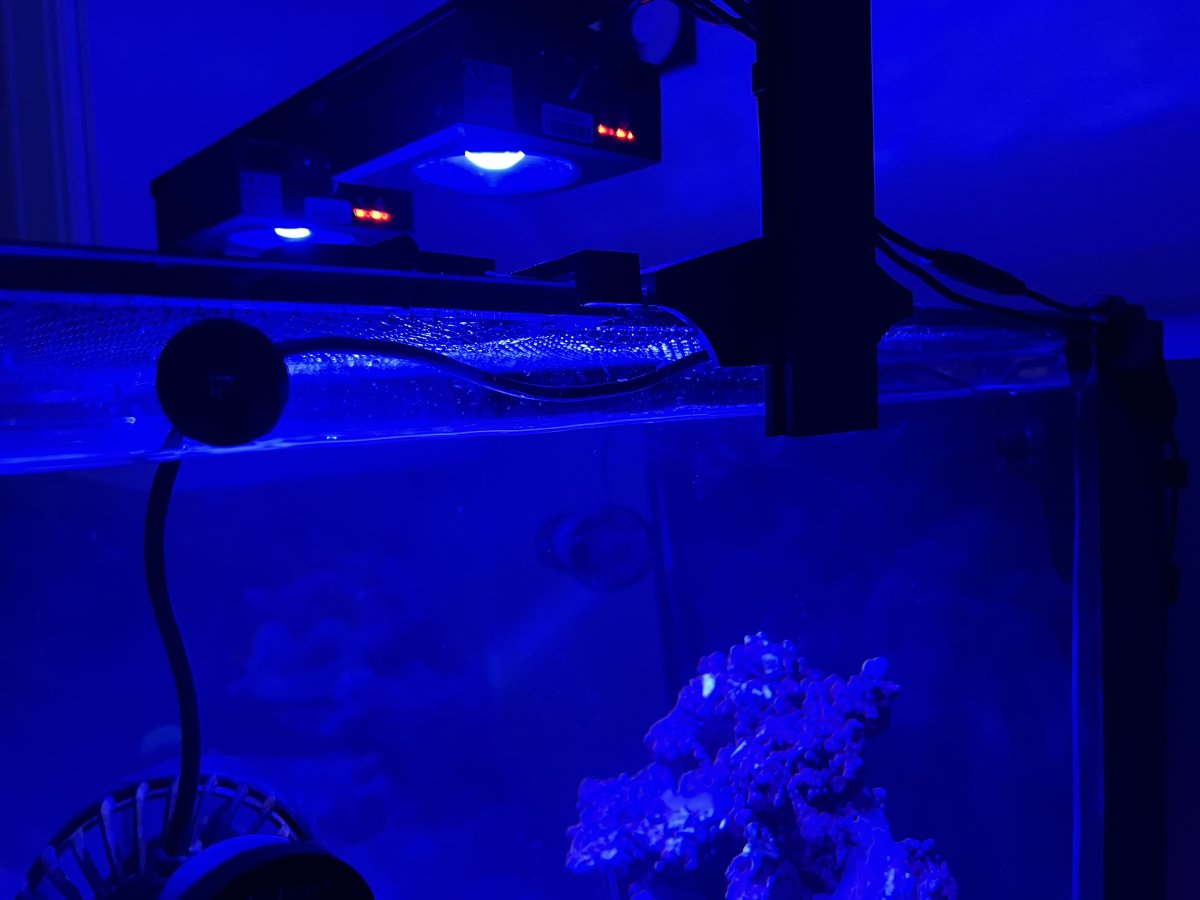

- I like the Jebao SLW 20s - they are silent and I have included pics to see placement (one is on left side of glass in the back angled toward the center - other one is on right side of glass in the front pointed to the middle) I have the cords running along the top so it doesn’t stick out - the reviews on the Nero weren’t great and I didn’t like the price
- the inkbird is standard issue with no WiFi - the inkbird with WiFi didn’t have great reviews - the YoLink fits with my existing hub and sends an alert to my phone when temp drops or is above my set threshold
- I have a 10 gallon fish QT and a 10 gallon invert/coral QT
- the chaeto is growing larger - it doesn’t really spin but the copepods seem to like it because I have a little population growing down there - it has some flow through it but it’s a large mass and doesn’t spin - haven’t had any algae on the skimmer so far
IMG_0482.jpeg IMG_0483.jpeg IMG_0484.jpeg
