Vortech MP40 Flow deflector (10%) without supports and NOT snapping!

[Seregus]

Greeting everyone,

So I was looking for a deflector for my MP40s, which are mounted at the back wall of my 150G aquarium and they do disturb sand a lot.
All I found had to be printed with supports and installation always caused those mounts 'legs' to snap... this was due to how it's designed, they are snapping at the weakest point - 'between layers'.

So I designed it to be two parts - base with deflector (currently I only made 10 degree version, please ping me and I can do 5 or 20 or 40 degree) and a slots to glue in 'legs', since legs are printed with different orientation they are mega strong and will not snap. Slots are super tight I did not even glue it, but a drip of super glue before fitting legs will make it super permanent.

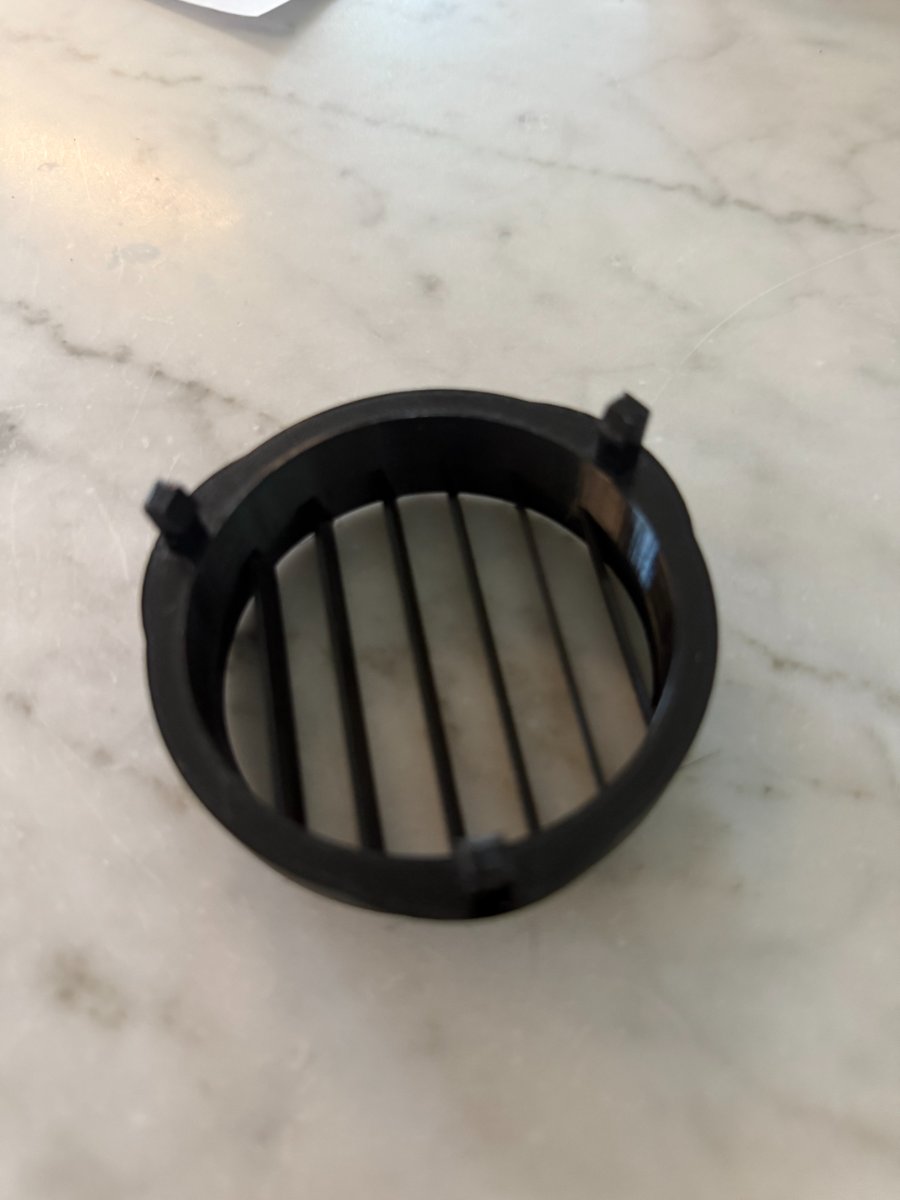

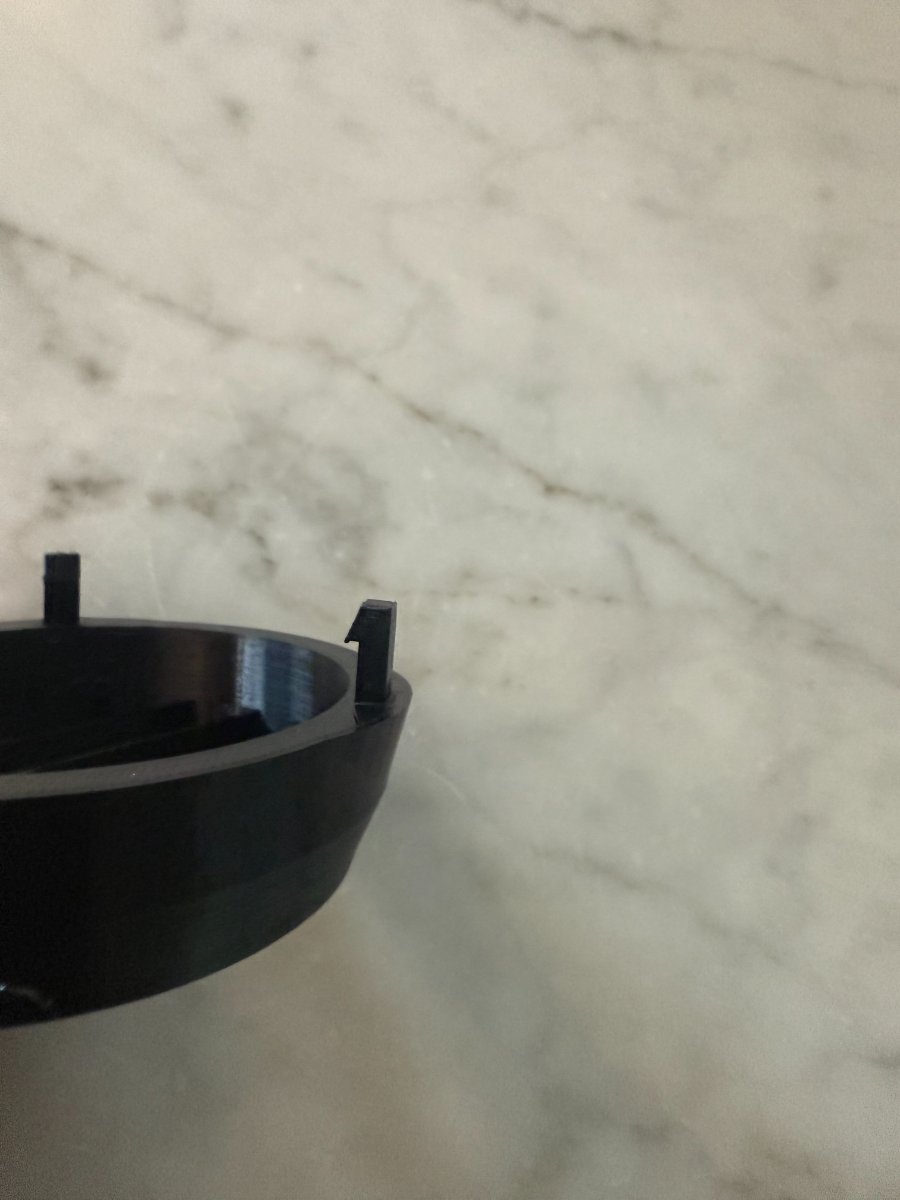

I attached some pictures, obviously print with PETG and 100% infill to avoid water damage and no chemicals leaking to aquarium.

Here is a link to STL (all free): https://www.thingiverse.com/thing:7390730



[cdemoss01]

Thank you for this!



[Euphyllia098]

4D Aquatics makes some nice movable nozzles. Not free, but I use them and they are awesome.



[Seregus]

Are they lockable or you just rely they are tight enough not to swivel? I was thinking on improving the design to make it adjustable



[Euphyllia098]

Are they lockable or you just rely they are tight enough not to swivel? I was thinking on improving the design to make it adjustable

They don't lock, you just move them and they stay. They get tough to move if they are dirty but cleaning them makes them move easy again.



[Seregus]

Ok so once I have next time free window I’ll try to design similar but with ‘clicking’ positions… so its lockable in some specified positions… have an idea on how to do it, but not sure if it will work…
