Yes.... the panoramereef build is on

glennf

DSR Master
View Badges
Joined
Nov 10, 2013
Messages
2,201
Reaction score
3,303
Location
Rotterdam, The Netherlands
Rating - 0%
0   0   0
There is no way back!
The glass arrived today, so we have to pull through with this project from now on.
I yet have to detemine whether is will glue it as one single tank or as 3 part segmented tank for redundancy.

Each segment will be 2,5 meter and i favour a system without a sump, because i hate the (energy unefficient) idea of pumping large volumes of water up all the time.

===========================
Edit: february 4, 2022
This happened previously
==============================






Last edited:

Cory

More than 25 years reefing
View Badges
Joined
Oct 30, 2014
Messages
6,882
Reaction score
3,132
Location
Canada
Rating - 0%
0   0   0
I definitely would just make them separated tanks and not all one piece, unless its one giant piece of glass.

OP
OP
glennf

glennf

DSR Master
View Badges
Joined
Nov 10, 2013
Messages
2,201
Reaction score
3,303
Location
Rotterdam, The Netherlands
Rating - 0%
0   0   0
Tuesday 7sept21 17:20


Just finished placing the braces on tank1
I had a little help from my son, we placed them together within a half hour.
The prepartions however took a little bit longer. Three glasstrips were 2mm oversized and did not fit, so i had to cut them myself. The terpentine to fill the glass cutter was used up, so i had to go out for a new bottle.
After that cutting the glas was easy peasy.
Next time i will use 5-6mm tolerance for the braces




Cory

More than 25 years reefing
View Badges
Joined
Oct 30, 2014
Messages
6,882
Reaction score
3,132
Location
Canada
Rating - 0%
0   0   0
You cut the glass yourself? Thats not easy to do. Its a skill to learn on its own. Looking good! Whats your method of applying silicone?

OP
OP
glennf

glennf

DSR Master
View Badges
Joined
Nov 10, 2013
Messages
2,201
Reaction score
3,303
Location
Rotterdam, The Netherlands
Rating - 0%
0   0   0
You cut the glass yourself? Thats not easy to do. Its a skill to learn on its own. Looking good! Whats your method of applying silicone?
I have cut glas from 3-10mm since i build my first tank at age 10, so no real challenge there. But true , you need to have the skills to do it.

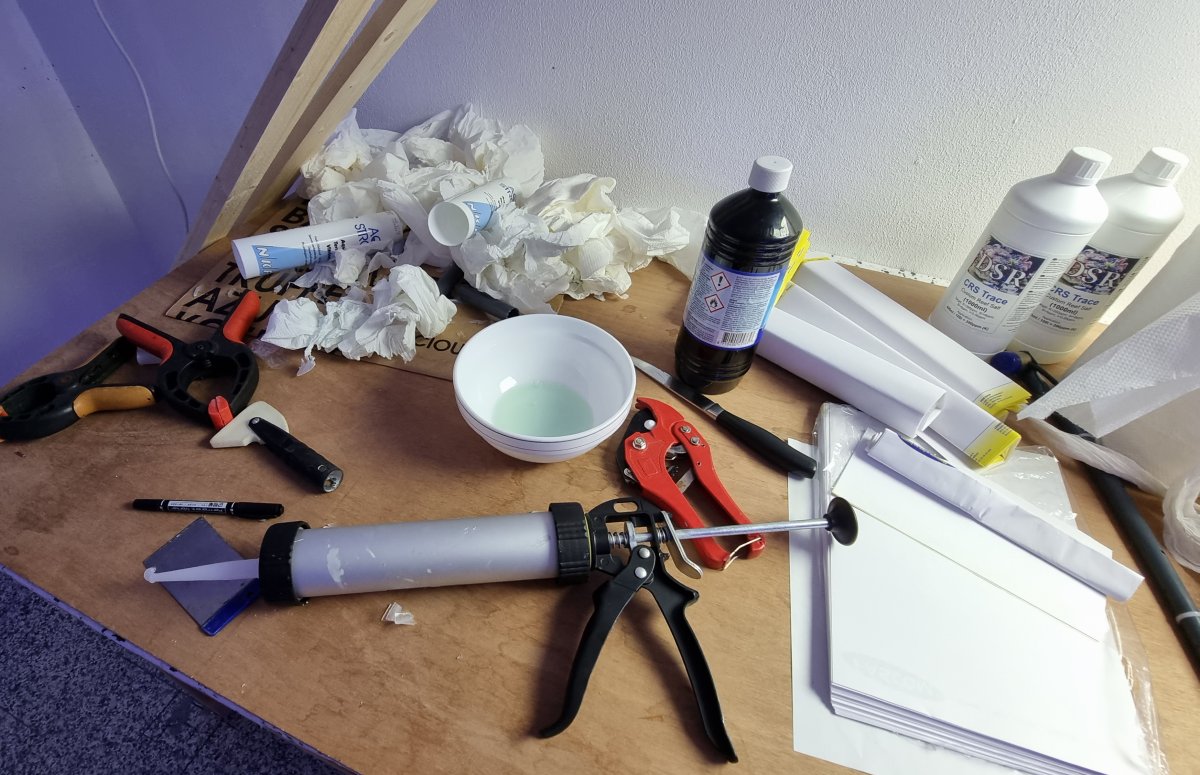

This are the kitting tools

OP
OP
glennf

glennf

DSR Master
View Badges
Joined
Nov 10, 2013
Messages
2,201
Reaction score
3,303
Location
Rotterdam, The Netherlands
Rating - 0%
0   0   0
Definitely following along for this one!

Did you double the glass at the bottom and step in the top piece to set your side panels in?
The bottom is a single 10mm glas panel.
The sidepanels are glued against it.
This way the sides can handle more force. The bottom is going nowhere.

Last edited:
OP
OP
glennf

glennf

DSR Master
View Badges
Joined
Nov 10, 2013
Messages
2,201
Reaction score
3,303
Location
Rotterdam, The Netherlands
Rating - 0%
0   0   0
Wednesday, september 8, 2021
#panoramareef section1 into final position
Clamps removed from tank1 + extra kit on braces
Moved 140 liter development tank to diningroom

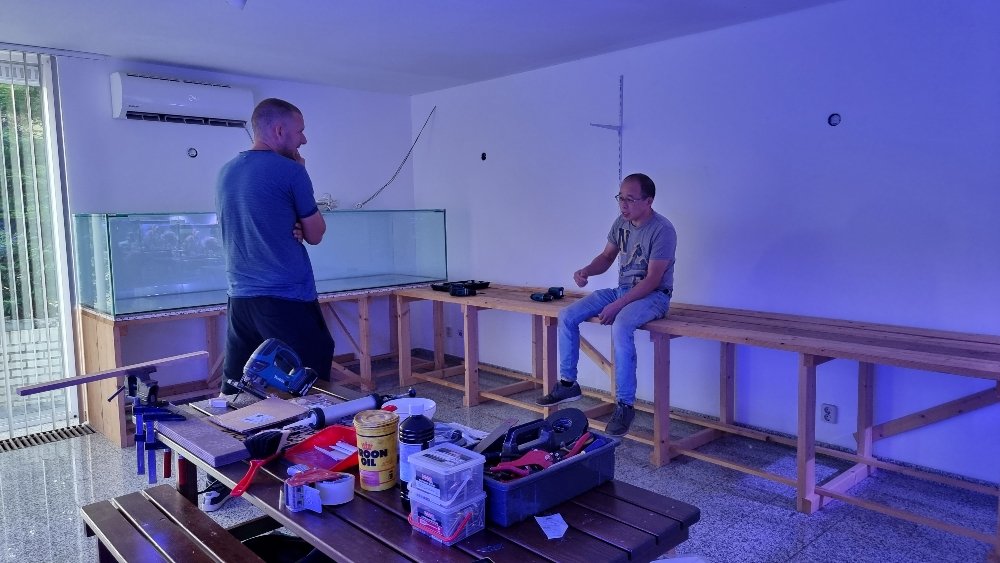

My friend Stefan came and together we move tank1 into it's final position.
Cleared the stand for section 2+3 as preparation to extend this stand with 1 meter.




OP
OP
glennf

glennf

DSR Master
View Badges
Joined
Nov 10, 2013
Messages
2,201
Reaction score
3,303
Location
Rotterdam, The Netherlands
Rating - 0%
0   0   0
This makes me want to go get a job for 3mos at a Tank Builder Company so I could learn these skills

Unfortunately the closest one to me is GlassCages in Tennessee
The advantage of designing and building your own is that you are never dependent on others.
It's so annoying when they make promises and don't deliver.


ZoWhat

10K Club member
View Badges
Joined
Feb 23, 2014
Messages
10,166
Reaction score
17,840
Location
Cincinnati Ohio
Rating - 0%
0   0   0
The advantage of designing and building your own is that you are never dependent on others.
It's so annoying when they make promises and don't deliver.
I want to buy a 8ft 315g Planet but been hearing their black silicone work in non-crucial areas is sometimes pretty sloppy in this Covid hard-to-find-workers era

OP
OP
glennf

glennf

DSR Master
View Badges
Joined
Nov 10, 2013
Messages
2,201
Reaction score
3,303
Location
Rotterdam, The Netherlands
Rating - 0%
0   0   0
I want to buy a 8ft 315g Planet but been hearing their black silicone work in non-crucial areas is sometimes pretty sloppy in this Covid hard-to-find-workers era
People these days have no pride in their work anymore.


Joe Glass Cages

Passionate Glass Cages’s Team Member
View Badges
Joined
Dec 13, 2019
Messages
1,183
Reaction score
5,678
Location
Dickson, TN
Rating - 0%
0   0   0
This makes me want to go get a job for 3mos at a Tank Builder Company so I could learn these skills

Unfortunately the closest one to me is GlassCages in Tennessee
unfortunately.... sorry you feel that way.

come on over, lets build some tanks!


ZoWhat

10K Club member
View Badges
Joined
Feb 23, 2014
Messages
10,166
Reaction score
17,840
Location
Cincinnati Ohio
Rating - 0%
0   0   0
unfortunately.... sorry you feel that way.

come on over, lets build some tanks!
I think you're about 310 miles south of me.

That would be quite the commute unless I slept in one of your barns.

It would be a total bucket list things to learn how to build a tank.


Lost in the Sauce

BANGERANG!!!!
View Badges
Joined
Feb 10, 2021
Messages
18,889
Reaction score
91,545
Location
Southern California
Rating - 0%
0   0   0
I think you're about 310 miles south of me.

That would be quite the commute unless I slept in one of your barns.

It would be a total bucket list things to learn how to build a tank.
But have you seen the ponds? It needs to go home? I'd be fishing in those the whole time.


Oh yeah we have very time consuming hobbies....
