I have pretty much decided to go with 8020 for my stand build and have put together the basics of it but I am not sure if I need gussets or if the counter bore will suffice.
I have made 3 designs using some software I found online that depicts what I had in mind 3 different ways. I am looking for anyone's experience or what you would do different as well as if my design would even work.
The top of the frame will be 1530 (or 4080) and the 4 corner legs will be the same profile as well as the center legs, and cross members that sit under the tank supporting the bottom. The bottom of the frame and 4 mid position legs will be 1515 (or 4040).
Anyway, here is the pics of the designs.

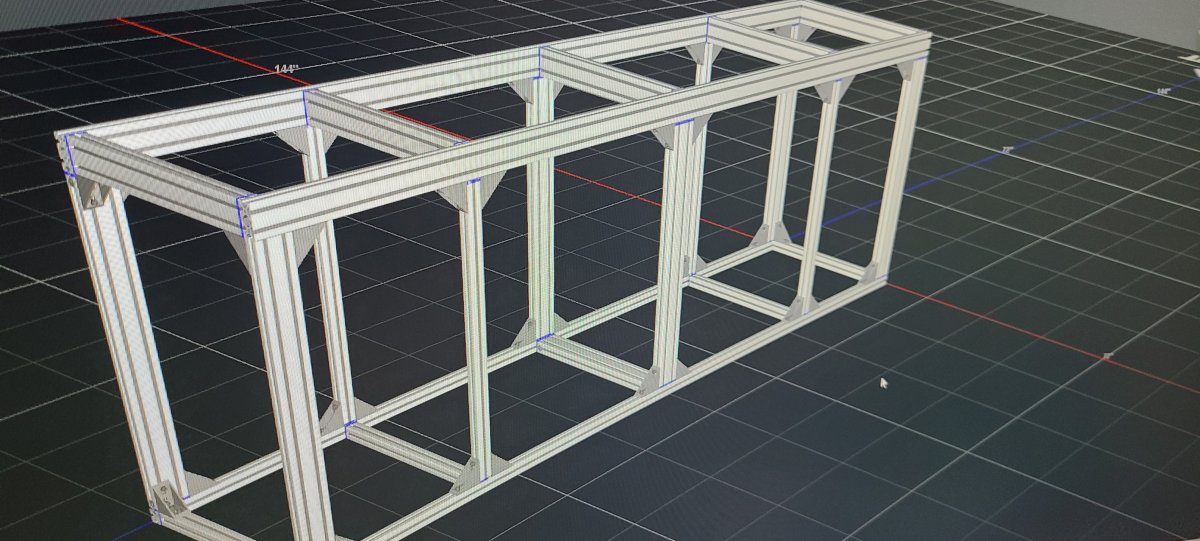

The first pic is the stand with no gussets and connected with the counter bore, legs go all the way to the floor with adjustable feet
The second pic is a stand with no adjustable feet resting on a full bottom frame and loaded with gussets and connected with counter bores.
The third pic is the same as the second but with a few gussets removed but still connected with counter bores.
The fourth pic is the stand with no gussets and no feet just counter bore connections. I would of course run the bottom frame under the legs rather than having these legs straight to the floor.
The folks at 8020 told me I could connect everything with either a counter bore or a gusset but did not need both.
I have made 3 designs using some software I found online that depicts what I had in mind 3 different ways. I am looking for anyone's experience or what you would do different as well as if my design would even work.
The top of the frame will be 1530 (or 4080) and the 4 corner legs will be the same profile as well as the center legs, and cross members that sit under the tank supporting the bottom. The bottom of the frame and 4 mid position legs will be 1515 (or 4040).
Anyway, here is the pics of the designs.
The first pic is the stand with no gussets and connected with the counter bore, legs go all the way to the floor with adjustable feet
The second pic is a stand with no adjustable feet resting on a full bottom frame and loaded with gussets and connected with counter bores.
The third pic is the same as the second but with a few gussets removed but still connected with counter bores.
The fourth pic is the stand with no gussets and no feet just counter bore connections. I would of course run the bottom frame under the legs rather than having these legs straight to the floor.
The folks at 8020 told me I could connect everything with either a counter bore or a gusset but did not need both.
