~8ft build ( Sydney, AUS )

Discussion in 'Member Tanks' started by eVANS, Nov 22, 2015.

  1. eVANS

    eVANS Member

    Joined:
    Jan 20, 2015
    Messages:
    13
    Likes Received:
    11
    Location:
    Sydney
    Hi guys :)

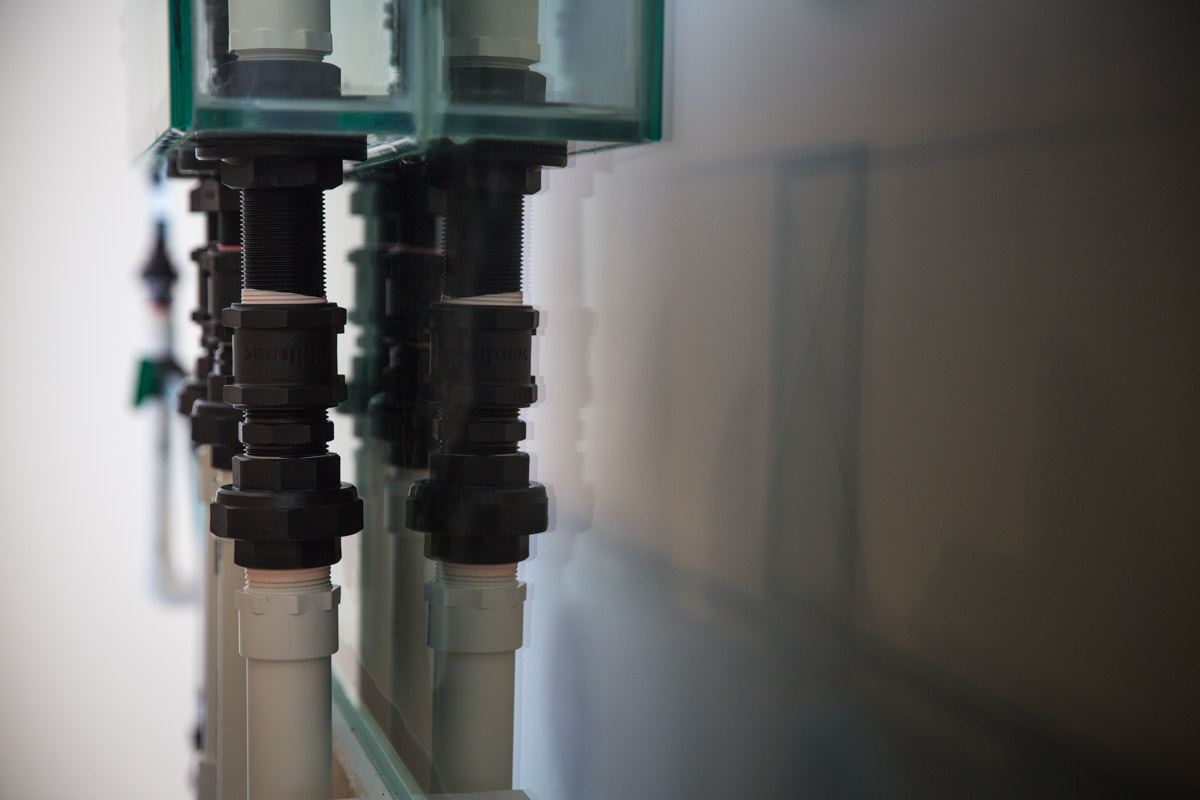

    Here's a project I've been working on recently! Honestly it's turned out better than I anticipated. One of the main objectives was to have a large proportion of the rocks suspended off the sand. The way I was able to achieve this was by bending black perspex into square C shapes allowing for rocks to be placed on top of the stands. I will elaborate and take some photos of the C stands in future posts. Following that is an issue that has always been critical for me in any tank, the sound; namely speaking the constant gurgling of the water going from the overflow into the sump. I wanted silent, dead silent... It was especially important for me this time as the tank would be a main feature in the living space. I achieved this by employing the herbie bean animal overflow system. If you don't know what it is just do a quick google search. I don't think I would ever plumb a tank again that doesn't utilise this.

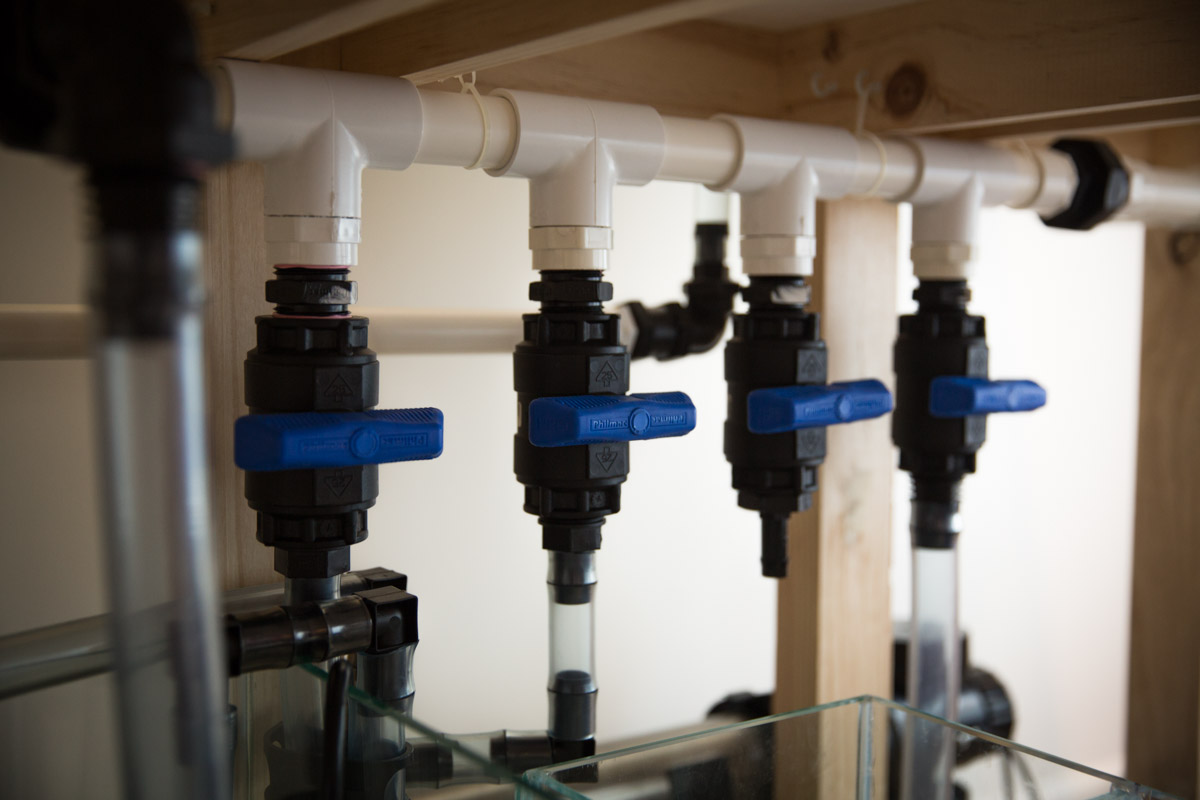

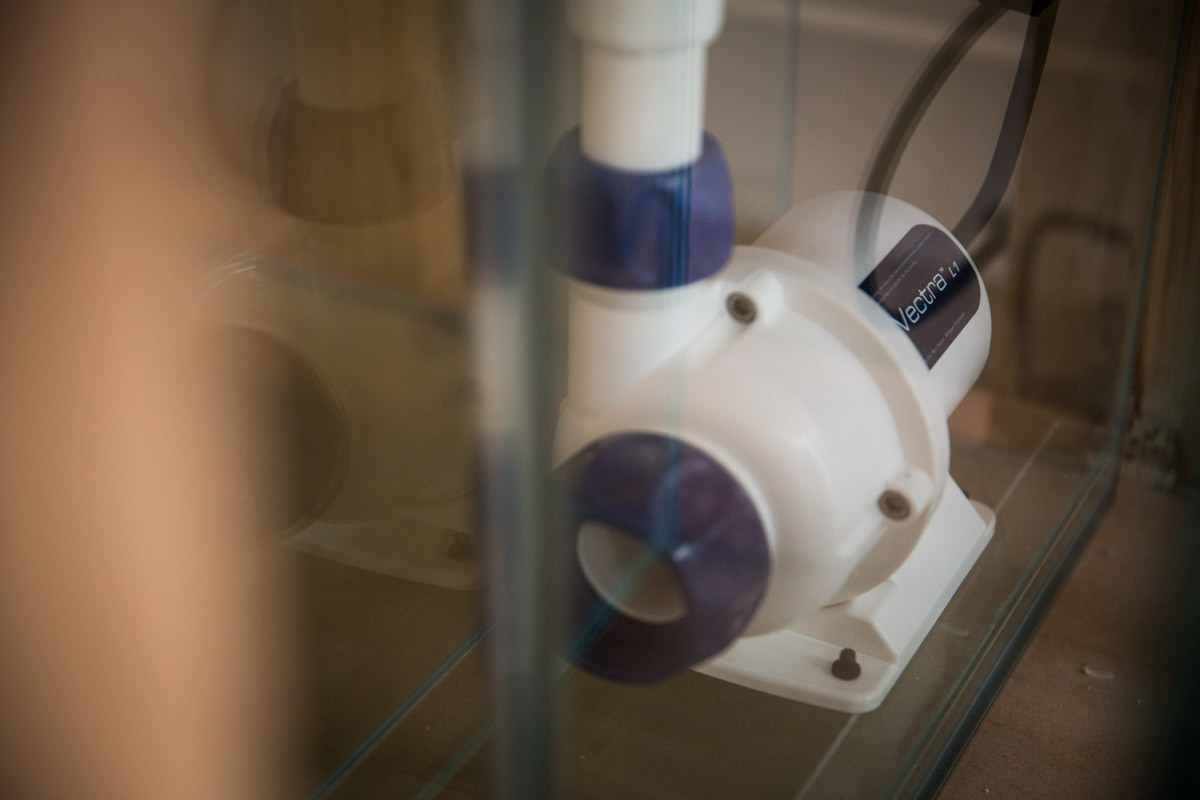

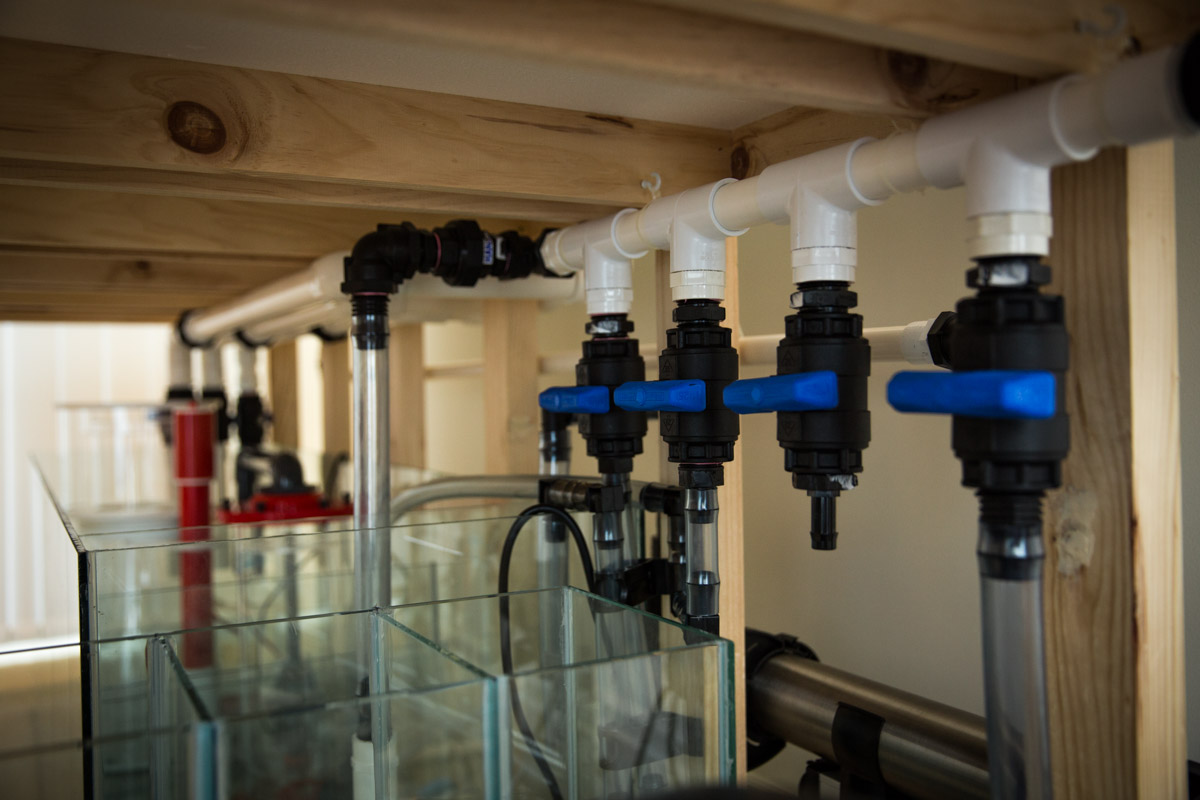

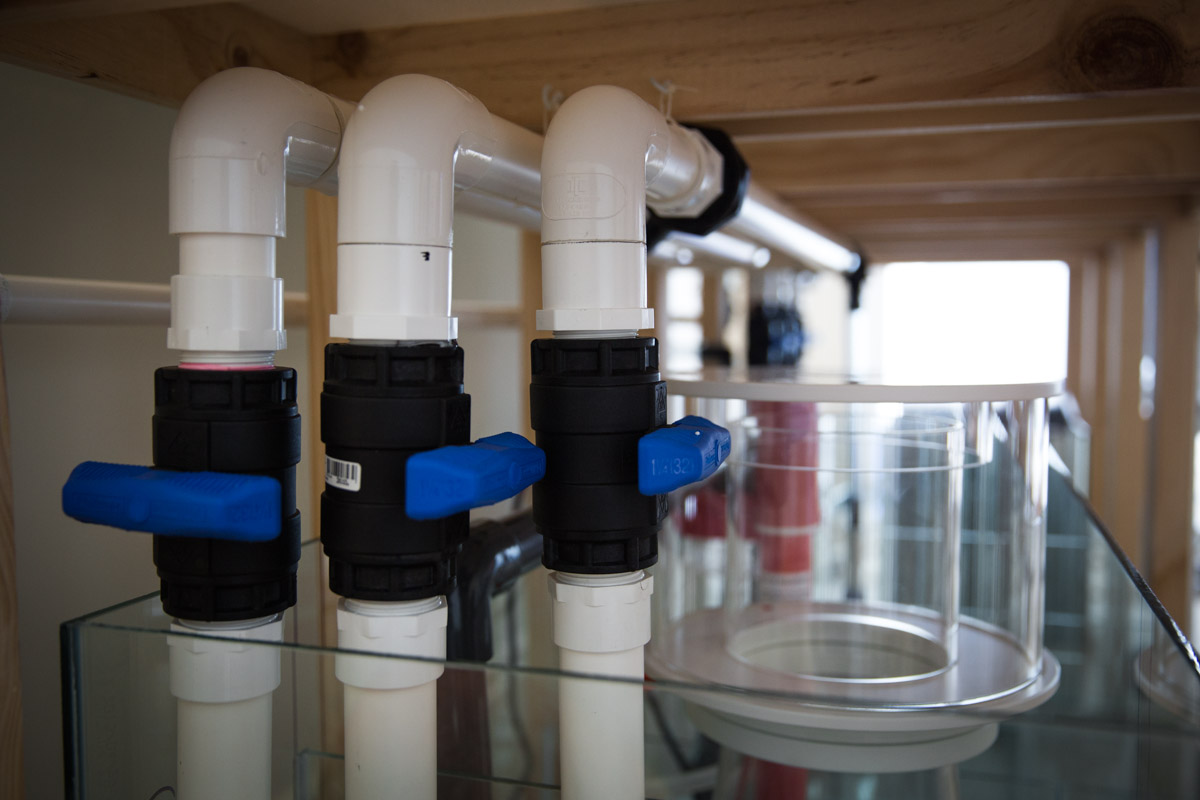

    Now to the plumbing... A significant portion of time was spent making sure that each pipe was cut and glued in a way that made the final look extremely clean and neat. I used a combination of black irrigation fittings which screw into each other and standard white pvc pressure piping. Initially I was planning to plumb the whole tank in the black irrigation fittings and pipe for the cleanest look. However after doing some research I realised the black irrigation fittings didn't come with 1"1/4 black piping. In the end the white, black and blue colour scheme worked pretty well, especially with the new Ecotech Vectra pump which sports the same colours. Oh and yes... unions... unions galore. Happy to answer any other of your questions regarding the plumbing :)


    2400 x 700 x 600
    ~8ft x 28" x 24"
    1008 L / 265 Gal
    Skimmer: Royal Exclusive 250 w/ RD3 Speedy
    Biopellet reactor: Reef Octopus Bio Churn 150 EXT
    Rock: Real Reef Rock​


    562A7911.jpg 562A7902.jpg 562A7897.jpg 562A7906.jpg 562A7900.jpg 562A7899.jpg



    Happy Reefing :D

    akcnmom65, 9balliw, Brian Kim and 5 others like this.
    Tags:

  2. jason g

    jason g Well-Known Member

    Joined:
    Dec 4, 2013
    Messages:
    590
    Likes Received:
    116
    Location:
    Fresno, CA
    Now that's a tank. Everything looks great from the rockscape to the plumbing. When does the water go in?

  3. Paranoiattack91

    Paranoiattack91 Active Member

    Joined:
    Jun 22, 2014
    Messages:
    179
    Likes Received:
    66
    Location:
    California
    Wow

  4. AllSignsPointToFish

    AllSignsPointToFish Valuable Member R2R Supporter Article Contributor Build Thread Contributor

    Joined:
    Oct 1, 2015
    Messages:
    2,582
    Likes Received:
    1,431
    Location:
    Gulf Breeze, Florida
    Crazy cool! Looking good :)

  5. Aussie paul

    Aussie paul Active Member

    Joined:
    Aug 3, 2015
    Messages:
    319
    Likes Received:
    223
    Location:
    Sydney
    That's how pipe work should be nice and clean and the Aqua scape looks great love the floating effect nice job can't wait to see more

  6. rboutin111

    rboutin111 Well-Known Member

    Joined:
    Dec 9, 2013
    Messages:
    616
    Likes Received:
    154
    Location:
    Northfield, Vermont
    Great looking set up. I'm looking forward to seeing your build progress

  7. eVANS

    eVANS Member

    Joined:
    Jan 20, 2015
    Messages:
    13
    Likes Received:
    11
    Location:
    Sydney
    Its currently going in :) The RO unit is taking awhile because the tank is massive and the weather is on the colder side.

  8. misael888

    misael888 Active Member

    Joined:
    Dec 2, 2013
    Messages:
    438
    Likes Received:
    114
    Location:
    ORLANDO
    Awesome work. Looking really good so far!! Following :)

  9. Reefmon

    Reefmon Active Member

    Joined:
    Jul 13, 2013
    Messages:
    282
    Likes Received:
    102
    Location:
    Tampa/zephyrhills
    Looks like a good start!

  10. Scubafrog

    Scubafrog Active Member

    Joined:
    May 1, 2014
    Messages:
    413
    Likes Received:
    108
    Location:
    Olathe, KS
    Wow, Nice!

  11. revhtree

    revhtree Owner Administrator Staff Member Team R2R R2R Supporter R2R Excellence Award Photo of the Month Award Article Contributor Build Thread Contributor Partner Member 2018

    Joined:
    May 8, 2006
    Messages:
    35,725
    Likes Received:
    26,048
    Already awesome!

  12. Reefing Madness

    Reefing Madness Carbon Doser Staff Member Team R2R R2R Supporter R2R Excellence Award

    Joined:
    Oct 27, 2012
    Messages:
    17,941
    Likes Received:
    1,376
    Location:
    Glendale, AZ.
    [​IMG]

  13. pitbull_13

    pitbull_13 Member

    Joined:
    Nov 22, 2015
    Messages:
    29
    Likes Received:
    3
    I would love to do one that big,unfortunately neither would my 3rd floor apartment or my wallet be happy.

  14. mdbannister

    mdbannister Ahh...the Reef Life Staff Member Team R2R R2R Supporter R2R Excellence Award SCMAS Member Article Contributor Build Thread Contributor Partner Member 2018

    Joined:
    Nov 18, 2012
    Messages:
    21,876
    Likes Received:
    14,327
    Location:
    Ontario, California
    THAT! IS! AWESOME! Following!

  15. Sangheili

    Sangheili Well-Known Member

    Joined:
    Aug 23, 2013
    Messages:
    649
    Likes Received:
    86
    Location:
    Just outside Las Vegas
    Dimensions and scape look awesome. A couple points to mention though, I hope you are in an earthquake free zone as that stand looks to have nothing to prevent lateral movement. It could collapse with enough side-to-side motion. Easy to fix with a couple diagonal supports though. Also you may have issues with the horizontal runs on the siphon overflow plumbing. My understanding is horizontal runs can trap air and make the siphon much harder to restart.

    Great attention to detail though in the build. Looks beautiful already!

  16. nmohr6

    nmohr6 Active Member

    Joined:
    Oct 10, 2014
    Messages:
    183
    Likes Received:
    68
    Location:
    alliance, Ohio
    Looks great! Following.

  17. eVANS

    eVANS Member

    Joined:
    Jan 20, 2015
    Messages:
    13
    Likes Received:
    11
    Location:
    Sydney
    thank you for your kind words of advice :)
    I will definitely be looking into adding the diagonal supports.
    Quite interested to see about the horizontal runs when all the waters in there. Luckily I added the ability to lower the fall on the pipes. phew....

  18. sn2per

    sn2per Active Member R2R Supporter Build Thread Contributor

    Joined:
    Jan 19, 2015
    Messages:
    155
    Likes Received:
    55
    Location:
    Kent, UK
    The tank looks Great and has made it to a Facebook posting already for R2R well done. Would love to know more about the floating rock work... I have an almost new build 4x2x2 and would love a floating island... Following with interest :)

    What are your lighting options going to be??

  19. trido

    trido Valuable Member R2R Supporter Reef Spotlight Award Reef Tank 365 Build Thread Contributor

    Joined:
    Apr 22, 2010
    Messages:
    1,372
    Likes Received:
    510
    Location:
    Lynnwood, Washington
    Impressive. Are you going to have a controller for the whole system?

    The mention above about shear strength is an important one. Even without an earthquake 2000 lbs of tank and water is just looking for an excuse to collapse a stand.

  20. Sahin

    Sahin Moderator Staff Member Team R2R R2R Supporter R2R Excellence Award

    Joined:
    Sep 7, 2010
    Messages:
    1,343
    Likes Received:
    218
    Location:
    UK
    Nice! What lighting are you going to be having over the tank? Proven T5 or MH, or pure LED's perhaps?
