After you take the measurements times 5, you need to apply a 1.33 correction factor if you are using it underwater. There is also a chart of other correction factors based on a specific light source on page 14 of the manual on the Apogee WebSite.


jda

Valuable Member
View Badges
Joined
Jun 25, 2013
Messages
6,535
Reaction score
7,948
Location
Boulder, CO
I think that is pretty good estimate - as good as anything this side of a $1500 LiCor meter. Absolute numbers are really just academic, even thought most people really care too much. Just understanding where you have brighter and dimmer spots in your tank is where the gold is - this will certainly work for that.

OP
Thingsibuild

Thingsibuild

Active Member
View Badges
Joined
Oct 30, 2018
Messages
169
Reaction score
178
Location
Gulf coast Alabama
I just didn't want to do it wrong and always be second guessing the numbers. I'll just take my time map it out well.
For a $150 I probably should just get one. I'll be setting up frag tank and adding more filler lights soon.

OP
Thingsibuild

Thingsibuild

Active Member
View Badges
Joined
Oct 30, 2018
Messages
169
Reaction score
178
Location
Gulf coast Alabama
I'm going to test every led setting I would possible use, t5 on and off. Thanks for all the advice. This is going to take long time.


oreo5457

Valuable Member
View Badges
Joined
Sep 18, 2017
Messages
1,371
Reaction score
877
After you take the measurements times 5, you need to apply a 1.33 correction factor if you are using it underwater. There is also a chart of other correction factors based on a specific light source on page 14 of the manual on the Apogee WebSite.
no, no no.....
The Apogee Full-Spectrum Quantum Sensor (model SQ-500) is more spectrally accurate than the Original Quantum Sensor (model SQ-120), but the unique optics (mainly the shape) cause the immersion effect to be larger for the new sensor. Underwater PAR measurements collected using a full-spectrum sensor can be corrected by multiplying by 1.32;



measurements collected using an original Apogee sensor should be multiplied by 1.08*.

1.33 is the refractive index of water....

Best reef aquarium LED lighting

oreo5457

Valuable Member
View Badges
Joined
Sep 18, 2017
Messages
1,371
Reaction score
877
According to Apogee yes, still need to consider blue content..Red line @ 450 is typical Royal blue
So like 10% of 50% ish of the spectrum if run full 100% channels...(ignoring at my own peril the large amount of royal blue in high K white LED's, 20% error isn't much right..:))
W/ the overshoot on other wavelengths it sort of evens out.
Personally , if not a lot of "violet" or UV or 660 or less red a spectrum correction factor is minimal.
One of the reasons 120/Seneyes are a close match "in practice" to 500's or Li-cors
JUST need to remember the limitations..

Still only a educated "guessitmate".. ;)

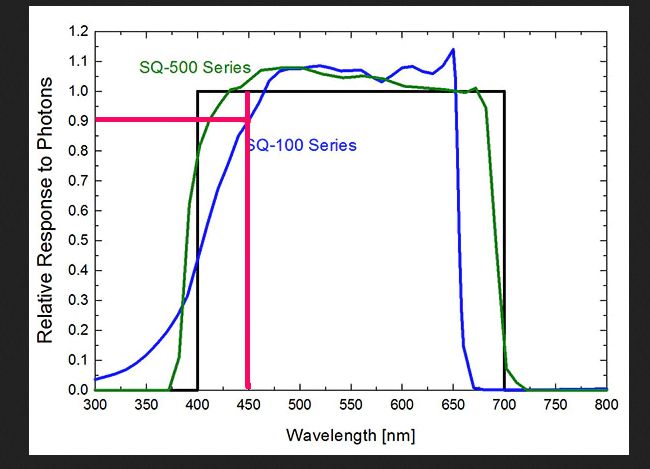

120 sensor response


my opinion:
44% on an all blue channel is a bit much but possibly right if you throw in a LOT of 420's 410's UV...

According to the above a "pure actinic" t5 correction would be x 1.4
Peaks at 420, spike at 436, little spikes in the green..
