Diy stand suggestion

[Etienne 97]

I would like to know what materiel to use for my new stand for my waterbox 25g am thinking of 3/4 or 1" marine grade i don't want to do a 2x4 frame show me your build or your idea

The picture is for reference



[nautical_nathaniel]

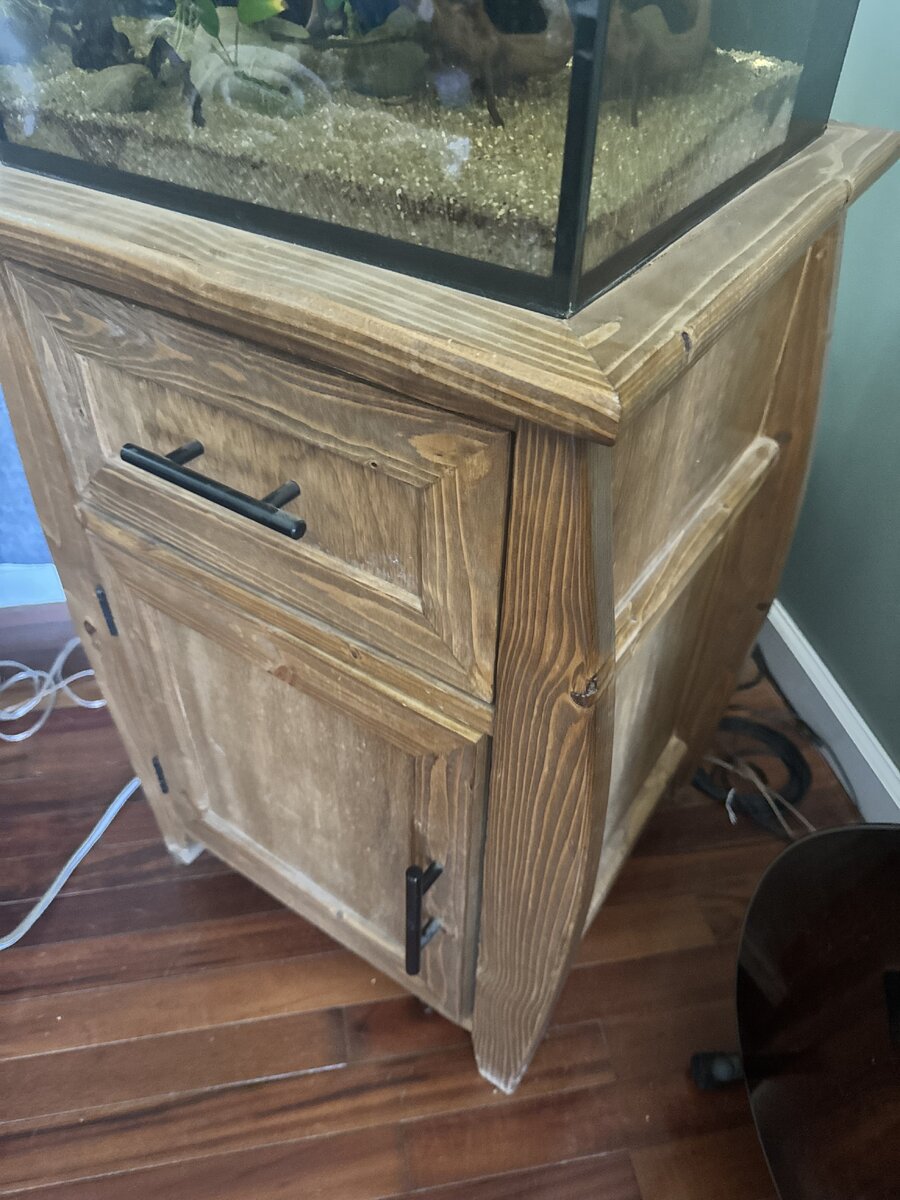

I used 3/4 Maple Cabinet plywood. Doesn't have to be Marine grade if you plan on using some sort of finish like Polyurethane or Polycrylic on the exterior once built.

I painted the inside of mine and stained and finished the outside with Helmsman Spar Urethane.



[Fish Fan]

You don't need expensive marine grade plywood at all, the regular stuff will do.

Your tank doesn't look that large, you can use 3/4" plywood and build it like a cabinet.

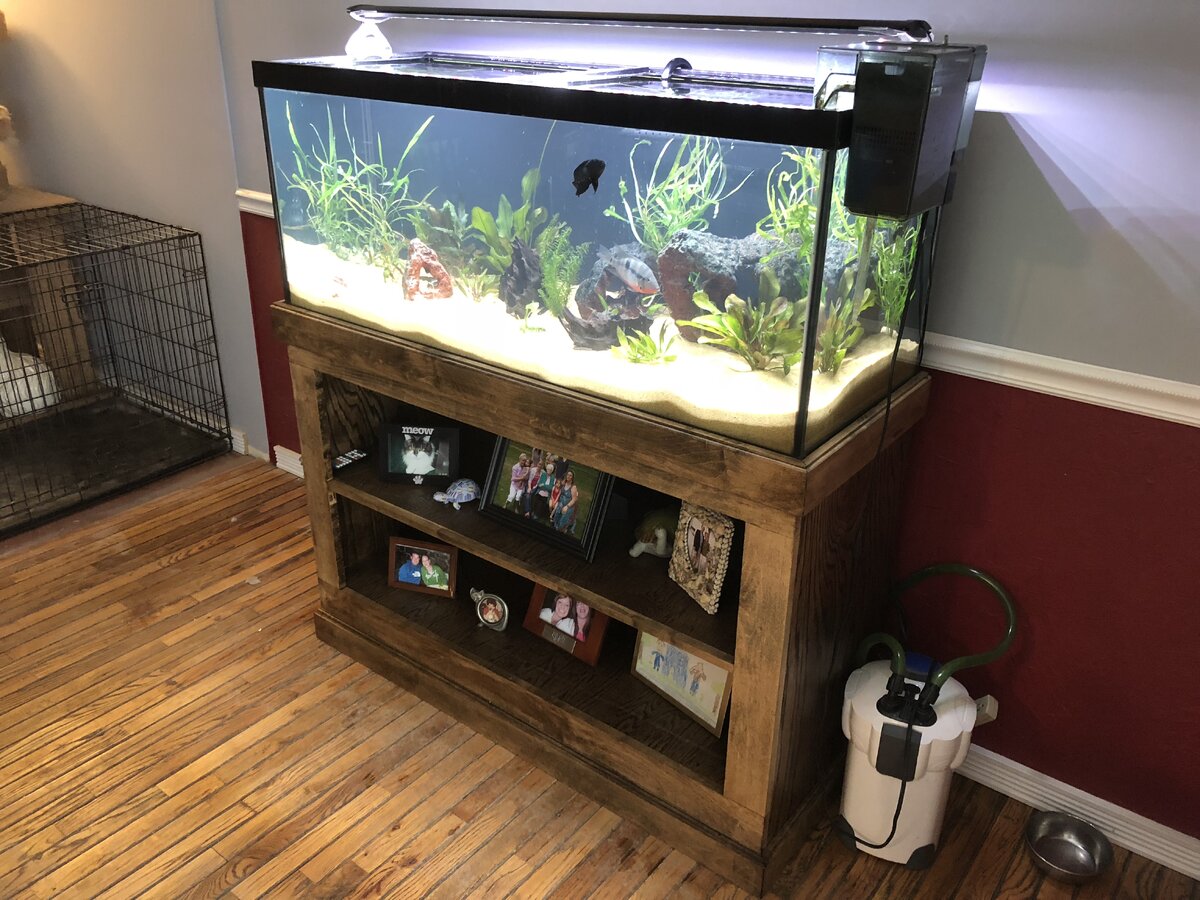

You can use traditional joinery like rabbets and dados, but you can also do this with a simple Kreg jig/pocket hole jig. Don't believe those who say pocket holes are not strong enough, they are plenty strong when done right with glue. Here's a 75 gallon stand I made about 15 years ago out of 3/4" plywood from The BORG, and pocket hole screws. It's been fine for 15 years and still going

Here's a much smaller tank that's largely just pocket screwed together:

I hope this helps and good luck!



[Etienne 97]

Nice thanks you all i will go with glue and screw i will use some wood filler to fill the screw hole and paint it white



[tripdad]

It's more important to " carry" the load correctly than anything else. Make sure the load is resting on the vertical walls not on cross pieces. Should work out well.
