Drawing for this stand?

[BarSnackz]

Good evening R2R community!

I just started following R2R on Instagram (late - I know) and I stumbled upon this picture. Does anyone have a drawing or diagram on how the stands circled in this picture were made? I tried to zoom in on the picture; but, it is very hard to see where the seams start and end on the wood. Any help would be greatly appreciated as I have been looking forever to build something like this!
Thank you!



[Crabs McJones]

Lets ask @Coastie Reefer I believe it's their setup :)



[sp1187]

maybe?
https://www.melevsreef.com/node/1019



[BarSnackz]

Lets ask @Coastie Reefer I believe it's their setup :)

duhh, stupid me. I saw the "link in our bio" and couldn't seem to find it on the R2R page. Thank you for pointing that out for me! You would think with my young age I would be a little better with social media... oh well.

maybe?
https://www.melevsreef.com/node/1019

That looks about right! I think the only difference between the link and picture is that a back cross brace was used, as well. Thank you!



[Crabs McJones]

duhh, stupid me. I saw the "link in our bio" and couldn't seem to find it on the R2R page. Thank you for pointing that out for me! You would think with my young age I would be a little better with social media... oh well.


That looks about right! I think the only difference between the link and picture is that a back cross brace was used, as well. Thank you!

Lol! No worries :D Happy to help :)



[Coastie Reefer]

I can try to get some pics if you want. It’s a basic stand but it’s braced about 8” off the ground on the sides and back. Specifically done do I can utilize space under the tank.



[BarSnackz]

I can try to get some pics if you want. It’s a basic stand but it’s braced about 8” off the ground on the sides and back. Specifically done do I can utilize space under the tank.

I think that second picture told me everything that I wanted to know! Thank you so much! What did you use for the top? 1/2" ply?



[Coastie Reefer]

I think that second picture told me everything that I wanted to know! Thank you so much! What did you use for the top? 1/2" ply?

3/4 because that’s what I had but 1/2 would work fine.



[BarSnackz]

@Coastie Reefer

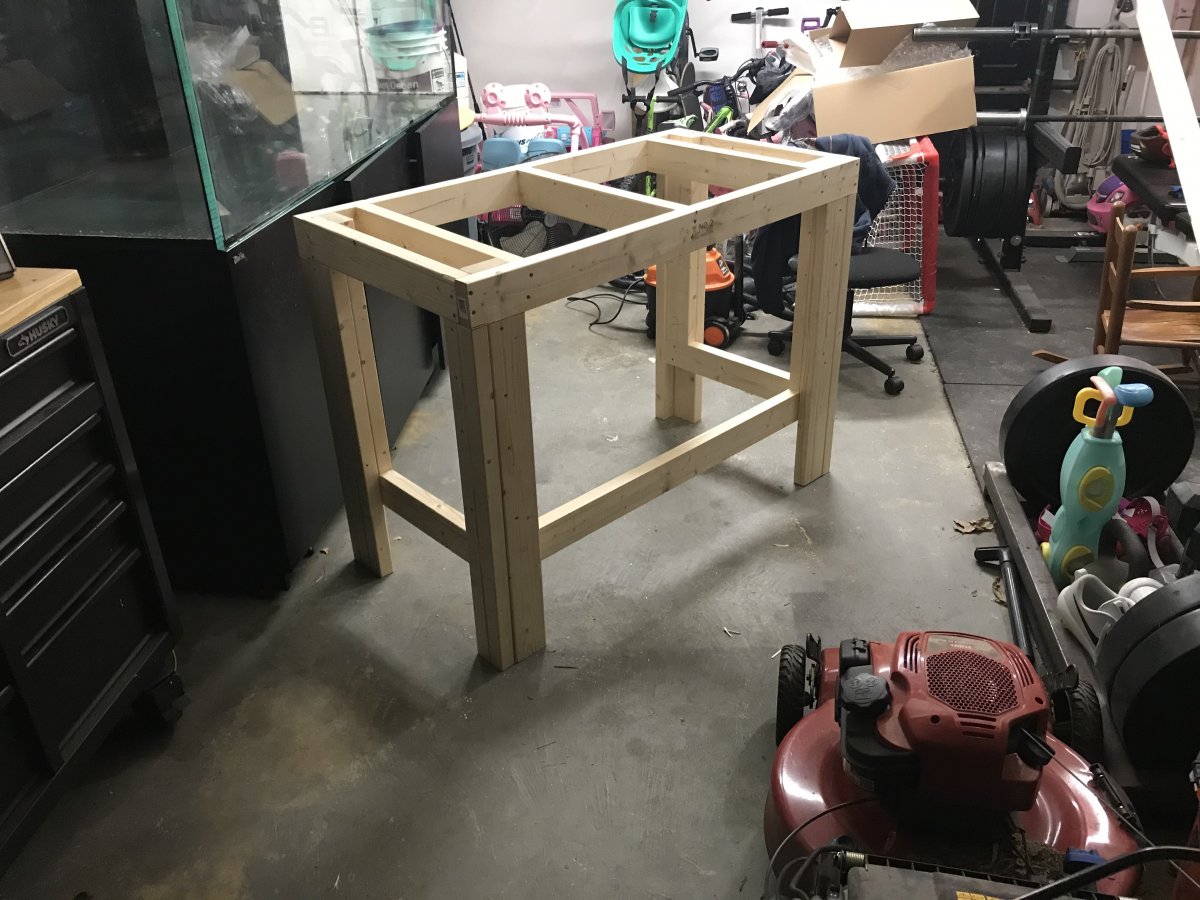

Thanks again for the pics and info! Made mine tonight and hope to slap some ply on it and seal it tomorrow!
