Hi,
Greetings from Porto in the north of Portugal.
After 17 years taking care of cichlids, I’ve decided It was time to get something more out of this hobby, so about 2 years I begun reading and learning about reef tanks and last November I dismantle the tank (it was a cube made by me around 150Liters, with and integrated kind of “sump” that had a refugium heater, 2 large media baskets and the return pump it was about 6 years old) and start the building of a new one.

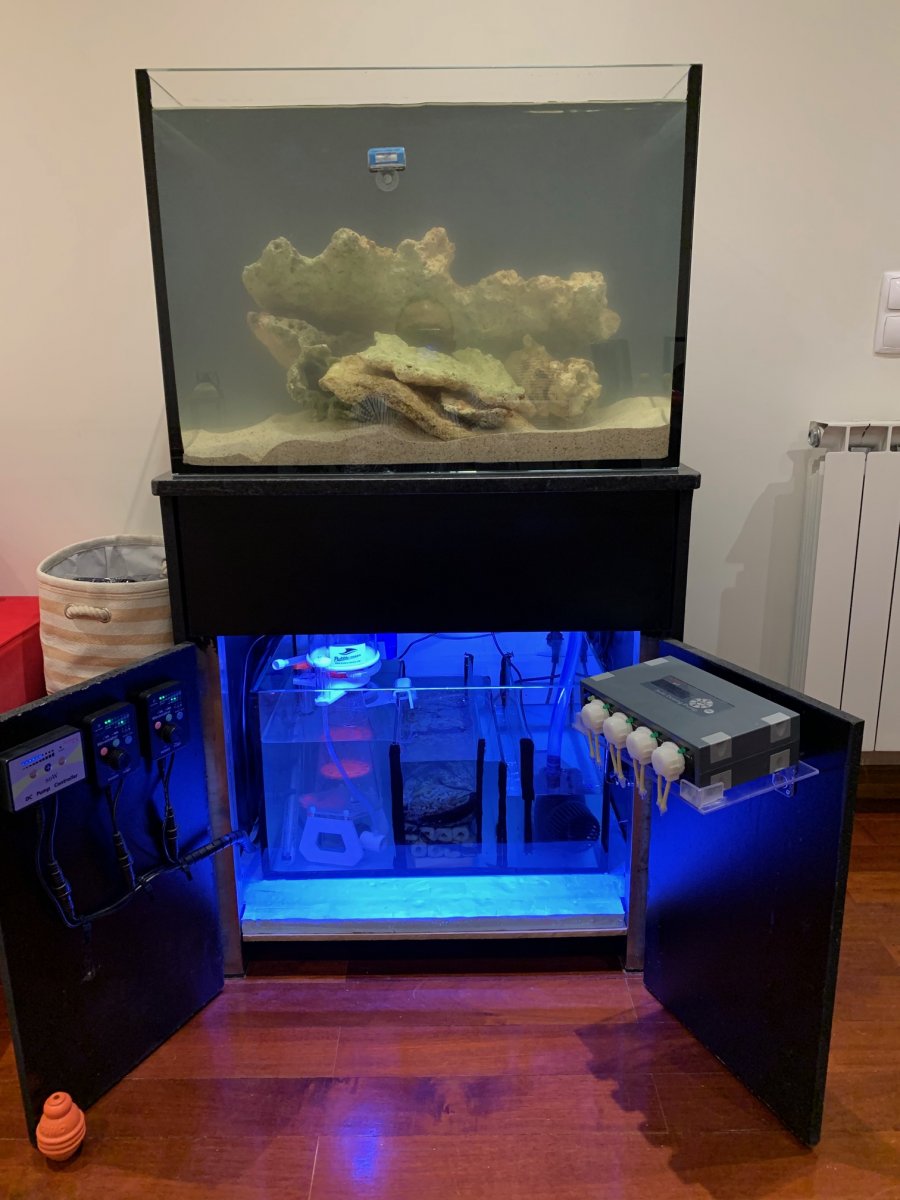

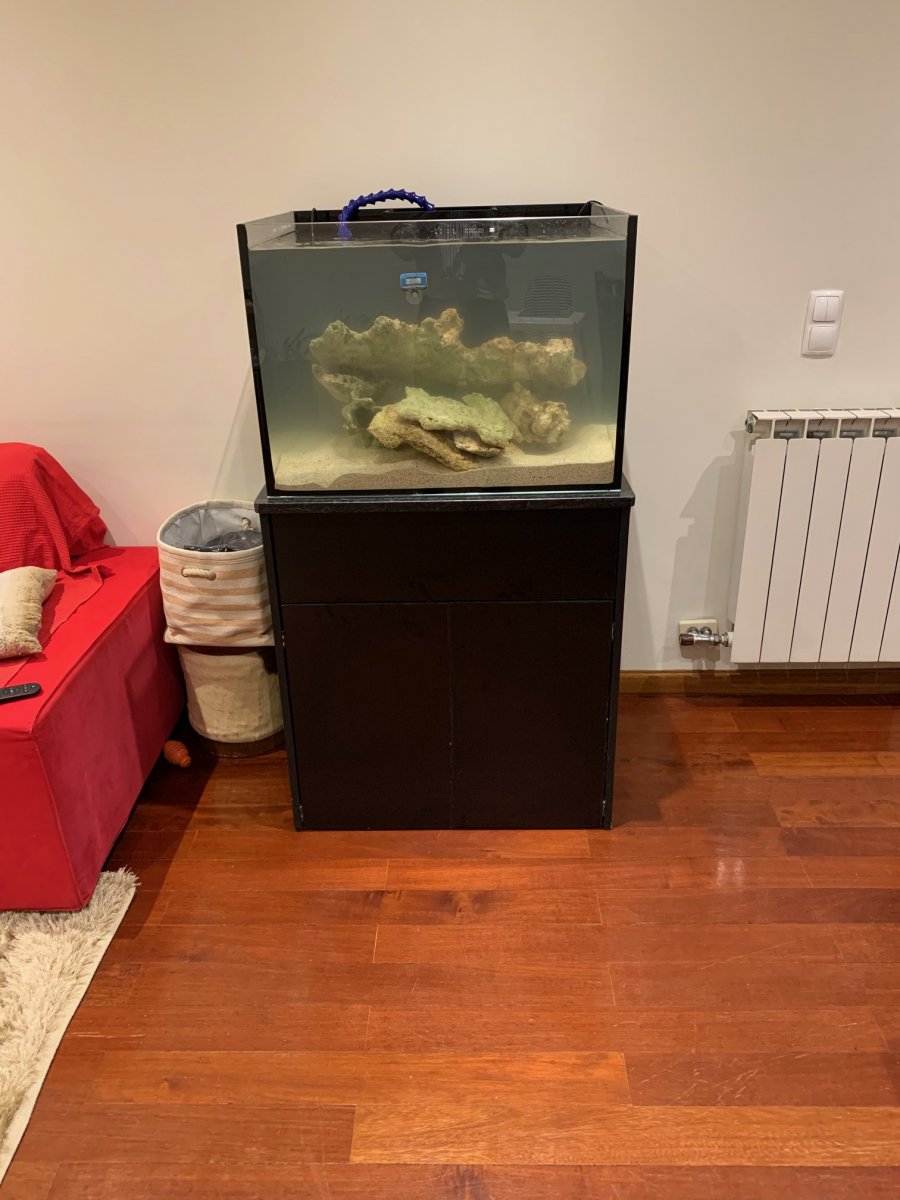

I used the same stand, the display is 700mm x 550mm x 500mm about 200L with a sump of 600mm x 400mm x 350mm about 80Liters.

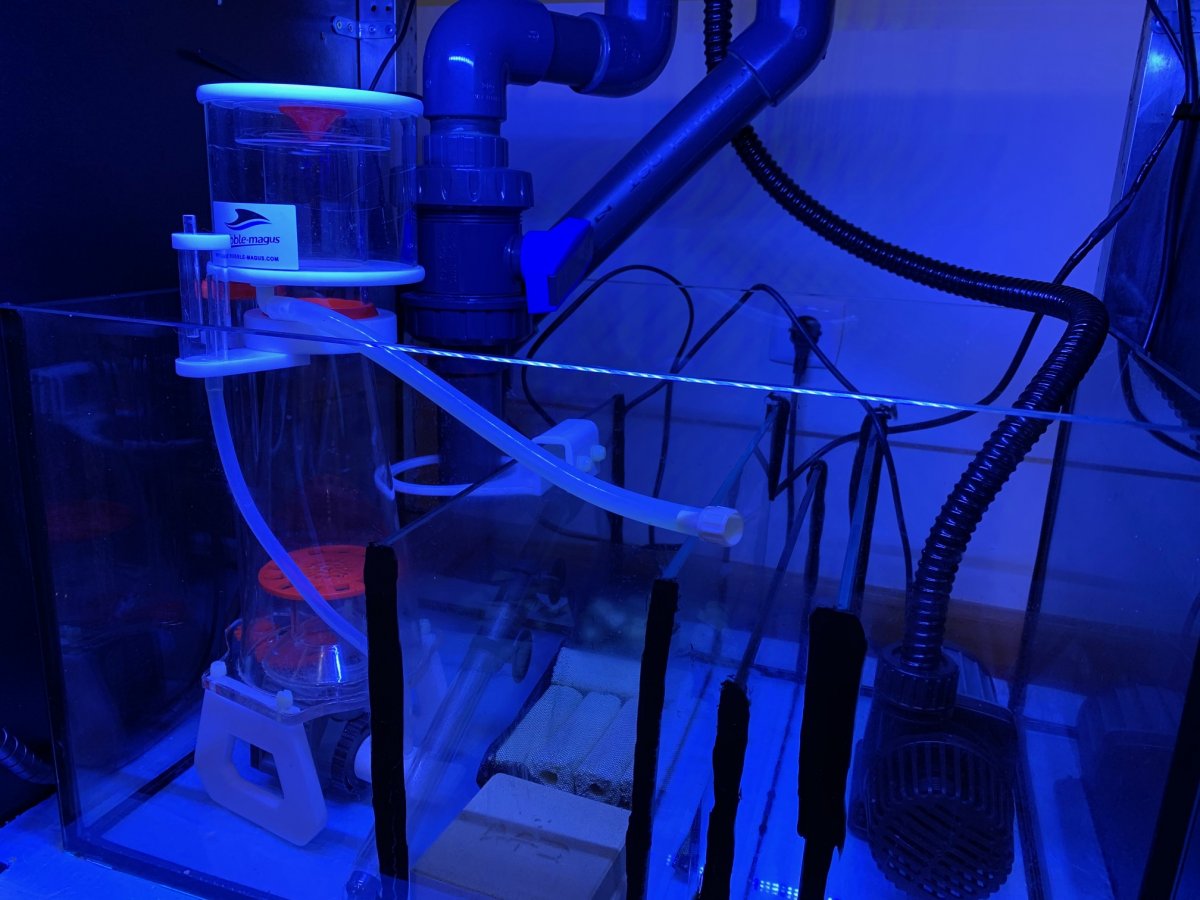

The sump is divided on three stages, the drain from the dp, skimmer and heater stage, media or refugium stage that for now it have media 2 ceramic blocks, about 10 ceramic tubes , 20/30 ceramic balls and 3 bags of coral gravel, and at last stage is for the return pump.
When designing the sump I forgot the RODI reserve… I may design a new one with smaller dimensions but with a RODI water reserve but for now i have to go with this.
This is amazing, the tanks is cycling and i already know several thing i would change i would built this system over... maybe lack of preparation, patience or knowledge at the time.

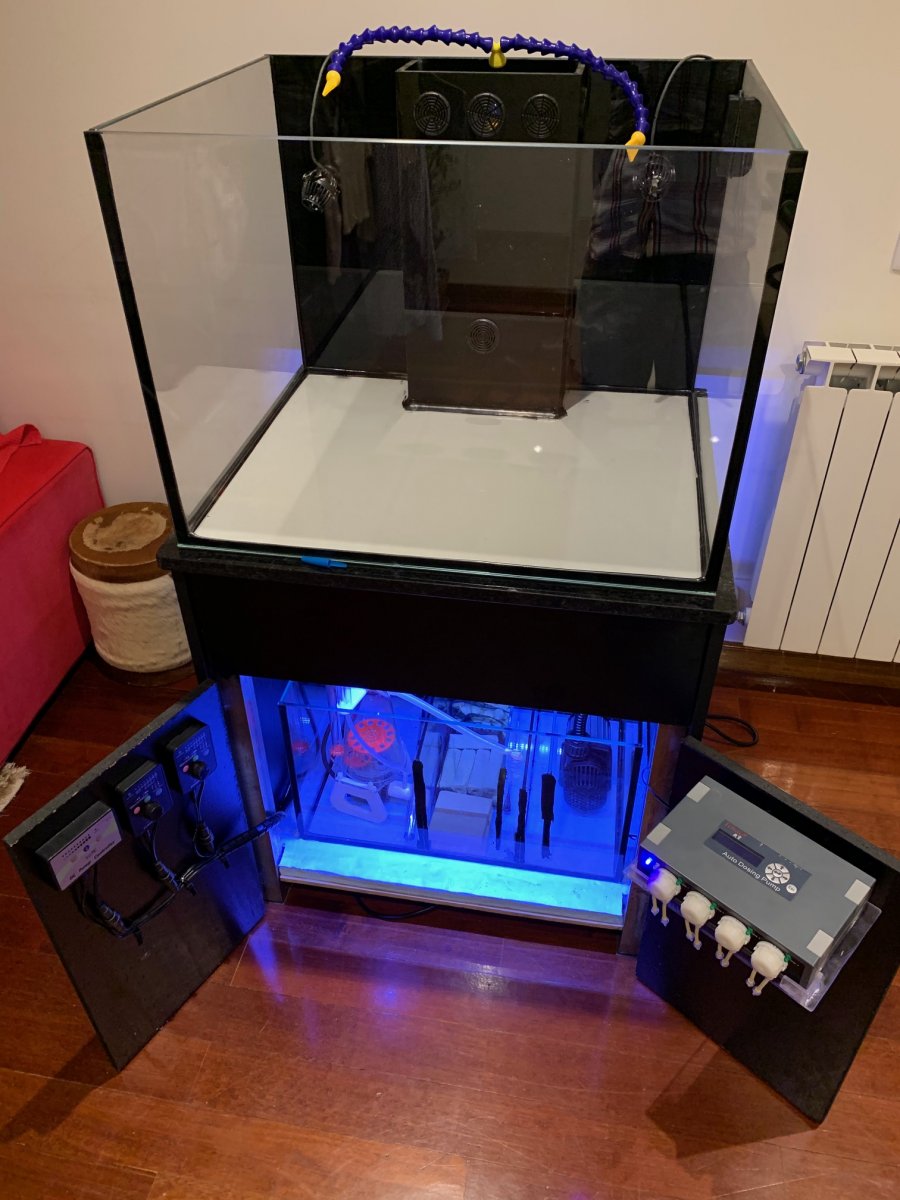

The display has 2 pipes to the sump, one for emergency and the other with a manifold to do the Herbie overflow and one return with lockline.

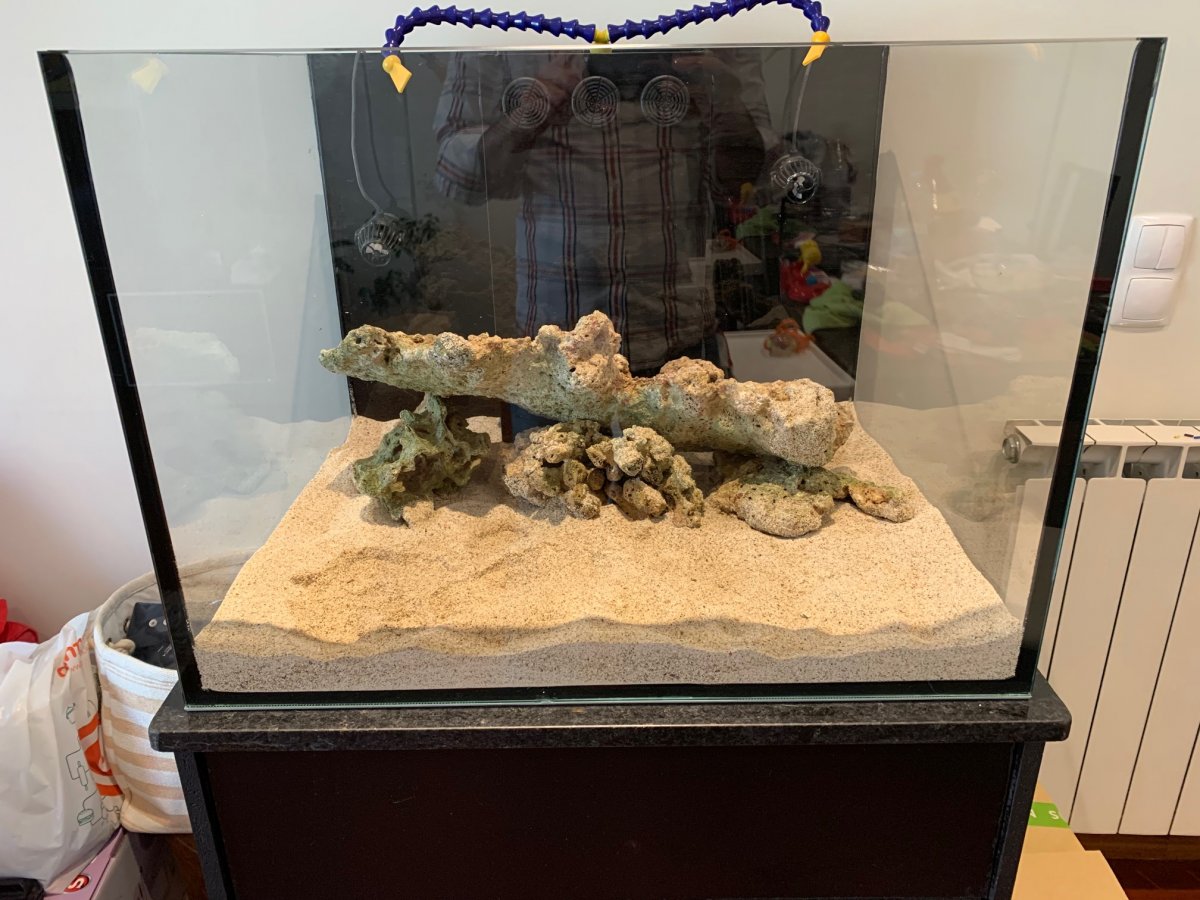

I dont remember how many liters of coral sand i put and i think there is about 15Kg of Fiji rock.
Equipment
Return Jebao 6000Lph
Circulation 2x Jebao RW4
Skimmer Bubble Magus G5
Dosing Pump Jebao DP-4
All equipment was purchased used…
I'll have to change the return pump it is too noisy for me, i have another jebao 8000lph and it have the same noise, i'm thinking about purchase a sicce silent or a ecotech vectra, used of course.
I still have to buy the lights and the auto top off these may be the only new equipment and build the top cover

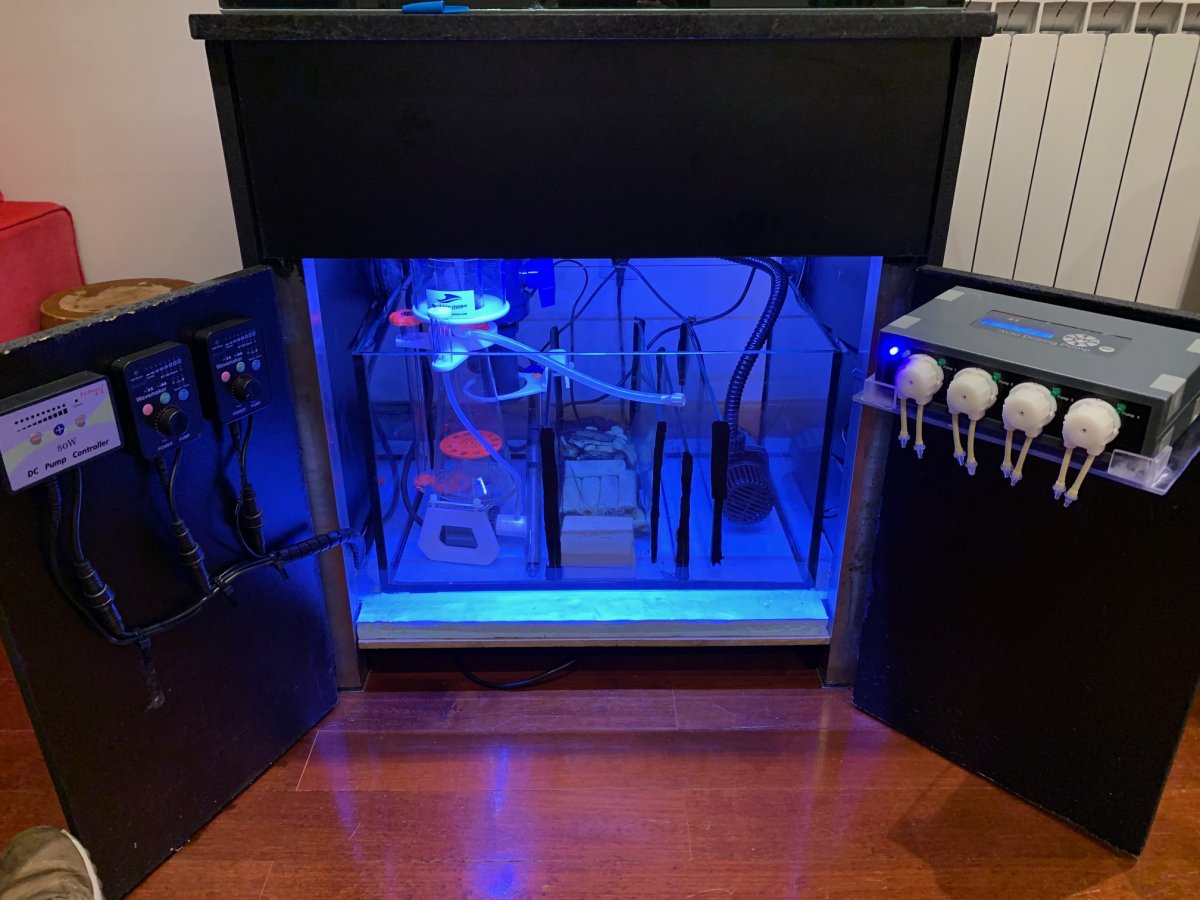

The stand is small and I want every equipment inside so I’m designing a reverse rack as dosing vessel, for me to screw four bottles connected to the dosing pump.
i only have to 3D print.
My experience on reef tanks is 0.1, the .1 are the youtube videos I’ve been watching and articles on the web. I don’t even know anyone with saltwater tanks and only visited 2 lfs with saltwater. So this is going to be a steep learning curve.
I intent to have a mixed reef with some soft, lps and sps corals.
As livestock the pair of clowns, one wrasse, one goby with a pistol shrimp, one tang and maybe a yellow tail damsel for CUC I will try to find some red leg hermit, torchus snails and something more not yet defined
The tank is cycling with a bottle of bacteria, and I am going to put the first fish this weekend a pair of clowns.
The pictures were on my phone but i will update how the tank is now.
Bonifácio
