Floor reinforcement needed?

mudskipper1

New Member
View Badges
Joined
Oct 4, 2020
Messages
21
Reaction score
15
Location
Ann Arbor
What state or country do you live in
Michigan
Rating - 0%
0   0   0
I am in the process of installing a 72"x30" 200g glass tank (IM Nuvo 200g peninsula) in my living room. It will sit perpendicular to the floor joists (so it will rest on 5 of them) and one of the long sides of the tank will sit directly on top of a 2x6 load-bearing wall. The joists are 16" on center 2x10s with a 150" span. Picture shows roughly where the tank will be placed on the floor above. In terms of the joists and the location being above a load bearing wall, I think it is probably fine, but would love to hear others thoughts.

The floor under the tank is 4 ft. long ceramic tiles. Would you be worried about breaking the ceramic tile in the even there was a little bit of flexing in the floor? I am in the process of finishing the basement below, and could potentially incorporate some structural support below the tank into a built in cabinet system, but is it necessary? Doing so would make the project a lot more complex, but if it might be needed, I can do that.

Thanks in advance!

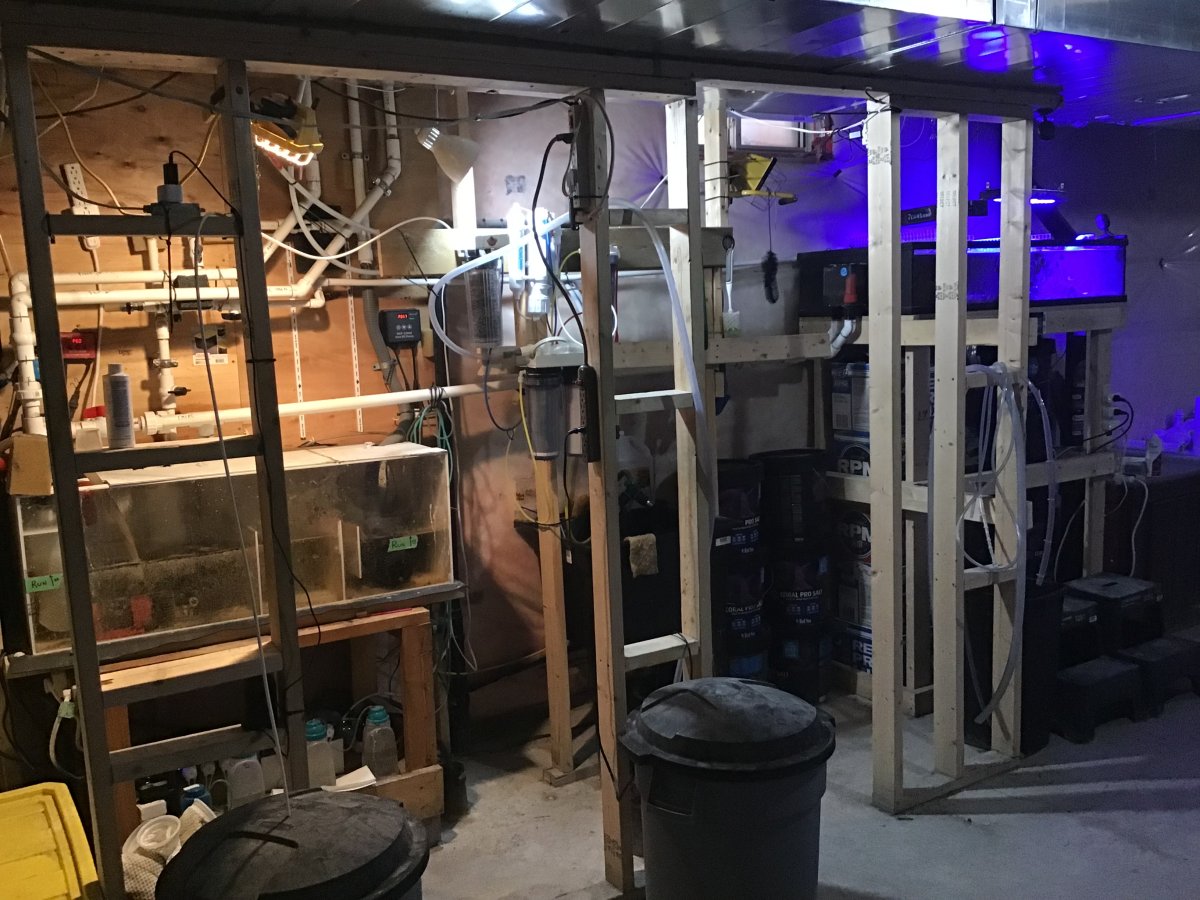

I support my 180g with this simple bracing under the front of the tank.

If that helps.
I’m configured same as you.

Not sure if I actually needed it, just taking no chances.

With the access you have to the joists, I would just build a wall frame or couple posts with a beam perpendicular to the joists.

Couple hundred bucks and you’re completely safe that way

You are completely fine. I see cross bracing on 2x10’s with a wall underneath. Absolutely fine and no worries on tiles.
As a contractor and hobbyist for over 35 years
