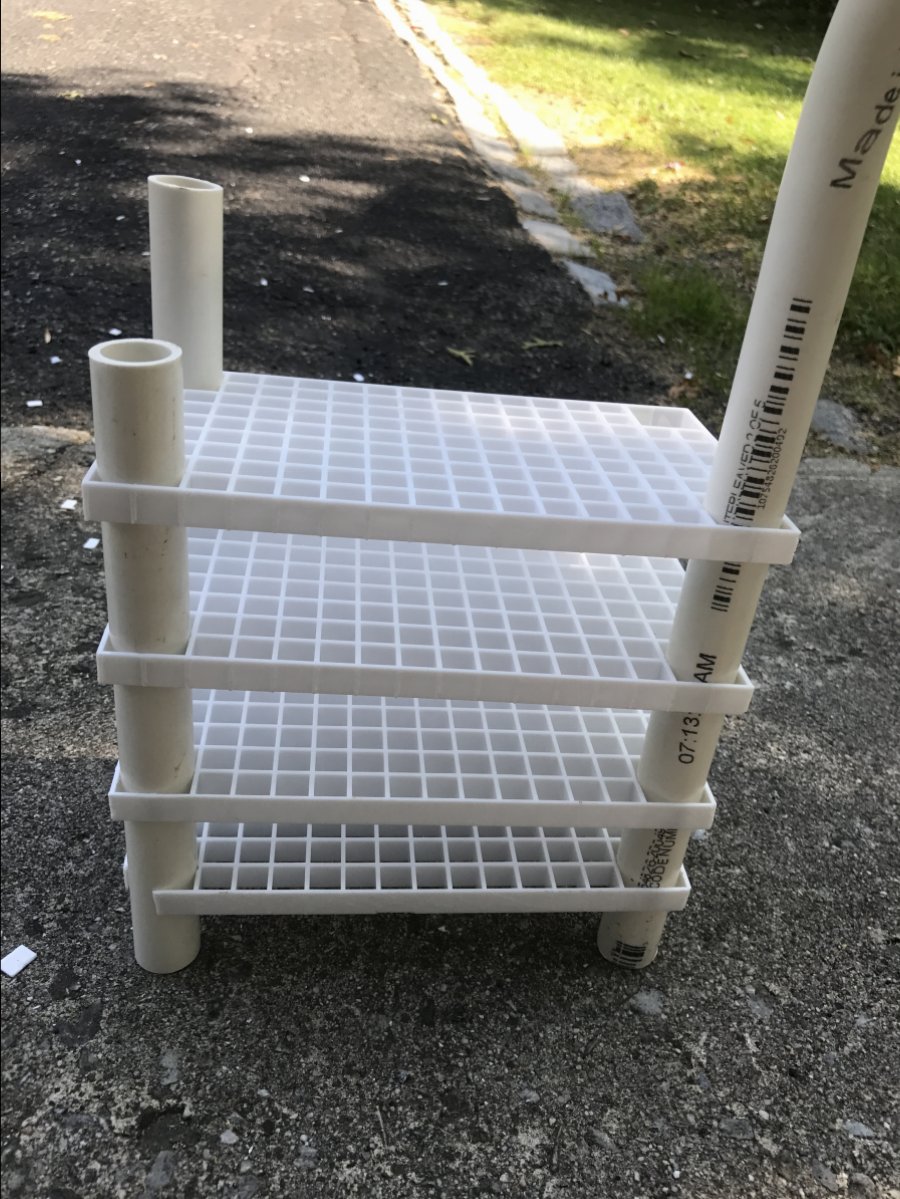

    Threw together a tiered frag/coral carrier that fits in a 5 gallon bucket for the upcoming #CTARS fragtoberfest and figured I'd share a few pics as well as a little tutorial.

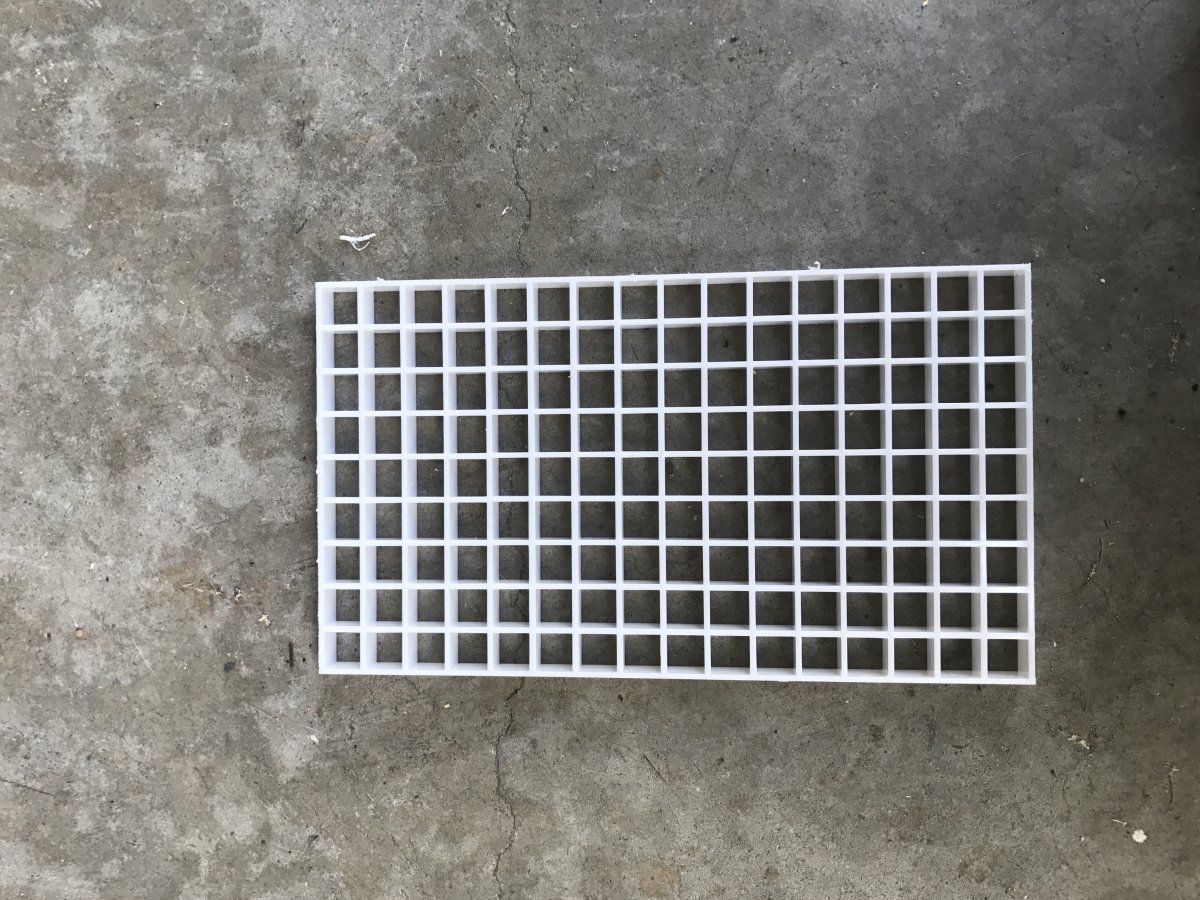

    First I cut some egg crate down to 16x9" pieces

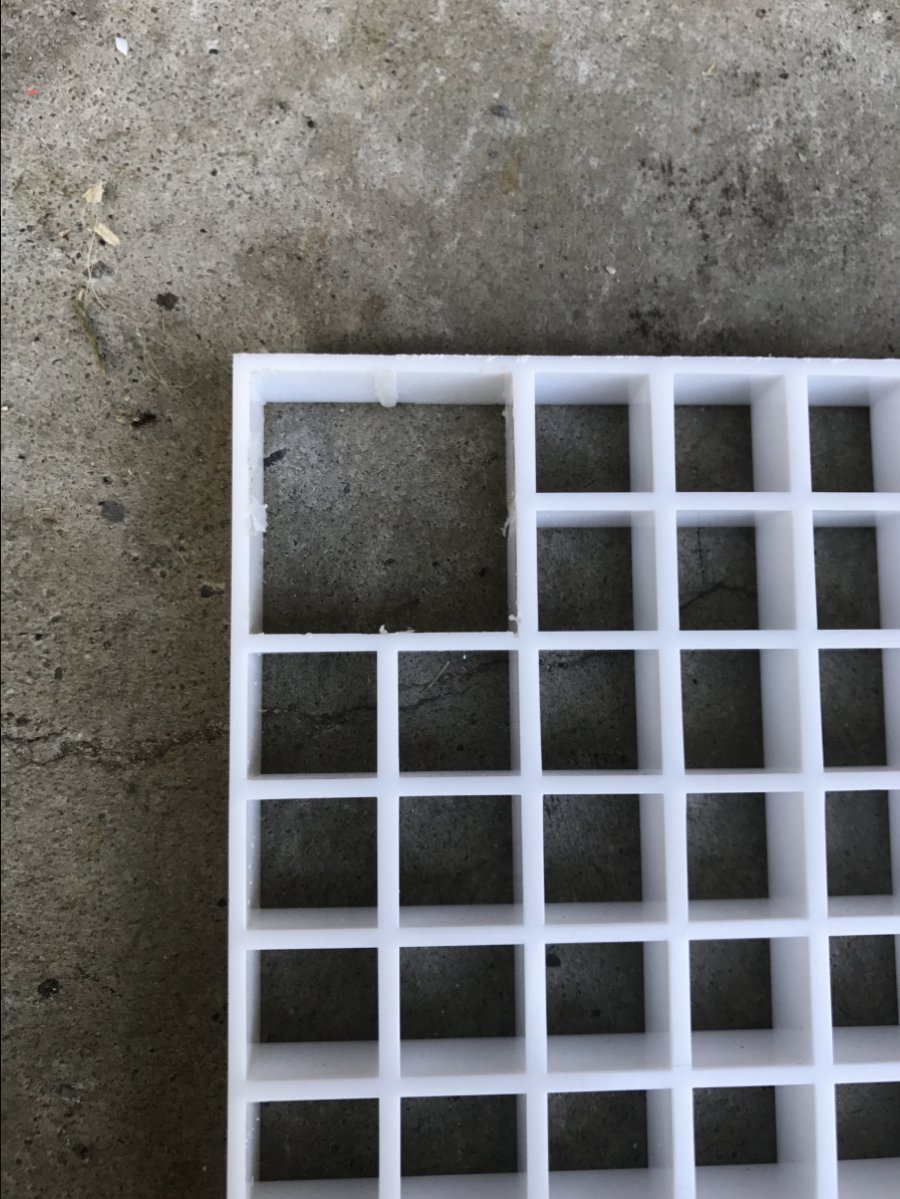

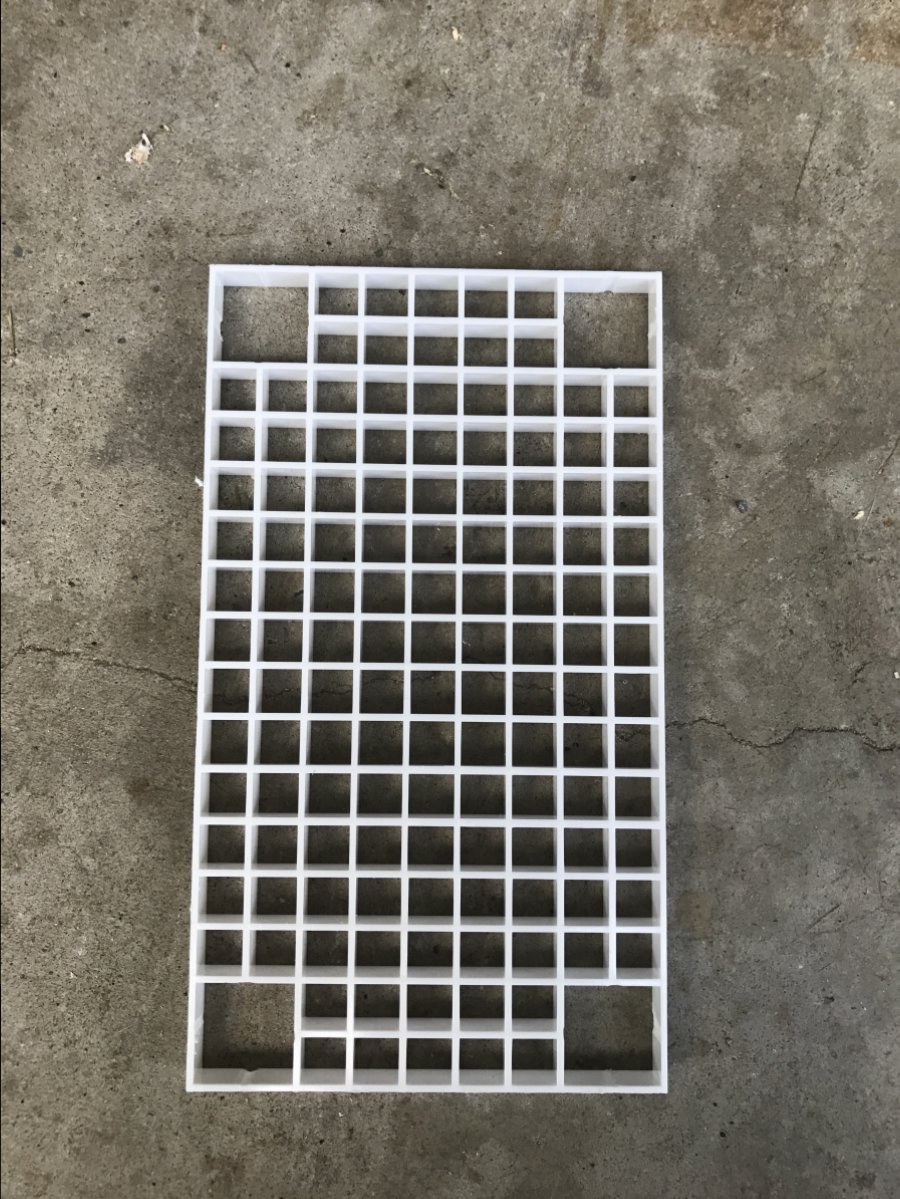

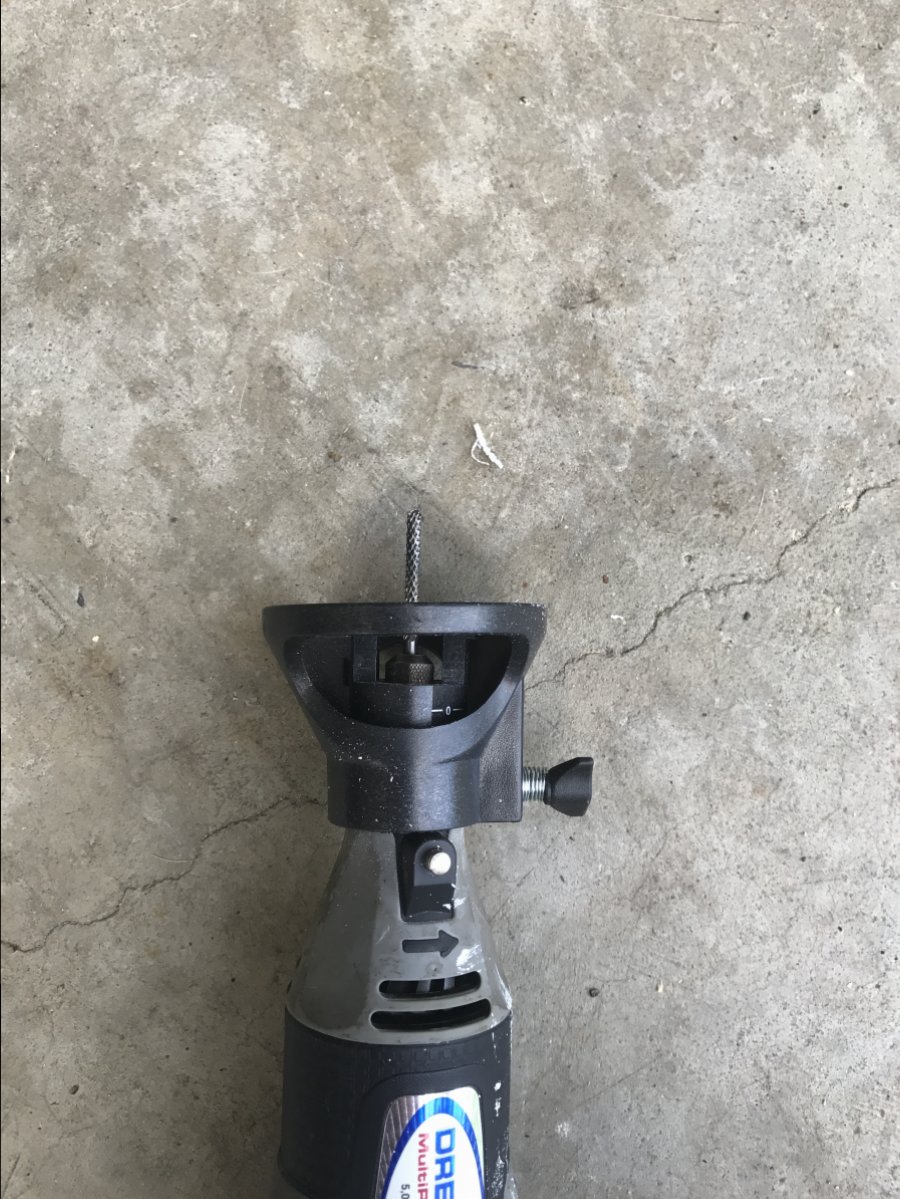

    Next I used a Dremmel to cut out the + at each corner
    IMG_7936.JPG IMG_7934.JPG IMG_7935.JPG
    The hole size is the exact diameter to fit a length of 3/4 PVC so I used some scrap to test fit. I trimmed the corner on the bottom shelf so it could sit lower in the bucket.

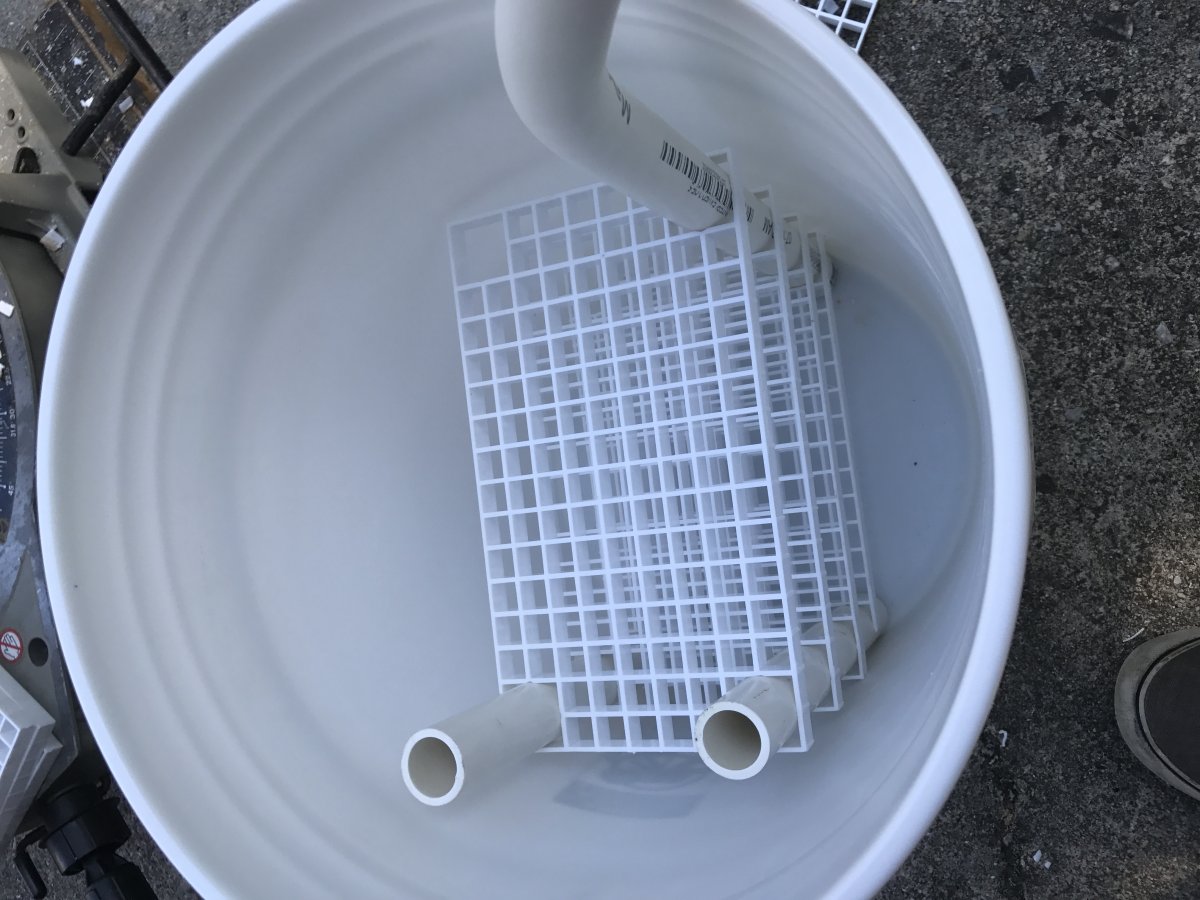

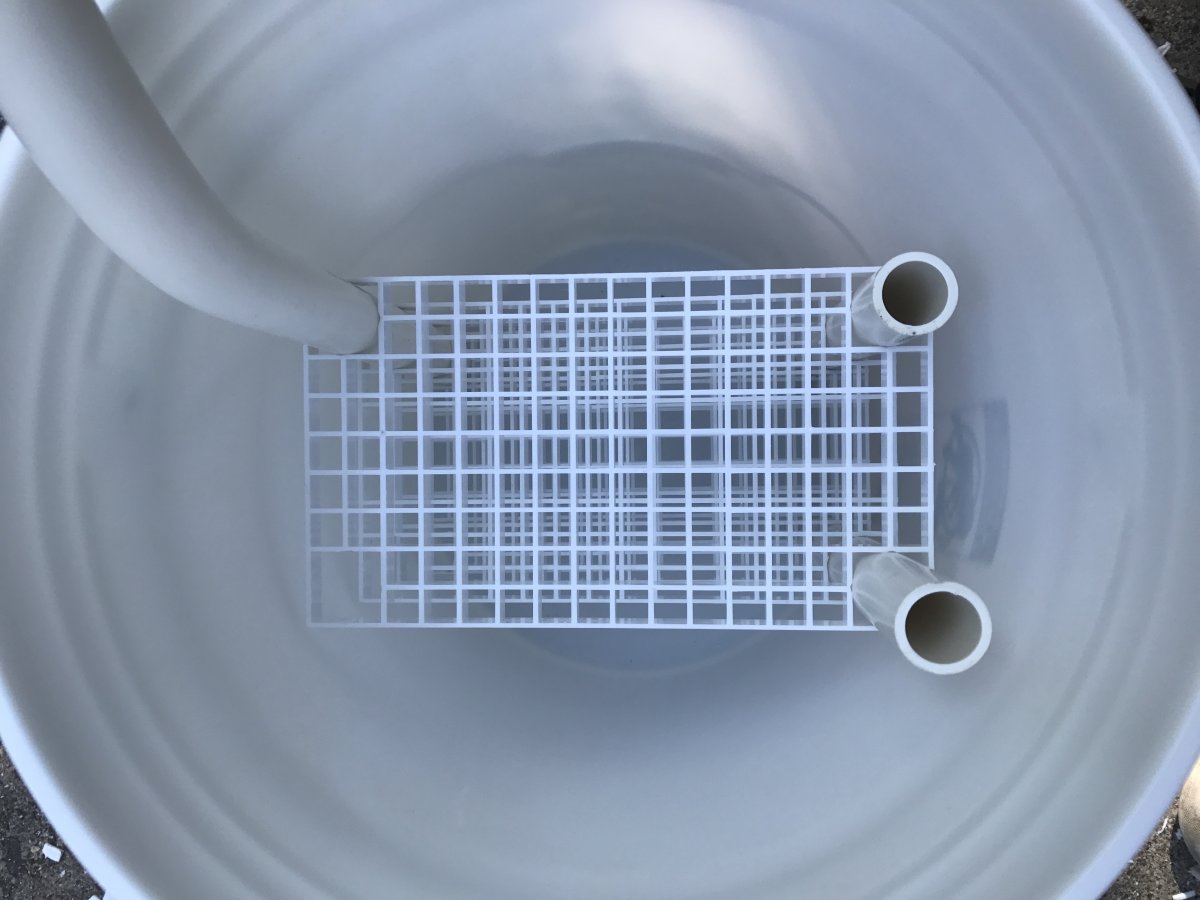

    This rack leaves plenty of room on either side for a heater and circulation pump
    IMG_7933.JPG IMG_7929.JPG


  2. zachxlutz

    zachxlutz 120 Gallons of FUN R2R Supporter Build Thread Contributor Partner Member 2018

    Joined:
    Oct 22, 2016
    Messages:
    566
    Likes Received:
    393
    Location:
    Lawrenceville, Georgia
    You're a DIY kind of guy, huh!

    Ryan@ShelteredReef likes this.
  3. Ryan@ShelteredReef

    Ryan@ShelteredReef Well-Known Member R2R Supporter Platinum Sponsor Build Thread Contributor

    Joined:
    Jun 23, 2017
    Messages:
    256
    Likes Received:
    271
    Location:
    Poughkeepsie, NY
    Twice as fun and half the cost haha...usually

    JoshH likes this.
  4. zachxlutz

    zachxlutz 120 Gallons of FUN R2R Supporter Build Thread Contributor Partner Member 2018

    Joined:
    Oct 22, 2016
    Messages:
    566
    Likes Received:
    393
    Location:
    Lawrenceville, Georgia
    Agreed! I was scrolling through some old photos from when I was building everything and getting things going on my system and it got me reminiscing hard. Maybe I need a new DIY reef project!

  5. Ryan@ShelteredReef

    Ryan@ShelteredReef Well-Known Member R2R Supporter Platinum Sponsor Build Thread Contributor

    Joined:
    Jun 23, 2017
    Messages:
    256
    Likes Received:
    271
    Location:
    Poughkeepsie, NY
    Theres always something new to try. Maybe look into plumbing a wastewater drain on your tank to make water changes easier

    JoshH likes this.
  6. jazzmik

    jazzmik Well-Known Member R2R Supporter Tampa Bay Reef Keepers Build Thread Contributor

    Joined:
    Jul 18, 2016
    Messages:
    386
    Likes Received:
    183
    Ryan@ShelteredReef I actually like the idea to create a platform for my Vertex Skimmer. I have a several layers of egg crate zip-tied together but the 4 corners with pvc much nicer. Thx!

    Ryan@ShelteredReef likes this.
  7. Ryan@ShelteredReef

    Ryan@ShelteredReef Well-Known Member R2R Supporter Platinum Sponsor Build Thread Contributor

    Joined:
    Jun 23, 2017
    Messages:
    256
    Likes Received:
    271
    Location:
    Poughkeepsie, NY
    For that you might be better off drilling a couple of holes 1/4-1/2inch from the top of some 1.5" PVC and then thread zip ties through the holes and the egg crate so it can rest on top of the pipe. That way you don't have to worry about the legs twisting or the shelf sliding down the PVC. That's how we did our frag trays at the shop.

    jazzmik likes this.
  8. jazzmik

    jazzmik Well-Known Member R2R Supporter Tampa Bay Reef Keepers Build Thread Contributor

    Joined:
    Jul 18, 2016
    Messages:
    386
    Likes Received:
    183

    My thought was to crazy glue the pvc in the corner cutouts but this is an option also.

    Ryan@ShelteredReef likes this.
  9. Ryan@ShelteredReef

    Ryan@ShelteredReef Well-Known Member R2R Supporter Platinum Sponsor Build Thread Contributor

    Joined:
    Jun 23, 2017
    Messages:
    256
    Likes Received:
    271
    Location:
    Poughkeepsie, NY
    That may work too. I'm just not sure if super glue actually bonds to polystyrene or not

  10. George Lopez

    George Lopez Well-Known Member Build Thread Contributor

    Joined:
    May 6, 2017
    Messages:
    142
    Likes Received:
    71
    I was thinking of something like this but using fittings a the spacers

    Ryan@ShelteredReef likes this.
  11. Ryan@ShelteredReef

    Ryan@ShelteredReef Well-Known Member R2R Supporter Platinum Sponsor Build Thread Contributor

    Joined:
    Jun 23, 2017
    Messages:
    256
    Likes Received:
    271
    Location:
    Poughkeepsie, NY
    That was my original plan as well. The friction is enough that the shelves actually stay in place and I like that I can just slide them up or down depending on the height of the corals

    George Lopez likes this.
  12. Jo P White

    Jo P White Well-Known Member

    Joined:
    Sep 17, 2017
    Messages:
    69
    Likes Received:
    51
    Location:
    Fort Lauderdale, FL
    This is a great idea What kind of circulation pump do you use that works on the go?

    Ryan@ShelteredReef likes this.
  13. Ryan@ShelteredReef

    Ryan@ShelteredReef Well-Known Member R2R Supporter Platinum Sponsor Build Thread Contributor

    Joined:
    Jun 23, 2017
    Messages:
    256
    Likes Received:
    271
    Location:
    Poughkeepsie, NY
    This is more intended for holding some pieces to restock whats in the frag tanks as frags are sold. It'll work well for a show that you can drive to. The circulation and heat is for when you get to the event. That way when you add the new frags to the display, they're already in water thats around the same temperature. The circulation keeps the corals clear of any mucus and helps keep O2 levels higher.

  14. Jo P White

    Jo P White Well-Known Member

    Joined:
    Sep 17, 2017
    Messages:
    69
    Likes Received:
    51
    Location:
    Fort Lauderdale, FL
    Thanks, was thinking ahead to next year when I’ll be driving up to Orlando from Fort Lauderdale where they’ll hopefully have the show again. Neat idea for your needs! I’ve seen some little travel carriers that look like CD cases but thought what you’d come up with was a nice DIY.

    Ryan@ShelteredReef likes this.
  15. Ryan@ShelteredReef

    Ryan@ShelteredReef Well-Known Member R2R Supporter Platinum Sponsor Build Thread Contributor

    Joined:
    Jun 23, 2017
    Messages:
    256
    Likes Received:
    271
    Location:
    Poughkeepsie, NY
    We also like to bring our own water so can kill two birds with one stone by bringing the corals in a couple of the 5 gallon buckets. We're hoping to make it to RAP Orlando next year as well. Maybe we'll see you there

    George Lopez likes this.
  16. Jo P White

    Jo P White Well-Known Member

    Joined:
    Sep 17, 2017
    Messages:
    69
    Likes Received:
    51
    Location:
    Fort Lauderdale, FL
    That be great. It’d be our first show. I’ve had a 28g Nano for about 8 years and started up a 90g in July so I’ve been looking forward to getting some awesome corals in the tank.

  17. George Lopez

    George Lopez Well-Known Member Build Thread Contributor

    Joined:
    May 6, 2017
    Messages:
    142
    Likes Received:
    71
    You can just use a bait pump for the travel time and your bumps and turns will give you circulation... and i was thinking with a center support style you make holes in the bottom and put the bubbler inside the pipe and it will pull the water from the bottom and O out the top with the flow of the bubbles and limit bubbles getting on the corals...

  18. Ryan@ShelteredReef

    Ryan@ShelteredReef Well-Known Member R2R Supporter Platinum Sponsor Build Thread Contributor

    Joined:
    Jun 23, 2017
    Messages:
    256
    Likes Received:
    271
    Location:
    Poughkeepsie, NY
    Thats a great idea! Basically a mini airlift pump. You could run it with just a battery powered air pump. The only concern would be temperature as the air being pumped into the bucket would either cool or warm the water depending on the ambient air temp.

    George Lopez likes this.
  19. George Lopez

    George Lopez Well-Known Member Build Thread Contributor

    Joined:
    May 6, 2017
    Messages:
    142
    Likes Received:
    71
    Urea i
    didn't think about that...
