Can someone help me with this ato setup! I’m trying to make sure I plug the extension cord and 12volt power supply in my wall. And I’ve done everything in the video but I’m not getting nothing.


jsker

Reefing is all about the adventure
View Badges
Joined
Apr 11, 2015
Messages
24,974
Reaction score
79,717
Location
Saint Louis
Rating - 0%
0   0   0

Brew12

Electrical Gru
View Badges
Joined
Aug 14, 2016
Messages
22,488
Reaction score
61,020
Location
Decatur, AL
Rating - 0%
0   0   0
@Brew12 some help here please:)

Thanks for the invite!

Can someone help me with this ato setup! I’m trying to make sure I plug the extension cord and 12volt power supply in my wall. And I’ve done everything in the video but I’m not getting nothing.


Can you take some pictures of what you have done, along with the model numbers of the relay and base?


jsker

Reefing is all about the adventure
View Badges
Joined
Apr 11, 2015
Messages
24,974
Reaction score
79,717
Location
Saint Louis
Rating - 0%
0   0   0
OP
OP
Chiefmaster30

Chiefmaster30

Valuable Member
View Badges
Joined
Apr 12, 2016
Messages
1,577
Reaction score
481
Location
Tullahoma, Tn
Rating - 0%
0   0   0

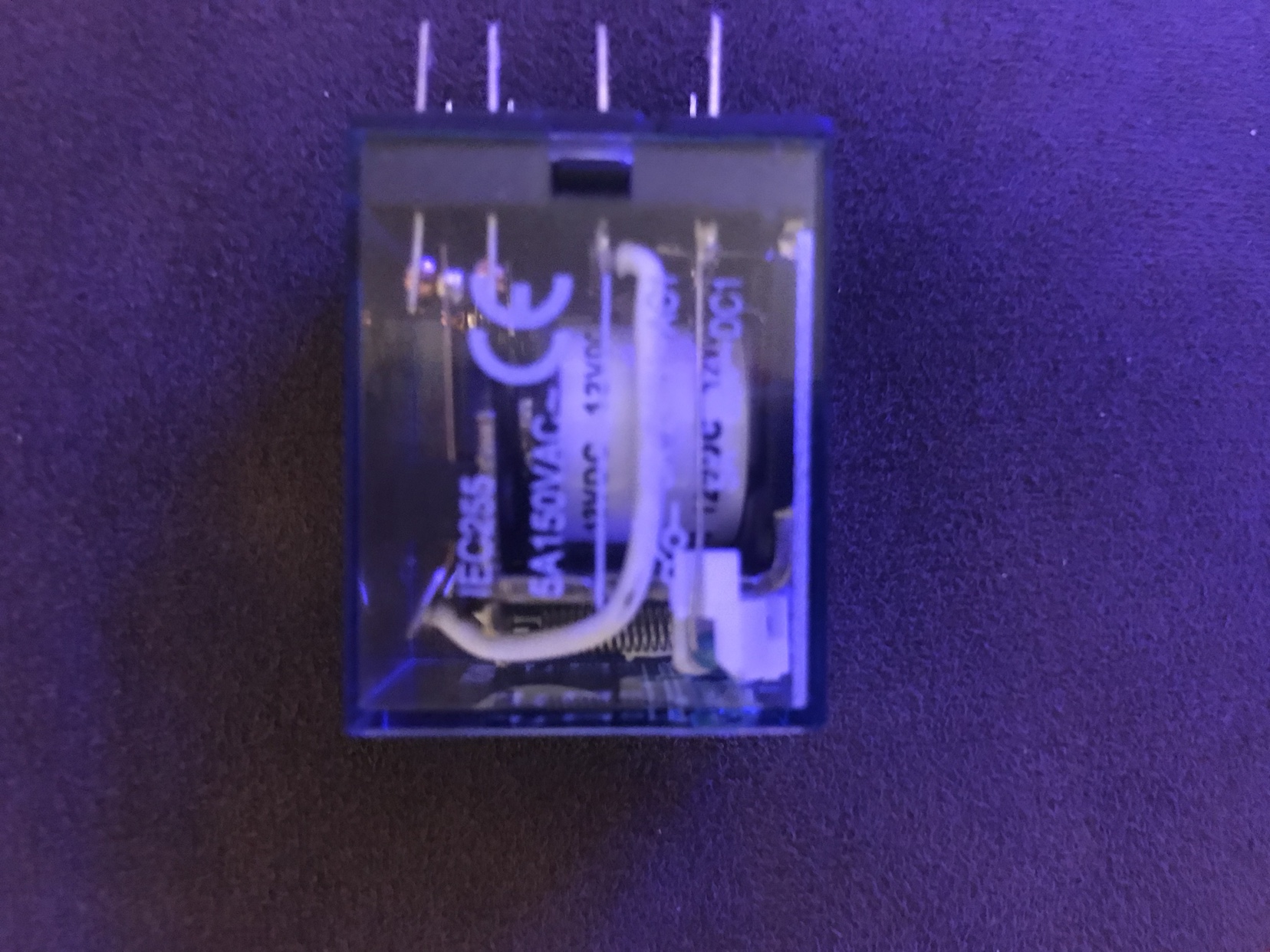

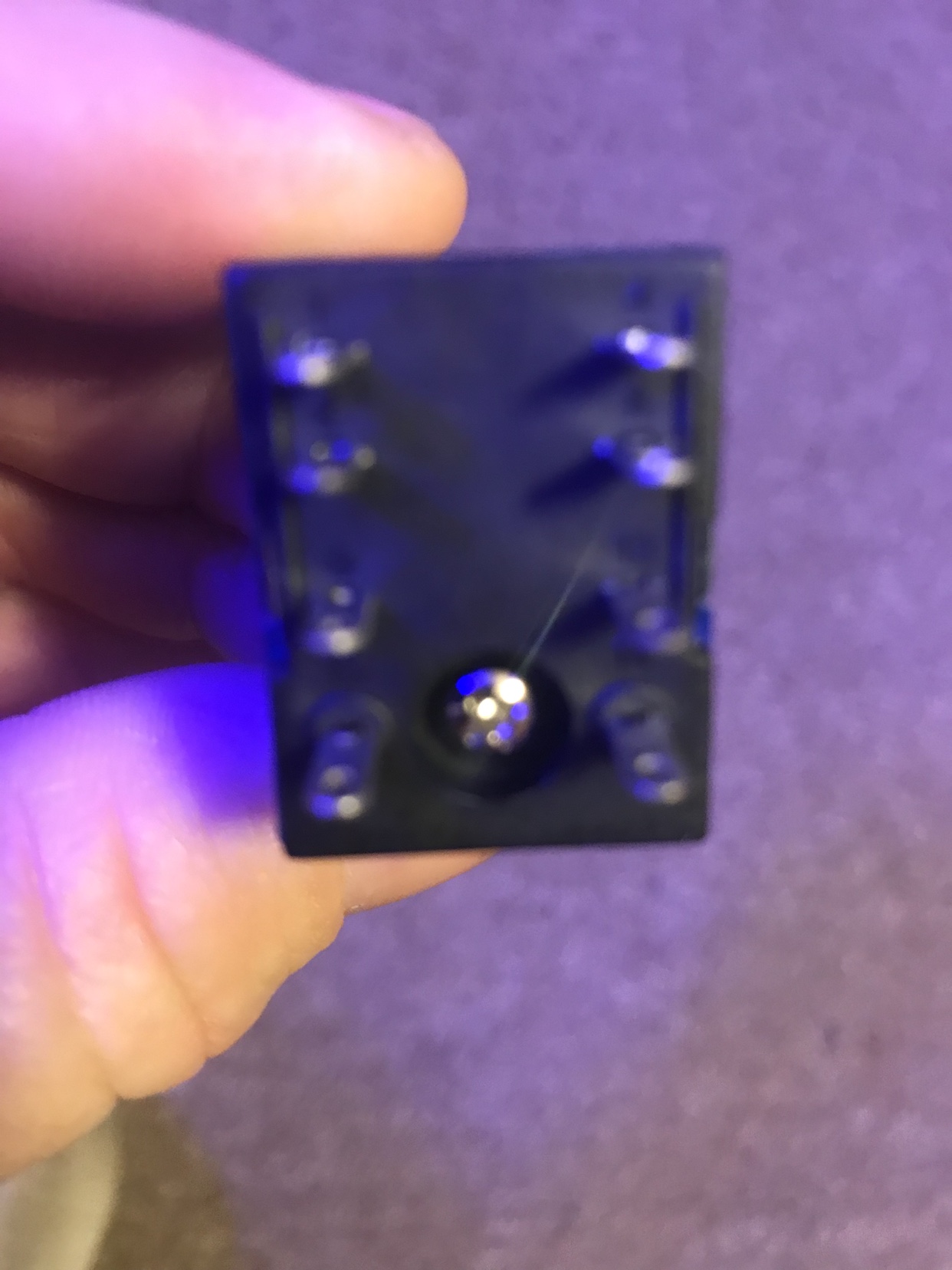

Here’s the jumbo of a mess that I wired up per the video.


pickupman66

5000 Club Member
View Badges
Joined
Aug 10, 2010
Messages
6,032
Reaction score
1,166
Location
Winchester, TN
Rating - 0%
0   0   0
I know you are quite far into this but I'll try to help. When I have done my diy ato, I use a simple relay. Mechanical or triac. Start with the float and low voltage. Connect one lead of float to one lead of the low voltage power. Connect other lead of the power to one side of the signal part of relay. Put other lead of float to other signal post. This way when switch closes the circuit, it completed power.


geniusgio

Active Member
View Badges
Joined
Dec 15, 2017
Messages
123
Reaction score
83
Rating - 0%
0   0   0
Is it possible that you’re using the wrong lead of the extension cord ?


SashimiTurtle

Turtle
View Badges
Joined
Feb 24, 2017
Messages
9,241
Reaction score
35,048
Location
South Carolina
Rating - 0%
0   0   0
Low voltage will be the coil or control side of the relay. This is where you hook your float switch. High voltage will be the switch or load side of the relay. This is where you hook your pump. I'd link pictures but I'm on the work PC.


geniusgio

Active Member
View Badges
Joined
Dec 15, 2017
Messages
123
Reaction score
83
Rating - 0%
0   0   0
Correct. The ribbed wire is the neutral. The wire inside the smooth would be connected to the (hot) wire.
