I (tried to) make a random flow generator

[thamnasteroid]

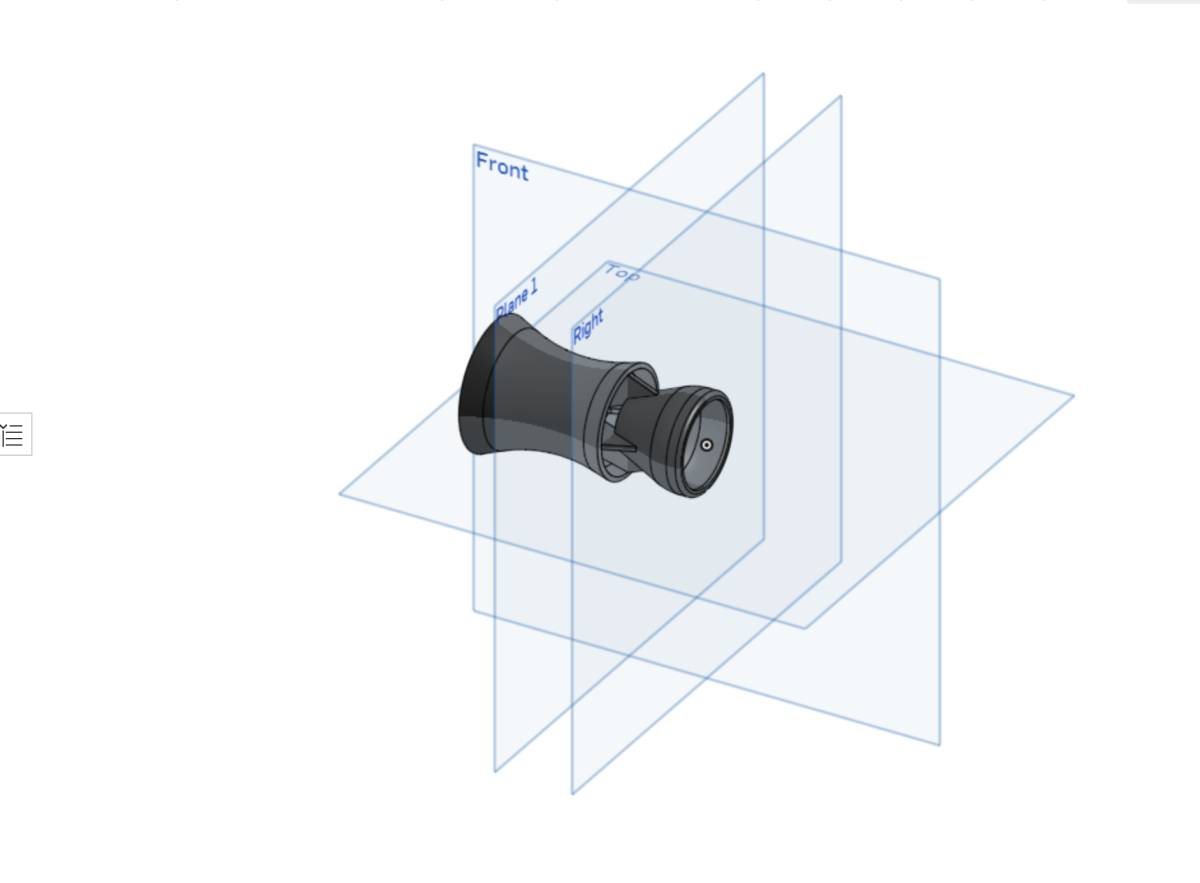

I tried to make an RFG.

Onshape Document: https://cad.onshape.com/documents/8...renderMode=0&uiState=62a4d8ee834fec6b35d16de8



[blaxsun]

Are the blades curved leading into the nozzle?



[thamnasteroid]

Are the blades curved leading into the nozzle?

Yes, the blades are curved.



[blaxsun]

Yes, the blades are curved.

Looks like it will do the trick nicely.



[AdamD76]

looks good.

Side note I hate Shapeways. I can never export the correct size. I exported as an STL and Cura had to scale 10000%.



[thamnasteroid]

looks good.

Side note I hate Shapeways. I can never export the correct size. I exported as an STL and Cura had to scale 10000%.

I don’t plan on 3D printing it. I make things like these because I like designing stuff.
