Mostly reached the limit of what I can do before the sump gets here, and when I reuse equipment running the holding tank right now. I taped the edges of the stand bottom board with waterproof Gorilla tape, we finished mortaring the aquascape, I've got some of the layout work done on the control boards, and I'm ~99% sure I know how everything will fit together inside the stand.

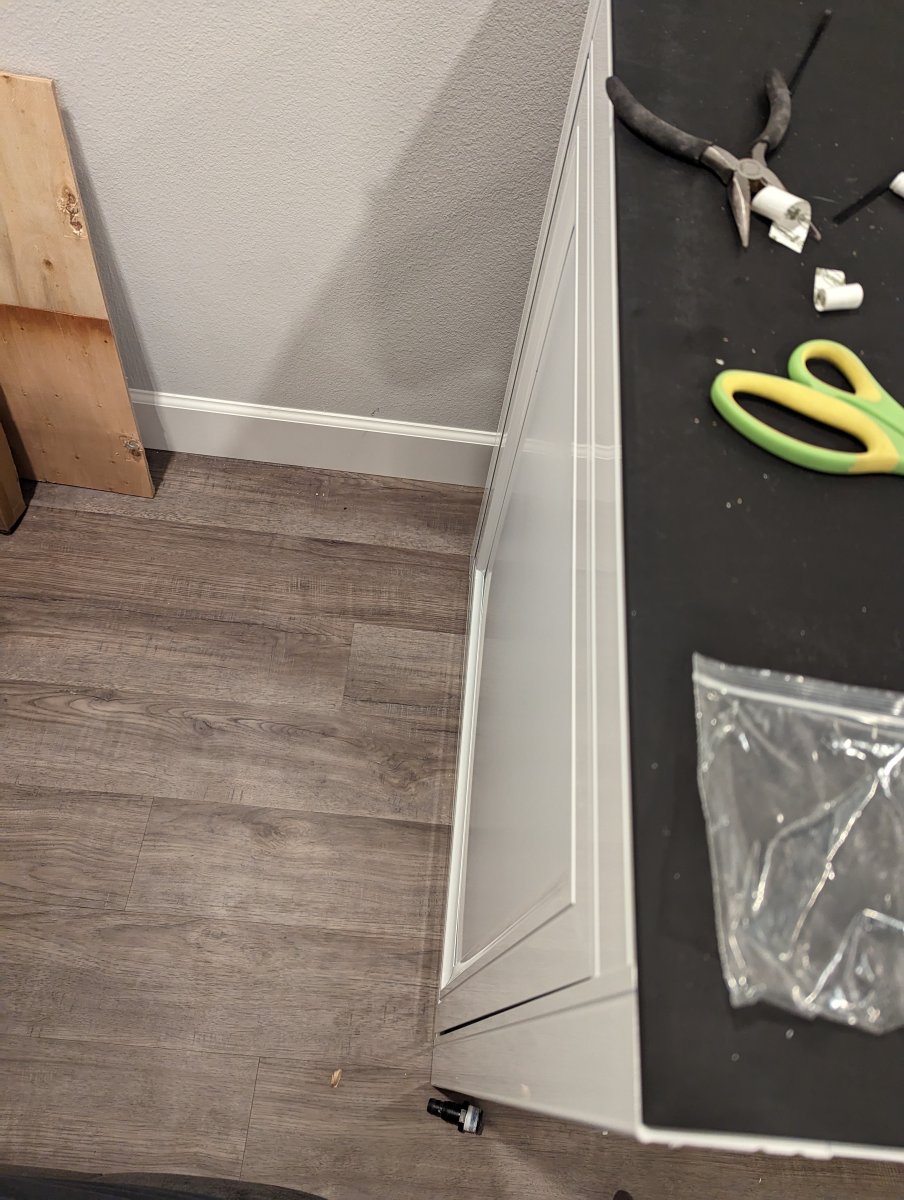

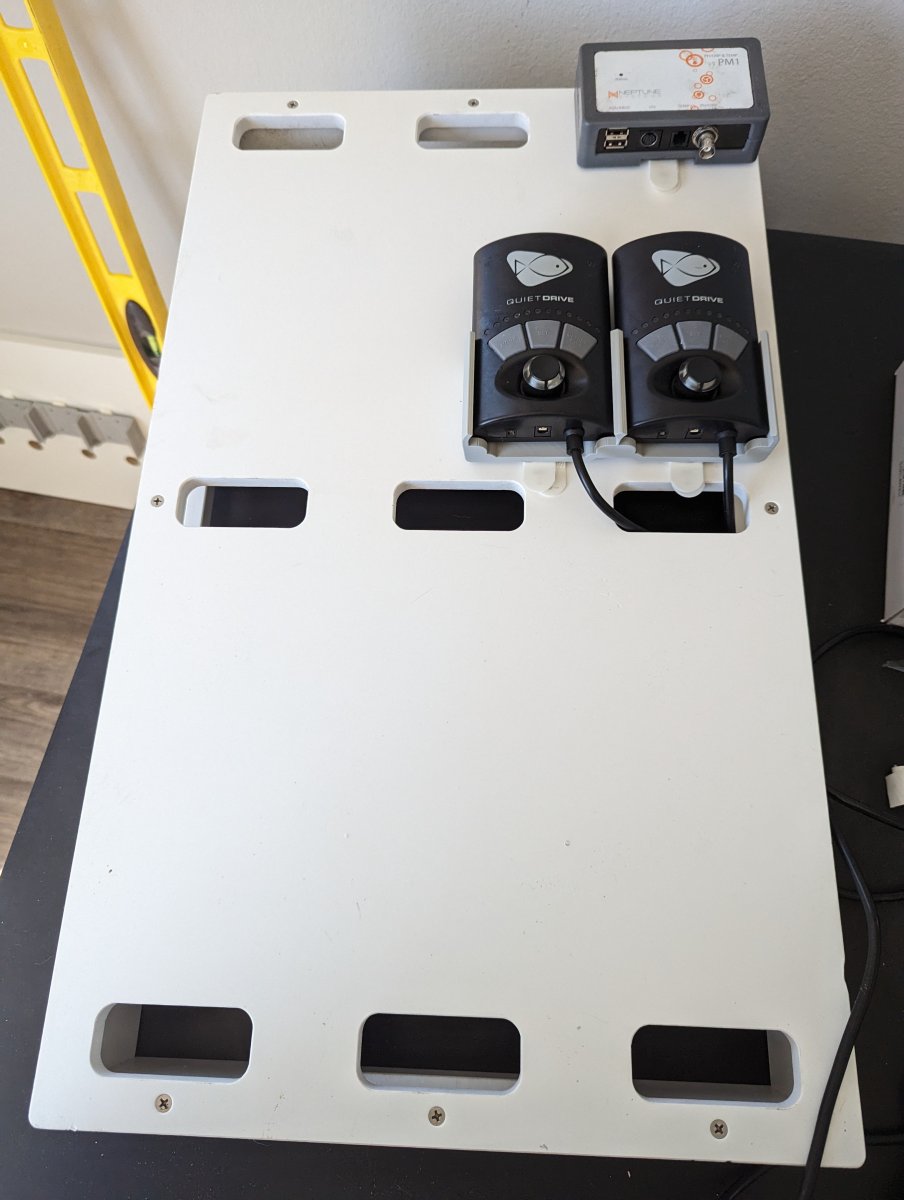

The primary control board is set up and mounted on the inside door using Command strips. I'll have my Apex head unit in the upper left, and the EB832 on the bottom open area. I have two MP40 drivers on there right now in a
3D printed bracket, and those will be mounted to the left side panel of the tank.

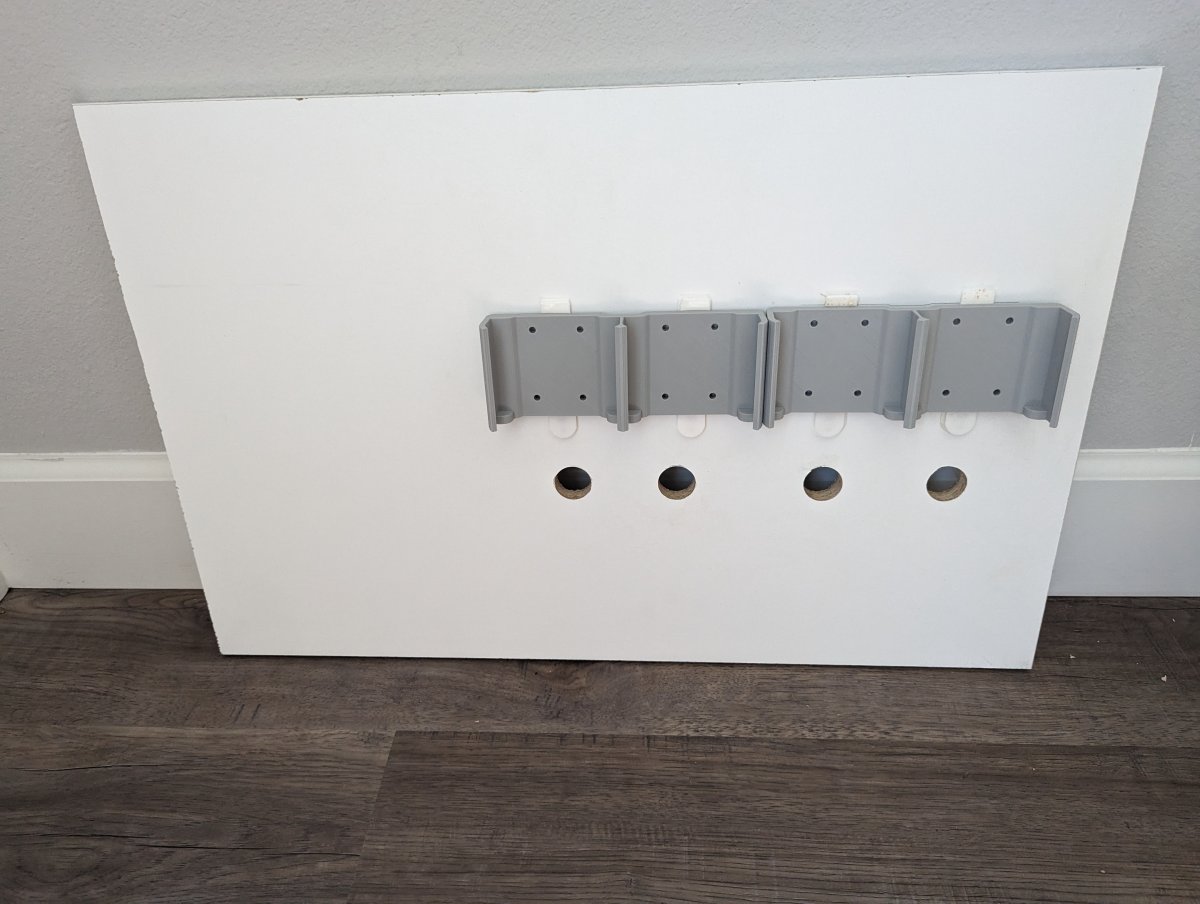

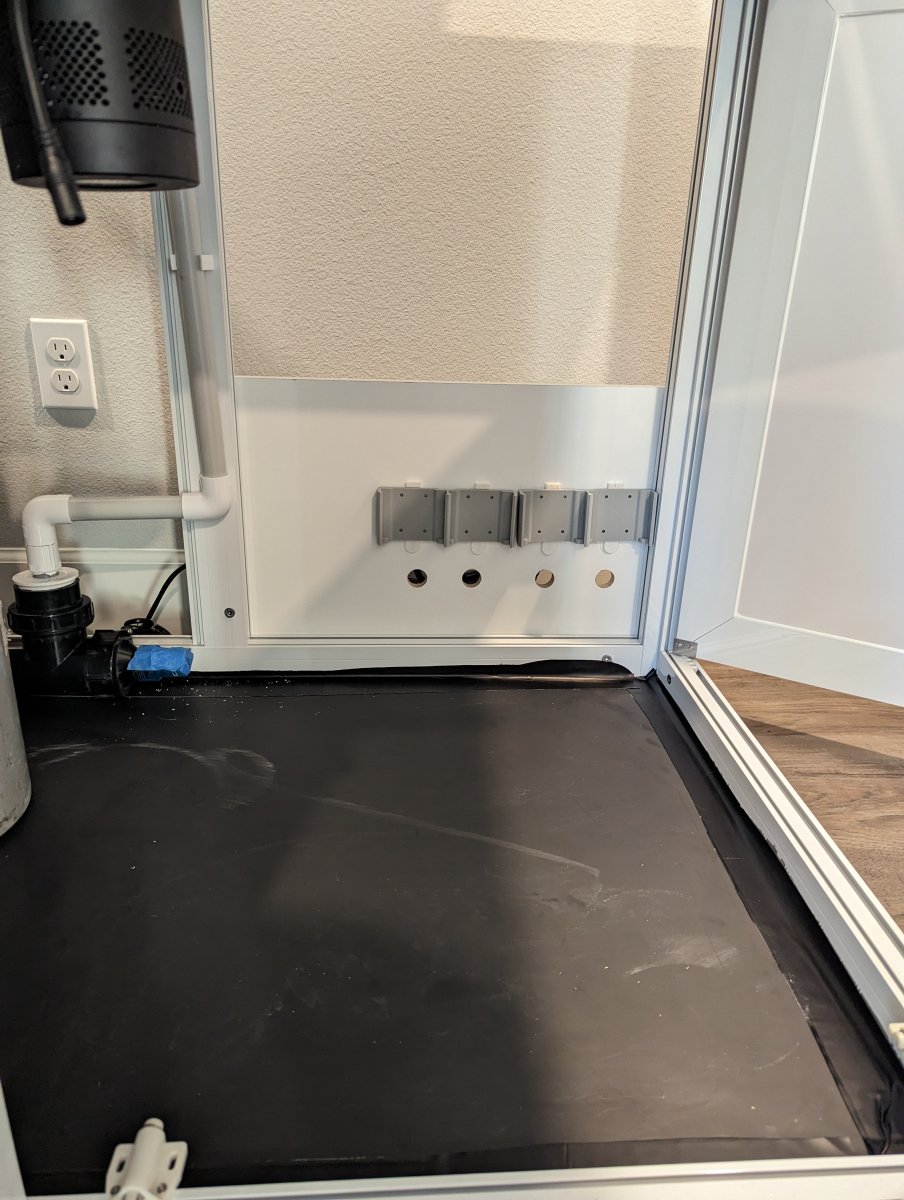

The secondary control board was made using
this material cut to 24" wide (using my new table saw for the first time which, hot dang, I'm loving) and holes drilled with a forstner bit. The two double brackets will hold the drivers for my M2 and L2 return pumps, as well as an MP40, with the option to add a 4th MP40 (and other equipment as needed). The

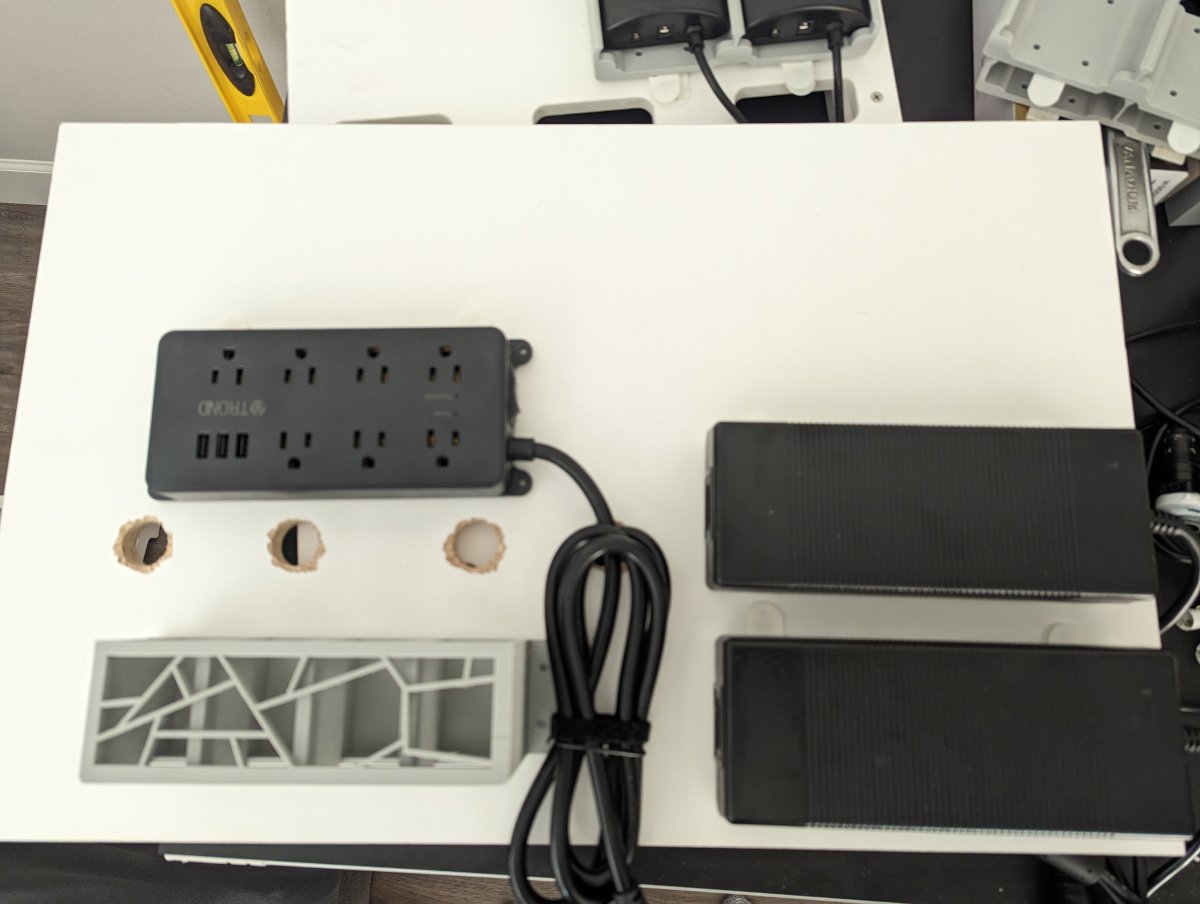

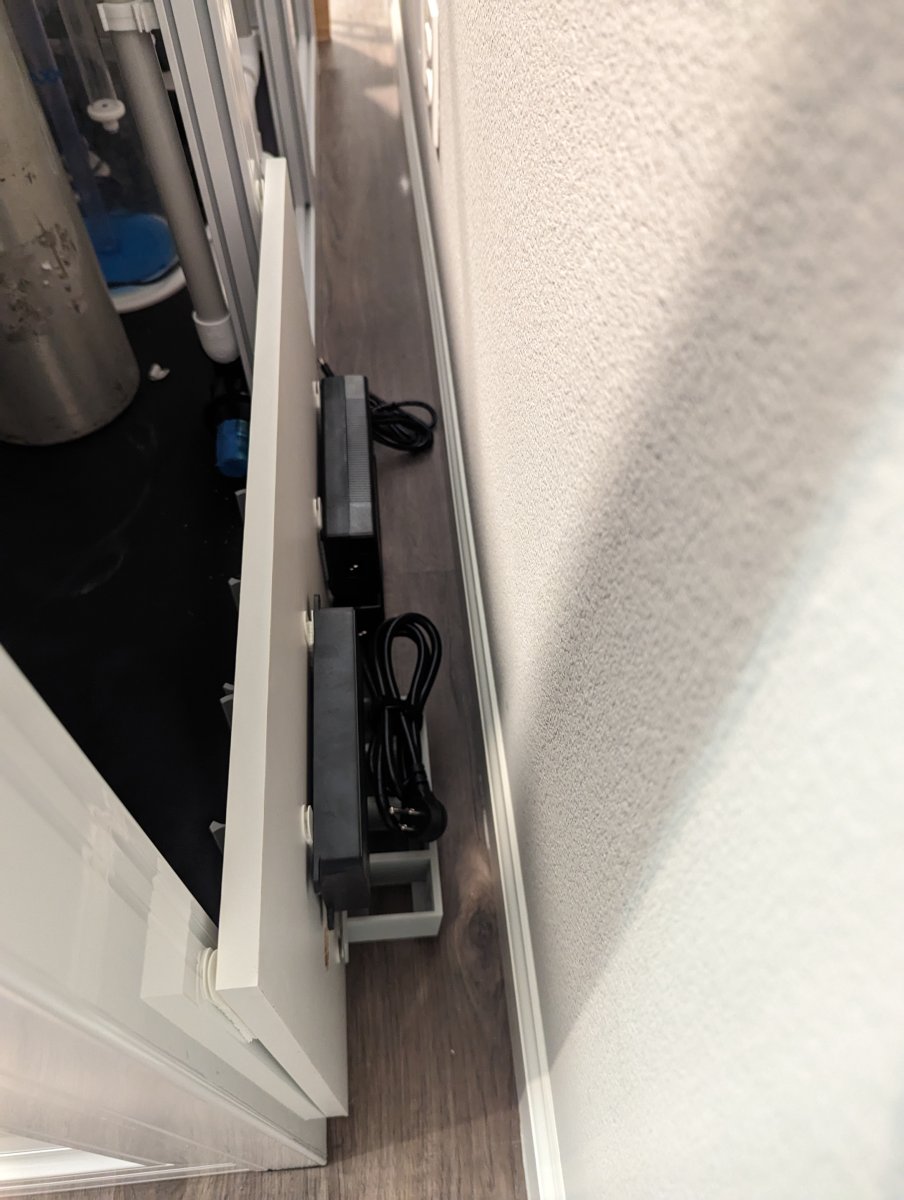

bracket on the rear is a 3D printed quadruple power brick holder for everything.

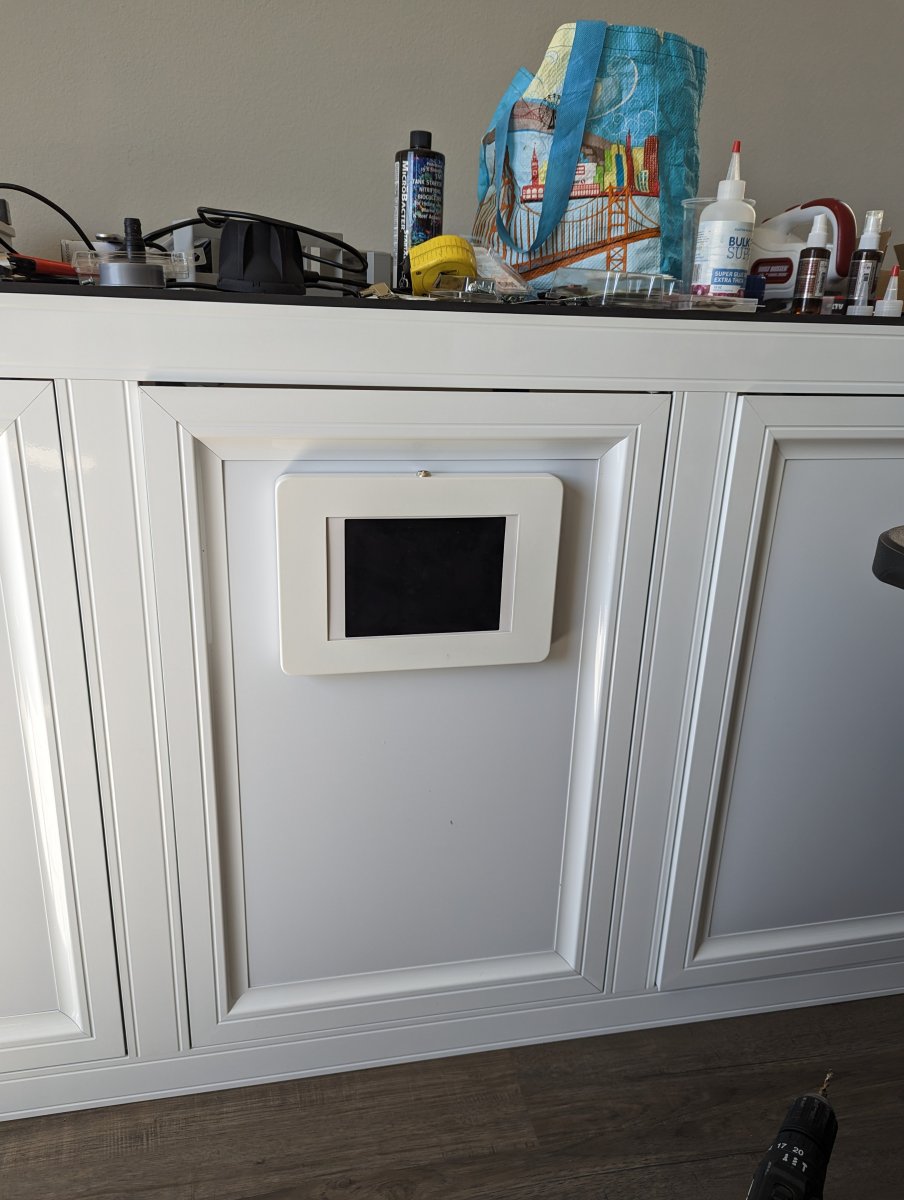

I went ahead and started plumbing (dry fitting) the UV, since it'll sit behind the sump, and also mounted an iPad case to the front of the stand. I'll drill a small, non-visible hole for the iPad power supply, and will rig it to run ReefTiles to keep an eye on what's going on in the tank.
