Loud Durso Question

[_cpate3_]

This is my first time plumbing a tank, and after setting it up the durso standpipe seems to be sucking water and gurgling inside the sump. The line is 1/2” with 2 holes in the sides and a air line at the top of the durso, reduced to 1” at the bulkhead, and I have it going down to the bottom of the sump with a tee. So the 2 sound issues are the “sucking” water sound and it gurgling inside the sump. What are some suggestions on how I can fix this! Video attached! I plumbed the sump, but the pipes to the bulkhead were pre-installed when I bought the tank and does not come apart easily… and the tank is filled (no livestock yet) what are some fixes that I could do!



[UncommonSense]

This is my first time plumbing a tank, and after setting it up the durso standpipe seems to be sucking water and gurgling inside the sump. The line is 1/2” with 2 holes in the sides and a air line at the top of the durso, reduced to 1” at the bulkhead, and I have it going down to the bottom of the sump with a tee. So the 2 sound issues are the “sucking” water sound and it gurgling inside the sump. What are some suggestions on how I can fix this! Video attached! I plumbed the sump, but the pipes to the bulkhead were pre-installed when I bought the tank and does not come apart easily… and the tank is filled (no livestock yet) what are some fixes that I could do!

Start by drilling a 1/4” hole in the drain pipe, just below the sump water line! — this will help to prevent the siphon from starting and stopping!

Also, ensure that the air line/air port in the top of the standpipe aren’t clogged with salt creep/etc! — the duroso’s Achilles heel!



[_cpate3_]

This is my first time plumbing a tank, and after setting it up the durso standpipe seems to be sucking water and gurgling inside the sump. The line is 1/2” with 2 holes in the sides and a air line at the top of the durso, reduced to 1” at the bulkhead, and I have it going down to the bottom of the sump with a tee. So the 2 sound issues are the “sucking” water sound and it gurgling inside the sump. What are some suggestions on how I can fix this! Video attached! I plumbed the sump, but the pipes to the bulkhead were pre-installed when I bought the tank and does not come apart easily… and the tank is filled (no livestock yet) what are some fixes that I could do!

Start by drilling a 1/4” hole in the drain pipe, just below the sump water line! — this will help to prevent the siphon from starting and stopping!

Also, ensure that the air line/air port in the top of the standpipe aren’t clogged with salt creep/etc! — the duroso’s Achilles heel!

So just below where the pipe meets the sumps water level?



[UncommonSense]

So just below where the pipe meets the sumps water level?

This should work! — it gives the air an easier escape path vs the burbling in the sump!



[_cpate3_]

So just below where the pipe meets the sumps water level?

This should work! — it gives the air an easier escape path vs the burbling in the sump!

What about the “sucking” or “toilet flushing” sound would it help with that too?



[UncommonSense]

What about the “sucking” or “toilet flushing” sound would it help with that too?

In theory, yes! Though a hole above the water line may be more efficient here! — I do know I see many custom systems such as those made by Bashea using diagonal cut slots in the drain pipes from skimmer/etc to prevent the submerged drain pipe from starting a siphon and draining the water chamber in question!



[_cpate3_]

What about the “sucking” or “toilet flushing” sound would it help with that too?

In theory, yes! Though a hole above the water line may be more efficient here! — I do know I see many custom systems such as those made by Bashea using diagonal cut slots in the drain pipes from skimmer/etc to prevent the submerged drain pipe from starting a siphon and draining the water chamber in question!

Can you explain more what those diagonal cuts are? Not sure I’m understanding what you mean



[UncommonSense]

Can you explain more what those diagonal cuts are? Not sure I’m understanding what you mean

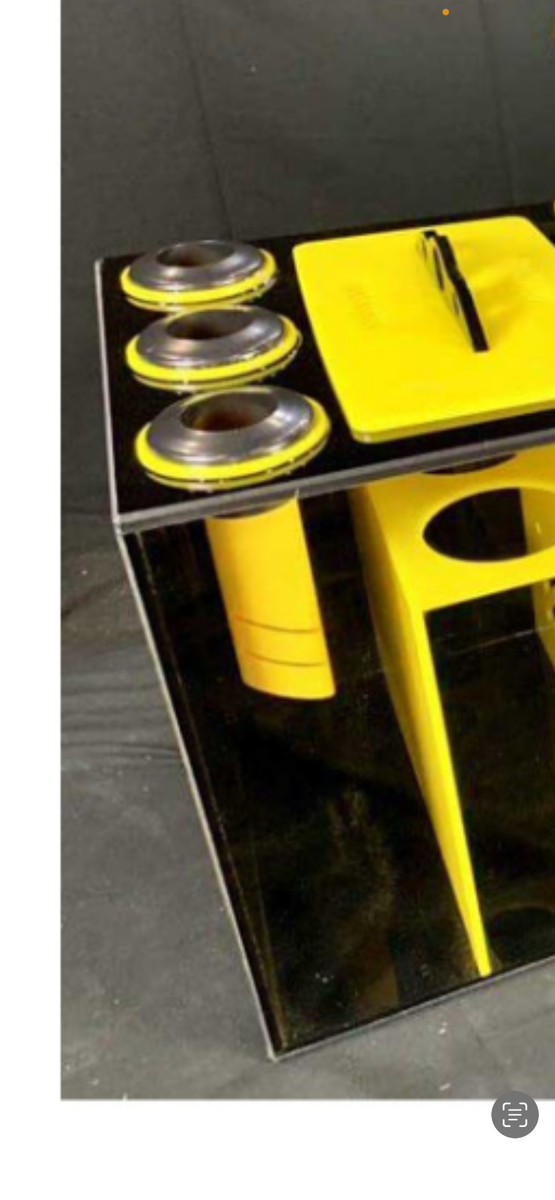

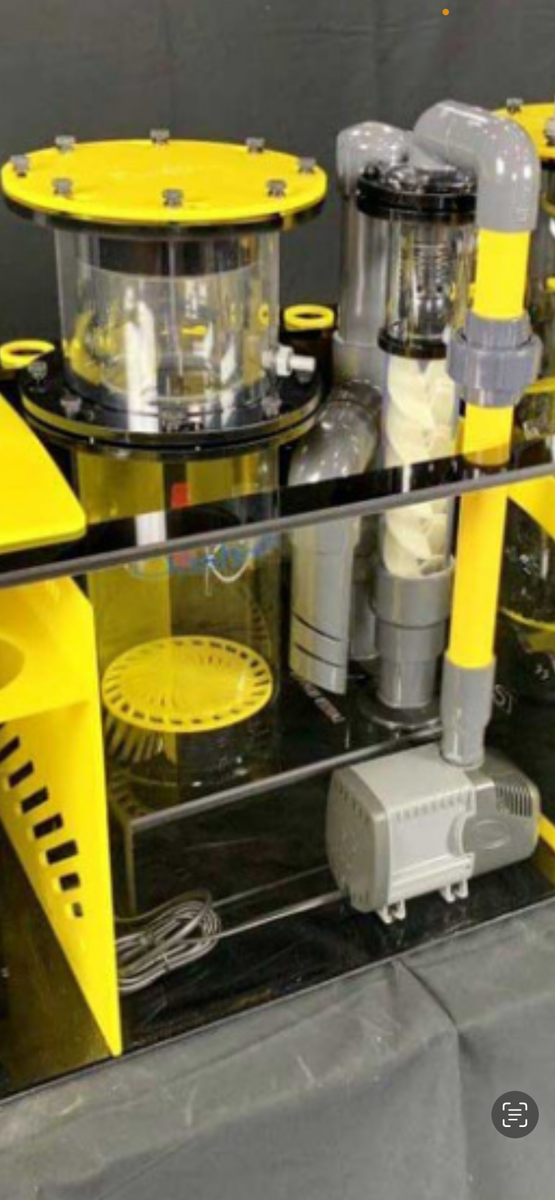

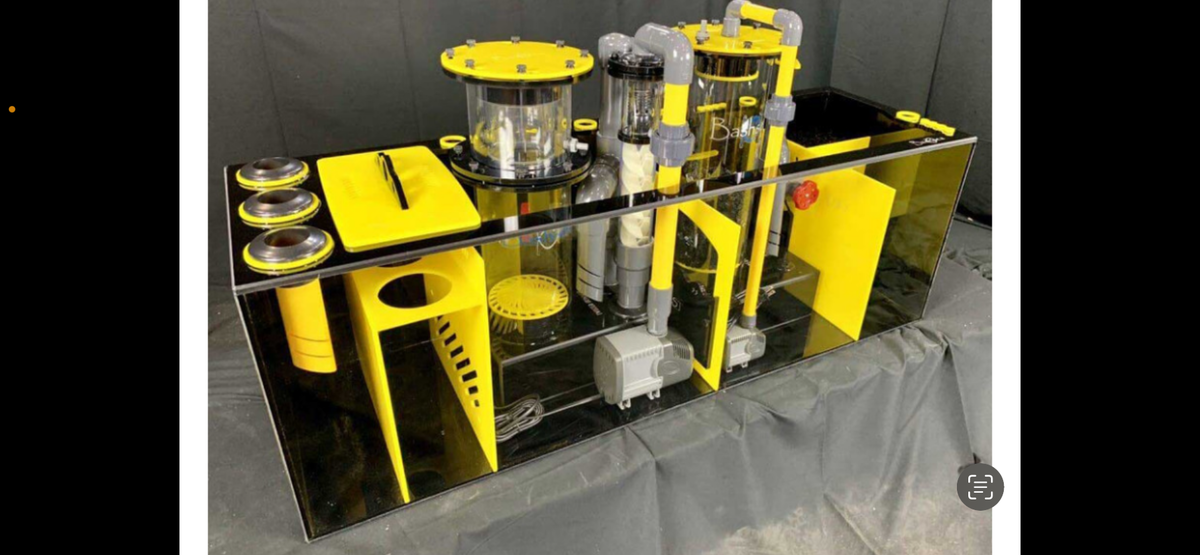

I tried to think of a simple explanation that wouldn’t get into paragraphs of talking about vacuum and pressure; so I pulled up an old photo to show you what I mean!

These slots are on gravity drains, serving the same purpose as a drilled hole, just looking prettier!

They prevent water draining from starting a full siphon, which is what your plumbing is currently doing! — one the full siphon starts, your overflow box will drain faster than your return pump fills it, subsequently making the standpipe suck in a big gulp of air. This breaks the siphon, and the process repeats shortly thereafter once water draining down the standpipe and drain plumbing initiates another full siphon!

This is why I recommended checking the air vent on top of the Duroso for obstruction!

— typically the standpipe inlet does a 180 degree bend at the top, submerging the inlet/letting it vent and suck air through the air port at the highest point!



[_cpate3_]

Ok drilling the hole seemed to fix the flushing sound, but now the air gurgling in the sump is actually louder, wondering how I should fix this



[UncommonSense]

Ok drilling the hole seemed to fix the flushing sound, but now the air gurgling in the sump is actually louder, wondering how I should fix this

Get the drain tee right up by the surface? Or, make a muffler for the air hole? ( spare Skimmer air inlet muffler?)
