So I'm having a dilemma with my new stand I plan on building. The tank has a bottom trim that structural, so it's clear the edge of the tank must be supported properly.

The issue I'm running into is I want to tile the outside of my stand, yet not have the base of the stand be outside the lines of the tank once the tile is on it.

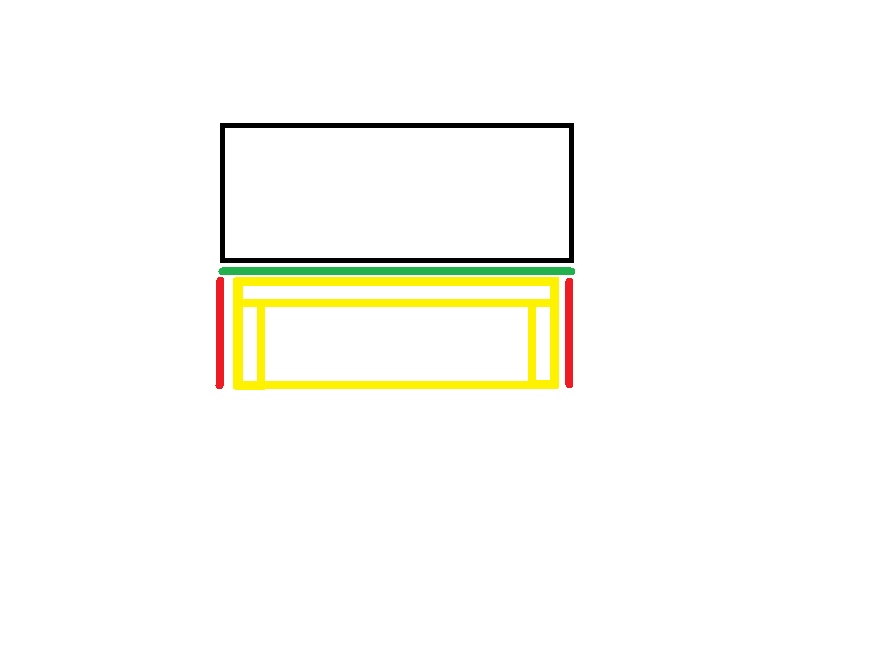

The info below is essentially a profile shot. My question is, if my base (green)is 3/4" plywood to support the tank (black), normally the stand (yellow) would be right to the edge below, but in my case I need the stand to be 5/8" in, so once I attach the tile (red), it's flush with the tank. In this case, the base (green) is cantalevered the 5/8" to accommodate the tile.

How significant of an issue is this?

Am I risking the structural integrity?

I'm thinking I probably cannot do this, as the weight of the tank is carried by the outer edge, anyone have ideas? Or do I need to suck it up, build the stand normally, and have my tile be 5/8" outside from the tank itself?


Last edited:

shovelrider

Active Member
View Badges
Joined
Jul 17, 2012
Messages
359
Reaction score
6
Location
Harvest,AL
Rating - 0%
0   0   0
That is very possible. Your measurements will have to be exact though. You will want the stand's frame as close to the tank's trim as possible and the 3/4'' ply will distribute the tanks load to the stand frame. Keep in mind the larger the tank, the beefier the building materials should be for support.

What size tank are you puttting on this stand?

OP
OP
Munch

Munch

Active Member
View Badges
Joined
Jan 11, 2013
Messages
401
Reaction score
27
Location
Colorado
Rating - 0%
0   0   0
75 gallon. The concern is all of the weight of the tank is pressed right to the edge trim pieces at the bottom. None of the bottom glass with rest of the 3/4" ply.


Mrfresh

Valuable Member
View Badges
Joined
Mar 6, 2013
Messages
1,084
Reaction score
6
Location
Sd Cali
Rating - 0%
0   0   0
U can build a smaller frame for the top.
Then put the plywood ontop of it.
Add in support once it on and you know where the tank will sit on it.

It can be done just needs a little more support in different places


Xingu

Active Member
View Badges
Joined
Mar 29, 2013
Messages
147
Reaction score
57
Location
Huntingtown, MD
Rating - 0%
0   0   0
I have had tanks overhang the stand by several inches, you should be fine. I agree with putting plywood on top if you are worried about it.
