NooPsyche K7 V3 - Need PAR Estimates

[reefbeginnings]

Hi NooPsyche owners, I installed NooPsyche K7 V3 on my new nano 2 months back. The challenge is that I don't have access to a PAR meter and have no clue what am I hitting with the PAR.

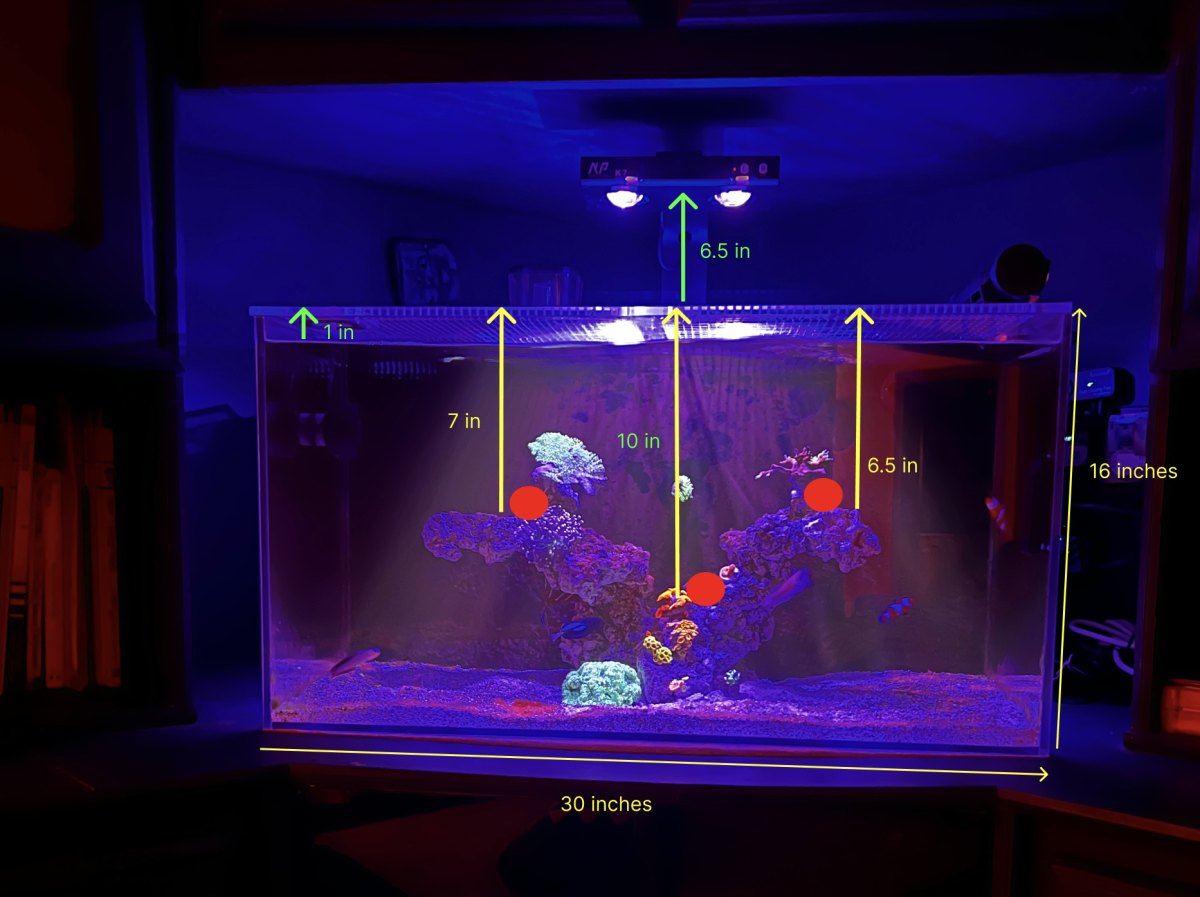

Could anyone help provide a good guess on what intensity should I be keeping my lights considering the height of the lights as well as the aquascape? I'm looking for estimate on PAR on the "RED" hotspots marked. Please note, I can may be push the light higher by a max of 1 inch as I've left some space from the top for the fans.

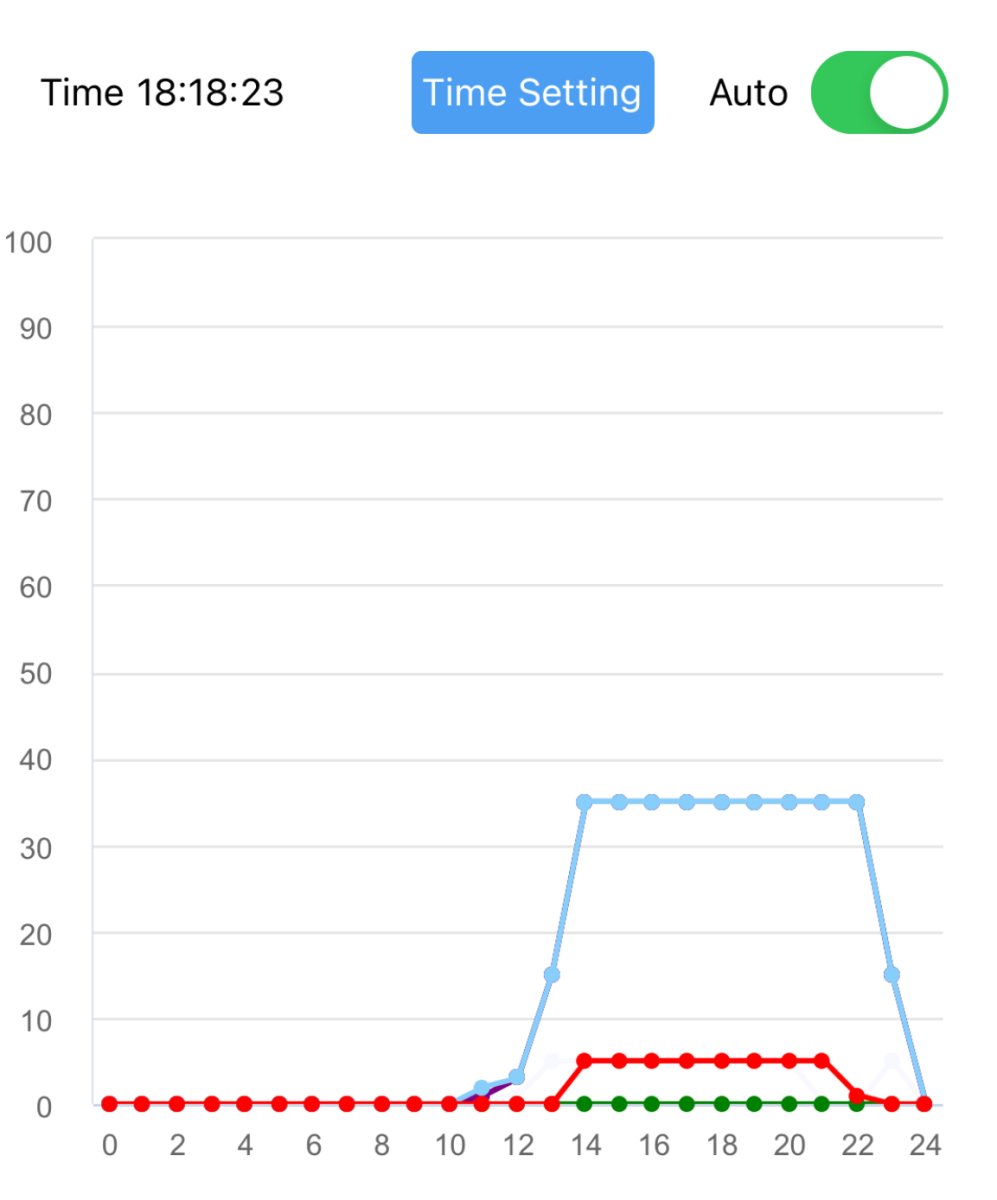

Currently running on blues on 35%. Appreciate the help.



[tedfisher496]

Hi NooPsyche owners, I installed NooPsyche K7 V3 on my new nano 2 months back. The challenge is that I don't have access to a PAR meter and have no clue what am I hitting with the PAR.

Could anyone help provide a good guess on what intensity should I be keeping my lights considering the height of the lights as well as the aquascape? I'm looking for estimate on PAR on the "RED" hotspots marked. Please note, I can may be push the light higher by a max of 1 inch as I've left some space from the top for the fans.

Currently running on blues on 35%. Appreciate the help.

the corals should tell you if you have to much PAR. based off of your picture, I would get another fixture to get better coverage.



[reefbeginnings]

the corals should tell you if you have to much PAR. based off of your picture, I would get another fixture to get better coverage.

Thanks. Yes that's the plan. I'm just trying out the light to see if it's worth getting another one. My tank's dimensions do require two of these for full coverage, ideally speaking.

Also, it could also be because the light is only 6.5 inches from the top so that kind of compromises the coverage.



[exnisstech]

Not sure if this helps or not. These were my settings on my 72x24x24 with six k7s seven inches off the water. I can't find my par map but I was getting 300 on the bottom where I had clams. I'm sure some of that was overlap with 6 lights on a six ft tank. You'll need two, especially that low if you want full coverage IMO

Tank shot

I've since moved the lights to my new tank that's 84x30x25. But I have mapped par yet.



[reefbeginnings]

Not sure if this helps or not. These were my settings on my 72x24x24 with six k7s seven inches off the water. I can't find my par map but I was getting 300 on the bottom where I had clams. I'm sure some of that was overlap with 6 lights on a six ft tank. You'll need two, especially that low if you want full coverage IMO

Tank shot

I've since moved the lights to my new tank that's 84x30x25. But I have mapped par yet.

Could you share what was the mounting height from the water surface?



[exnisstech]

Could you share what was the mounting height from the water surface?

7 inches



[Genetics]

From what I can tell k7 v3 have noticeable bumps in light output at 20/40/60%. I have a nano cube 18x18x18. I run blues around 55, windex blue at 35/40 and the UV was too intense and run around 22. As for light output. I have sps growing on the sandbed near my crocea.



[squarereefer]

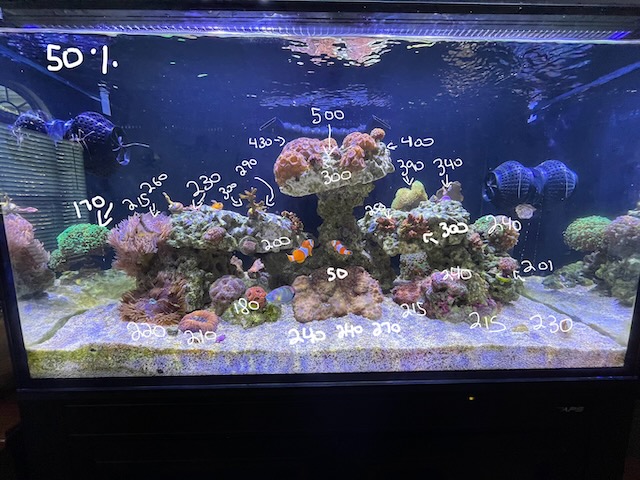

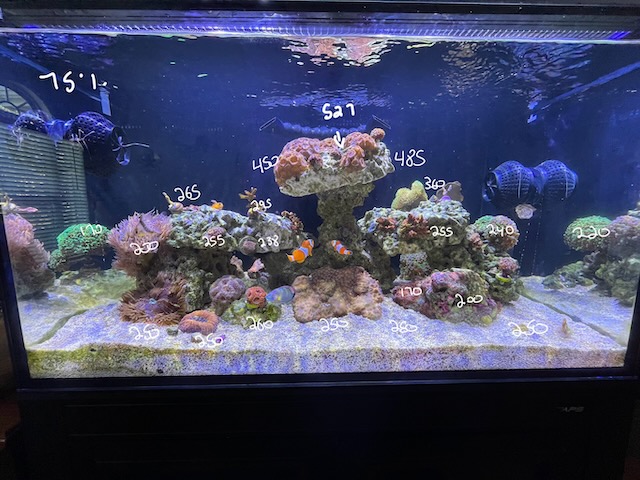

Hopefully this helps - I have two K7's over a 75g tank (35.4" x 23.6" x 19.7") Lights are 9" off water.



[JoeyBagadonuts]

Hopefully this helps - I have two K7's over a 75g tank (35.4" x 23.6" x 19.7") Lights are 9" off water.

Hey Squarereefer, what profile are you running when you got those par readings?



[M4sonic]

@squarereefer i would also like to know your profile for these par levels, my tank is pretty much the same size.



[squarereefer]

@squarereefer i would also like to know your profile for these par levels, my tank is pretty much the same size.

Sorry everyone, I meant to respond to this much quicker. For those PAR readings, I took the peak values of my default profile (at that time) and then scaled all channels up to 100%, then down to 75%, 50%, 25%. I used the bean animal QR generator to generate a code for each settings. I have changed up my profile a bit since then, but the spreadsheet showing original profile and adjusted values + QR codes are below.



[M4sonic]

Awesome, thanks for the info and tests!



[AtlanticGail]

Sorry everyone, I meant to respond to this much quicker. For those PAR readings, I took the peak values of my default profile (at that time) and then scaled all channels up to 100%, then down to 75%, 50%, 25%. I used the bean animal QR generator to generate a code for each settings. I have changed up my profile a bit since then, but the spreadsheet showing original profile and adjusted values + QR codes are below.

Just reading this post today, just curious if your still running your tank with the same lights



[squarereefer]

Just reading this post today, just curious if your still running your tank with the same lights

The lights are still running, but I really do not care for them. I can't prove it yet, but I almost feel like individual LEDs have possibly failed to impact the spectrum. I can't see it with my eyes, but corals that have been perfectly healthy for years have started dying, my Zoanthids up top, which should be getting blasted with par (poor placement on my part), are stretching out super long as if they are gasping for light or spectrum, and I am starting to see algae that i've never encoutered before. Tank parameters are stable. I hate to jump to the conclusion it's the lights, but I am not sure what else to blame, especially witht streteching Zoas.



[AtlanticGail]

The lights are still running, but I really do not care for them. I can't prove it yet, but I almost feel like individual LEDs have possibly failed to impact the spectrum. I can't see it with my eyes, but corals that have been perfectly healthy for years have started dying, my Zoanthids up top, which should be getting blasted with par (poor placement on my part), are stretching out super long as if they are gasping for light or spectrum, and I am starting to see algae that i've never encoutered before. Tank parameters are stable. I hate to jump to the conclusion it's the lights, but I am not sure what else to blame, especially witht streteching Zoas.

Ya, my tank will be 3 years In April, I noticed that too some of my zoas midway in tank are stretching while others are not. Some corals are growing fine while my acan and hammers are stuck. What intensities are you using. I got a 90 gallon and running blues at 65%.
