***OFFICIAL GHL CONTROLLER USER THREAD***

[AlyciaMarie]

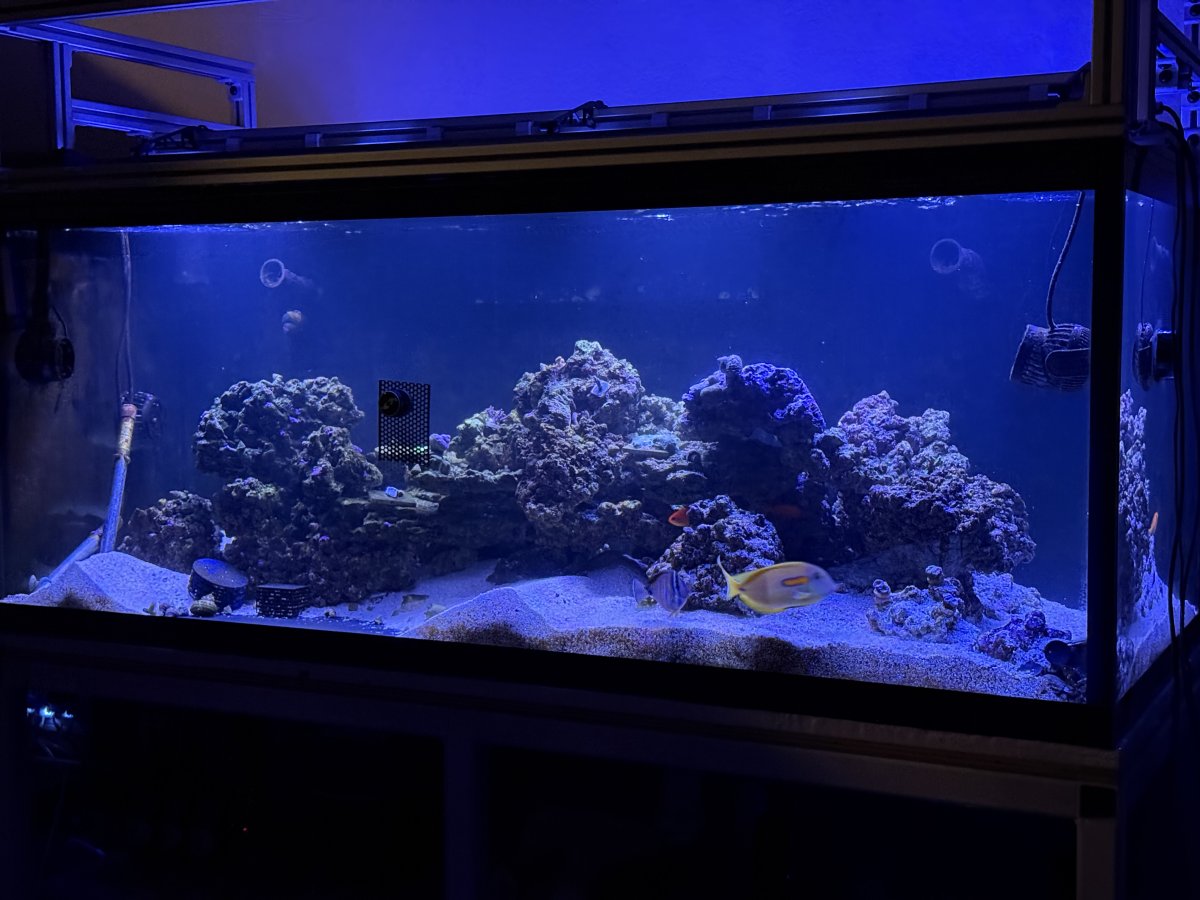

This is the official thread for GHL Controller users! Let's see some pictures of your setups!

Photo Credit: Elder1945



[revhtree]

Bump for GHL tanks!



[gbroadbridge]

It just works. lol



[Lasse]

Bump for GHL tanks!

Build Thread - Lasses Dream Build

Hi all My name is Lasse Forsberg and I live in small place named Bohus – 20 kilometres north Gothenburg, Sweden. I got my first tank 1961 when I was eleven years old and lived in an inland country town 160 kilometres from Gothenburg – I had it for a couple of years but soon I become a teenager...

www.reef2reef.com

Sincerely Lasse



[Gumbies R Us]

Bumping this! Curious to see more GHL tanks!



[nickm]

Let’s keep this tread alive!! GHL P4, KHD, and Mitras 7206’s.



[gbroadbridge]

It's a boring product.

It just works and works and works.

No fiddling, rare software updates, just how it should be for an automation device.



[Vinny@GHLUSA]

Here are a few example setups. :)

Mitras Lightbar 3 / ProfiLux 4 / Doser 2.2
Credit: noodle_reefer (IG)

Mitras LX7506 IL Coral Pop / ProfiLux 4 / KH Director / Doser 2.1
Credit: thekoralito (IG)

ProfiLux 4 / Doser 2.1 / KH Director / ION Director / Mitras LX7504
Credit: The Acro Reef (YT)



[Jgoal55]

Hello. A friend of mine tore down his tank a while ago and I inherited all his stuff including a profilux 4 controller. It’s been sitting in storage for a while and I’ve decided to finally set up the tank.

First thing I did was plug the P4 in to get it updated and ready to work, but I think the controller is stuck in a fatal error.

See video:


I’ve tried resetting to factory defaults and that did not reset the errors. I also tried updating firmware but it gets stuck and tells me to power cycle the controller.

When I do, I continue getting the same alarm and erratic screen behavior.

Nothing is plugged in to the controller.

Any help would be appreciated. Thanks.

@Lasse



[Gaël]

Hello,

For the PAB alarm: https://www.aquariumcomputer.com/knowledge-base/how-to-assign-pab-devices/
For touch key issues: https://www.aquariumcomputer.com/knowledge-base/how-to-calibrate-profilux-mitras-touch-keys/

Troubleshooting: ProfiLux 4 / 4e / Mini / Light - GHL Advanced Technology

www.aquariumcomputer.com

Gaël



[Lasse]

It looks like the capacity controls runs by their own. Have you a possibility to log in with USB and GCC and adjust the touch keys as Gaël suggest above.

​

If it have been stored a long time in humid condition - I would try to dry the unit for a while.

If you need to do a emergency update - download the instructions here

ProfiLux 4 Emergency Update instructions - GHL Advanced Technology

Instructions for an emergency update of the P4. Only needed if a firmware update failed. Attachments P4-Emergency-Update-Guide_EN_2017-03-07 (2 MB)

www.aquariumcomputer.com

Sincerely Lasse



[Jgoal55]

Hello,

For the PAB alarm: https://www.aquariumcomputer.com/knowledge-base/how-to-assign-pab-devices/


Gaël

Thank you. The above did not help as I’m not able to even get into the controller to start assigning devices.

To be clear, many alarms are showing together (PH, Temp, PAB, etc).

I did however manage to recalibrate the keys, but unfortunately the issue of the menu just cycling endlessly continued.

It looks like the capacity controls runs by their own. Have you a possibility to log in with USB and GCC and adjust the touch keys as Gaël suggest above.

​

If it have been stored a long time in humid condition - I would try to dry the unit for a while.

If you need to do a emergency update - download the instructions here

ProfiLux 4 Emergency Update instructions - GHL Advanced Technology

Instructions for an emergency update of the P4. Only needed if a firmware update failed. Attachments P4-Emergency-Update-Guide_EN_2017-03-07 (2 MB)

www.aquariumcomputer.com

Sincerely Lasse

I moved onto this step after not having luck with the above.

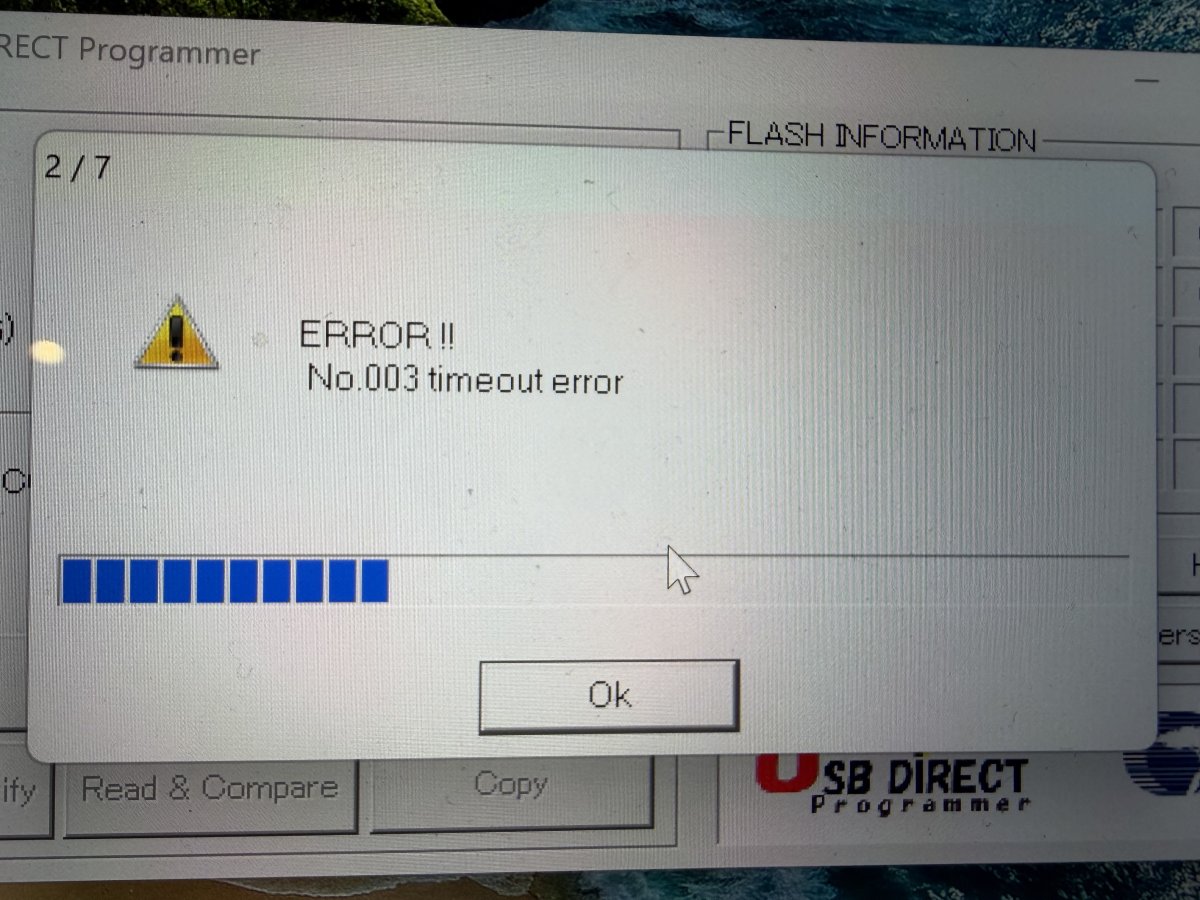

Unfortunately, I got the below error message. I did ensure the correct COM port was selected and I confirmed that it works because I can connect to the device, using the same port number, in GCC.

I should note, every time I pressed the blue reset button during the process, I would get a COM connection error. The device would reset but then no long appear under ports in device manager.

I then tried to do full download with resetting with blue button and that’s when I got the time out error



[Lasse]

It looks like some post I have done just disappear.

Sometimes its happens that the flash utility program use another com port than GCC does. Use your window device manager to show which port your flash program use. Change to that before you hit run.

Sincerely Lasse



[Jgoal55]

Thanks @Lasse. That was able to reset the device and I was able to update the firmware to the latest. All alarms are now clear.

Unfortunately, the capacitive keys are still going crazy. I did a deep clean on the device to ensure there was no moisture anywhere in the board. There wasn’t. That said, it’s easy to tell the device was kept in a humid environment (very lightly corroded exterior screws and connectors). So, maybe at some point the capacitive keys board just fried.

I’ve tried to calibrate multiple times. Also cleaned the connectors thoroughly all to no avail.

Here’s what’s happening now:

• Boot P4 without touch board connected = stable display.
• Plug touch board in while powered on = immediate random cycling on display.
• Unplug touch board = scrolling continues until next power cycle.
• Power cycle with touch board still plugged in = random scrolling continues.
• Power cycle with touch board connected = back to stable display.

Here’s a video of the latest scrolling:



At this point, I think the issue is definitely with the touch board. Just not sure if that’s a part we are able to replace as opposed to replacing the whole device?

@Gaël - thoughts?



[Gaël]

Please verify that the power supply is indeed a 12V power supply and not a 24V power supply.
Also ensure that the wall outlet used has a functional ground connection.
If all of this is correct, you can open a support ticket: https://www.aquariumcomputer.com/support/tickets-enquiries/

Gaël



[Lasse]

Thanks @Lasse. That was able to reset the device and I was able to update the firmware to the latest. All alarms are now clear.

Your welcome - I have learn this the hard way - took me some hours.

Sincerely Lasse



[Jgoal55]

Please verify that the power supply is indeed a 12V power supply and not a 24V power supply.

Eureka (ish)!!

So I actually had already verified the power supply I was using was correct and it was.

But after you made this comment, I started thinking that maybe it was a faulty power supply.

Sure enough I had an extra lying around and tried it. Unfortunately, that didn’t fix the issue and the screen kept cycling.

So I went back to the old power supply and tried a couple of other troubleshooting steps. No luck.

Then it dawned on me that I never tried to recalibrate the keys with the spare power supply.

Plugged in the spare again and recalibrated keys. So far, problem solved!!!!

Seems the first power supply was indeed faulty.

Thank you so much for the support and truly appreciate you guys supporting a second hand unit.
