Ph probe and Temp link to Easy IOT Cloud

wacky123

Community Member
View Badges
Joined
Feb 24, 2021
Messages
25
Reaction score
23
Location
ottawa
Ph Temp Probe is used to detect PH and Temperature in a aquarium / fish tank, the code will also create a EasyIoT entry on the cloud.

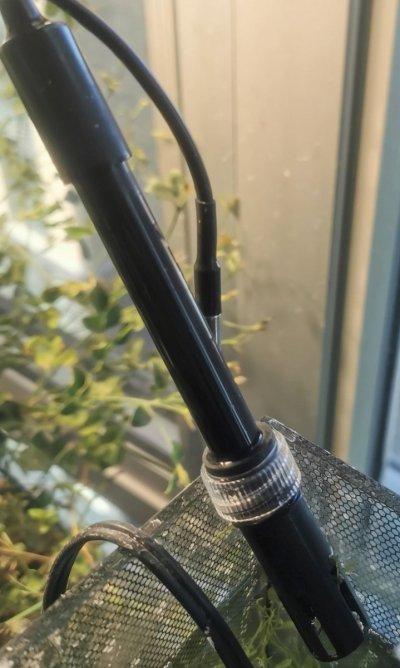

3D plastic cover decrease the flow of water for more accurate reading.

3D DIY print cover:

code:

Tools:
PH probe with BNC converter:

ESP8266:

Easy IoT could account :

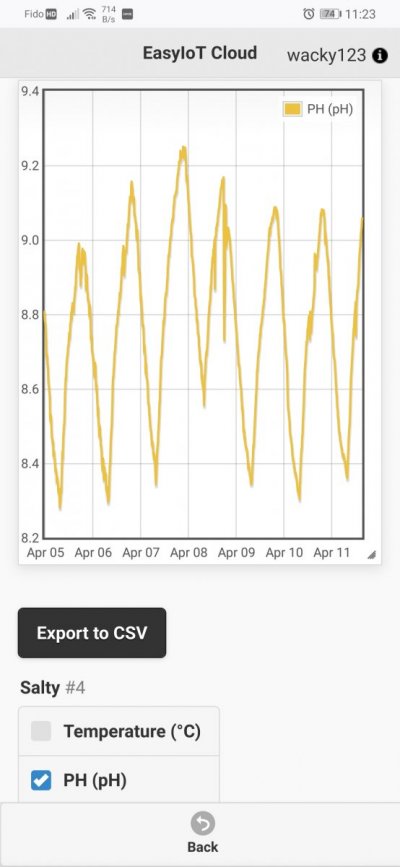

IMG_20210321_121207_edit_200966249661521.jpg Screenshot_20210411_232320_org.mozilla.firefox.jpg

Fritz
OP
W

wacky123

Community Member
View Badges
Joined
Feb 24, 2021
Messages
25
Reaction score
23
Location
ottawa

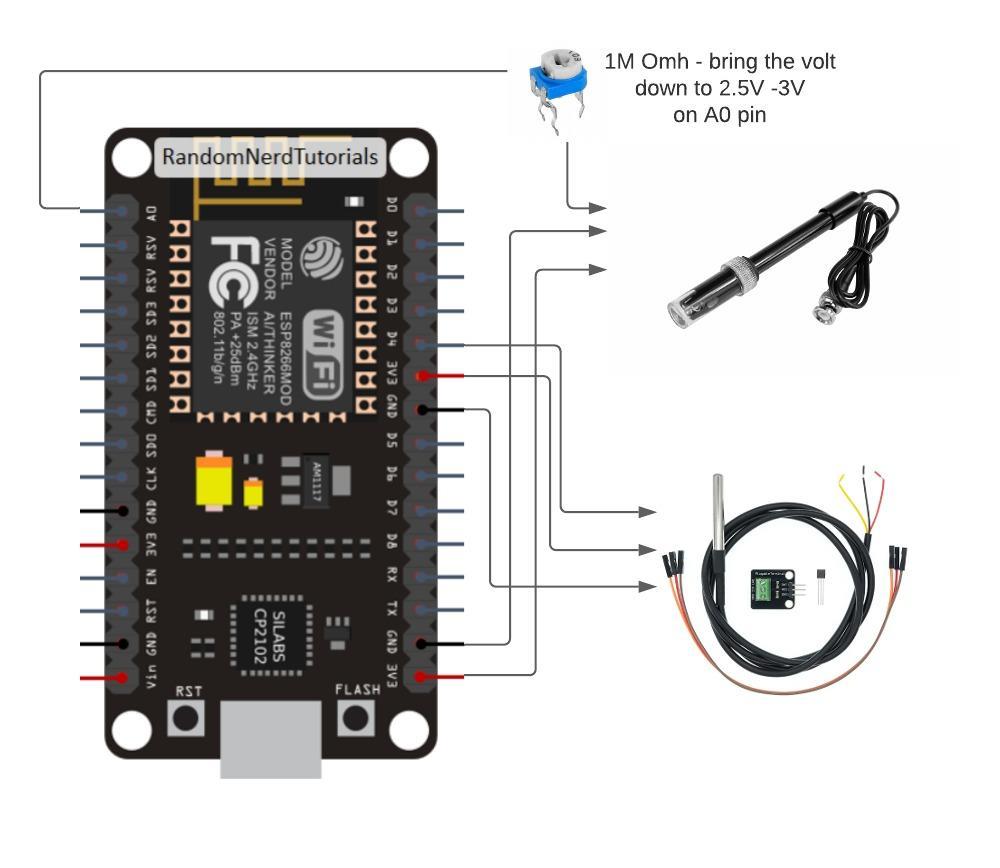

Schema diagram of the prob on a ESP8266
Note: i used a reverse LED which provided 1.4M Ohms


Attachments

  • Ph probe.jpeg
    Ph probe.jpeg
    64.9 KB · Views: 15
  • IMG_20210425_111626.jpg
    284.2 KB · Views: 19
OP
W

wacky123

Community Member
View Badges
Joined
Feb 24, 2021
Messages
25
Reaction score
23
Location
ottawa
Few more pictures of the connecting wires


Attachments

  • IMG_20210430_134909.jpg
    187.9 KB · Views: 11
  • IMG_20210430_134842.jpg
    156.5 KB · Views: 12
  • IMG_20210430_134814.jpg
    159.8 KB · Views: 10
AS

Asmolupers

Community Member
View Badges
Joined
Dec 14, 2019
Messages
29
Reaction score
10
Few more pictures of the connecting wires
How did you get around the electrical noise problem? I tried this exact ph probe setup and it was incredibly unstable. I ended up switching to atlas scientific and it works flawlessly.

OP
W

wacky123

Community Member
View Badges
Joined
Feb 24, 2021
Messages
25
Reaction score
23
Location
ottawa
How did you get around the electrical noise problem? I tried this exact ph probe setup and it was incredibly unstable. I ended up switching to atlas scientific and it works flawlessly.
I didn't notice any problem with electrical noise, just had to use a very large resistor on ESP8266 to get the voltage down to 2.5V on A0 (analog), i my case reverse LED worked.
I did had a problem with the Probe sensor it was too sensitive and even slightest movement of water gave inconstant readings, the 3D printed cover stabilized the flow around the probe sensor and code takes a sample of 10 readings, sorts and takes the middle readings.

so far the results has been consistent and stable .... im not sure about the accuracy but it gives a good idea about the swings and flows of the tank.
