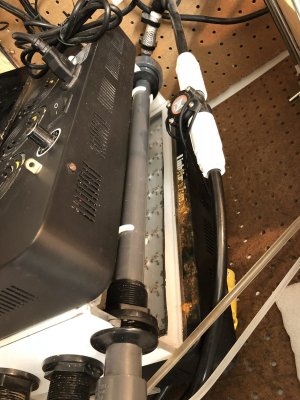

Hello everyone i have a 3/4 inch manifold with 6 outputs controlled by spears 1/4 turn valves only two are in use one to supply a algae scrubber and the other to supply a UV. I supply the manifold with a dc pump that does 2100 gph connected to about 3 1/2 feet of 1 inch ID tubing. I connected my algae with quick connect 1/2 tubing from the manifold at this point i'm only getting 117 gph at the algae scrubber. I f
eel like i should be getting so much more flow to the scrubber. image2.jpeg image2.jpeg image1.jpeg


lapin

Valuable Member
View Badges
Joined
Dec 16, 2017
Messages
5,630
Reaction score
11,885
Location
Austin
How much are you getting at the UV?
Are both getting the same flow rate?
What is the flow rate thru one of the other outlets with the scrubber and UV turned to the off posistion?
Perhaps the algae scrubber is more restrictive and water travel thru the UV instead?

OP
richiero

richiero

Well-Known Member
View Badges
Joined
Mar 4, 2013
Messages
744
Reaction score
314
Location
new york
How much are you getting at the UV?
Are both getting the same flow rate?
What is the flow rate thru one of the other outlets with the scrubber and UV turned to the off posistion?
Perhaps the algae scrubber is more restrictive and water travel thru the UV instead?
I only have a flow meter on my scrubber not my uv so I don’t know how much flow I’m getting on the UV

Best reef aquarium LED lighting

lapin

Valuable Member
View Badges
Joined
Dec 16, 2017
Messages
5,630
Reaction score
11,885
Location
Austin
Measure the output of one of the other outlets with a 5 gallon bucket and a timer. Close the UV and scrubber.
It is a start at figuring out the answer to your question.

OP
richiero

richiero

Well-Known Member
View Badges
Joined
Mar 4, 2013
Messages
744
Reaction score
314
Location
new york
On so fill it up to the 1gallon mark then times 60min x 60 seconds and divide by the time it took to fill ?


lapin

Valuable Member
View Badges
Joined
Dec 16, 2017
Messages
5,630
Reaction score
11,885
Location
Austin
I would just time it. 15 seconds, 30 seconds or 1 min, then measure the amount of liquid and then X for gph


Fin

Tank Status: Still Dry
View Badges
Joined
Sep 28, 2013
Messages
6,238
Reaction score
28,868
Location
Lake Charles LA
What is the size of the output on the pump? Is it ¾" (the size of your manifold), or something larger, like 1" or even 1½"? Others can chime in here, but you might be better off if you made your manifold the same size as your pump's output and reduce the size to ¾" at each outlet. From what I have seen on these pages, most people use at least 1" pipe on their manifolds.

Also, maybe manually check your flow rate through your scrubber. You may be getting more than the flow sensor indicates.

OP
richiero

richiero

Well-Known Member
View Badges
Joined
Mar 4, 2013
Messages
744
Reaction score
314
Location
new york
Measure the output of one of the other outlets with a 5 gallon bucket and a timer. Close the UV and scrubber.
It is a start at figuring out the answer to your question.
Will do, thank you

OP
richiero

richiero

Well-Known Member
View Badges
Joined
Mar 4, 2013
Messages
744
Reaction score
314
Location
new york
What is the size of the output on the pump? Is it ¾" (the size of your manifold), or something larger, like 1" or even 1½"? Others can chime in here, but you might be better off if you made your manifold the same size as your pump's output and reduce the size to ¾" at each outlet. From what I have seen on these pages, most people use at least 1" pipe on their manifolds.

Also, maybe manually check your flow rate through your scrubber. You may be getting more than the flow sensor indicates.
The pump has the 1 inch barb on it the tubing is one inch also. I would consider making a new one. I will check the flow manually also. Thank you.

OP
richiero

richiero

Well-Known Member
View Badges
Joined
Mar 4, 2013
Messages
744
Reaction score
314
Location
new york
Hello guys anyone know what type of fitting I would need to make a one inch tee a one inch male thread ??? So I could screw and unscrew my one inch 1/4 values on and off? I’m using these valves with threaded unions.



Thank you


Fin

Tank Status: Still Dry
View Badges
Joined
Sep 28, 2013
Messages
6,238
Reaction score
28,868
Location
Lake Charles LA
OP
richiero

richiero

Well-Known Member
View Badges
Joined
Mar 4, 2013
Messages
744
Reaction score
314
Location
new york
OP
richiero

richiero

Well-Known Member
View Badges
Joined
Mar 4, 2013
Messages
744
Reaction score
314
Location
new york
Yes that’s what I want to do thank you !!!
would this be the same thing ??



Fin

Tank Status: Still Dry
View Badges
Joined
Sep 28, 2013
Messages
6,238
Reaction score
28,868
Location
Lake Charles LA
would this be the same thing ??

No, but it will also accomplish what you want. It just won't fit inside of the T. You would need a short piece of PVC to fit inside of the T and the fitting and the end of the fitting will butt up against the T, but not go inside of it, like the fitting I linked to.

OP
richiero

richiero

Well-Known Member
View Badges
Joined
Mar 4, 2013
Messages
744
Reaction score
314
Location
new york
No, but it will also accomplish what you want. It just won't fit inside of the T. You would need a short piece of PVC to fit inside of the T and the fitting and the end of the fitting will butt up against the T, but not go inside of it, like the fitting I linked to.
Thank you so much, I’m just trying to order everything from the same place so it all come at once.
