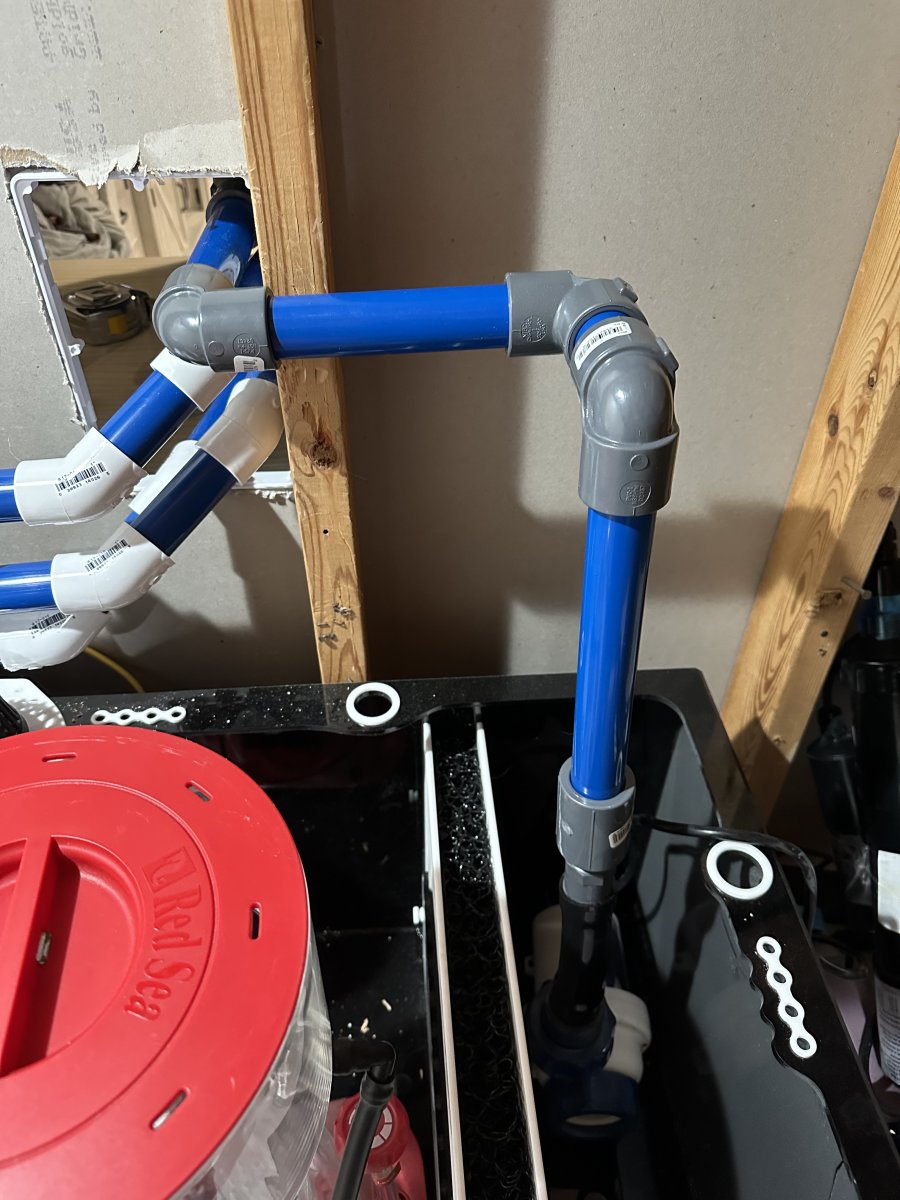

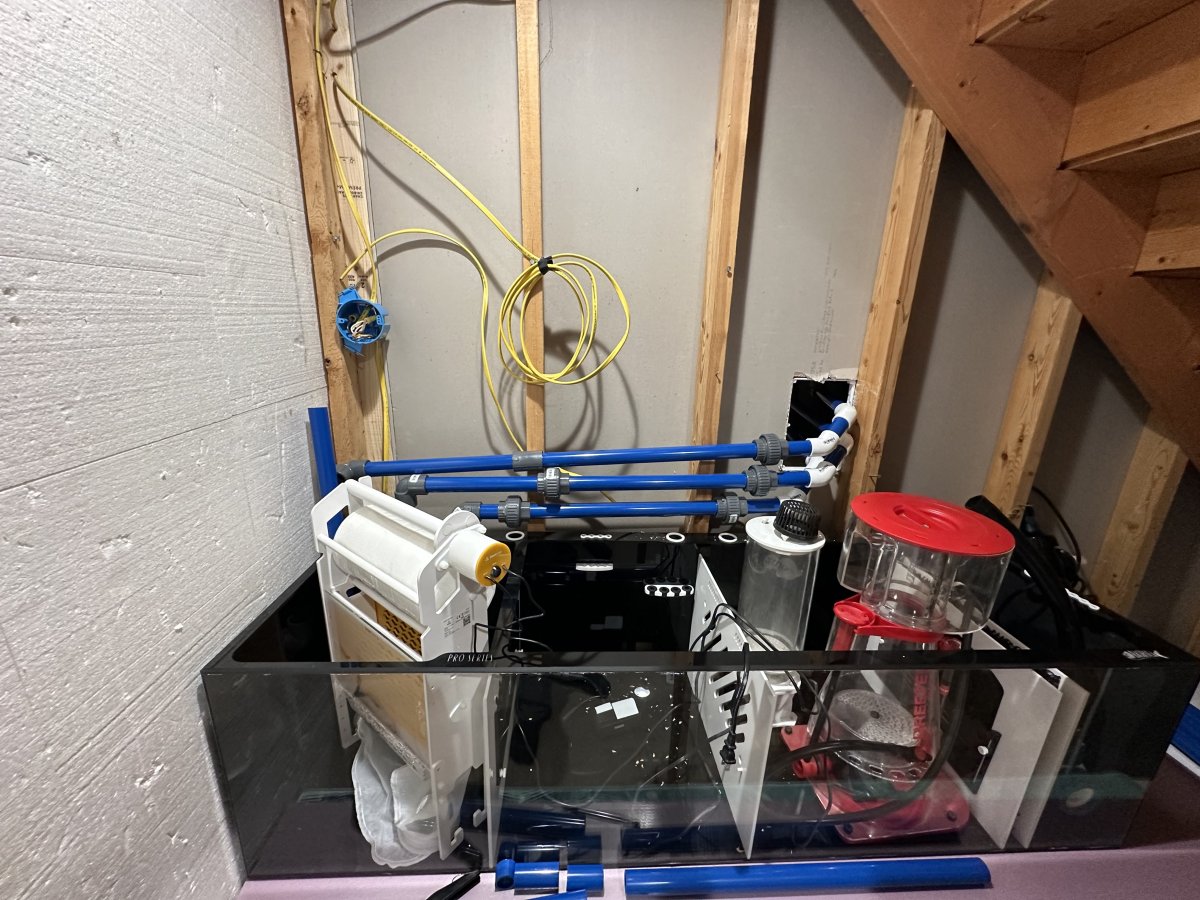

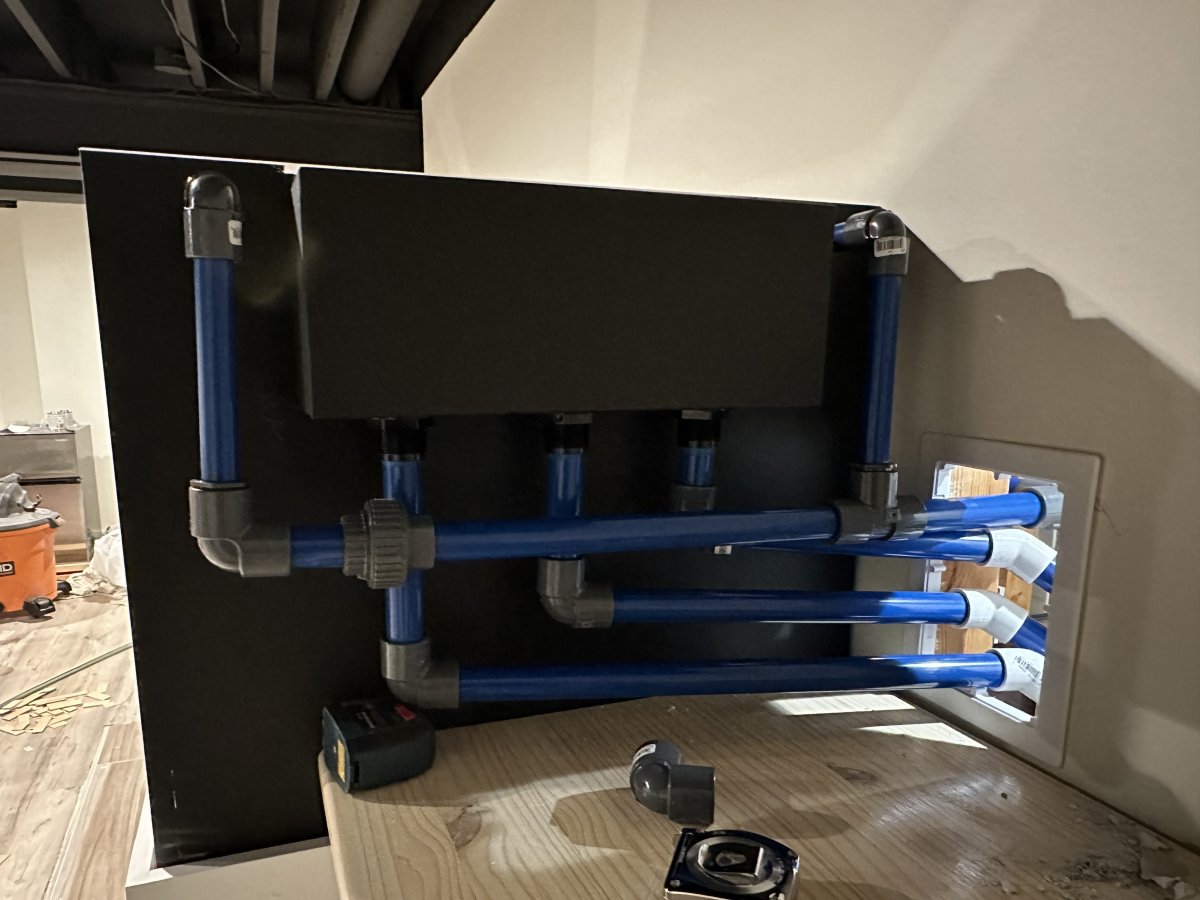

Working on the plumbing for my tank. Still need to glue, strap, and support everything as well as add a valve on my main drain.

Was looking for some advice if I should change anything else before I glue everything up this weekend.

IMG_1603.jpeg IMG_1600.jpeg IMG_1602.jpeg


Peace River

Thrive Master
View Badges
Joined
Apr 29, 2014
Messages
24,792
Reaction score
173,043
Location
USA
Rating - 100%
1   0   0
Add more unions!!! You will appreciate your past self much more in the future!


Cichlid Dad

5000 Club Member
View Badges
Joined
Jul 20, 2022
Messages
5,251
Reaction score
17,010
Location
Auburn
Rating - 0%
0   0   0
I would suggest soft plumbing between return pump and PVC, as many unions as you can. Think about taking everything apart to clean or do maintenance and add unions accordingly. Ball valve same thing, think about where you want to stop water so you can take things apart and clean. Don't forget the oh s@@t factor and place ball valve so in an emergency you can stop all water at once. This has happened to me. Remember to take in account the inside of connections, unions and ball valves have a stop inside and you must take that in account when cutting PVC. Usually 1 1/4 inch each end. Dry fitting won't bottom out on This inner stop. Once you add cement it will easily slide to the stop.


Peace River

Thrive Master
View Badges
Joined
Apr 29, 2014
Messages
24,792
Reaction score
173,043
Location
USA
Rating - 100%
1   0   0
@thomas_neil - it looks like you may have added soft plumbing to connect the return pump to the PVC, however you may consider switching to silicone hose to reduce vibration transfer even more (yes, I realize I am nitpicking, but you asked! :) ).


iReefer12

Valuable Member
View Badges
Joined
Apr 22, 2012
Messages
1,018
Reaction score
877
Location
Boulder, CO
Rating - 100%
2   0   0
Maybe I missed it, but you’ll need a gate valve on the full siphon drain.

I also place unions after the overflow box (under the overflow box). If you ever move, easy to disconnect the tank, also, will be easier to plumb as you can rotate the pipe and subsequently the following elbow to get the alignment just right.

OP
OP
thomas_neil

thomas_neil

Well-Known Member
View Badges
Joined
Aug 7, 2021
Messages
533
Reaction score
308
Location
Grand Rapids
Rating - 0%
0   0   0
Thanks for all the input! Was waiting to do another fittings order until I got some more input. I will definitely get more unions and valves. Probably 1 gate valve for the main over flow and a ball valve for every run of plumbing.

I’ll also look into the silicone soft plumbing over what I currently have. I still need to plumb in my second return that will run the UV/manifold/ and return runs to the opposite side of the tank. The current setup is to get the tank up and running for the cycle.

Thank you all! Oh and happy Halloween!
