Reboot Standard 125. Nothing special here.

Discussion in 'Member Tanks' started by P-Dub, Jan 30, 2018.

  1. Ento-Reefer

    Ento-Reefer Well-Known Member R2R Supporter Partner Member 2019 Build Thread Contributor Delaware Reef Club

    Joined:
    Nov 30, 2017
    Messages:
    655
    Likes Received:
    685
    LOL... well then I guess you are stuck...

    bsn_rn_cen and P-Dub like this.

  2. P-Dub

    P-Dub Valuable Member R2R Supporter R2R Excellence Award Build Thread Contributor Hospitality Award

    Joined:
    Sep 30, 2017
    Messages:
    1,861
    Likes Received:
    4,324
    Location:
    Western Pacific
    Moving along with the sump...

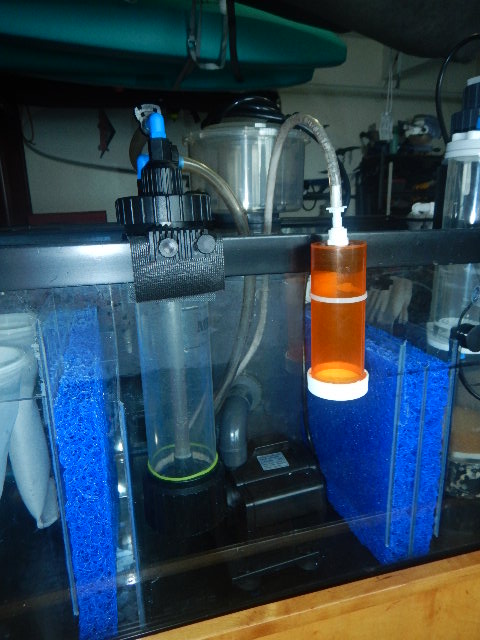

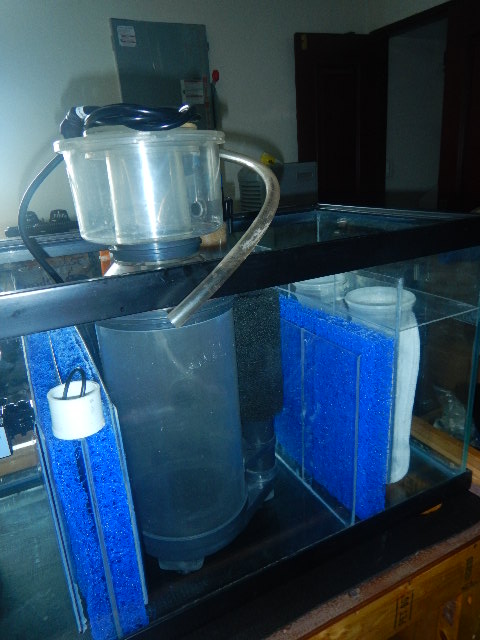

    The middle section is where I have my trusty old ASM. I haven't modified the ASM other than placing some Matala in the needle wheel. If it ain't broke... Wait, it was broke. Ok, I had to replace the pump and the elbow but I went with the same pump. I will see how this works out. I might decide to go with an adjustable DC pump in the future but I'm thinking that it might just complicate things. If anyone can make a suggestion or knows of a pump that will work let me know... I might even convert it to a recirculating skimmer design with a smaller pump and have it fed off of one of the two spare manifold feeds. As well, I have an old fluidized bed reactor that I will be placing bio-beads in instead. I always had the fine sand in there before and I'm not certain what, if any, benefit I had with that but the tank always rocked. Can't seem to source the sand for a fluidized bed so this seems a reasonable alternative. The bio-pellet reactor will be fed off the manifold.
    The little orange prescription bottle you see below is a CO2 filter attached to the air feed for the skimmer that will have color changing absorber in it.

    bsn_rn_cen likes this.
  3. ZaneTer

    ZaneTer Well-Known Member

    Joined:
    Jan 14, 2018
    Messages:
    595
    Likes Received:
    548
    Well done!! Everything is looking great.

    For inside your hood would you consider lining it with sheets of mylar? Its a highly reflective sheet of >95% reflectivity to help you squeeze every bit of par out of your fixtures and help with colour blending. It can be had for quite cheap too.

    It will be very exciting to follow this build thread as it progresses.

  4. P-Dub

    P-Dub Valuable Member R2R Supporter R2R Excellence Award Build Thread Contributor Hospitality Award

    Joined:
    Sep 30, 2017
    Messages:
    1,861
    Likes Received:
    4,324
    Location:
    Western Pacific
    Thanks Zane!
    I had thought about painting the interior of the canopy white but that would require sanding and coating and sanding and coating and ... I got tired thinking about it. Additionally, I didn't want the possibility for any paint to fleck off into the tank. I never even considered mylar. That certainly is a reasonable option. Got a lead on a source? And, how would you recommend installing it? It will be a bit before the tank is up and running so I certainly have the time to implement that modification.

    bsn_rn_cen likes this.
  5. ZaneTer

    ZaneTer Well-Known Member

    Joined:
    Jan 14, 2018
    Messages:
    595
    Likes Received:
    548
    I believe spray on carpet glue would work well but I would still worry about vapours given off. Mylar comes in sheets of various thicknesses.

    I ghetto rigged a previous lid of mine by using tin foil and I loved the amount of extra light. The next time I am home I will have a hood built for the current tank where I will be using Mylar.
    A sheet 5m x 1.2m cost me around $20 and I just used amazon.

    The beauty is it is really easy to cut up and apply to your hood.

    bsn_rn_cen, P-Dub and najer like this.
  6. P-Dub

    P-Dub Valuable Member R2R Supporter R2R Excellence Award Build Thread Contributor Hospitality Award

    Joined:
    Sep 30, 2017
    Messages:
    1,861
    Likes Received:
    4,324
    Location:
    Western Pacific
    I will look into amazon. No free shipping for me though. Maybe brush on contact cement?

    bsn_rn_cen likes this.
  7. ZaneTer

    ZaneTer Well-Known Member

    Joined:
    Jan 14, 2018
    Messages:
    595
    Likes Received:
    548
    That could certainly be a good idea. It should give you a nice smooth flat finish.
    I have absolutely no idea how well it reacts with adhesives but I will do some reading tonight and if I find any suggestions I will let you know. It is very commonly used in the horticultural industry so I am certain many have tried this before us.

  8. ZaneTer

    ZaneTer Well-Known Member

    Joined:
    Jan 14, 2018
    Messages:
    595
    Likes Received:
    548
    You were completely spot on!!
    Contact adhesive is the most common long term option. Alternatively you could even get sheets with that have an adhesive backing, at a price of course.

  9. P-Dub

    P-Dub Valuable Member R2R Supporter R2R Excellence Award Build Thread Contributor Hospitality Award

    Joined:
    Sep 30, 2017
    Messages:
    1,861
    Likes Received:
    4,324
    Location:
    Western Pacific
    I'd be very interested to know. I was thinking about this https://www.amazon.com/VIVOSUN-Myla...-10&keywords=mylar+sheet&th=1#customerReviews just because it is thicker and conceivably, easier to apply.

    bsn_rn_cen likes this.
  10. ZaneTer

    ZaneTer Well-Known Member

    Joined:
    Jan 14, 2018
    Messages:
    595
    Likes Received:
    548
    That is very similar to the one I have gone for. The thickness should certainly mean that it is durable!
    That and you probably have enough to do 10 tanks including refugiums. By the way very nice grow light you chose. UFO style that I haven’t seen a bad review of yet.

    P-Dub likes this.
  11. P-Dub

    P-Dub Valuable Member R2R Supporter R2R Excellence Award Build Thread Contributor Hospitality Award

    Joined:
    Sep 30, 2017
    Messages:
    1,861
    Likes Received:
    4,324
    Location:
    Western Pacific
    I'm looking forward to seeing how the light works long term. Thanks for the vote of confidence. I just changed the water that my rock has been cycling in. Now I just need to test the parameters. It's kinda killing me that I have everything so close to being done and really not being able to move forward. The plus side is when I return from my vacation in May I will likely have a slump in work due to my absence and I will be able to go full steam on the set-up. Trick is, I have to stay away from the email while away.

    bsn_rn_cen likes this.
  12. P-Dub

    P-Dub Valuable Member R2R Supporter R2R Excellence Award Build Thread Contributor Hospitality Award

    Joined:
    Sep 30, 2017
    Messages:
    1,861
    Likes Received:
    4,324
    Location:
    Western Pacific
    I can't believe no one has caught the glaring issue with my return pump set up shown in post #33. I'm going to stay quiet until someone comes forward.

    bsn_rn_cen likes this.
  13. ZaneTer

    ZaneTer Well-Known Member

    Joined:
    Jan 14, 2018
    Messages:
    595
    Likes Received:
    548
    Try to think of it as something very positive to look forward to when you come home.

    On my contracts I am very clear with the employer...do not contact me in my time off. It is something very precious to me. I will not respond to emails for them. It’s a very difficult habit to break but it is one I am grateful I managed to.

    bsn_rn_cen likes this.
  14. najer

    najer Valuable Member

    Joined:
    Jul 9, 2016
    Messages:
    5,772
    Likes Received:
    26,255
    Location:
    England Earth
    It's going to pump the water from the fuge pretty much straight back into the display?

    bsn_rn_cen and P-Dub like this.
  15. P-Dub

    P-Dub Valuable Member R2R Supporter R2R Excellence Award Build Thread Contributor Hospitality Award

    Joined:
    Sep 30, 2017
    Messages:
    1,861
    Likes Received:
    4,324
    Location:
    Western Pacific
    My employer, myself, allows no such latitude. ;)

    bsn_rn_cen likes this.
  16. P-Dub

    P-Dub Valuable Member R2R Supporter R2R Excellence Award Build Thread Contributor Hospitality Award

    Joined:
    Sep 30, 2017
    Messages:
    1,861
    Likes Received:
    4,324
    Location:
    Western Pacific
    This, it will do... along with a diversion to the manifold but, this is the purpose of the return pump. We want to have the most direct route for copepods to make it to the display. There is still an issue. I'll give you a hint... Maintenance. Another hint... it is this way due to space constraints.

    bsn_rn_cen likes this.
  17. P-Dub

    P-Dub Valuable Member R2R Supporter R2R Excellence Award Build Thread Contributor Hospitality Award

    Joined:
    Sep 30, 2017
    Messages:
    1,861
    Likes Received:
    4,324
    Location:
    Western Pacific

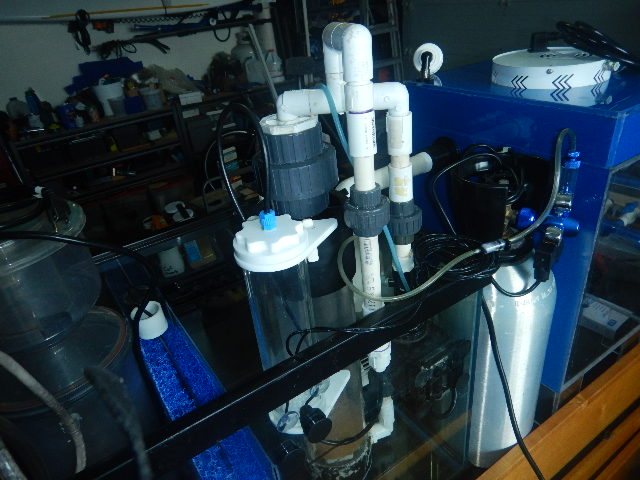

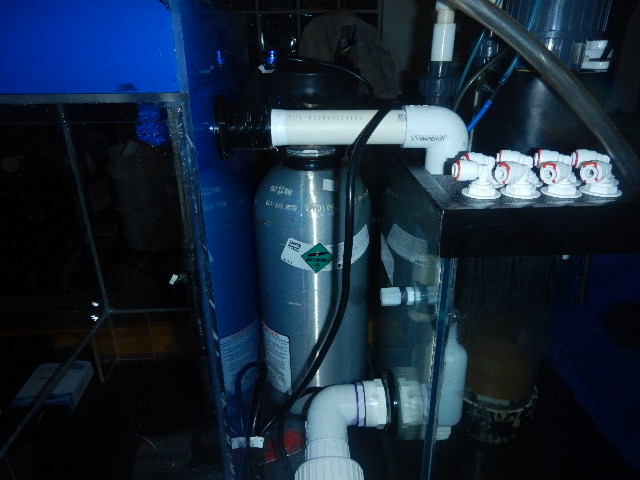

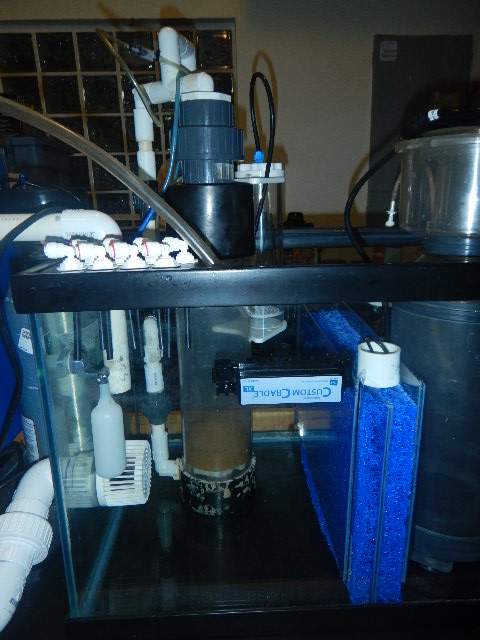

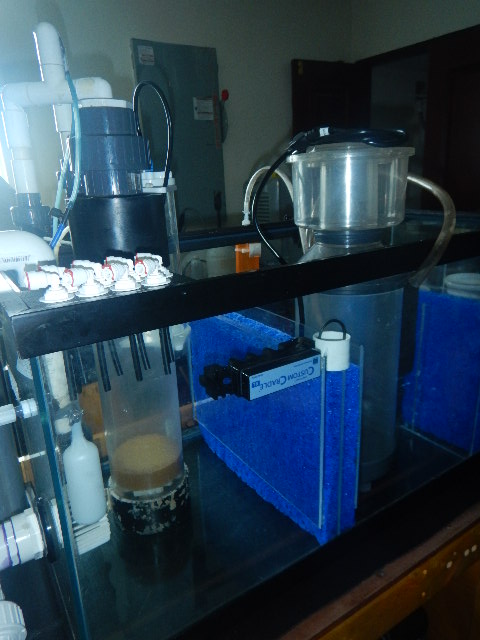

    And, finally the last chamber of my DIY sump. This is the location that the ATO sensors will be as this is the chamber that should fluctuate with evaporation, even with the Fuge dumping back into this chamber. Essentially, the Fuge fill and dump constitute a closed loop system, sort of, and should not affect the final chamber water level, unless I'm missing something. In this last chamber is my DIY calcium reactor, the float for redundant back up of the ATO, my PH probe and thermometer connected to the Apex, as well as the dosing pumps depository area, for lack of a better term, and the float level that controls the VarioS6 for low water shut off. Just before the final chamber is a three baffle in a high-low-high configuration with the Matala sheets as a bubble trap. I could be missing something here but this ought to work.

    bsn_rn_cen likes this.
  18. najer

    najer Valuable Member

    Joined:
    Jul 9, 2016
    Messages:
    5,772
    Likes Received:
    26,255
    Location:
    England Earth
    No isolation valve so you will need to drain that sump section to remove / maintain it?

    bsn_rn_cen and P-Dub like this.
  19. P-Dub

    P-Dub Valuable Member R2R Supporter R2R Excellence Award Build Thread Contributor Hospitality Award

    Joined:
    Sep 30, 2017
    Messages:
    1,861
    Likes Received:
    4,324
    Location:
    Western Pacific

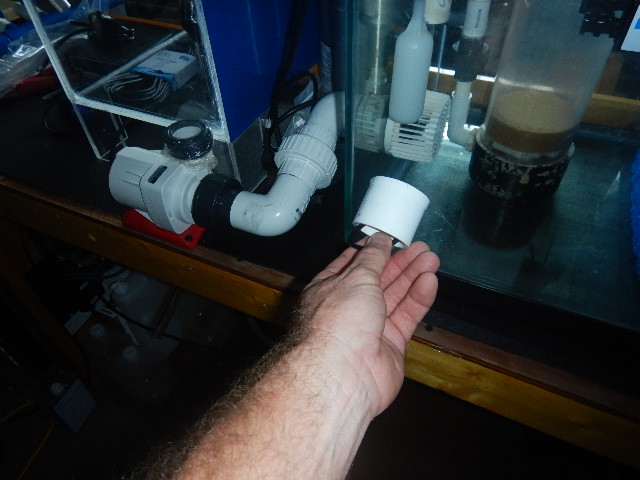

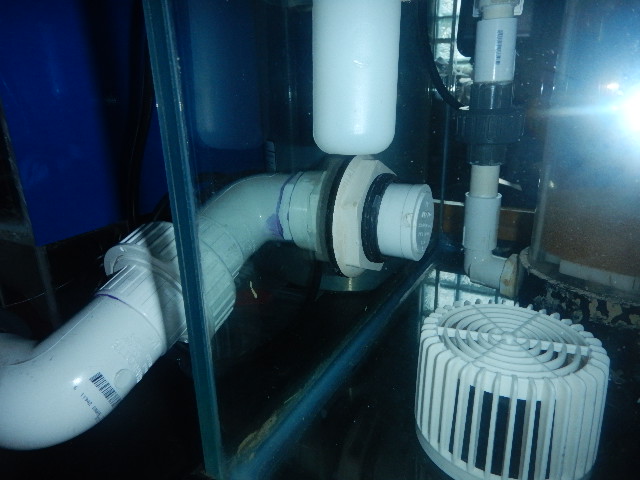

    BINGO! But I have a workaround. Not so elegant but it will work and I will have to get my hand wet but what reefer doesn't get their hands wet. The workaround pictured below. It is a slip-fit on the interior of the bulkhead so...

    bsn_rn_cen and najer like this.
  20. najer

    najer Valuable Member

    Joined:
    Jul 9, 2016
    Messages:
    5,772
    Likes Received:
    26,255
    Location:
    England Earth
    How much water will the fuge put in to sump on a pump fail?
    Neat fix by the way, you obviously planned it that way! ;)

    bsn_rn_cen and P-Dub like this.
