Hello R2R!

My partner and I have his and hers tanks- I have a RSR350 in my home office, while she has a freshwater Oase Highline 300 in our living room. Well, had... The Oase started splitting at one end after just 3 years. Thankfully, we caught it before any major damage was done but we made the decision to condense into a single saltwater tank, in the largest size we could reasonably fit in our living room. Enter the Reefer 425!

An old pic but this was the freshwater setup



Also an old pic but this was the 350 about 2 years ago (apparently I don't take enough tank pics...)



The 425 was ordered through my LFS who helpfully had it delivered to the store, enabling me to pick up and build the cabinet before they brought the tank over.

Delivery day!

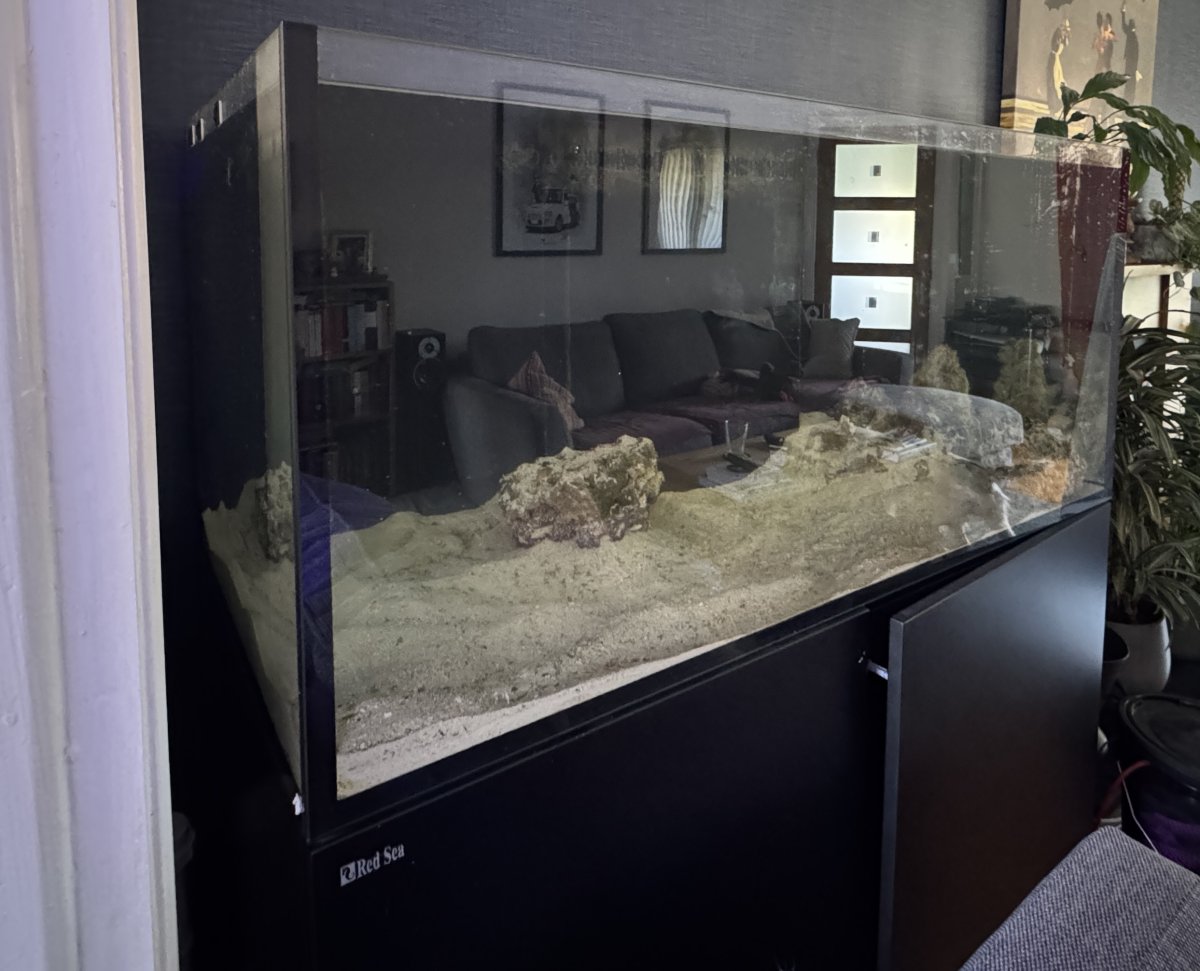

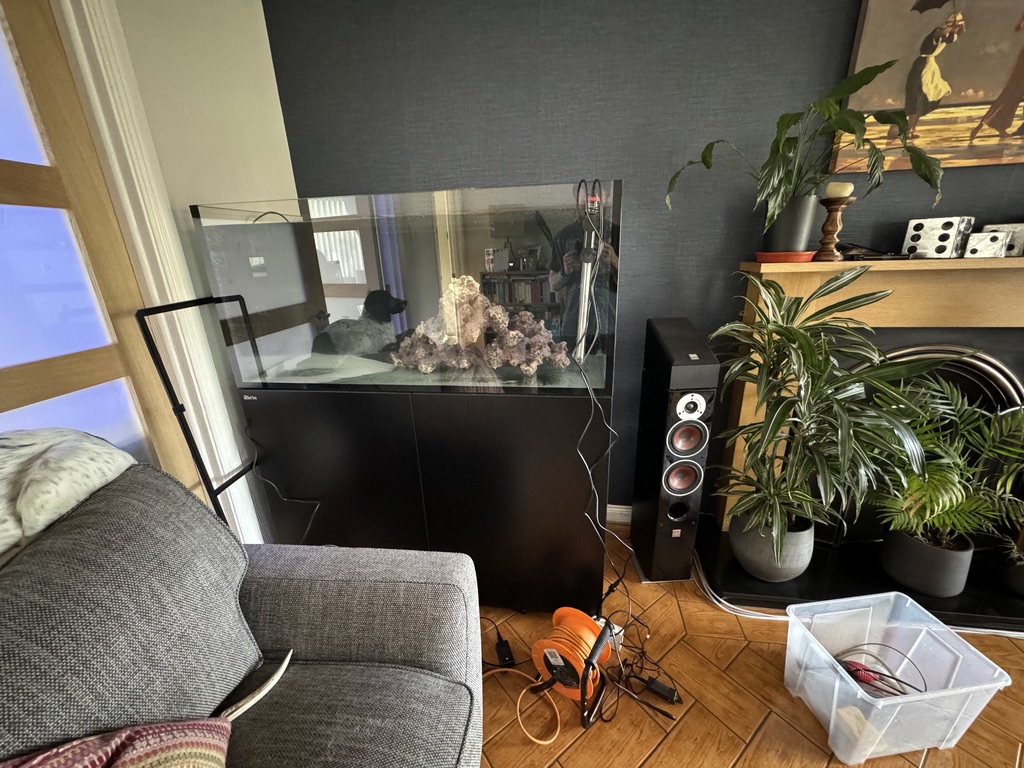

Leak testing / making 425L saltwater in the new tank. The plan is to drain ~20% from the 350 into a container, refill with fresh saltwater from the 425, fill 425 with old water, rinse and repeat. It means I'm wasting a lot of saltwater but don't have the complication of worrying about acclimatising livestock or how much water I have come moving day. Both tanks will be full of identical, relatively fresh water, so livestock can be hoofed directly from one tank to the other when ready.


OP
OP
AmateurAlchemist

AmateurAlchemist

LPS Aficionado
View Badges
Joined
May 3, 2024
Messages
69
Reaction score
98
Location
UK
Rating - 0%
0   0   0
Equipment
Most kit will be coming from the old tank, unsurprisingly.

Transferred
Reef Octopus Varios 8 return pump
Reef Octopus Regal 150-S skimmer
Red Sea Reefmat 500
GHL Profilux 4
GHL slave dosers x2
GHL Powerbar
GHL Mitras 7204 on GHL mounts x2
Some Caribsea Life Rock
Caribsea Ocean Direct Live sand

Expelliarmus
Reef Octopus OP-2 x2 (the keen eyed will have spotted the MP40s in the original 350 shot- the flow was too much in the 350 for my small LPS collection, so were switched out for OP-2s later)
GHL slave Maxi doser (used for ATO)
D-D 20w UV
Reef Octopus Varios 6 return pump (used for closed loop through UV)
GHL flow meters, redox sensor, level sensors for ATO reservoir and sump (simplifying where possible)
Eheim Thermocontrol E 250w
Reef Octopus Skimmer cleaner

Additions
Ecotech Vortech MP40 x2
Red Sea ReefATO
Adaptive Reef cabinet + GHL face plates
Reef Octopus ST-1 skimmer stand
Evolution Aqua 25w Pond UV
Caribsea Life Rock Shapes
Caribsea Ocean Direct Live sand
D-D 250w Titantium Heater + controller
A new Red Sea DIY net / cover

Equipment Change Thoughts / Ramblings of a Madman
The old 350 had a small cabinet on each side of the tank, meaning space for equipment was abundant. I've had to get a bit more creative to fit all of the gadgets I so love and depend on under the 425. Essentially, I have space for the 6 socket GHL Powerbar + a 6 socket multisocket and there lies one of the big constraints- I don't want to daisy chain power strips or any of that nonsense, so anything I could live without or simplify was sorted at this stage.

Vortechs - simply the best powerheads out there in my opinion. I much prefer not having cables in the tank- it means I can have a tighter fitting net and cleaning is much easier, which means I'm more likely to do it.

Red Sea ReefATO - it came with the tank, plus, the Maxi doser was LOUD and bulky. ReefATO has the advantage of adding another temp sensor and leak sensor with 0 cost and minimal bulk.

Reef Octopus Skimmer Stand - allows placing the skimmer in the refugium area while maintaining a more appropriate water level for the skimmer without losing aeration provided by leaving the refugium divider in place. This also allows more space for the UV on the back wall.

Evolution Aqua Pond UV - the pond UV is identical to the aquarium UV except the fittings are glued into the aquarium UV which massively restricts flow. Using the pond UV allows the use of 40mm x 1 1/2" fittings. With 2000LPH of available throughput, the return pump runs through the UV, removing the noise, maintenance, space and power that comes with a dedicated UV pump.

D-D Titanium Heater - the Eheim Thermocontrol heaters are the best I've found for temperature control but never last more than a year, even with deliberately undersizing the heater to reduce switching cycles. The D-D is more robust and much more compact. Having dropped the D-D on my foot, I can assure you it's made of strong stuff.

Reef Octopus Skimmer Cleaner - I loved this thing but didn't have the power outlet spare. On the 350, the skimmer was buried at the back so never got cleaned. Now that the skimmer more accessible, the plan is to clean it manually more regularly.

Plumbing
Custom. 32mm up to the tank, then splits into 2 x 25mm. The surface area of 2 x 25mm and 32mm are within about 13% of each other so I didn't see the point in going up to 40mm out of the pump as originally intended. Reef Octopus oddly supply a fitting for approximately 42mm piping (hard to say exactly, not a standard size in this part of the world) with the bigger Varios pumps but the outlet is much closer to 32mm.



Last edited:
OP
OP
AmateurAlchemist

AmateurAlchemist

LPS Aficionado
View Badges
Joined
May 3, 2024
Messages
69
Reaction score
98
Location
UK
Rating - 0%
0   0   0
Livestock
Fish

2 x Picasso clownfish - had these guys a few years now, seem to be pair but don't spawn. Super chill, always come to say hi, couldn't ask for better
Squaretail bristletooth tang - model citizen
Banggai Cardinalfish
Peppermint Shrimp - had it for three years, literally never seen it, it leaves a moult out now and again to let me know it's still alive
Flame angel - tank bell end. Everyone is happier when someone keeps him in check
Mystery wrasse
Citron Clown Goby
Red Foxface
Algae Blenny
Turbo, bumblebee and nassarius snails x?
Tuxedo urchin x2

Coral
Green hammer
Blue branching hammer
Dragon soul torch
Toxic green torch
Duncan
Favia
Galaxea
Super red Goniopora
Candy cane
Blue + red Trachy
Green splatter Trachy
Chalice
Cyphastrea
Alveopora
Green bubble
Blue bubble
Green / blue tipped frogspawn
Orange oxide Zoa
Blue Pocillopora
Plating Montipora
Orange tipped Elegance
Yellow + green Fungia
Toadstool


Future Plans
+ Gem tang (on order, ~2 weeks out)
- Squaretail
+ Yellow Dottyback
+ Copperband Butterfly
+ Scooter Blenny
+ Indo torch
+ Gobstopper Zoa
Enjoy?



OP
OP
AmateurAlchemist

AmateurAlchemist

LPS Aficionado
View Badges
Joined
May 3, 2024
Messages
69
Reaction score
98
Location
UK
Rating - 0%
0   0   0

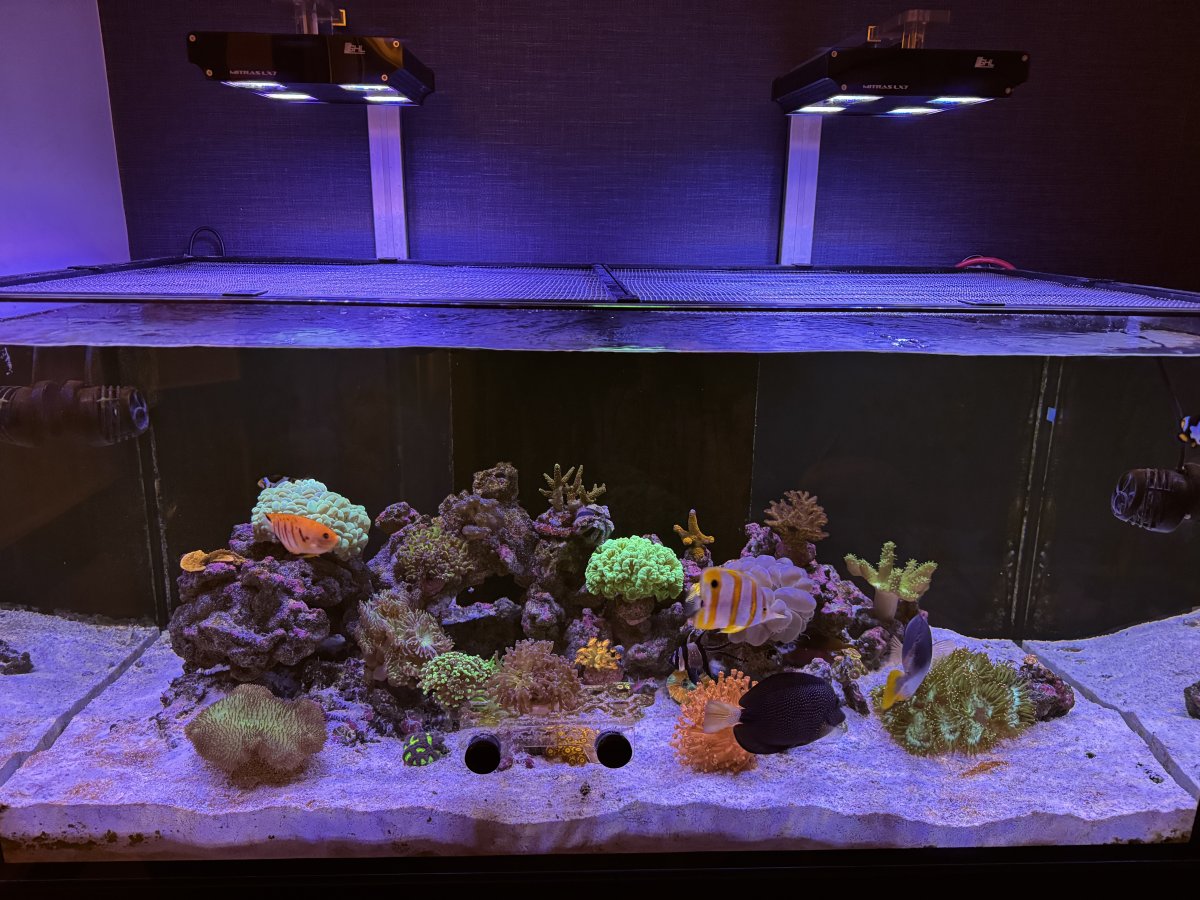

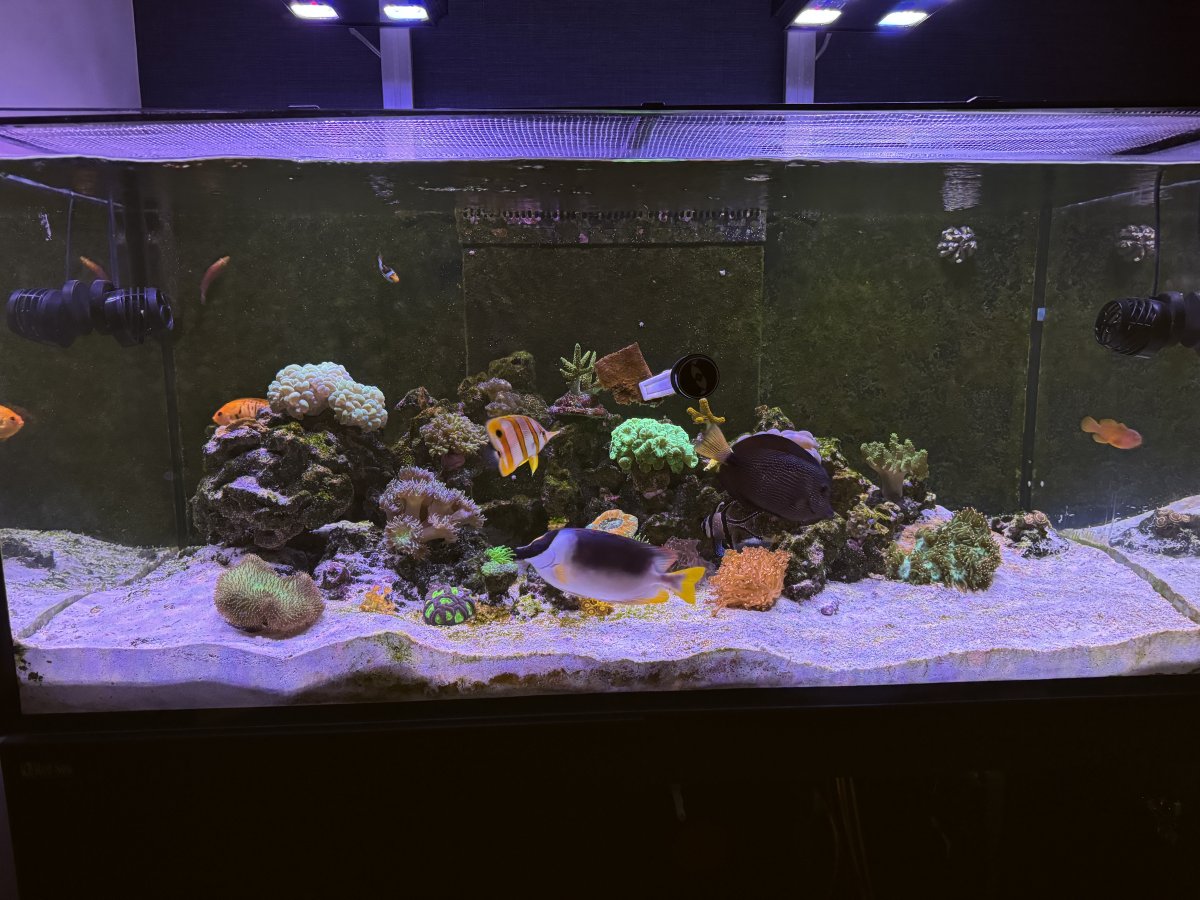

Moving day was long but everyone made it! FTS showing the scape a few days after moving. Some corals have moved since this, some corals need to be moved; and I'm still perfecting the flow. Cyano is appearing on the sand bed but with the UV running as of a few days ago it already seems to be regressing.


OP
OP
AmateurAlchemist

AmateurAlchemist

LPS Aficionado
View Badges
Joined
May 3, 2024
Messages
69
Reaction score
98
Location
UK
Rating - 0%
0   0   0
Quarantine
I've never bothered with quarantine and have been, admittedly, very lucky, having only had a few minor coral pests. It's getting to the point that I have so much time and money in this that I decided to quit while I'm ahead and get a QT tank for new additions.

I initially ordered a TMC Next Wave 60 and it was woefully bad. The cabinet fell apart under it's own weight because the tolerances were so sloppy on one side. The tank was cracked, scored and scuffed with no shipping damage. The silicone was so flimsy that the glass rattled when lifting the tank. With that returned, I bit the bullet and got a Red Sea Nano Max. What a difference...! They're very well built and aside from a heater, include everything needed in a single box.

With that installed, it was time for a new arrival. A fish I've wanted for many years but never had a display big enough to accommodate. Zebrasoma gemmatum- the gem tang. Just a few minutes after going into the tank it was already colouring up and picking at rocks from the DT sump.

Screenshot 2024-07-13 at 15.11.03.png

OP
OP
AmateurAlchemist

AmateurAlchemist

LPS Aficionado
View Badges
Joined
May 3, 2024
Messages
69
Reaction score
98
Location
UK
Rating - 0%
0   0   0
Quick photo dump! Life has gotten in the way recently but both the copperband and gem have been eating like a horse.

I've been struggling with flow and moved back to Reef Octopus OP-2s with 0-10v control via GHL. The Vortechs kept having time-sync issues and I was continuously seeing flow go from non-existent to blasting flesh off. I lost several torches sadly and I'd largely attribute it to uncontrollable fluctuations in flow. That in conjunction with constant rattling meant they had to go...

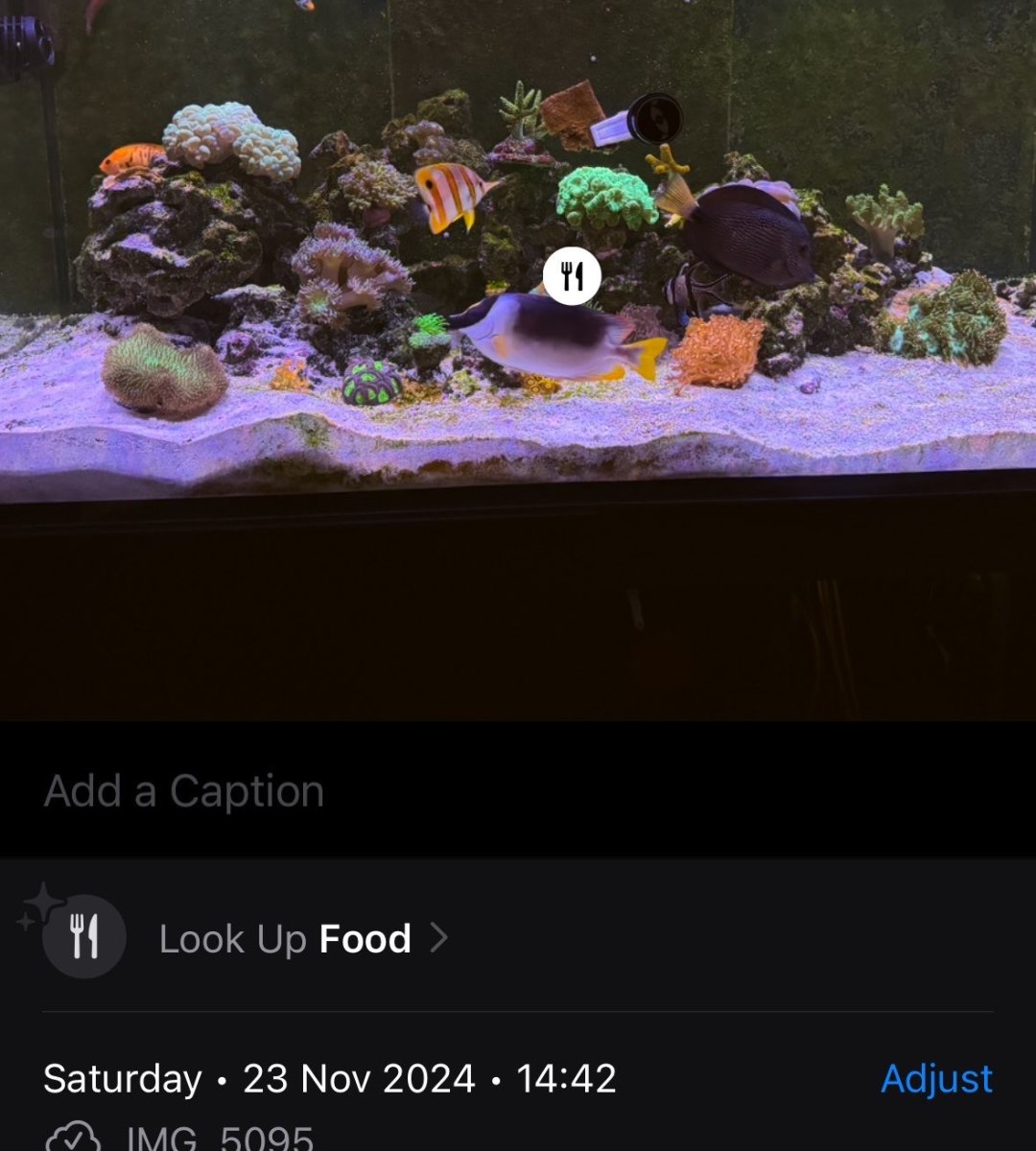

No, Siri, friend, not food!

OP
OP
AmateurAlchemist

AmateurAlchemist

LPS Aficionado
View Badges
Joined
May 3, 2024
Messages
69
Reaction score
98
Location
UK
Rating - 0%
0   0   0
Found a few old photos of my oldest / favourite corals

Dougie the Duncan, bought as a single head. Poor thing has had to put up with all of the noob mistakes over the years. I have a few shiny trinkets but would still be most upset about losing this!



Pink Goniopora
Screenshot 2024-12-12 at 12.22.18.png



Candy Cane
Screenshot 2024-12-12 at 19.08.15.png


I really need to frag this, it's squashed in on all sides now!


Honourable mention for all of my favourite torches too
Screenshot 2024-12-12 at 19.11.07.png

Oh...

I love me some fancy things but sometimes the overlooked "easy" things bring me the most happiness!

Happy reefing all!

OP
OP
AmateurAlchemist

AmateurAlchemist

LPS Aficionado
View Badges
Joined
May 3, 2024
Messages
69
Reaction score
98
Location
UK
Rating - 0%
0   0   0
Good and bad news today.

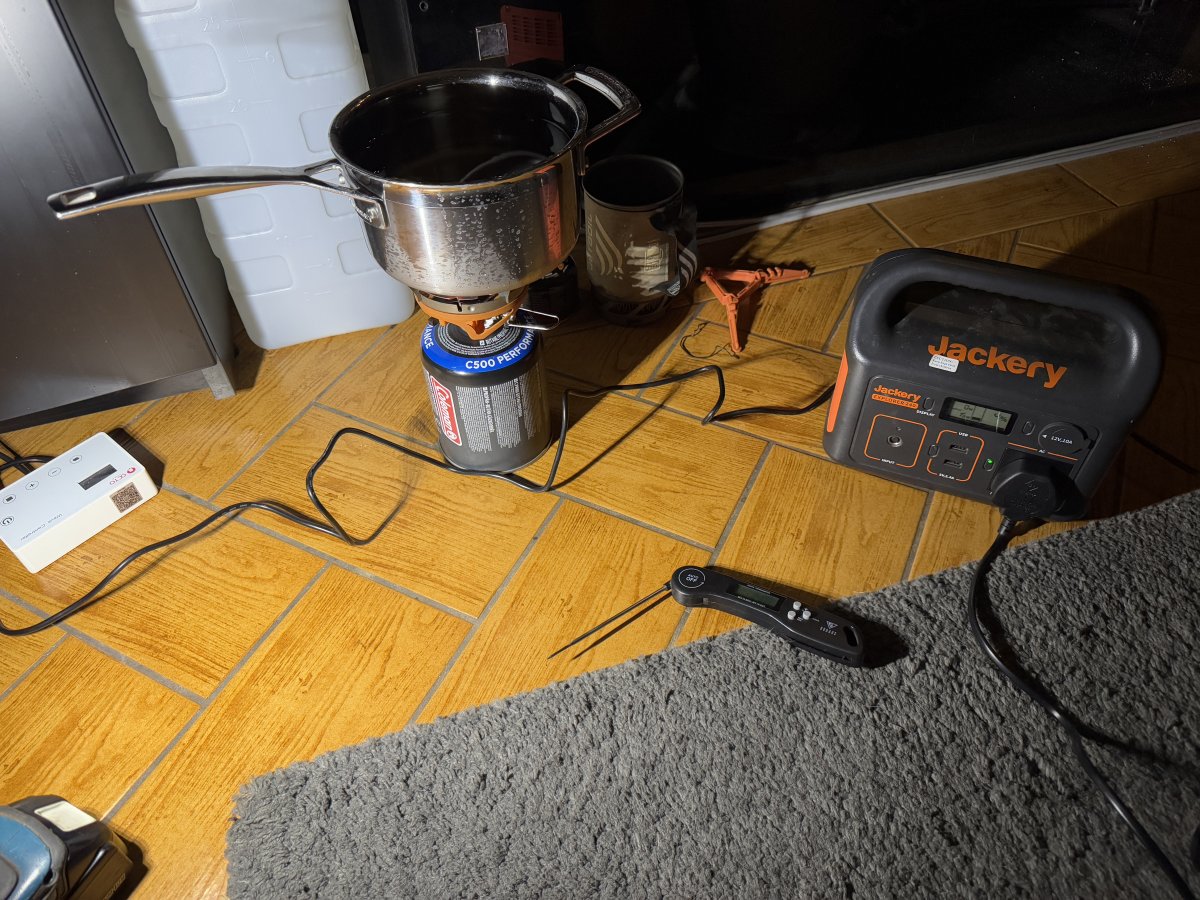

Northern Ireland was hit by a storm the likes of which we’ve barely seen before. The storm was predicted to be the worst in 27 years. Wind speeds were expected to be up to 90MPH but well over 100MPH was recorded in places. We’re safe, thankfully, but were without power for 18 hours. This was the scene at 11PM last night- a Jackery running powerheads on minimum speed and a gas camping stove to gently heat tank water. The Jackery finally gave up shortly after.


The good news is our power came on an hour later. Everyone is a bit stressed but seemingly unscathed.

Many in my local reefing group are emptying tanks today. A few are dealing with much worse still.

Always have a backup!

OP
OP
AmateurAlchemist

AmateurAlchemist

LPS Aficionado
View Badges
Joined
May 3, 2024
Messages
69
Reaction score
98
Location
UK
Rating - 0%
0   0   0
Photo dump time! Not bad for a tank that just had no power for 18 hours!



Attachments

  • IMG_5394.JPG
    215.2 KB · Views: 11
  • IMG_5407.JPEG
    155.6 KB · Views: 15
  • IMG_5406.JPG
    157.6 KB · Views: 17
  • IMG_5405.JPG
    181.9 KB · Views: 12
  • IMG_5403.JPEG
    137.9 KB · Views: 14
  • IMG_5402.JPEG
    190.4 KB · Views: 11
  • IMG_5400.JPG
    140 KB · Views: 17
  • IMG_5399.JPEG
    130.1 KB · Views: 10
  • IMG_5398.JPEG
    225.7 KB · Views: 12
OP
OP
AmateurAlchemist

AmateurAlchemist

LPS Aficionado
View Badges
Joined
May 3, 2024
Messages
69
Reaction score
98
Location
UK
Rating - 0%
0   0   0
"It never rains but it pours"
I was enjoying just how fantastically quiet my tank is... when I realised it was a little too quiet. The return pump power supply had failed. It's a Reef Octopus Varios 6 which I rate, but it's only a month out of warranty, so that's a bit disappointing. Thankfully, the water temp had barely dropped, so I must have noticed shortly after it happened; and I had a spare massive Eheim AC pump.

Some temporary jank-

Screenshot 2025-01-30 at 16.59.27.png


Even more thankfully a semi-local store had a spare power supply in stock. Reef Octopus stuff is very difficult to get in the UK at the minute. Here's hoping the rest of the pump lasts longer.

With that, I come back to my previous point- always have a backup!
