Hey and hello

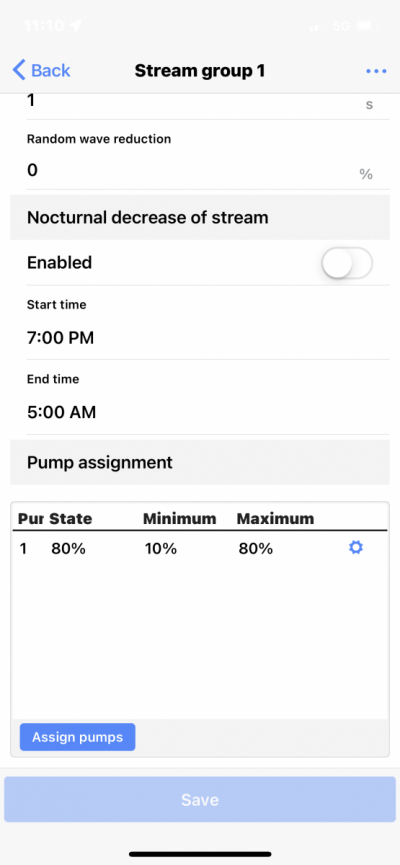

I recently set up my reef oct to the 0-10v interface. I also set up the stream group and min max. My question is how do I adjust the power output of the skimmer on the interface? I am running my skimmer at the eco mode level prior to adding the 0-10v and would like to adjust it accordingly through the app. The idea being able to adjust it to the next speed if needed. Not sure if by changing the output in the interface, it reflects on the RO controller. Or do I have to run it at max speed and adjust it from there from the 0-10v? Thank you in advance

F43540C7-1AB0-46C9-9904-010269BC08ED.png 01B82BC1-3668-445B-8430-175B2BC0D74F.jpeg BFFB8FCE-3FB6-43CF-8717-DB61E995698B.png


*Ruffian*

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 23, 2019
Messages
54
Reaction score
32
Review score
+0 /0 /-0
This is for my Varios 8 return pump. I slow the return during my feedings. Once you plug in the 0-10v cable it overrides the controller from what I have experienced.

If you have a float switch that will still shut off the pump.

Screenshot_20220401-170525_GHL Connect.jpg

OP
Not an IT guy

Not an IT guy

Active Member
Review score
+2 /0 /-0
View Badges
Joined
May 23, 2019
Messages
385
Reaction score
528
Review score
+2 /0 /-0
Location
Los Angeles
This is for my Varios 8 return pump. I slow the return during my feedings. Once you plug in the 0-10v cable it overrides the controller from what I have experienced.

If you have a float switch that will still shut off the pump.

Screenshot_20220401-170525_GHL Connect.jpg

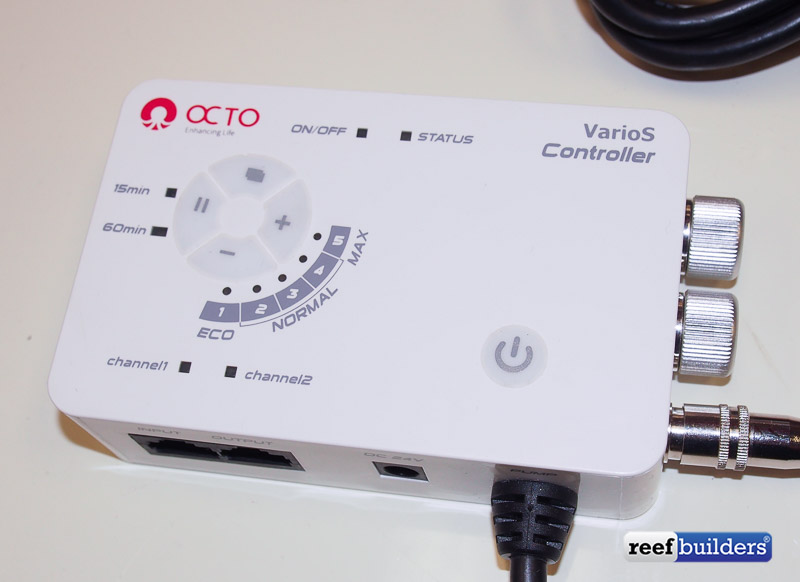

Yes that’s what I figured. So my skimmer, I run at 1 on the RO controller. Anything after that, the skimmer goes crazy. I wanted to know who to control that through the 0-10 interface. I can assume that the RO controller 1-5 in increments of 20% power How does that translate in the Ghl interface ? And does it reflect on the RO controller from the Ghl interface ?


*Ruffian*

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 23, 2019
Messages
54
Reaction score
32
Review score
+0 /0 /-0
I just checked my system. Changing RO contoller doesn't effect pump and changing GHL doesn't effect controller.

I think you need to play around with the percentages to get it set where you like. Hard to say if GHL 20% is click one of the RO controller. I think it is close because I was running on click 2 and my GHL is at 38%.


Macca_75

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 31, 2019
Messages
320
Reaction score
147
Review score
+0 /0 /-0
Hey and hello

I recently set up my reef oct to the 0-10v interface. I also set up the stream group and min max. My question is how do I adjust the power output of the skimmer on the interface? I am running my skimmer at the eco mode level prior to adding the 0-10v and would like to adjust it accordingly through the app. The idea being able to adjust it to the next speed if needed. Not sure if by changing the output in the interface, it reflects on the RO controller. Or do I have to run it at max speed and adjust it from there from the 0-10v? Thank you in advance

F43540C7-1AB0-46C9-9904-010269BC08ED.png 01B82BC1-3668-445B-8430-175B2BC0D74F.jpeg BFFB8FCE-3FB6-43CF-8717-DB61E995698B.png

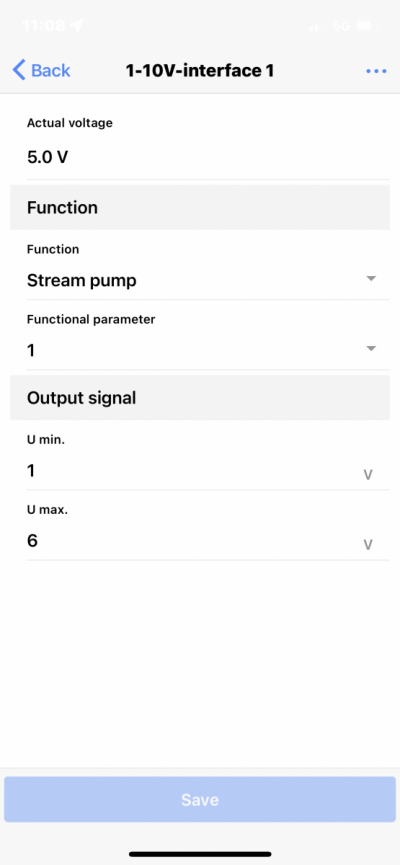

The UMin and UMax are important. The way you have it 100% on the controller will result in a 6v output.

That same 6v (when input to the RO controller) will mean "run the pump at 60%"

My suggestion would be make the UMax = 10.

Then anything you set on GHL is reflected at the controller correctly.
