Well I just upgraded to the V3.0 and everything except the lights seems to be working fine.
I have added a driver for PCA9685 and then the jacks were also added, but when I try to set my lights profile I am getting the validation error as

```
"The light settings cannot be saved due to validation errors. Please correct the errors and try again."
```

The validation error does not really anything about the error. Also my logs are showing that the system is trying to change the pwm values as below:

```
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-3 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 10
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-4 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 11
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-1 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 8
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-2 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 9
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-3 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 10
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-4 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 11
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-1 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 8
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-2 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 9
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-3 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 10
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-4 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 11
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-1 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 8
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-2 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 9
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0

```

Urtoo

Urtoo

Well-Known Member
View Badges
Joined
Jul 1, 2019
Messages
688
Reaction score
865
Rating - 0%
0   0   0
I am getting errors and 500's. Frustrated and waiting now for full release in a few weeks. Back to HomeAssistant until then for me :(

Nutramar Foods
OP
OP
Ranjib

Ranjib

7500 Club Member
View Badges
Joined
Apr 16, 2016
Messages
9,876
Reaction score
16,680
Location
Pleasant Hill, Concord
Rating - 0%
0   0   0
adityaduggal said:
Well I just upgraded to the V3.0 and everything except the lights seems to be working fine.
I have added a driver for PCA9685 and then the jacks were also added, but when I try to set my lights profile I am getting the validation error as

```
"The light settings cannot be saved due to validation errors. Please correct the errors and try again."
```

The validation error does not really anything about the error. Also my logs are showing that the system is trying to change the pwm values as below:

```
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-3 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 10
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-4 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 11
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-1 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 8
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-2 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 9
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-3 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 10
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-4 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 11
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-1 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 8
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-2 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 9
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-3 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 10
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-4 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 11
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-1 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 8
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting subsystem: Setting Light: LED Strip 03 Channel: channel-2 Value: 0
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 lighting-subsystem: Setting PWM value: 0 at channel: 9
Nov 10 10:35:25 aquarium reef-pi[300]: 2019/11/10 10:35:25 onTime 0 offTime 0

```
Click to expand...
3.0 light ui is being worked on as I write this post. I am likely to cut another beta release next week that will have light UI support. I am assuming you are seeing these errors in the latest beta release

OP
OP
Ranjib

Ranjib

7500 Club Member
View Badges
Joined
Apr 16, 2016
Messages
9,876
Reaction score
16,680
Location
Pleasant Hill, Concord
Rating - 0%
0   0   0
Urtoo said:
I am getting errors and 500's. Frustrated and waiting now for full release in a few weeks. Back to HomeAssistant until then for me :(
Click to expand...
With 3.0 beta? which module? It will be helpful for us to know the extent of errors. I'll make sure we have tested all those paths as part of the final release

OP
OP
Ranjib

Ranjib

7500 Club Member
View Badges
Joined
Apr 16, 2016
Messages
9,876
Reaction score
16,680
Location
Pleasant Hill, Concord
Rating - 0%
0   0   0
b4tn said:
@Ranjib my wifes wedding ring lost a couple diamonds over the summer. She had been asking me to get her a new ring. So I bought her a new ring ...... and a pair of reefi extreme’s :)
Click to expand...
Makes so much sense :-) , happy wife == happy life

burningbaal

burningbaal

Active Member
View Badges
Joined
Aug 13, 2019
Messages
232
Reaction score
252
Location
Near Seattle
Rating - 0%
0   0   0
I think my temp issue is a general i2c issue. It works for a variable number of minutes/hours after I reboot the pi, then dies. this pair of errors are always there after a failure...maybe I'll do some research about resolving rpi i2c issues

Nov 10 20:23:32
Failed to initialize i2c. Error:open /dev/i2c-1: no such file or directory

Nov 10 20:23:24
temperature sub-system. Failed to read sensor temp (return). Error:open /sys/bus/w1/devices/28-01191245a033/w1_slave: no such file or directory

Des Westcott

Des Westcott

Well-Known Member
View Badges
Joined
May 29, 2018
Messages
646
Reaction score
1,025
Location
Durban - South Africa
Rating - 0%
0   0   0
Previously, when a Macro was running, the "run" box would change to "running" showing you a macro was running. Is there any other way to show easily a Macro is running? Not possibly some chance of a "widget" type thing on the Dashboard sometime in the future?

View ReefStash's latest YouTube video!
OP
OP
Ranjib

Ranjib

7500 Club Member
View Badges
Joined
Apr 16, 2016
Messages
9,876
Reaction score
16,680
Location
Pleasant Hill, Concord
Rating - 0%
0   0   0
burningbaal said:
I think my temp issue is a general i2c issue. It works for a variable number of minutes/hours after I reboot the pi, then dies. this pair of errors are always there after a failure...maybe I'll do some research about resolving rpi i2c issues

Nov 10 20:23:32
Failed to initialize i2c. Error:eek:pen /dev/i2c-1: no such file or directory

Nov 10 20:23:24
temperature sub-system. Failed to read sensor temp (return). Error:eek:pen /sys/bus/w1/devices/28-01191245a033/w1_slave: no such file or directory
Click to expand...
i2c issue happens when i2c bus is not enabled. raspi-config is used to set it. Once done it does not need to tweaked till reimage.
The second issue is one wire/ temperature probe. Thats different than the i2c issue. Nothing physical changed?

OP
OP
Ranjib

Ranjib

7500 Club Member
View Badges
Joined
Apr 16, 2016
Messages
9,876
Reaction score
16,680
Location
Pleasant Hill, Concord
Rating - 0%
0   0   0
View ReefStash's latest YouTube video!
adityaduggal

adityaduggal

New Member
View Badges
Joined
Nov 4, 2019
Messages
6
Reaction score
9
Rating - 0%
0   0   0

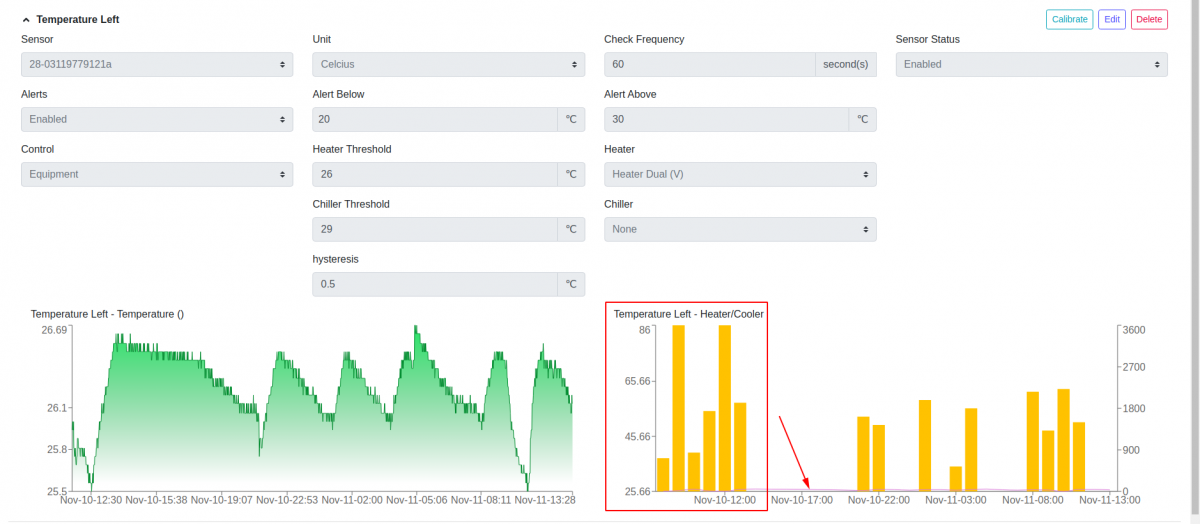

Just found a small bug on v3.0-beta release, the graph on the Temperature page for the heater duration is taking the Y-Axis values improperly. See the image below:


Since the Y-Axis is starting from 25.66 but till 86 I think that value came from the Deg F range and hence it basically means that the line for temperature is almost not visible in this heater graph. Should I create a github issue or posting on the forums is sufficient?

B

Blaxkin

Community Member
View Badges
Joined
Oct 4, 2019
Messages
27
Reaction score
46
Rating - 0%
0   0   0
is there any way to eliminate the 127 and 85 degree peaks from ds18b20 ?
the pikes comes only every 20-40 minutes :-( so the best was a software way ?

adityaduggal

adityaduggal

New Member
View Badges
Joined
Nov 4, 2019
Messages
6
Reaction score
9
Rating - 0%
0   0   0
Was this for my reply, since the left hand side graph does not have any such peaks and the right hand side graph's left-side Y-axis range is not matching with the temperature range in the Temperature only graph so I can't seem to believe that it should be due to 127 and 85 degree peaks from ds18b20.

I am not an expert but still whatever limited knowledge I have it seems that the right hand graph for heater's left hand Y-axis range is getting some values from deg F range instead of getting from deg C range.

Tidal Gardens
PaulJ2303

PaulJ2303

Community Member
View Badges
Joined
Sep 30, 2018
Messages
76
Reaction score
172
Rating - 0%
0   0   0
i wonder if anyone else has come across this in pi3 beta?
I've been running 2.5 and using it to control my Jebao dosing pumps via PCA9685.

when i upgrade to 3 beta the tick box for PCA9685 in the configuration screen goes blank and when i recheck it and reboot the pi it goes blanks again and my dosing pumps no longer work.

I wonder if this is a known thing?

also on 2.5 the dosing pumps sometimes stop working and make a whining noise. i believe this is a known issue, hense the reason i want to get onto 3.0 as i believe there is a fix incoming for that.

B

Blaxkin

Community Member
View Badges
Joined
Oct 4, 2019
Messages
27
Reaction score
46
Rating - 0%
0   0   0
adityaduggal said:
Was this for my reply, since the left hand side graph does not have any such peaks and the right hand side graph's left-side Y-axis range is not matching with the temperature range in the Temperature only graph so I can't seem to believe that it should be due to 127 and 85 degree peaks from ds18b20.

I am not an expert but still whatever limited knowledge I have it seems that the right hand graph for heater's left hand Y-axis range is getting some values from deg F range instead of getting from deg C range.
Click to expand...

no i have a problem with peaks :-)

PaulJ2303

PaulJ2303

Community Member
View Badges
Joined
Sep 30, 2018
Messages
76
Reaction score
172
Rating - 0%
0   0   0
PaulJ2303 said:
when i upgrade to 3 beta the tick box for PCA9685 in the configuration screen goes blank and when i recheck it and reboot the pi it goes blanks again and my dosing pumps no longer work.
Click to expand...

in my last post i describe the screen on my PC ... when i load reef-pi on my tablet i can now see the option to add a pca9685 driver.
when i try to do this (i don't change the default address or frequency options which are set at 68 and 1500 respectively) it fails with an error:
{"error"."failed to create. Error: remote IO error"} HTTP 500

has anyone else seen this, i'm using @Michael Lane goby board.

Coral Stop
BenB

BenB

Active Member
View Badges
Joined
Jun 11, 2019
Messages
118
Reaction score
152
Rating - 0%
0   0   0
PaulJ2303 said:
in my last post i describe the screen on my PC ... when i load reef-pi on my tablet i can now see the option to add a pca9685 driver.
when i try to do this (i don't change the default address or frequency options which are set at 68 and 1500 respectively) it fails with an error:
{"error"."failed to create. Error: remote IO error"} HTTP 500

has anyone else seen this, i'm using @Michael Lane goby board.
Click to expand...

Default hexidecimal code for PCA9685 is 0x40, in decimal that wil be 64.

cactus.io

Convert decimal to binary, octal and hexadecimal

Convert decimal to binary, octal and hexadecimal table
cactus.io cactus.io

M

Matevz Savarin

Active Member
View Badges
Joined
Dec 5, 2018
Messages
209
Reaction score
163
Rating - 0%
0   0   0
I was just looking this tnx BenB, 64 works. Anyone know why I cant delete wrong connector? It just cant be deleted.


Similar threads

epicfatigue
    • Like
  • Sticky
Reefpi Update (Raspberry Pi OS (Trixie) 64bit)
2 3 4 5
Replies
80
Views
5,267
Sral
S
D
    • Like
Reef pi macro glitching
Replies
2
Views
161
Dustbunny
D
Hooz
    • Like
Reef=Pi / Robo-Tank Setup Issues
Replies
4
Views
324
epicfatigue
epicfatigue
Peace River
    • 2 Thumbs
Solved: Robo-Tank Rev-B + Raspberry Pi Zero 2 W + reef-pi – full Installation fix and lessons learned
Replies
1
Views
501
Rocks reef
Rocks reef
J
    • 2 Thumbs
    • Love
A Raspberry Pi based Aquarium Monitor
Replies
3
Views
492
polarbeans
polarbeans

TOP 10 Trending Threads

smitten with ocean life
    • Like
  • Question
if you could say one thing to online vendors, what would it be?
2
Replies
23
Views
431
PJfish
PJfish
W
    • Like
    • Love
    • 2 Thumbs
Anyone have Fresh and Saltwater? Show off those tanks!
2 3 4
Replies
67
Views
1,623
Wandering Albatross
W
AlyciaMarie
    • Like
  • Sticky
GIVEAWAY 🌺Welcome to the Tunze Turbelle Nanostream 6075 Giveaway: Win a Turbelle Nanostream 6075!🌺
2 3 4 5
Replies
95
Views
980
Reef46
R
hardcorn77
Recommended phosphate tests
2
Replies
23
Views
422
Ryan - Serious Reefs
Ryan - Serious Reefs
Delly
    • Like
Cycling Help - What is the best options for me
2 3
Replies
57
Views
732
Ryan - Serious Reefs
Ryan - Serious Reefs
revhtree
    • Like
What’s one piece of equipment under $50 that every reefer should have?
2 3 4
Replies
61
Views
1,448
Ryan - Serious Reefs
Ryan - Serious Reefs
C
Losing a battle with fine hair algae. Sea hare?
2
Replies
27
Views
508
Ryan - Serious Reefs
Ryan - Serious Reefs
Gumbies R Us
    • Like
The one coral everyone loves, but you don't like it.
2
Replies
32
Views
689
56longroof
56longroof
Reef broke
    • Like
    • 2 Thumbs
Proof Asterina starfish are harmful!
2 3
Replies
40
Views
1,384
Rjramos
Rjramos
C
Is aqualivefish.com legit?
2
Replies
22
Views
351
Reef Jedi
Reef Jedi

WHAT AMOUNT OF LIVE ROCK AND SAND SHOULD BE PRIORITIZED FOR OPTIMAL BIODIVERSITY/FILTRATION?

  • 100% live rock + bagged sand

    Votes: 38 27.3%

  • 100% dry rock + 100% live sand

    Votes: 47 33.8%

  • 50/50 live/dry rock, 50/50 live/bagged sand

    Votes: 30 21.6%

  • 75% live rock, 25% live sand

    Votes: 14 10.1%

  • 25% live rock, 75% live sand

    Votes: 10 7.2%
See comments…

New Posts

Free Phyto Promo
Spend $39+ → free 16oz Phyto · Use code FREEPHYTO at checkout · $16.99 value · Densest 6-species blend · Free shipping on every order · 100% live arrival guaranteed Spend $39+ → free 16oz Phyto · Use code FREEPHYTO at checkout · $16.99 value · Densest 6-species blend · Free shipping on every order · 100% live arrival guaranteed
Shop Now Code: FREEPHYTO
Dinkins Aquatic Gardens
Tidal Gardens
Nutramar Foods
World Wide Corals
SaltwaterAquarium.com
TCK Corals
Top Shelf Aquatics
New Posts
Back
Top
