Hey Everyone!

Just joined the site today and I thought it would be fun to document my progress! I have been in the aquarium hobby for 16 years now, ever since my dad and I had a 20 gallon freshwater tank when I was young. I really enjoy the hobby because of all the skills you learn keeping these complex biological environments thriving.

Last year I got into reefing by purchasing a 120 gallon tank. Its was going to be my first endeavor into reefing, and by god it was going to be big!

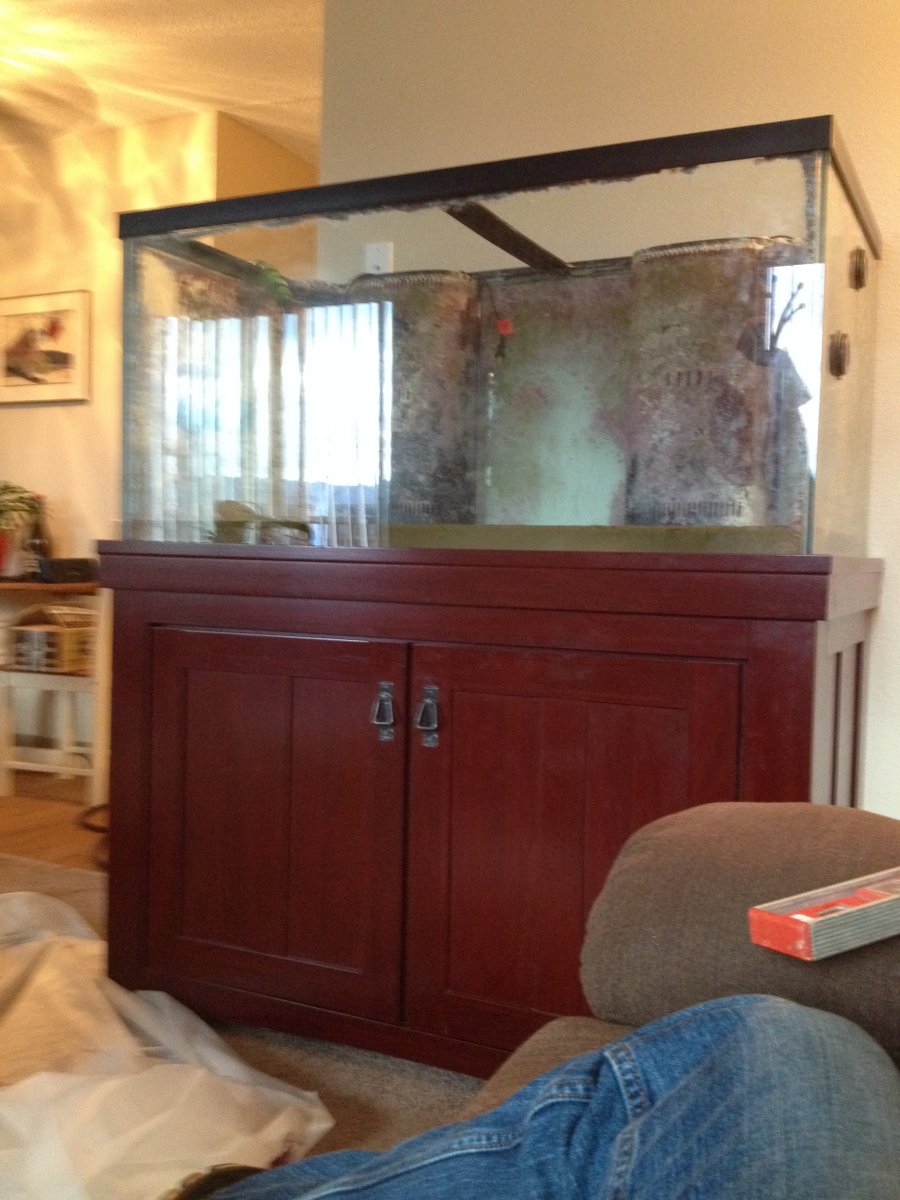

Picture of the tank filling (Lets hope she holds boys!)

I guess it didn't break (phew). This is a few months later after some elbow grease and a couple of (minor?) apartment floods.

I had to move about two months ago to a new apartment. Now, if you haven't moved a tank before, you probably don't know that it is a task believed by some to be the punishment of the ninth circle of hell. This tank is no longer set up.

I learned a lot from this tank. Firstly, I used too much rock. I feel like there was not enough depth of view. In a few places, the tank glass was really hard to clean because there was not much space.When I did the layout for this tank, I designed it in the tank. I didn't enjoy this method because it was super hard to place the rocks and I was running back and forth constantly to see how it looked. The next time around I was going to use dry rock and glue everything outside the tank and then cure it. I really feel I could get a much better layout without feeling rushed.



I used cement blocks for a base with egg crate and fiberglass reflector rods that ran up the rock structures. The next time around I used epoxy. I think the extra rigidity from the epoxy is great. I also think you can really get the shapes and angles you want with epoxy. The cement blocks were detrimental for my yellow rose antenna goby and candy cane pistol shrimp pair, who couldn't burrow any where they pleased. However, the biggest problem was that you could really see the supports, and when the sand blew around, the cement. Finally, the need for a controller became really apparent about the third time I had water on my carpet.

On to new things!

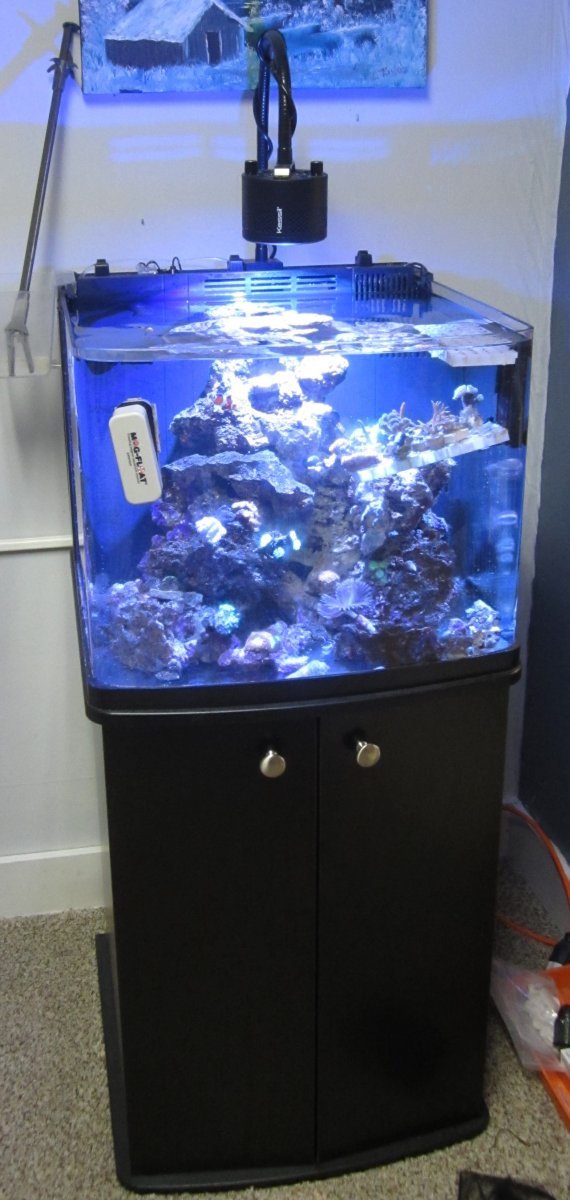

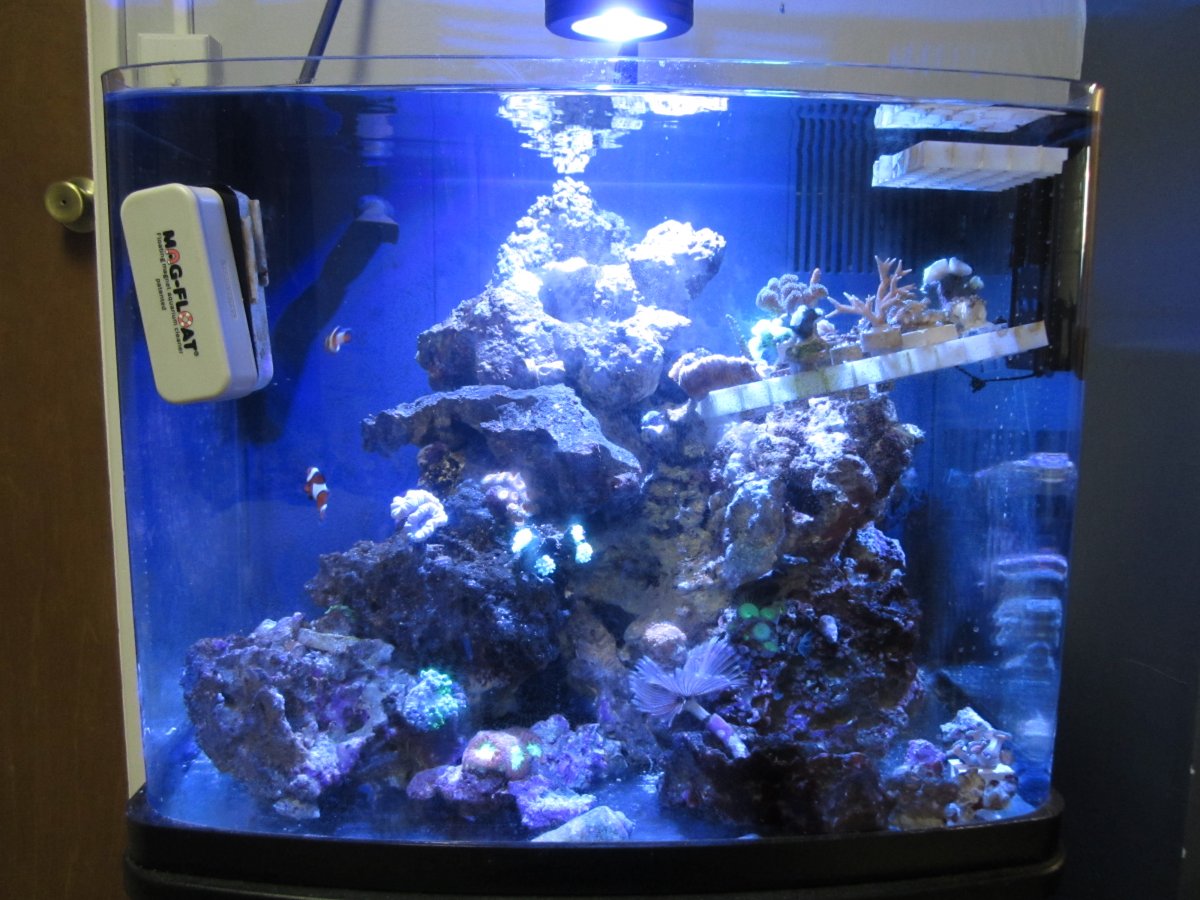

I have come to the conclusion that I will probably be moving a fair amount in the next couple years. So I have decided to do the biocube thing. Now I have had this cube set up for two months and I have to say that I am really enjoying the size. I had the bigger is better mentality; now I am seeing the benefits of having a small tank. Here are some pics of the tank now.


I took the best rock from the 120 and kind of just piled it in there for now. The tank is currently bare-bottom. I plan to use the rock in a future frag tank..

The first thing I did to the tank was pop the rim off. This process was fairly easy. There are a couple of articles around the web which are helpful. What I did was take a dremel and cut all the way around the plastic at the junction when the rim meets the sump area. After that was cut all the way down to the glass I took a used high E string from my acoustic. I ran the wire under the rim using back and forth motions to cut through all the silicone (and there was a lot!). The rim came off really easy after that.

After that process the tank was ready. Right now I am running a Kessil A360WE with gooseneck. I love the kessil. I have been running t5 lights before and was getting frustrated with the ongoing cost of bulbs so I too the plunge and got the Kessil. I figure if I get a larger tank the Kessil will still work great and I can just get another if required. The next upgrade for the lighting will be a 90 degree adapter for the light. This will give me another 6 or so inches of clearance. Frankly, I think this should have been included in the gooseneck package :/.

I found a Reefkeeper Elite on Ebay for a good price. I honestly think this is the best upgrade I have made for my personal enjoyment, and for the health of my corals. A couple summers ago I completely fried a freshwater tank with a faulty heater while I was on vacation (not a great conversation to have with the person watching the place). The controller mitigates this by directly controlling the heater. I used an aqualifter pump with two float switches for an auto top off solution that rocks.

My livestock is doing pretty good through the move. I had a few casualties :< Namely Bert and Ernie my goby shrimp pair :(:(:(. I loved those guys.

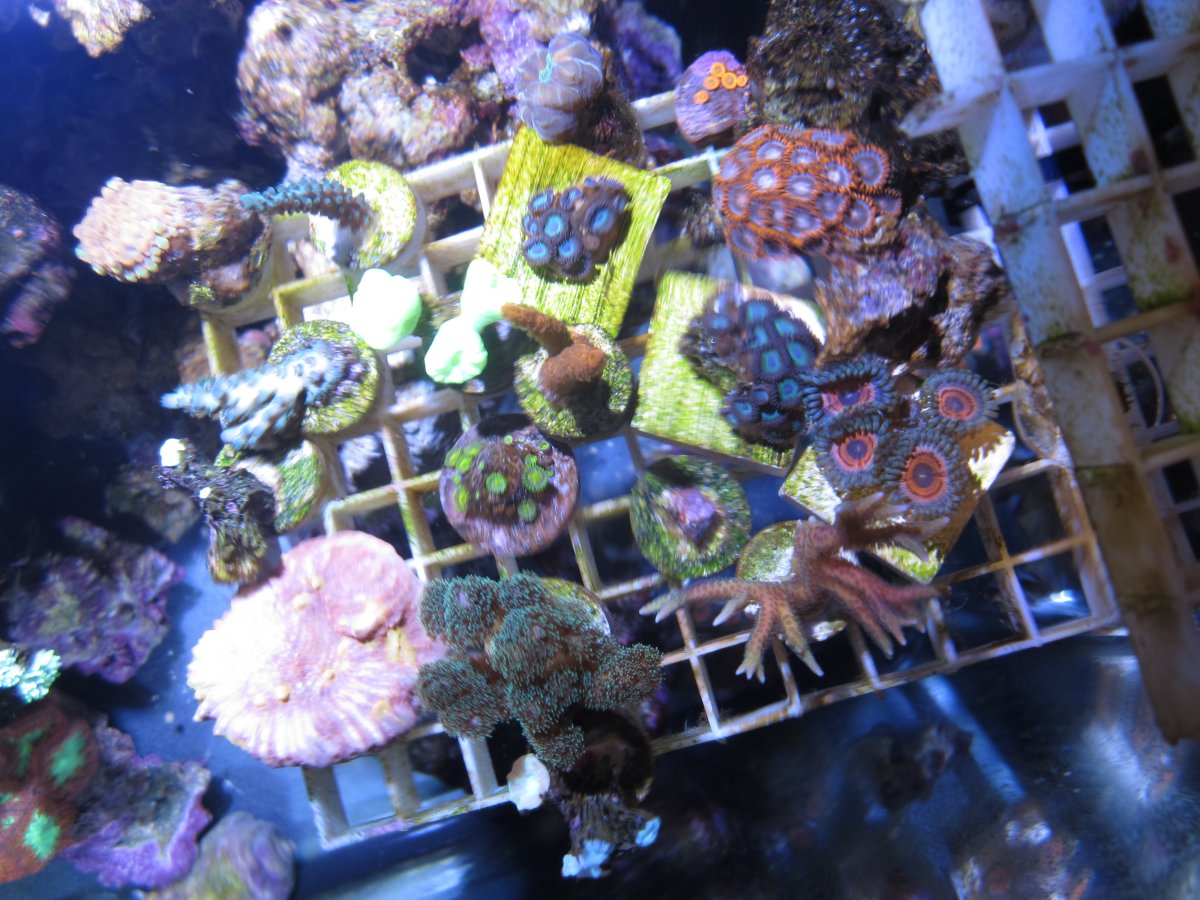

Fire and Ice Zoas. Pesky Fruit Loops that won't open. OG and Kryptonite Candy Canes.

Wondering what these blue/turquoise zoas might be. Got from a trade.

Purple and green mottled hammer coral. This guy had a big bubble in the center and is currently deflated. Hoping that means its growing a couple new heads for trading :D? Really cool looking normally. I'll post another picture when it perks back up.

Green Bay Packers

Looking for an I.D on these guys too. Same trade. One of my favorites.

Got cool plans for this tank so stay tuned! Loosing steam for tonight. Future plans for this tank include a SWEET (hopefully) new rock structure that is curing as we type, sand, and plenty of other stuff. More things to come!

Thanks for checking it out!



































ReeferMaddness843

5000 Club Member
View Badges
Joined
Apr 24, 2016
Messages
5,542
Reaction score
7,339
Location
Charleston SC
Rating - 0%
0   0   0
Nice thread and beautiful tank. I believe the turquoise and red zoas you were asking about, are actually a blastomussa wellsi. I have a colony myself as well.
Or maybe I misunderstood which pic they referred to on second glance. Lol

OP
OP
Squig

Squig

New Member
View Badges
Joined
Sep 30, 2016
Messages
21
Reaction score
23
Location
Oregon - Corvallis
Rating - 0%
0   0   0
Nice Tanks. Love the BC29.

Use This One.jpg

Thanks! It's been a really good tank so far.

Nice thread and beautiful tank. I believe the turquoise and red zoas you were asking about, are actually a blastomussa wellsi. I have a colony myself as well.
Or maybe I misunderstood which pic they referred to on second glance. Lol

Thank you! Yeah, I was actually talking about the picture above the quote. Kind of confusing there. It is the zoa colonies left of the fire and ice zoas. There are two colonies, one of which is south of the OG candycane and just above the red digitata. Love those blastos though, they are bulletproof.

OP
OP
Squig

Squig

New Member
View Badges
Joined
Sep 30, 2016
Messages
21
Reaction score
23
Location
Oregon - Corvallis
Rating - 0%
0   0   0
Hey Guys,

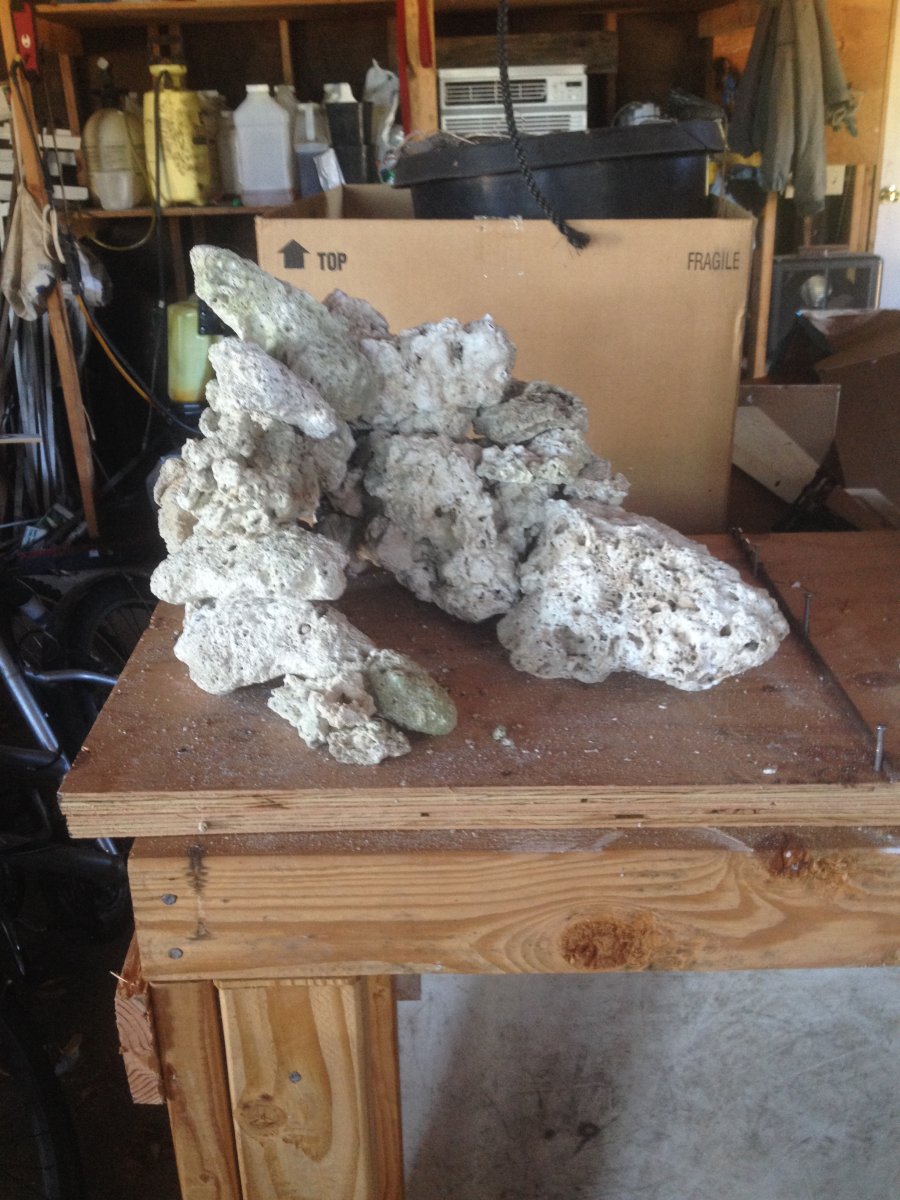

Thought I would post an update showing the rockwork I did for the Bio-cube. Let me know what you think! I have been working on the frag system recently and I just got all the parts for the plumbing. That's going to be my project for today. It is going to be a 33 gallon long with a 55 gallon sump.

Thanks for looking!




OP
OP
Squig

Squig

New Member
View Badges
Joined
Sep 30, 2016
Messages
21
Reaction score
23
Location
Oregon - Corvallis
Rating - 0%
0   0   0
Hey Everyone!

Sorry I haven't posted. Got pretty distracted with things for a while. I have made a couple of big changes in the past couple weeks and I wanted to update the tread with the progress I have made.

I added sand to the tank. The aquascape that I was working on finished curing and I moved it into the display. I got a killer deal on another biocube! So, I have been using that as a holding tank and am getting it all dialed in to hold extra frags.

I did run into a couple of problems and learned a couple new things during all the transferring. When I was moving the new aquascape it litterally crumbled into three different pieces in my hands. Apparently J-B WaterWeld does not hold two rocks together in water :confused:. Yes I got the dust off the rock, and I also let it fully cure before submerging the structure. I did the best I could to reassemble the structure in the tank milkshake, and tried again after the tank cleared. Something isn't quite right and it will probably never be the same as I first had it.

Secondly, my red digitata is almost fully bleached after being in close contact with a frogspawn for an hour during the move (oops...).

I got my hands on a couple of new pieces of equipment through trade. I also picked up a bunch of new frags from a store going out of business in Salem, score! Three different favia, an open brain coral, mystery zoas, and a montipora stellata. Got a big piece of frogspawn and a duncan colony from a trade with a friend too!

I traded a CO2 tank and regulator for an Aqua-C Remora Skimmer with the old school maxi-jet. I have to say this thing is super loud. It has been pulling some increasingly dark skim. Time will tell if it will quite down. I converted the skimmer by adding a piece of styrofoam over the injection nozzle on the left compartment to quite it down slightly.

I also purchased an Jebao RW4 powerhead to increase my flow-game. So far it has been working great. Strong flow with a ton of options. Seems like a solid product and is pretty small.

Got a 90 degree adapter for the kessil. I really like this upgrade as it raises the light by a good seven inches or so. Solid.

Next in the tank progression I have to get these corals mounted into place for a grow out! Any ideas on placement are much appriciated. I'm thinking Zoa garden on the bottom right followed by favias moving up the arc, with some SPS at the top. Mushrooms and zoas on the bottom left. Finally some monties lining the interior of the arc to try to close off that big cave some.

Hope you all enjoy some pictures. Thanks for looking! :)


OP
OP
Squig

Squig

New Member
View Badges
Joined
Sep 30, 2016
Messages
21
Reaction score
23
Location
Oregon - Corvallis
Rating - 0%
0   0   0
Next project I am going to do is to get a screen top on the tank. Kind of a bummer, however, I am getting a Six-Line Wrasse from a trade and I have heard they jump frequently.

I'm thinking of picking up the DIY screen top offered by BRS. I was wondering if anyone has had luck bending the screen rim to fit a bow front? If not I will probably just make a square and cut a small section of acrylic for the front portion.

OP
OP
Squig

Squig

New Member
View Badges
Joined
Sep 30, 2016
Messages
21
Reaction score
23
Location
Oregon - Corvallis
Rating - 0%
0   0   0

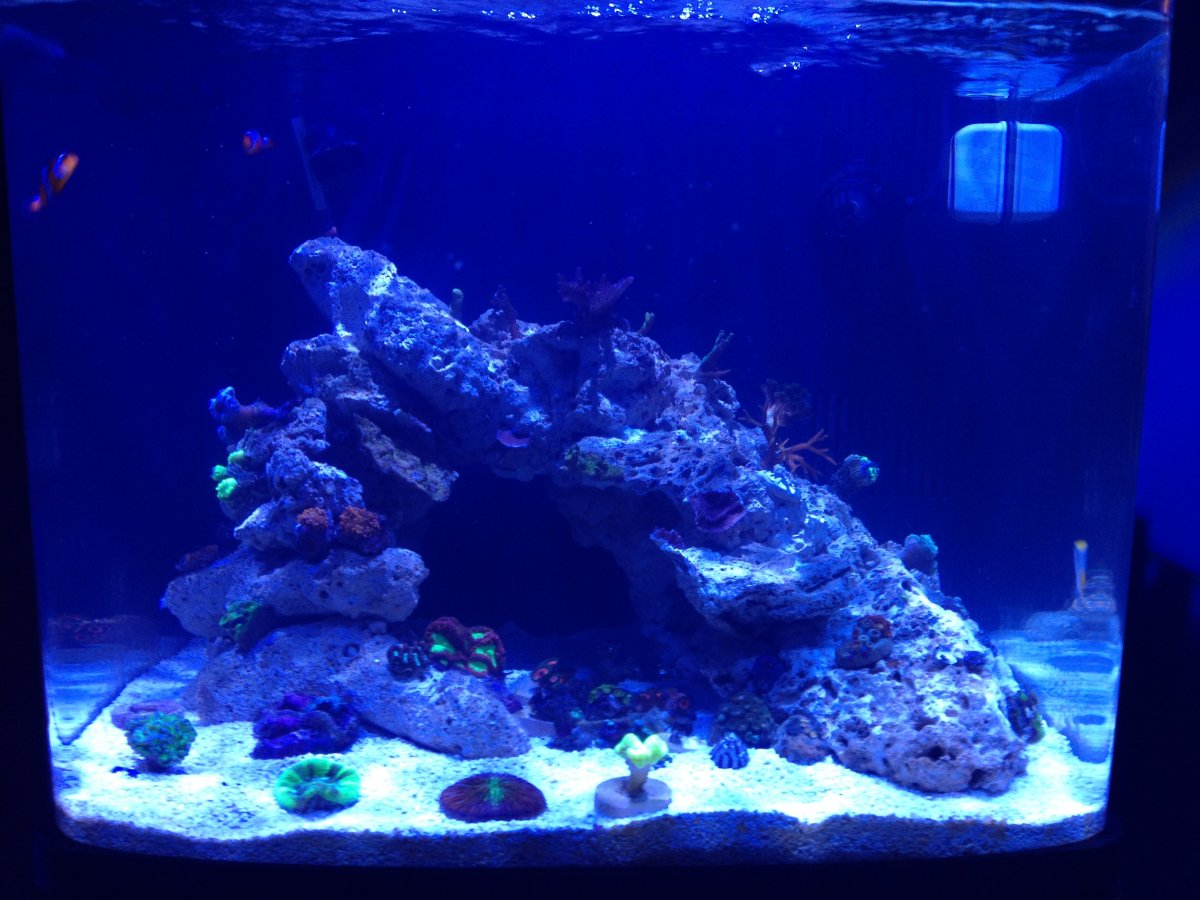

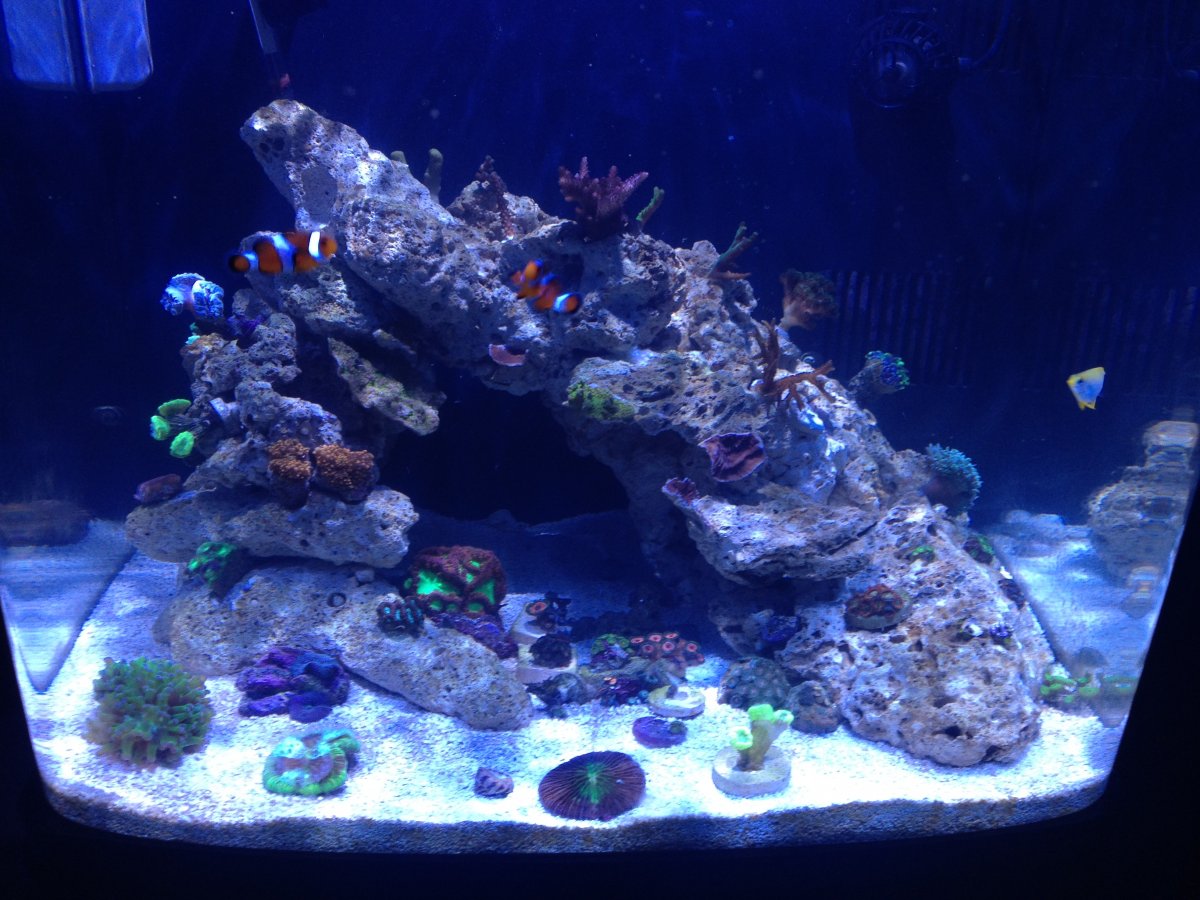

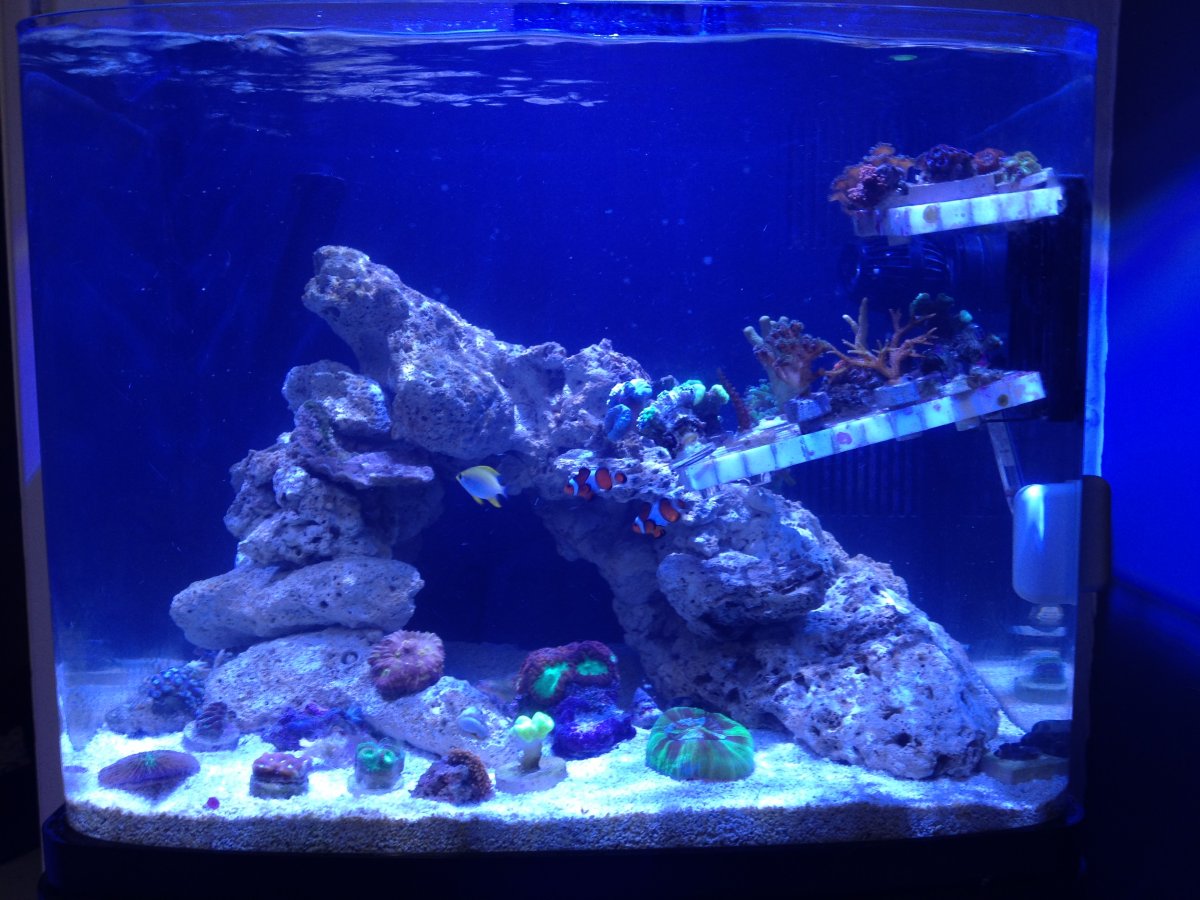

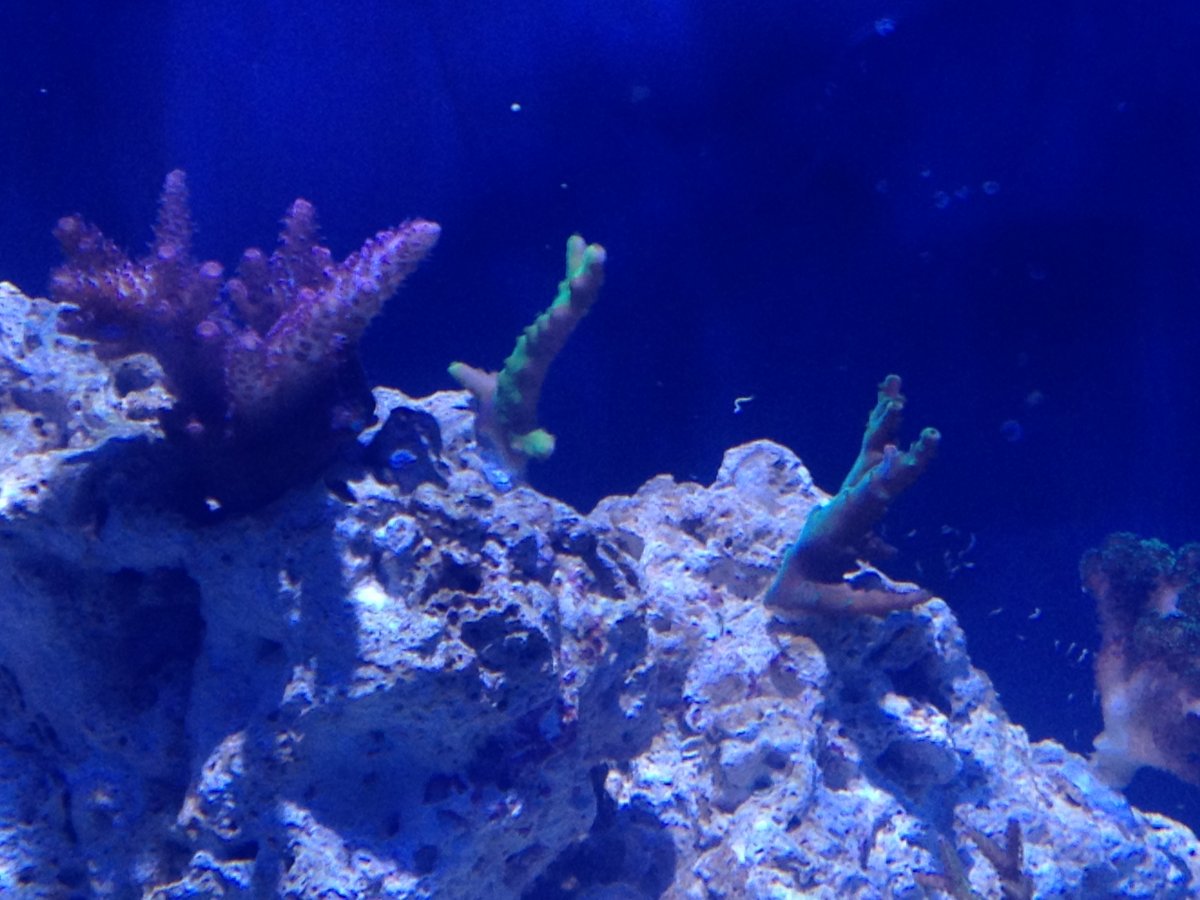

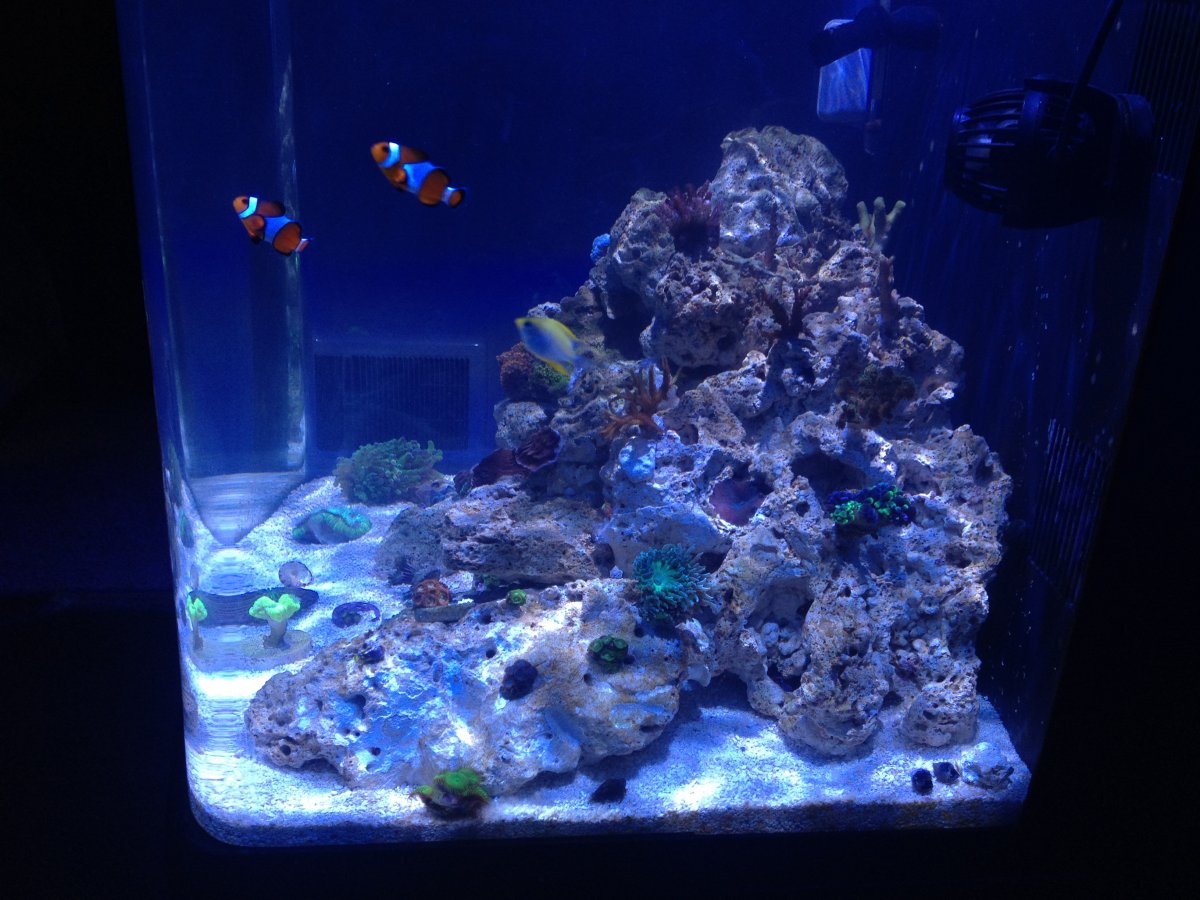

Finished placing the frags last night. Here are a couple shots. Sorry for the phone quality pictures. I'll find my digital camera. Also got a couple new SPS frags from a trade show below. Red Planet, Gumby Tort, and a Tri-Color left to right.
