Roller FIlters: Aquamaxx vs. Clarisea?

Ecotech Marine

#1Fellowreefer

Active Member
View Badges
Joined
Sep 19, 2019
Messages
310
Reaction score
274
Here you guys go, hope it helps

43DB66FD-C248-434A-9031-8C00D4BD5C8C.jpeg F8221C66-98D9-4C7E-8F81-B47B986D73FC.jpeg FE6696FE-466E-464B-8865-93EE1EBE721A.jpeg
Thanks m8 that’s awesome..


#1Fellowreefer

Active Member
View Badges
Joined
Sep 19, 2019
Messages
310
Reaction score
274
1-I am using Clarisea new 40 meter roll which I had to re-roll onto the aquamaxx inner tube and it’s 9 inches, using the actual aquamaxx supplies rolls it should be 8.5 inches.

2-height should be from the top of the 90 inlet to no more than 1.5 inches above to create head pressure and make the rolls last longer. You can have it higher but just be prepared to go through a roll every 5-10 days.

B8608F03-BEB8-4628-9ADB-0B7E0B31B2C8.jpeg 2FE3A065-1C3C-4B64-9D2D-FE507E342A3D.jpeg
Perfect m8 that’s great info..


slayertx

Active Member
View Badges
Joined
Nov 23, 2017
Messages
155
Reaction score
115
Seems like an old thread but still going to follow along.. I have a trigger system triton 44 sump and before cutting and modifying the acrylic I want to see how these preform
I too have the v1 of the trigger triton sump. I couldn't deal with not having some type of solid mechanical filter after running it for a few years. I bought the bubble magus medium and unfortunately it is quite large. So I am going to cut my sump this weekend as it's taking up so much of the refugium space I can not effectively use my chato or put the skimmer in it with that. I am going to remove the inlet brackets and cut back that inlet chamber wall to accommodate and thin the euro bracing down so it can hang off the back. Once done I may honestly move my skimmer to the 1st chamber as I have hated having my skimmer down stream of my chato.


Erick Armanii

Well-Known Member
View Badges
Joined
Dec 31, 2017
Messages
804
Reaction score
688
Location
Danbury Ct
I too have the v1 of the trigger triton sump. I couldn't deal with not having some type of solid mechanical filter after running it for a few years. I bought the bubble magus medium and unfortunately it is quite large. So I am going to cut my sump this weekend as it's taking up so much of the refugium space I can not effectively use my chato or put the skimmer in it with that. I am going to remove the inlet brackets and cut back that inlet chamber wall to accommodate and thin the euro bracing down so it can hang off the back. Once done I may honestly move my skimmer to the 1st chamber as I have hated having my skimmer down stream of my chato.

I came across another users thread where she reached out to trigger system and they sent over what was needed to convert it to the v2


slayertx

Active Member
View Badges
Joined
Nov 23, 2017
Messages
155
Reaction score
115
I came across another users thread where she reached out to trigger system and they sent over what was needed to convert it to the v2
I contacted them and even live not to far from their facility but their suggestion after saying I was willing to pay to fix this issue as of this week was to get 7" draw string socks....... I was like really

BRS

K7BMG

Valuable Member
View Badges
Joined
Mar 13, 2018
Messages
1,983
Reaction score
1,900
no noise except for the momentary buzz .

Install for me was a bit of pain. My water level is so high I had use only the last 2 screws to hang on the back leave the other 2 on top of the hanging bracket and it’s still a bit low. Issue number one encountered already....wife yelling at me that the roller is stuck on, confused I ran down stairs to the tank and to my amazement, a small trouchus snail was stuck in between the fleece and the back panel causing it to jam. It actually ripped the fleece, that’s how stuck it was. So now, I will have it on my apex and allow it to go only 20 seconds max for power then it will shut off. Protection plan. Improvements for the next gen I guess, my guess is if we didn’t stop the motor it would’ve been burned out for sure and that would’ve sucked. Lol All things considered, I really like it! So far so good. Fingers crossed no other snails will get stuck in there.

you guys drill out acrylic much. I need to drill a couple extra mounting holes to raise the roller higher. Scared I am going to crack the panel. Ugh...

CD89A6FC-CC5D-4FBD-8E59-EB75A92BCD66.jpeg E8BBBE05-23C0-4A10-86F9-5710AD9241F1.jpeg 21E2AF4A-9BCD-408D-A36D-FC403863FE81.jpeg 3761B68C-1C24-4C90-9688-CD9DAD60B705.jpeg

Sharp bits and go slow.
Dull bit and fast turns create heat melt the plastic get stuck and then crack it.


K7BMG

Valuable Member
View Badges
Joined
Mar 13, 2018
Messages
1,983
Reaction score
1,900
So many reviews on the roller mat systems overall.
My two go too trusted resource are opposed on the subject.

First resource says these are the next thing since sliced bread.
A game changer in the mechanical filtration world.

Second resource says we tried them all but, ultimately all failed on one or more levels.
Not just equipment failures but overall function and use.

So for me is about are they worth it on the whole over what brand is best.


Berto

New Member
View Badges
Joined
Jul 5, 2019
Messages
2
Reaction score
0
I too have the v1 of the trigger triton sump. I couldn't deal with not having some type of solid mechanical filter after running it for a few years. I bought the bubble magus medium and unfortunately it is quite large. So I am going to cut my sump this weekend as it's taking up so much of the refugium space I can not effectively use my chato or put the skimmer in it with that. I am going to remove the inlet brackets and cut back that inlet chamber wall to accommodate and thin the euro bracing down so it can hang off the back. Once done I may honestly move my skimmer to the 1st chamber as I have hated having my skimmer down stream of my chato.

awesome can ya post pics. I’m in the same boat

Zoanthids

Kentarokun

New Member
View Badges
Joined
May 11, 2020
Messages
2
Reaction score
0
Hi, i want to buy Aquamaxx Af-1 before i need to know the dimensions marine depot say in a picture 10.5¨x 4.75¨x H? the height the don't specific Thank!!


#1Fellowreefer

Active Member
View Badges
Joined
Sep 19, 2019
Messages
310
Reaction score
274
Hi, i want to buy Aquamaxx Af-1 before i need to know the dimensions marine depot say in a picture 10.5¨x 4.75¨x H? the height the don't specific Thank!!
Hey @Kentarokun if you go back to the first page of this thread and see the measurements that @BBLINKS has posted are as accurate as they are. I have received mine but haven't installed it yet but when I did receive I did match the measurements and they are accurate. I hope this helps you in making the decision.


jhall2242

Community Member
View Badges
Joined
Apr 13, 2020
Messages
41
Reaction score
27
I bought one for a new tank setup. I will be plumbing it in soon. I plan on having a Y with 2 valves to where I can divert water away from the Aquamaxx to a regular filter sock. Any thoughts on that?


ri3eboi

New Member
View Badges
Joined
Sep 21, 2019
Messages
4
Reaction score
2
I recently converted my filter sock bean animal drain to the AF1 rollermat.

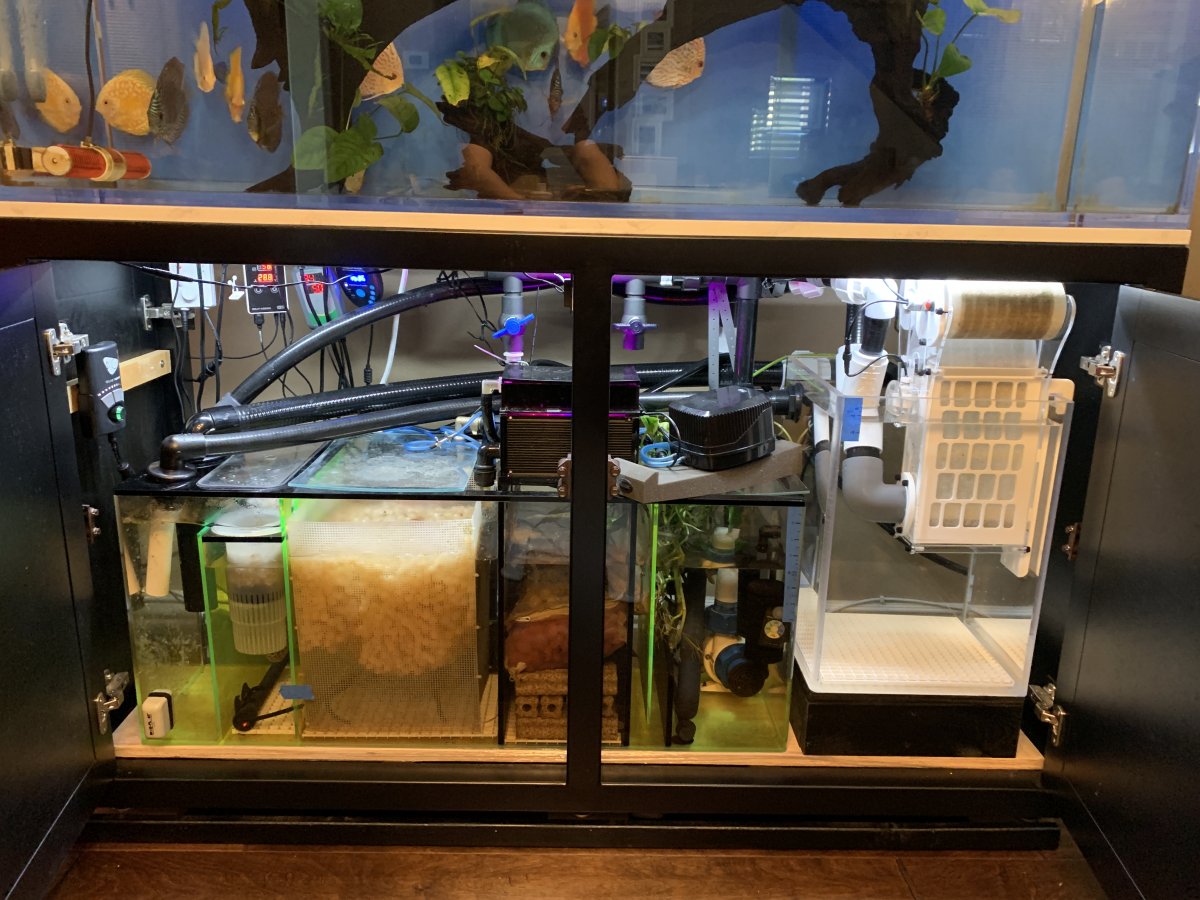

I added a 2nd sump to install the rollermat, gravity fed overflow into the original sump.

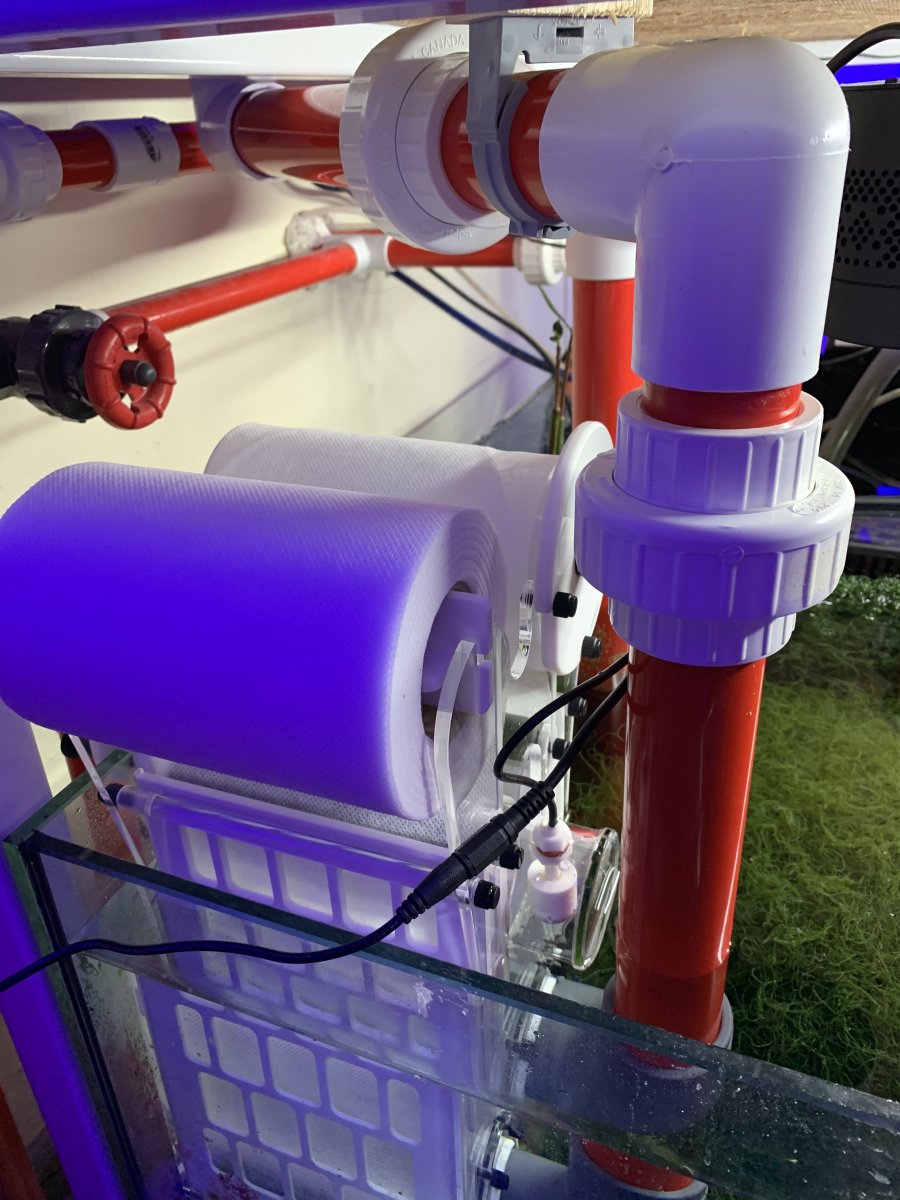

Plumbed the primary and secondary drains into a Y then into the AF1’s 1.5 inch drain.
So far the new setup is working well with a few issues:

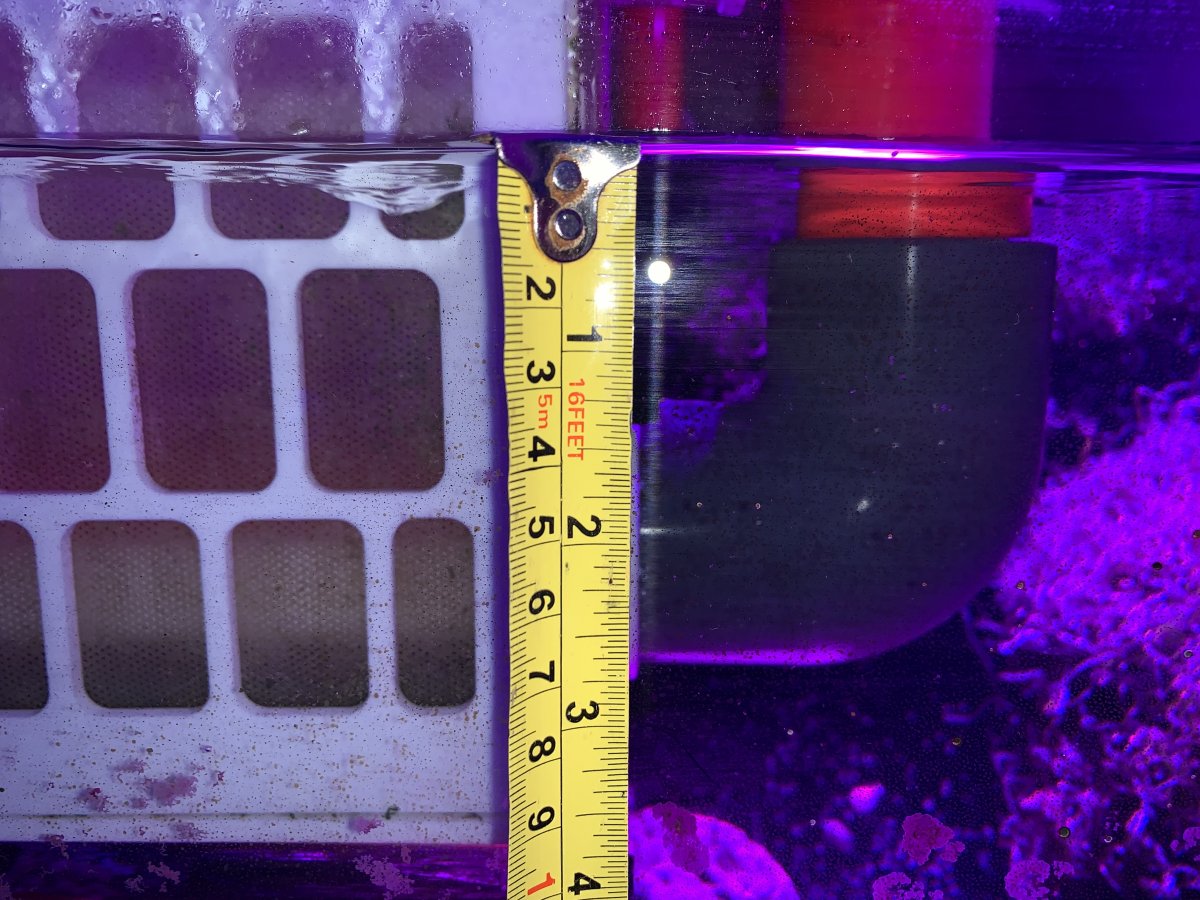

1. My water level is too high in the 2nd sump and causes excessive use of the roller mat filter, I am looking at a roll every 2 weeks for my 130gallon system. So that’s expensive

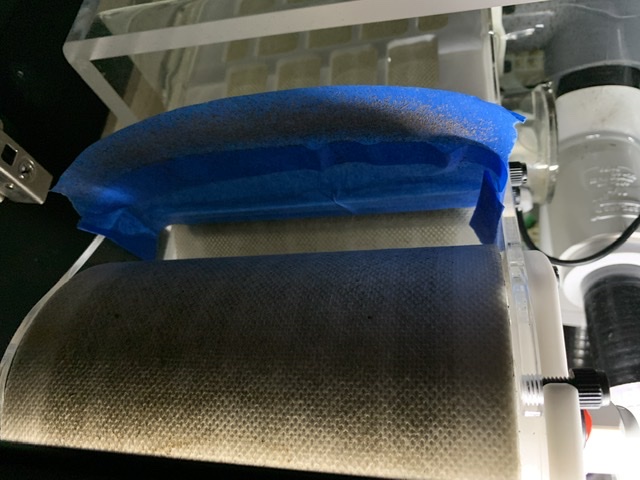

2. The dirty filter is dropping dried dusts (detritus caught by the filter) into the sump. I tried fixing it with painter tape (see photo)

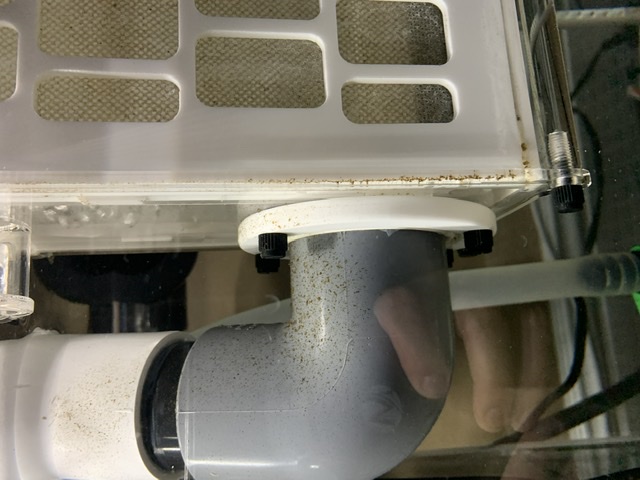

3. The filter is letting through detritus, the bottom of my brand new sump is fairly dirty two weeks into operation. This is after I chalked the seams... one side chalking came undone probably due to stress of the plumbing into the drain. I also noticed things like freeze dried worm seeping through the filter. Not sure how that’s possible but I saw half of a worm hanging out the other day.

D6BFFE57-05DA-40C5-B62B-B915DF6A7632.jpeg B25882DF-54E0-4F45-BBC6-E38404BBB1FC.jpeg 54C492A6-89E0-49B3-B2E0-A78172A1AB27.jpeg 03EDF2F4-7431-47C8-AB90-7F291BEEC318.jpeg A1A756B4-378C-462A-834D-11F121FDA88A.jpeg 7AD70BD4-3990-40FC-9609-E4424204DF84.jpeg


Francisco Hernandez

Community Member
View Badges
Joined
Jan 24, 2016
Messages
54
Reaction score
11
I got mine from Marine depot. It worked great, the only problem now is, that they sold out of the roller paper, and now that they have it in stock is seems like the new paper is a different micron. It literally keeps the water inside above my water line by 4 inches, which means I have to turn it off or all the paper will roll out in a week or so. I had to remember to turn it on every night to roll a little or program it to the neptune...it really sucks. I had 3 rolls prior and they worked great, but the next 2 I bought were terrible. I ordered 2 more I hope the new ones are better.


codycolina707

Active Member
View Badges
Joined
Jun 9, 2019
Messages
427
Reaction score
349
Want to put a roller filter in my system and was leaning towards the Clarisea SK-5000 (6" filter material). However, I just saw that Aquamaxx has a 6" roller filter for about $175 less.

Anyone with opinions or knowledge of the two? At almost half the price adn similair specifications the Aquamaxx is tempting.
Never used the clarisea but for the price my af1 gets the job done just fine 1 roll last about 2 months


Futuretotm

Well-Known Member
View Badges
Joined
Aug 4, 2016
Messages
525
Reaction score
647
Location
Tampa, FL
I recently converted my filter sock bean animal drain to the AF1 rollermat.
I added a 2nd sump to install the rollermat, gravity fed overflow into the original sump.
Plumbed the primary and secondary drains into a Y then into the AF1’s 1.5 inch drain.
So far the new setup is working well with a few issues:
1. My water level is too high in the 2nd sump and causes excessive use of the roller mat filter, I am looking at a roll every 2 weeks for my 130gallon system. So that’s expensive
2. The dirty filter is dropping dried dusts (detritus caught by the filter) into the sump. I tried fixing it with painter tape (see photo)
3. The filter is letting through detritus, the bottom of my brand new sump is fairly dirty two weeks into operation. This is after I chalked the seams... one side chalking came undone probably due to stress of the plumbing into the drain. I also noticed things like freeze dried worm seeping through the filter. Not sure how that’s possible but I saw half of a worm hanging out the other day.

D6BFFE57-05DA-40C5-B62B-B915DF6A7632.jpeg B25882DF-54E0-4F45-BBC6-E38404BBB1FC.jpeg 54C492A6-89E0-49B3-B2E0-A78172A1AB27.jpeg 03EDF2F4-7431-47C8-AB90-7F291BEEC318.jpeg A1A756B4-378C-462A-834D-11F121FDA88A.jpeg 7AD70BD4-3990-40FC-9609-E4424204DF84.jpeg

Howdy, your last sentence is concerning, about letting the detritus through, any change on this or is this still happening?
